PoleLITESurface
PoleLITE is a wall-mounted spotlight that enhances safety and security in playgrounds, parks, squares, and along footpaths. The luminaire is easy to adjust and is available with different distribution angles.
PoleLITESurface
PoleLITE is a wall-mounted spotlight that enhances safety and security in playgrounds, parks, squares, and along footpaths. The luminaire is easy to adjust and is available with different distribution angles.
Installation
Luminaire for wall installation. Mounted using the included wall bracket. For detailed information, see the installation instructions.
Connection
Connected with the supplied connector, max 2x2.5 mm². Integrated driver in luminaire. Available in Class II.
Design

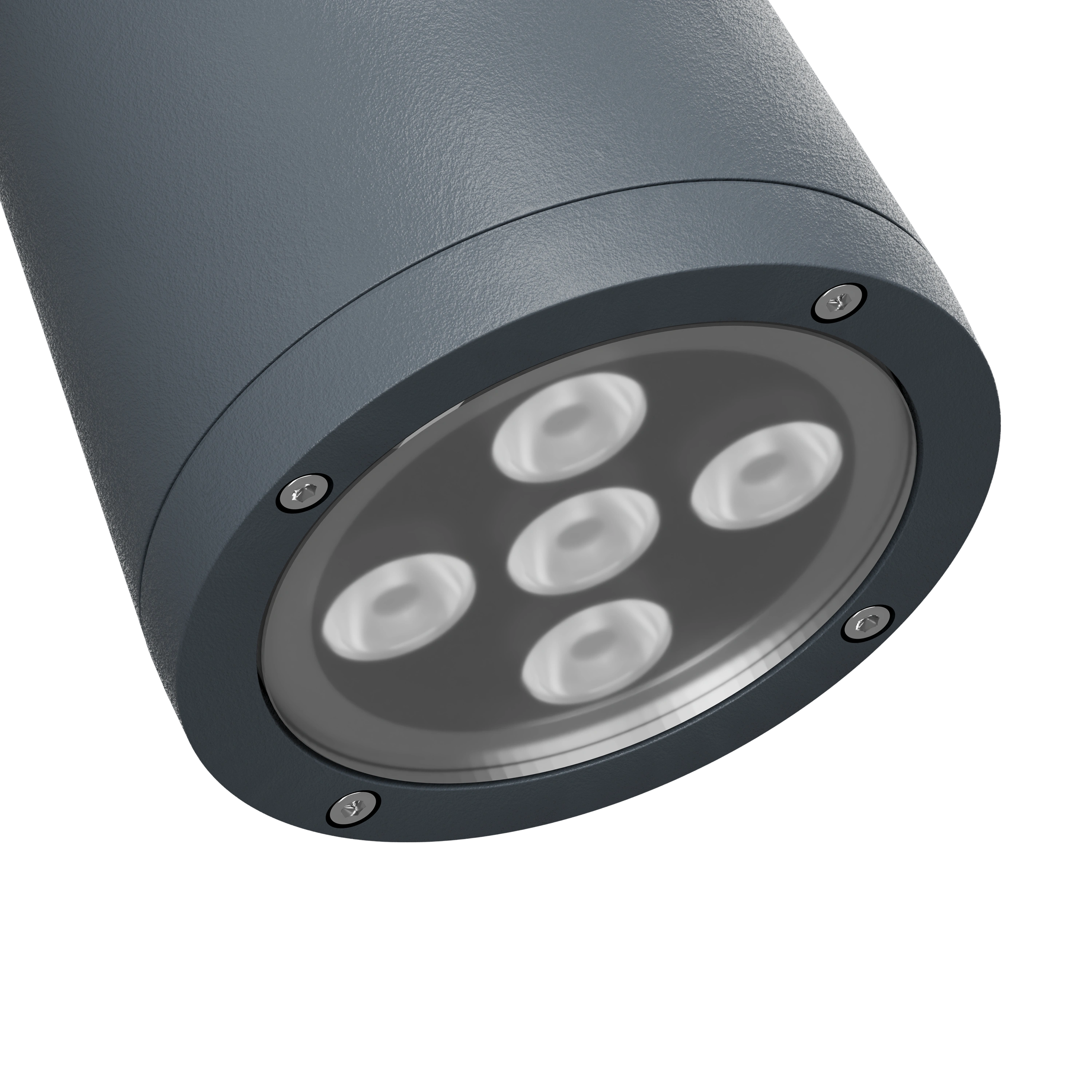

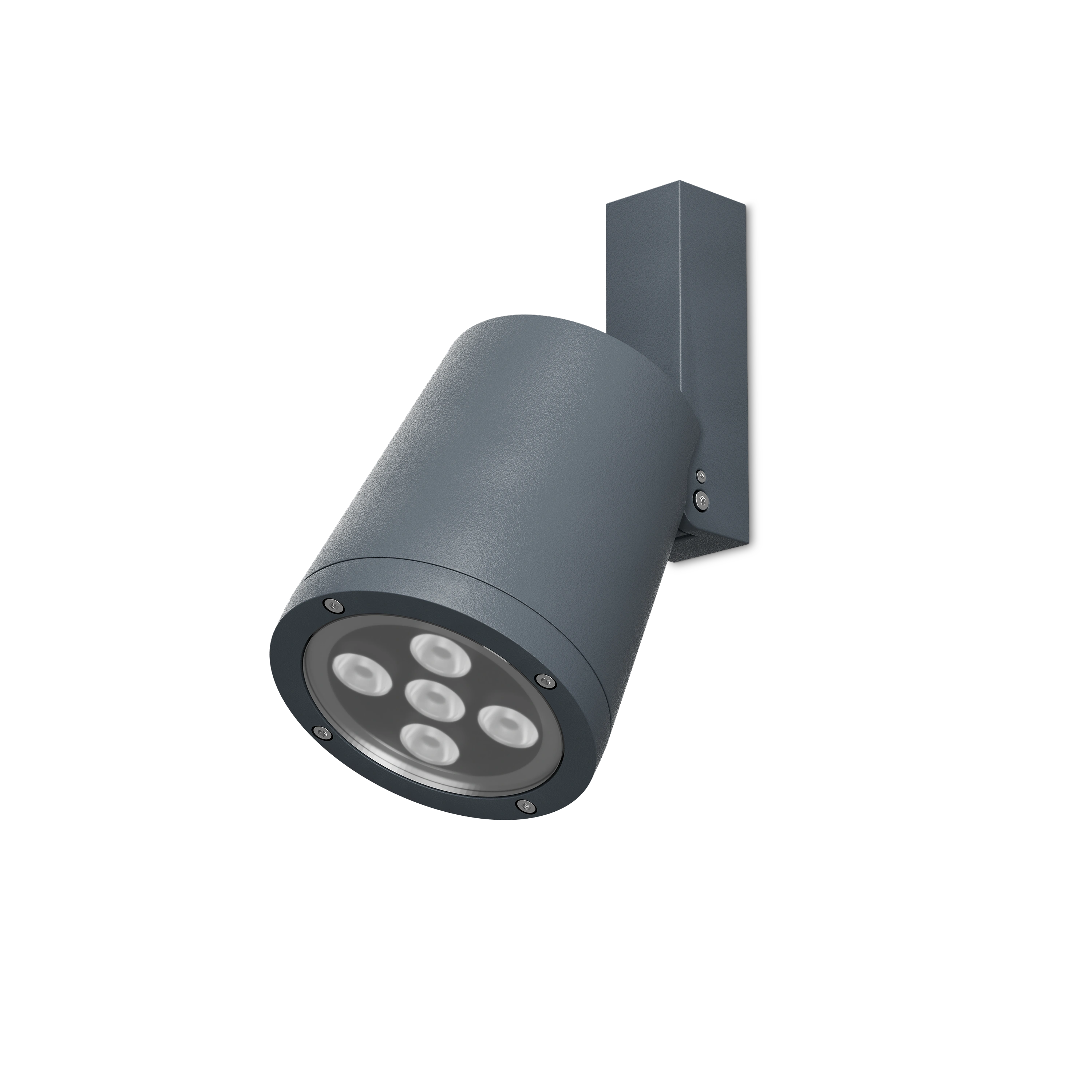

Body of die-cast aluminium with high corrosion resistance. Clear hardened glass, 8 mm. Stainless steel screws. Silicone seals. UV and weather-resistant powder coated. The head of the luminaire sits on a double-hinged bracket and can be rotated to whatever position you require. Anthracite grey (Gris 900 Sablé) or alu-grey (RAL 9006) structured lacquer.
Light Distribution

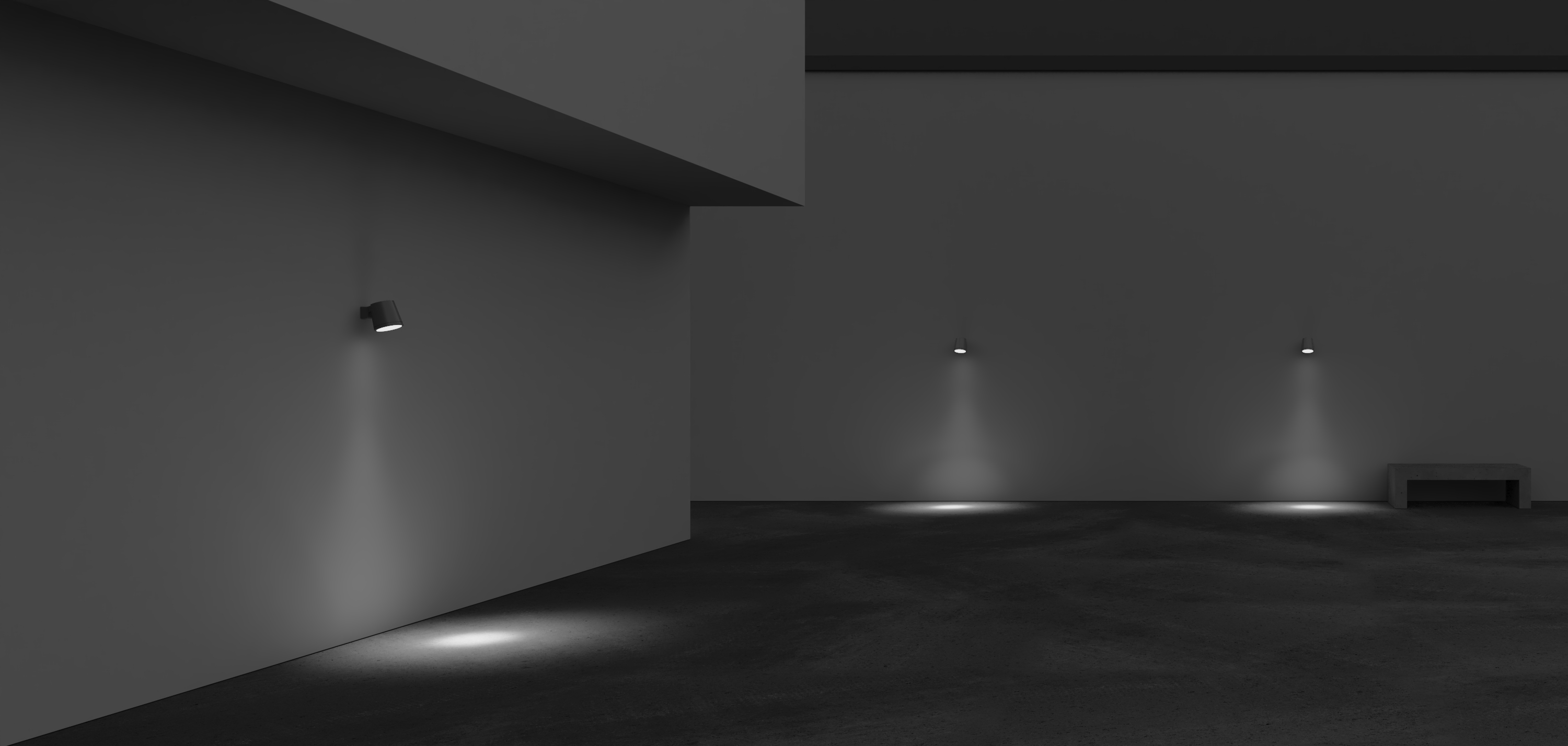

Narrow or medium beam.
Light data
Optics
Lens.
Find the right lighting control for your project
Optimise your energy savings and create efficient spaces
that are easy to manage. Use our guide to find the right lighting control for your project.
DALI (on request)
Enables flexible and precise control of luminaires – easy installation with two-wire system for both power and control. DALI is available on request.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Light distribution | Protective class | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|
| 305901-236 | 17 | 1090 | 3000 | Alu grey | 8° | 2 |
|
|
| 305901-329 | 17 | 1091 | 3000 | Anthracite grey | 8° | 2 |
|
|
| 305902-236 | 17 | 1197 | 4000 | Alu grey | 8° | 2 |
|
|
| 305902-329 | 17 | 1197 | 4000 | Anthracite grey | 8° | 2 |
|
|
| 305903-236 | 17 | 1218 | 3000 | Alu grey | 29° | 2 |
|
|
| 305903-329 | 17 | 1218 | 3000 | Anthracite grey | 29° | 2 |
|
|
| 305904-236 | 17 | 1336 | 4000 | Alu grey | 29° | 2 |
|
|
| 305904-329 | 17 | 1336 | 4000 | Anthracite grey | 29° | 2 |
|
|
| 305905-236 | 17 | 1164 | 3000 | Alu grey | 61° | 2 |
|
|
| 305905-329 | 17 | 1164 | 3000 | Anthracite grey | 61° | 2 |
|
|
| 305906-236 | 17 | 1291 | 4000 | Alu grey | 61° | 2 |
|
|
| 305906-329 | 17 | 1291 | 4000 | Anthracite grey | 61° | 2 |
|
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Anti-glare shield PoleLITE | Anti-glare shield to PoleLITE. Aluminium, powder-coated black. | 305000 |
