RondoSurface
Rondo is a large family of energy-efficient luminaires that offer high visual comfort and emphasise the character of the building. Rondo Surface-mounted is a robust downlight available with several light distribution options.
RondoSurface
Rondo is a large family of energy-efficient luminaires that offer high visual comfort and emphasise the character of the building. Rondo Surface-mounted is a robust downlight available with several light distribution options.
Installation
Luminaire for ceiling installation or for wall mounting. The ceiling variant’s bracket is fitted with bayonet fitting on two levels. For detailed information, see the installation instructions.
See installation video Rondo G3Connection
Terminal block 3x2.5 mm² or 5x2.5 mm² when dimming. Integrated driver for flexible installation. Through-wiring possible. Ceiling variant has connection from above or via a surface-mounted cable in three possible directions. CLO (Constant Light Output).
Design

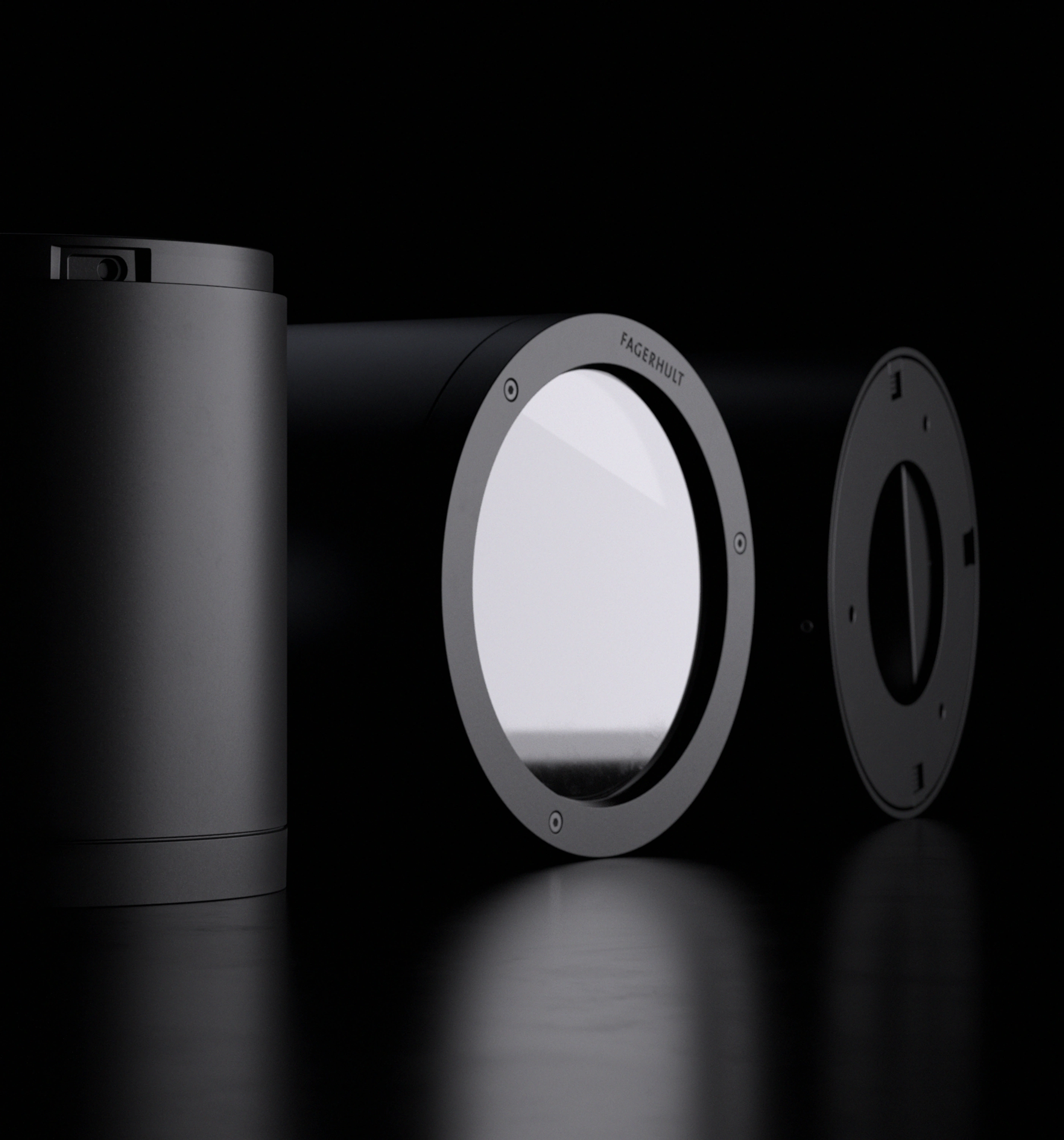

Body and wall bracket of cast aluminium. Glass of PMMA. Lacquered in anthracite grey (Gris 900 Sablé).
Light Distribution

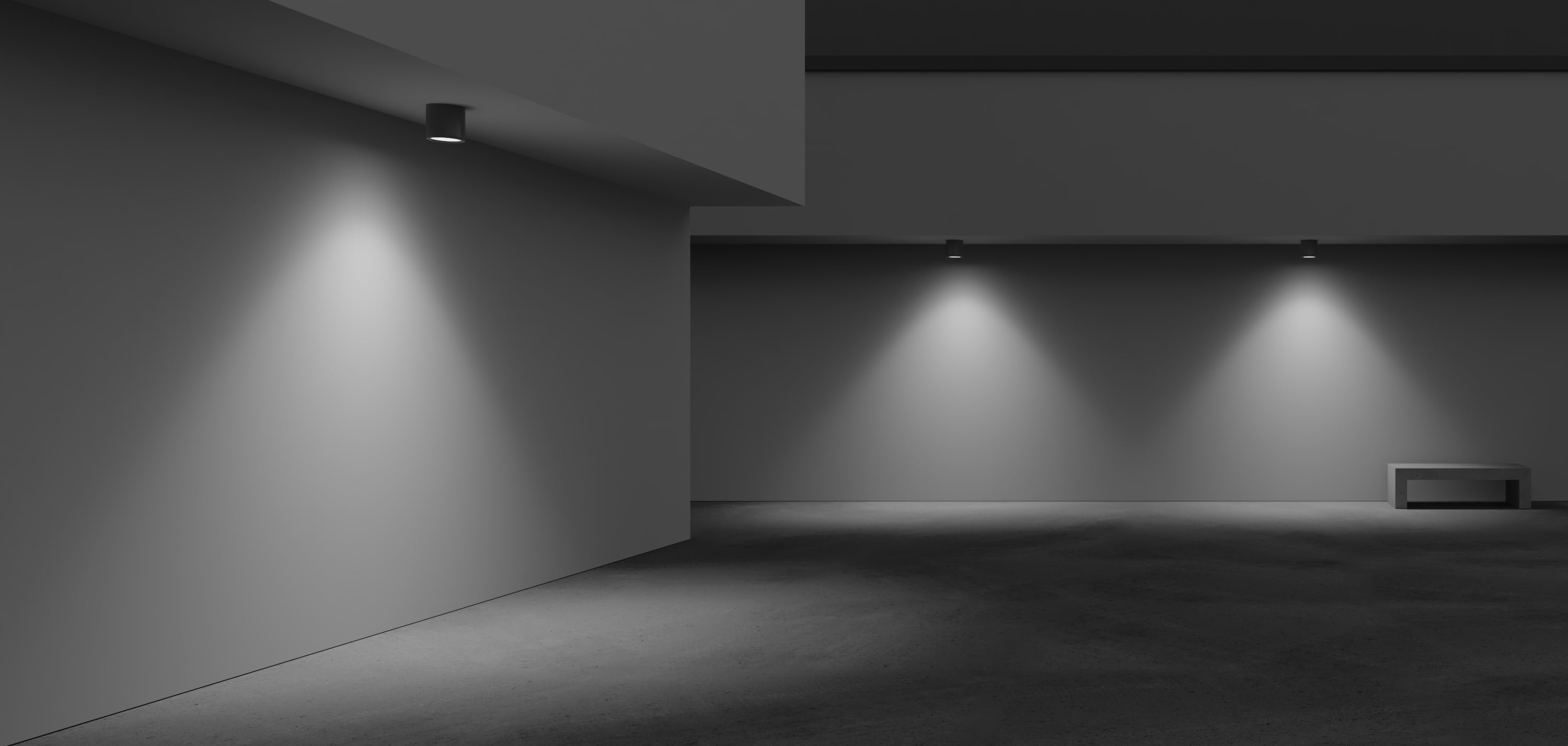

Ceiling – Wide and medium beam. Wall – Wide and narrow beam.
Light data
Optics
Reflector of matt anodised aluminium. Lens of clear acrylic (PMMA).
Made of recycled aluminium
The product contains die-cast aluminium, a material that in our products consists of approximately 85% recycled content. By using recycled aluminium, energy consumption is reduced by up to 95% compared to virgin aluminium (Source: European Aluminium). This entails a significantly lower carbon footprint.
Resilient over time
The aluminium alloy that is used is of high quality, ensuring good corrosion protection. Together with other material choices that counteract galvanic corrosion, the design can withstand exposed conditions over time. A pressure equalisation valve regulates the air pressure and ensures that moisture cannot enter the luminaire – only escape.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
DALI
Enables flexible and precise control of luminaires – easy installation with two-wire system for both power and control.
Read moreNight-time dimming (on demand)
Simple dimming where the light level is automatically reduced at preset times during the night, without the need for sensors or more advanced control technology.
Read more
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Diameter, mm | Dimensions, mm | Light distribution | Light control | Protective class | CLO time, h | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 308018 | 9.5 | 1134 | 3000 | Anthracite grey | 193 | 189 | Wide Beam | 1 | 100000 |
|
||
| 308018-402 | 9.5 | 1134 | 3000 | Anthracite grey | 193 | 189 | Wide Beam | DALI | 1 | 100000 |
|
|
| 308019 | 18 | 2269 | 3000 | Anthracite grey | 193 | 189 | Wide Beam | 1 | 100000 |
|
||
| 308019-402 | 19 | 2269 | 3000 | Anthracite grey | 193 | 189 | Wide Beam | DALI | 1 | 100000 |
|
|
| 308020 | 30 | 3488 | 3000 | Anthracite grey | 193 | 189 | Wide Beam | 1 | 100000 |
|
||
| 308020-402 | 31 | 3488 | 3000 | Anthracite grey | 193 | 189 | Wide Beam | DALI | 1 | 100000 |
|
|
| 308021 | 9.5 | 1220 | 4000 | Anthracite grey | 193 | 189 | Wide Beam | 1 | 100000 |
|
||
| 308021-402 | 9.5 | 1220 | 4000 | Anthracite grey | 193 | 189 | Wide Beam | DALI | 1 | 100000 |
|
|
| 308022 | 18 | 2439 | 4000 | Anthracite grey | 193 | 189 | Wide Beam | 1 | 100000 |
|
||
| 308022-402 | 19 | 2439 | 4000 | Anthracite grey | 193 | 189 | Wide Beam | DALI | 1 | 100000 |
|
|
| 308023 | 30 | 3751 | 4000 | Anthracite grey | 193 | 189 | Wide Beam | 1 | 100000 |
|
||
| 308023-402 | 31 | 3751 | 4000 | Anthracite grey | 193 | 189 | Wide Beam | DALI | 1 | 100000 |
|
|
| 308024 | 9.5 | 1163 | 3000 | Anthracite grey | 193 | 189 | Medium Beam | 1 | 100000 |
|
||
| 308024-402 | 9.5 | 1163 | 3000 | Anthracite grey | 193 | 189 | Medium Beam | DALI | 1 | 100000 |
|
|
| 308025 | 19 | 2325 | 3000 | Anthracite grey | 193 | 189 | Medium Beam | 1 | 100000 |
|
||
| 308025-402 | 19 | 2325 | 3000 | Anthracite grey | 193 | 189 | Medium Beam | DALI | 1 | 100000 |
|
|
| 308026 | 30 | 3575 | 3000 | Anthracite grey | 193 | 189 | Medium Beam | 1 | 100000 |
|
||
| 308026-402 | 31 | 3575 | 3000 | Anthracite grey | 193 | 189 | Medium Beam | DALI | 1 | 100000 |
|
|
| 308027 | 9.5 | 1250 | 4000 | Anthracite grey | 193 | 189 | Medium Beam | 1 | 100000 |
|
||
| 308027-402 | 9.5 | 1250 | 4000 | Anthracite grey | 193 | 189 | Medium Beam | DALI | 1 | 100000 |
|
|
| 308028 | 18 | 2500 | 4000 | Anthracite grey | 193 | 189 | Medium Beam | 1 | 100000 |
|
||
| 308028-402 | 19 | 2500 | 4000 | Anthracite grey | 193 | 189 | Medium Beam | DALI | 1 | 100000 |
|
|
| 308029 | 30 | 3844 | 4000 | Anthracite grey | 193 | 189 | Medium Beam | 1 | 100000 |
|
||
| 308029-402 | 31 | 3844 | 4000 | Anthracite grey | 193 | 189 | Medium Beam | DALI | 1 | 100000 |
|
|

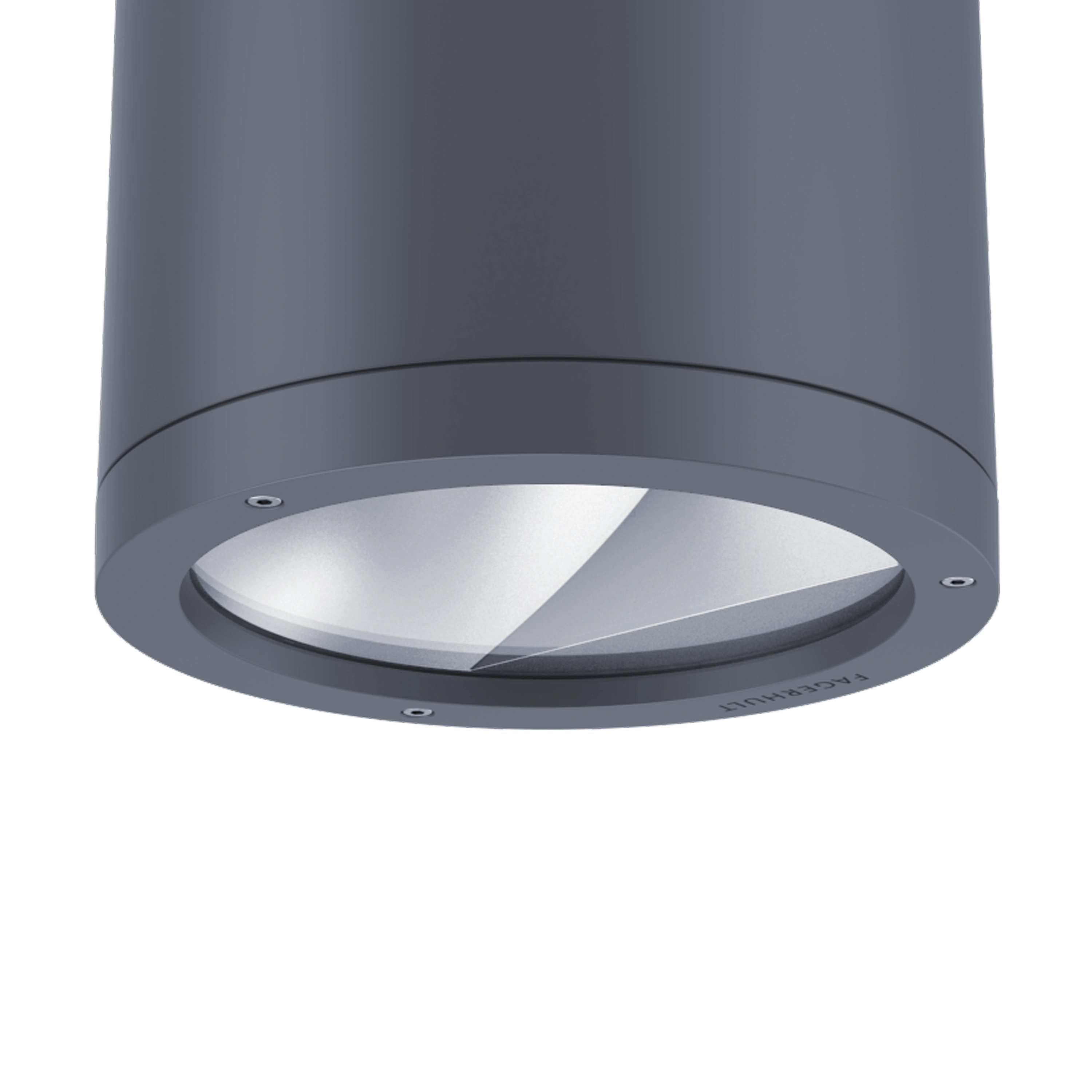

| 308030 | 14 | 1163 | 3000 | Anthracite grey | 193 | 189 | Asymmetrical | 1 | 100000 |
|
||
| 308030-402 | 14 | 1163 | 3000 | Anthracite grey | 193 | 189 | Asymmetrical | DALI | 1 | 100000 |
|
|
| 308031 | 29 | 2264 | 3000 | Anthracite grey | 193 | 189 | Asymmetrical | 1 | 100000 |
|
||
| 308031-402 | 30 | 2264 | 3000 | Anthracite grey | 193 | 189 | Asymmetrical | DALI | 1 | 100000 |
|
|
| 308032 | 14 | 1250 | 4000 | Anthracite grey | 193 | 189 | Asymmetrical | 1 | 100000 |
|
||
| 308032-402 | 14 | 1250 | 4000 | Anthracite grey | 193 | 189 | Asymmetrical | DALI | 1 | 100000 |
|
|
| 308033 | 29 | 2434 | 4000 | Anthracite grey | 193 | 189 | Asymmetrical | 1 | 100000 |
|
||
| 308033-402 | 30 | 2434 | 4000 | Anthracite grey | 193 | 189 | Asymmetrical | DALI | 1 | 100000 |
|
