VerdaPost

Verda is a family of luminaires for park lighting in a classic design. Verda Post can be varied using different shades and decorative elements. Choose between symmetric and asymmetric light distribution for the desired experience in the space.

113 lm/W Sensor available

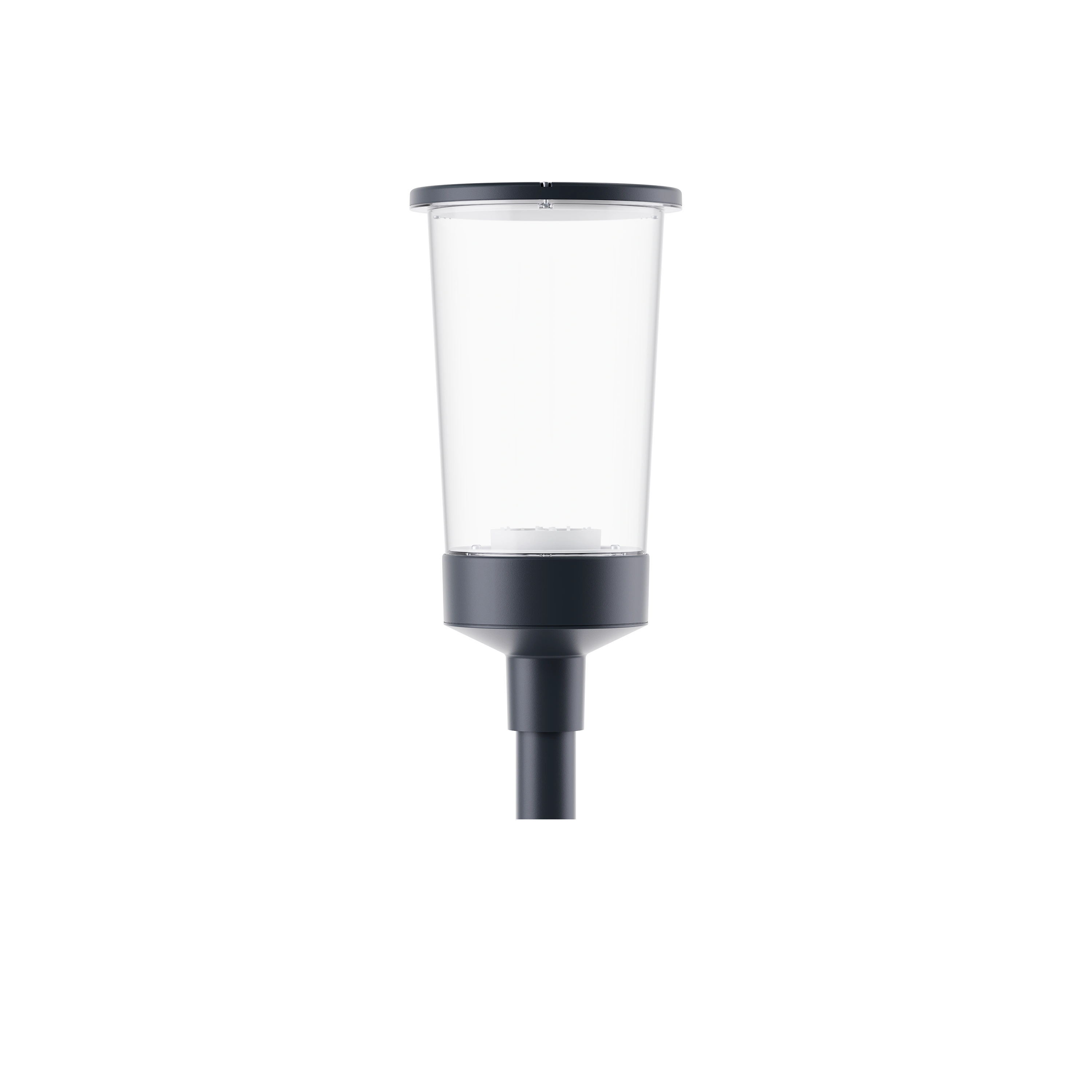

Verda post symmetrical anthracite grey
Responsible materials
Antracite grey Gris 900 Sablé (structure)
Verda post symmetrical anthracite grey Verda post symmetrical

VerdaPost

Verda is a family of luminaires for park lighting in a classic design. Verda Post can be varied using different shades and decorative elements. Choose between symmetric and asymmetric light distribution for the desired experience in the space.

113 lm/W Sensor available

Installation

Luminaire for mounting on a post, with post top Ø60 mm. For detailed information, see the installation instructions.

Connection

Supplied with a 5 m 1.5 mm² connection cable H05RN-F. Integrated driver with built-in overvoltage protection 6 kV between phase and neutral conductor (DM), 8 kV between phase/neutral conductor and protective earth (CM). Additional surge protection of 10 kV on request. CLO (Constant Light Output). Available in Class I and II.

Design

Post bracket, heat sink and cover of cast aluminium. Diffuser made of impact-resistant, UV-stabilised polycarbonate. Lacquered in anthracite grey (Gris 900 Sablé).

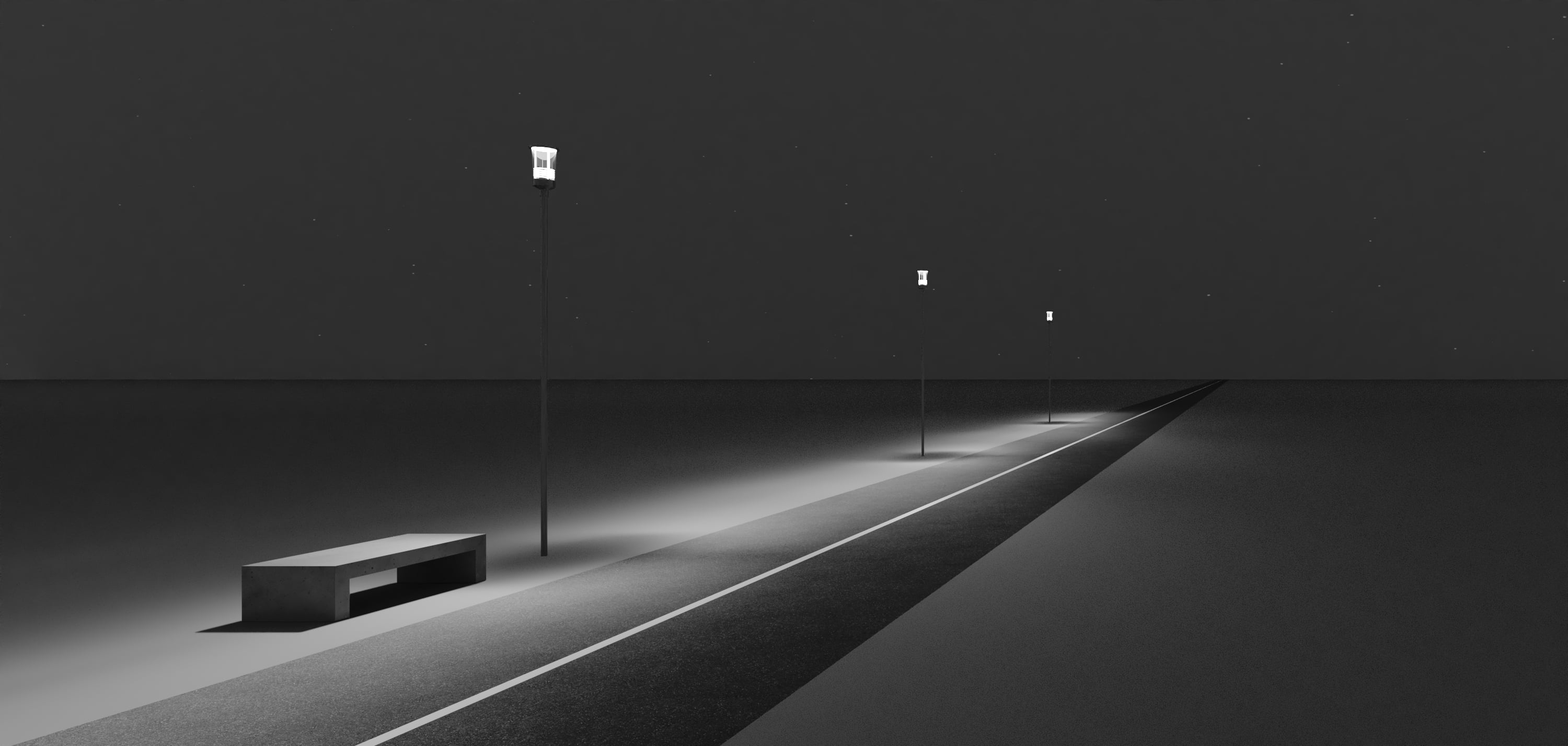

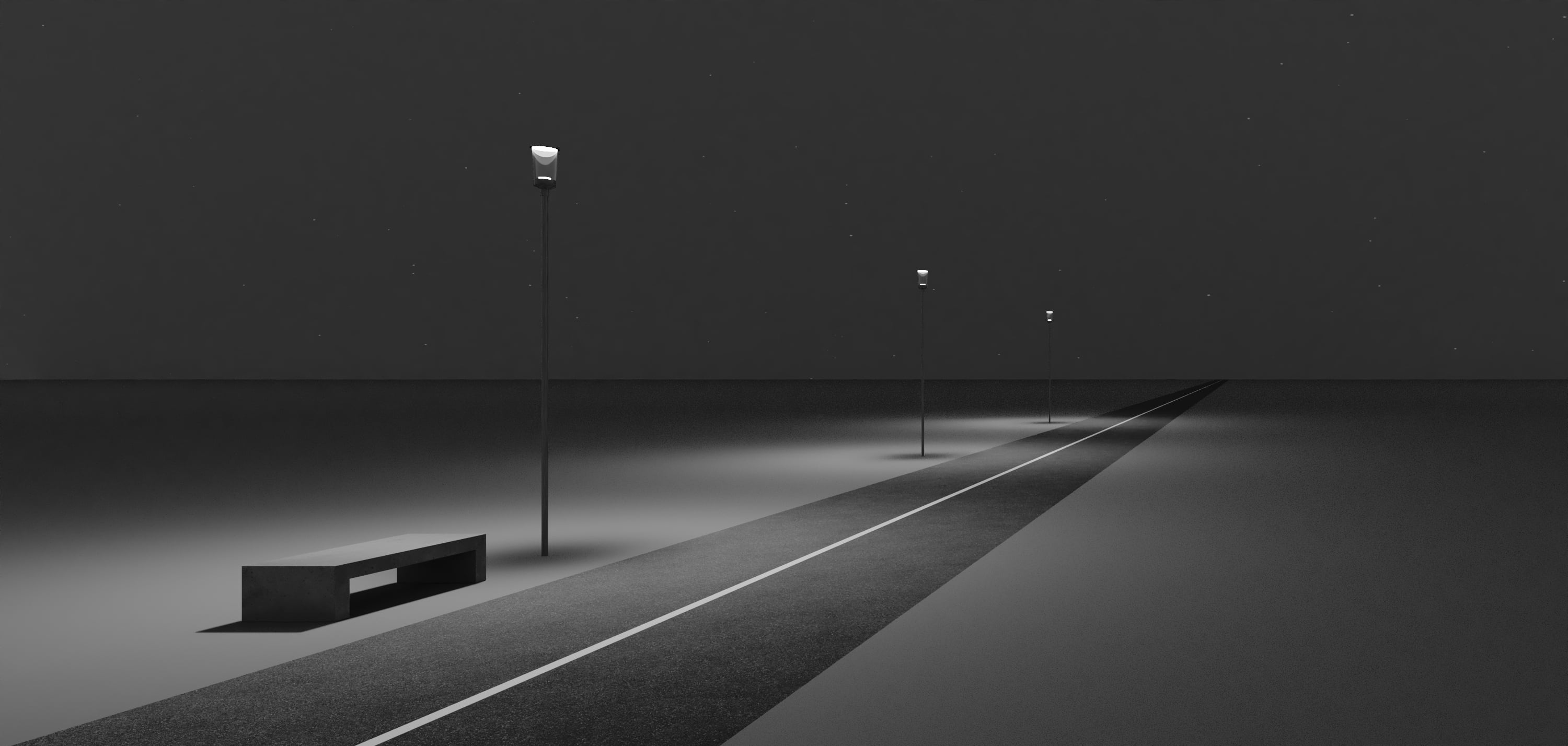

Light Distribution

Symmetrical or asymmetrical.

Light data

CCT, K:
3000 K, 4000 K
CRI/Rf:
70, 80
SDCM:
3
Lumen output:
1872-3223 lm
CLO:
100 000 h

Optics

Symmetrical reflector in acrylic (PMMA) or asymmetrical reflector in sheet metal.

113lm/W

Energy efficiency from the most efficient article.

Read more about our products lifecycle

Made of recycled aluminium

The product contains die-cast aluminium, a material that in our products consists of approximately 85% recycled content. By using recycled aluminium, energy consumption is reduced by up to 95% compared to virgin aluminium (Source: European Aluminium). This entails a significantly lower carbon footprint.

Resilient over time

The aluminium alloy that is used is of high quality, ensuring good corrosion protection. Together with other material choices that counteract galvanic corrosion, the design can withstand exposed conditions over time. A pressure equalisation valve regulates the air pressure and ensures that moisture cannot enter the luminaire – only escape.

Made in Sweden

The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.

DALI (on request)

Enables flexible and precise control of luminaires – easy installation with two-wire system for both power and control. DALI is available on request.

Night-time dimming

Simple dimming where the light level is automatically reduced at preset times during the night, without the need for sensors or more advanced control technology.

Read more

Zhaga Book 18Socket

Enables easy integration of sensors and communication modules via Zhaga socket.

Read more

Articles

Showing 116 of 116 Articles
Art.no. System Wattage Lumen output CCT, K Colour Diameter, mm Dimensions, mm Light distribution Light control Protective class CLO time, h Miscellaneous Light data files Article PDF
305010 21 1992 3000 Anthracite grey 271 536 Symmetrical 1 100000
305010-463 21 1992 3000 Anthracite grey 271 536 Symmetrical Night dimming 2 1 100000
305010-565 22 1992 3000 Grey 278 542 Symmetrical Citygrid 1 100000
305010-566 22 1992 3000 Grey 278 542 Symmetrical Citygrid without sensor 1 100000
305010-572 20 1912 3000 Anthracite grey 271 536 Symmetrical Zhaga Up 1 100000
305011 21 2082 3000 Anthracite grey 271 536 Asymmetrical 1 100000
305011-565 22 2082 3000 Grey 278 542 Asymmetrical Citygrid 1 100000
305011-566 22 2082 3000 Grey 278 542 Asymmetrical Citygrid without sensor 1 100000
305011-572 20 2057 3000 Anthracite grey 271 536 Asymmetrical Zhaga Up 1 100000
305012 18 1992 4000 Anthracite grey 271 536 Symmetrical 1 100000
305012-463 18 1992 4000 Anthracite grey 271 536 Symmetrical Night dimming 2 1 100000
305012-565 19 1992 4000 Grey 278 542 Symmetrical Citygrid 1 100000
305012-566 19 1992 4000 Grey 278 542 Symmetrical Citygrid without sensor 1 100000
305013 18 2082 4000 Anthracite grey 271 536 Asymmetrical 1 100000
305013-565 19 2082 4000 Grey 278 542 Asymmetrical Citygrid 1 100000
305013-566 19 2082 4000 Grey 278 542 Asymmetrical Citygrid without sensor 1 100000
305014 33 3084 3000 Anthracite grey 271 536 Symmetrical 1 100000
305014-463 33 3084 3000 Anthracite grey 271 536 Symmetrical Night dimming 2 1 100000
305014-565 35 3084 3000 Grey 278 542 Symmetrical Citygrid 1 100000
305014-566 35 3084 3000 Grey 278 542 Symmetrical Citygrid without sensor 1 100000
305014-572 33 2960 3000 Anthracite grey 271 536 Symmetrical Zhaga Up 1 100000
305015 33 3223 3000 Anthracite grey 271 536 Asymmetrical 1 100000
305015-565 35 3223 3000 Grey 278 542 Asymmetrical Citygrid 1 100000
305015-566 35 3223 3000 Grey 278 542 Asymmetrical Citygrid without sensor 1 100000
305015-572 33 3184 3000 Anthracite grey 271 536 Asymmetrical Zhaga Up 1 100000
305016 28 3084 4000 Anthracite grey 271 536 Symmetrical 1 100000
305016-463 28 3084 4000 Anthracite grey 271 536 Symmetrical Night dimming 2 1 100000
305016-565 30 3084 4000 Grey 278 542 Symmetrical Citygrid 1 100000
305016-566 30 3084 4000 Grey 278 542 Symmetrical Citygrid without sensor 1 100000
305017 28 3223 4000 Anthracite grey 271 536 Asymmetrical 1 100000
305017-565 30 3223 4000 Grey 278 542 Asymmetrical Citygrid 1 100000
305017-566 30 3223 4000 Grey 278 542 Asymmetrical Citygrid without sensor 1 100000
305018 21 1908 3000 Anthracite grey 271 536 Symmetrical 1 100000 Decor ring
305018-463 21 1908 3000 Anthracite grey 271 536 Symmetrical Night dimming 2 1 100000 Decor ring
305018-565 22 1908 3000 Grey 278 542 Symmetrical Citygrid 1 100000 Decor ring
305018-566 22 1908 3000 Grey 278 542 Symmetrical Citygrid without sensor 1 100000 Decor ring
305018-572 20 1872 3000 Anthracite grey 271 536 Symmetrical Zhaga Up 1 100000 Decor ring
305019 18 1908 4000 Anthracite grey 271 536 Symmetrical 1 100000 Decor ring
305019-463 18 1908 4000 Anthracite grey 271 536 Symmetrical Night dimming 2 1 100000 Decor ring
305019-565 19 1908 4000 Grey 278 542 Symmetrical Citygrid 1 100000 Decor ring
305019-566 19 1908 4000 Grey 278 542 Symmetrical Citygrid without sensor 1 100000 Decor ring
305020 33 2955 3000 Anthracite grey 271 536 Symmetrical 1 100000 Decor ring
305020-463 33 2955 3000 Anthracite grey 271 536 Symmetrical Night dimming 2 1 100000 Decor ring
305020-565 35 2955 3000 Grey 278 542 Symmetrical Citygrid 1 100000 Decor ring
305020-566 35 2955 3000 Grey 278 542 Symmetrical Citygrid without sensor 1 100000 Decor ring
305020-572 33 2899 3000 Anthracite grey 271 536 Symmetrical Zhaga Up 1 100000 Decor ring
305021 28 2955 4000 Anthracite grey 271 536 Symmetrical 1 100000 Decor ring
305021-463 28 2955 4000 Anthracite grey 271 536 Symmetrical Night dimming 2 1 100000 Decor ring
305021-565 30 2955 4000 Grey 278 542 Symmetrical Citygrid 1 100000 Decor ring
305021-566 30 2955 4000 Grey 278 542 Symmetrical Citygrid without sensor 1 100000 Decor ring
305022 18 2132 4000 Anthracite grey 271 536 Asymmetrical 1 100000 Decor ring
305022-463 18 2132 4000 Anthracite grey 271 536 Asymmetrical Night dimming 2 1 100000 Decor ring
305022-565 19 2132 4000 Grey 278 542 Asymmetrical Citygrid 1 100000 Decor ring
305022-566 19 2132 4000 Grey 278 542 Asymmetrical Citygrid without sensor 1 100000 Decor ring
305023 28 3301 4000 Anthracite grey 271 536 Asymmetrical 1 100000 Decor ring
305023-463 28 3301 4000 Anthracite grey 271 536 Asymmetrical Night dimming 2 1 100000 Decor ring
305023-565 30 3301 4000 Grey 278 542 Asymmetrical Citygrid 1 100000 Decor ring
305023-566 30 3301 4000 Grey 278 542 Asymmetrical Citygrid without sensor 1 100000 Decor ring
305024 21 1912 3000 Anthracite grey 580 538 Symmetrical 1 100000 Shade
305024-463 21 1912 3000 Anthracite grey 580 538 Symmetrical Night dimming 2 1 100000 Shade
305024-565 22 1912 3000 Grey 580 538 Symmetrical Citygrid 1 100000 Shade
305024-566 22 1912 3000 Grey 580 538 Symmetrical Citygrid without sensor 1 100000 Shade
305024-572 20 1912 3000 Anthracite grey 271 536 Symmetrical Zhaga Up 1 100000 Shade
305025 21 2057 3000 Anthracite grey 580 538 Asymmetrical 1 100000 Shade
305025-565 22 2057 3000 Grey 580 538 Asymmetrical Citygrid 1 100000 Shade
305025-566 22 2057 3000 Grey 580 538 Asymmetrical Citygrid without sensor 1 100000 Shade
305025-572 20 2057 3000 Anthracite grey 271 536 Asymmetrical Zhaga Up 1 100000 Shade
305026 18 1912 4000 Anthracite grey 580 538 Symmetrical 1 100000 Shade
305026-463 18 1912 4000 Anthracite grey 580 538 Symmetrical Night dimming 2 1 100000 Shade
305026-565 19 1912 4000 Grey 580 538 Symmetrical Citygrid 1 100000 Shade
305026-566 19 1912 4000 Grey 580 538 Symmetrical Citygrid without sensor 1 100000 Shade
305027 18 2057 4000 Anthracite grey 580 538 Asymmetrical 1 100000 Shade
305027-565 19 2057 4000 Grey 580 538 Asymmetrical Citygrid 1 100000 Shade
305027-566 19 2057 4000 Grey 580 538 Asymmetrical Citygrid without sensor 1 100000 Shade
305028 33 2960 3000 Anthracite grey 580 538 Symmetrical 1 100000 Shade
305028-463 33 2960 3000 Anthracite grey 580 538 Symmetrical Night dimming 2 1 100000 Shade
305028-565 35 2960 3000 Grey 580 538 Symmetrical Citygrid 1 100000 Shade
305028-566 35 2960 3000 Grey 580 538 Symmetrical Citygrid without sensor 1 100000 Shade
305028-572 33 2960 3000 Anthracite grey 271 536 Symmetrical Zhaga Up 1 100000 Shade
305029 33 3184 3000 Anthracite grey 580 538 Asymmetrical 1 100000 Shade
305029-565 35 3184 3000 Grey 580 538 Asymmetrical Citygrid 1 100000 Shade
305029-566 35 3184 3000 Grey 580 538 Asymmetrical Citygrid without sensor 1 100000 Shade
305029-572 33 3184 3000 Anthracite grey 271 536 Asymmetrical Zhaga Up 1 100000 Shade
305030 28 2960 4000 Anthracite grey 580 538 Symmetrical 1 100000 Shade
305030-463 28 2960 4000 Anthracite grey 580 538 Symmetrical Night dimming 2 1 100000 Shade
305030-565 30 2960 4000 Grey 580 538 Symmetrical Citygrid 1 100000 Shade
305030-566 30 2960 4000 Grey 580 538 Symmetrical Citygrid without sensor 1 100000 Shade
305031 28 3184 4000 Anthracite grey 580 538 Asymmetrical 1 100000 Shade
305031-565 30 3184 4000 Grey 580 538 Asymmetrical Citygrid 1 100000 Shade
305031-566 30 3184 4000 Grey 580 538 Asymmetrical Citygrid without sensor 1 100000 Shade
305032 21 1872 3000 Anthracite grey 580 538 Symmetrical 1 100000 Decor ring/shade
305032-463 21 1872 3000 Anthracite grey 580 538 Symmetrical Night dimming 2 1 100000 Decor ring/shade
305032-565 22 1872 3000 Grey 580 538 Symmetrical Citygrid 1 100000 Decor ring/shade
305032-566 22 1872 3000 Grey 580 538 Symmetrical Citygrid without sensor 1 100000 Decor ring/shade
305032-572 20 1872 3000 Anthracite grey 271 536 Symmetrical Zhaga Up 1 100000 Decor ring/shade
305033 18 1872 4000 Anthracite grey 580 538 Symmetrical 1 100000 Decor ring/shade
305033-463 18 1872 4000 Anthracite grey 580 538 Symmetrical Night dimming 2 1 100000 Decor ring/shade
305033-565 19 1872 4000 Grey 580 538 Symmetrical Citygrid 1 100000 Decor ring/shade
305033-566 19 1872 4000 Grey 580 538 Symmetrical Citygrid without sensor 1 100000 Decor ring/shade
305034 33 2899 3000 Anthracite grey 580 538 Symmetrical 1 100000 Decor ring/shade
305034-463 33 2899 3000 Anthracite grey 580 538 Symmetrical Night dimming 2 1 100000 Decor ring/shade
305034-565 35 2899 3000 Grey 580 538 Symmetrical Citygrid 1 100000 Decor ring/shade
305034-566 35 2899 3000 Grey 580 538 Symmetrical Citygrid without sensor 1 100000 Decor ring/shade
305034-572 33 2899 3000 Anthracite grey 271 536 Symmetrical Zhaga Up 1 100000 Decor ring/shade
305035 28 2899 4000 Anthracite grey 580 538 Symmetrical 1 100000 Decor ring/shade
305035-463 28 2899 4000 Anthracite grey 580 538 Symmetrical Night dimming 2 1 100000 Decor ring/shade
305035-565 30 2899 4000 Grey 580 538 Symmetrical Citygrid 1 100000 Decor ring/shade
305035-566 30 2899 4000 Grey 580 538 Symmetrical Citygrid without sensor 1 100000 Decor ring/shade
305036 18 2078 4000 Anthracite grey 580 538 Asymmetrical 1 100000 Decor ring/shade
305036-463 18 2078 4000 Anthracite grey 580 538 Asymmetrical Night dimming 2 1 100000 Decor ring/shade
305036-565 19 2078 4000 Grey 580 538 Asymmetrical Citygrid 1 100000 Decor ring/shade
305036-566 19 2078 4000 Grey 580 538 Asymmetrical Citygrid without sensor 1 100000 Decor ring/shade
305037 28 3218 4000 Anthracite grey 580 538 Asymmetrical 1 100000 Decor ring/shade
305037-463 28 3218 4000 Anthracite grey 580 538 Asymmetrical Night dimming 2 1 100000 Decor ring/shade
305037-565 30 3218 4000 Grey 580 538 Asymmetrical Citygrid 1 100000 Decor ring/shade
305037-566 30 3218 4000 Grey 580 538 Asymmetrical Citygrid without sensor 1 100000 Decor ring/shade
Showing 5 of 5 Accessories
Name Description Art.no. Article PDF
H_97419_AniGlareShield_Verda_165_Anthracite.jpg Anti-glare shield Anti-glare shield to Verda 165° 97419
H_97418_AniGlareShield_Verda_120_Anthracite.jpg Anti-glare shield Anti-glare shield to Verda 120° 97418
Main picture Citygrid On Pole The Citygrid On Pole unit enables all luminaires to be integrated into a Citygrid network. The unit is mounted on a pole and connects to the luminaire via cabling behind the pole cover plate. 86492
Main picture Citygrid dongle Citygrid Dongle is the commissioning tool that in combination with the Citygrid Configuration app, enables the configuration of a Citygrid installation. 86490
D_Verda_hat.jpg Shade Verda shade 97416
