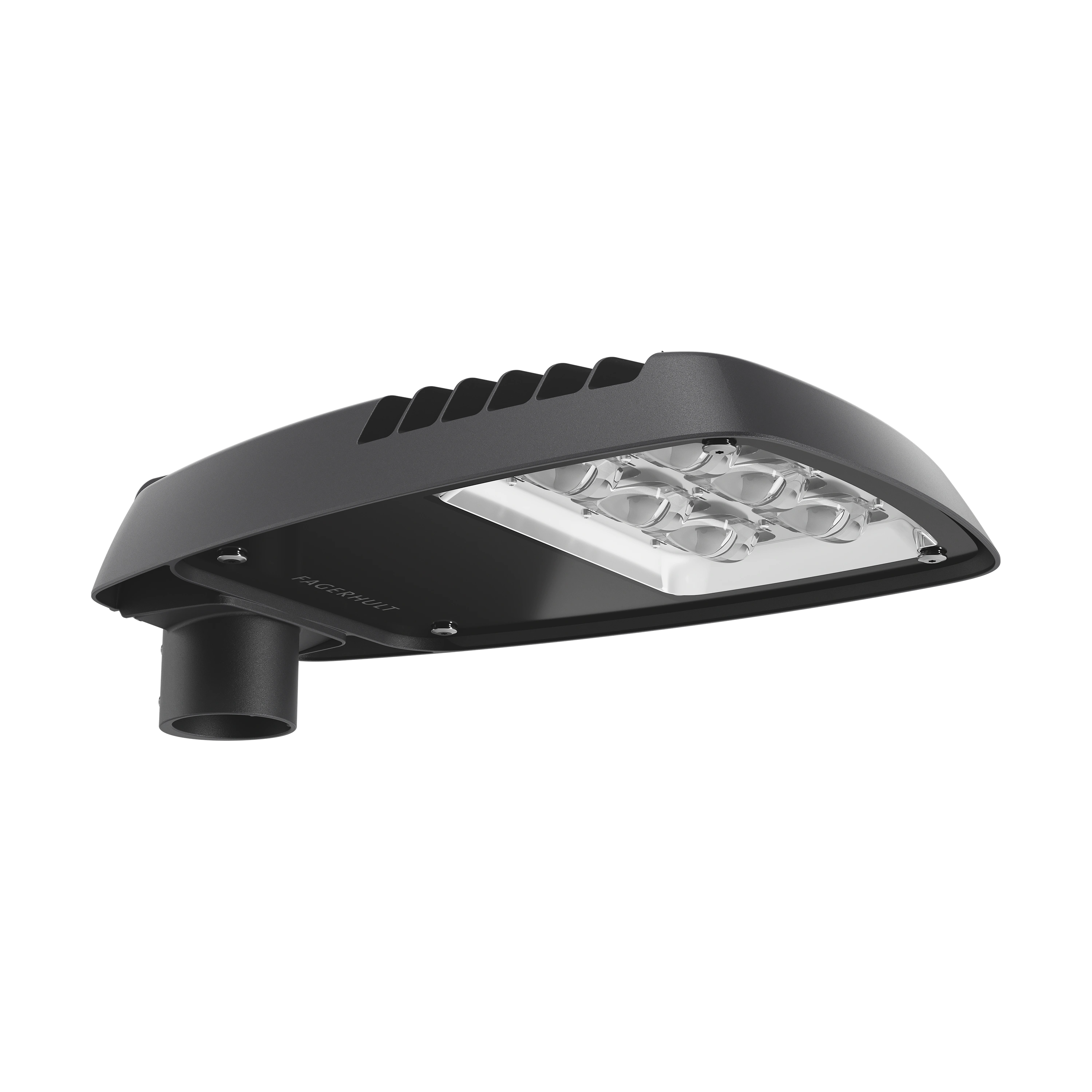

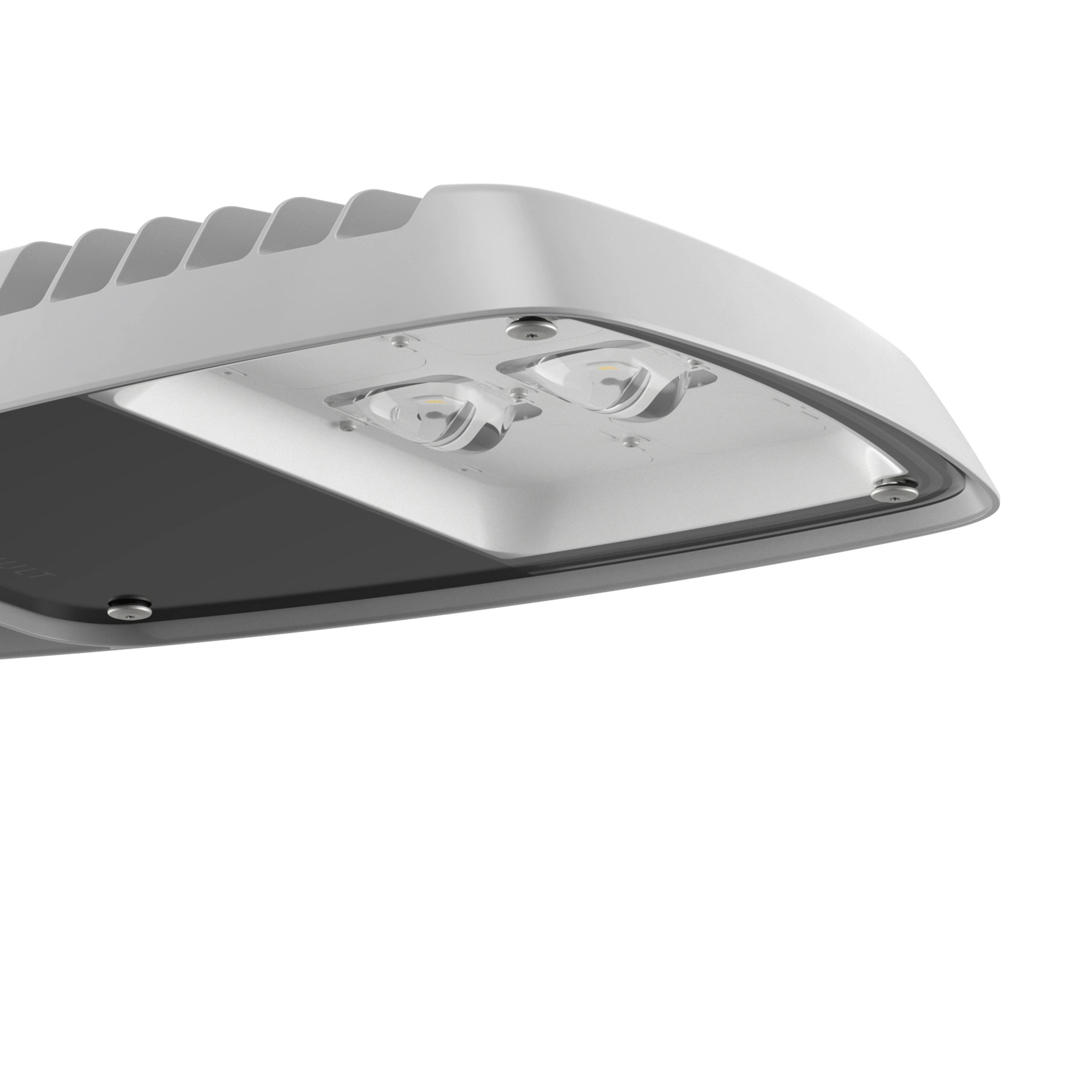

Evolume 75Post
Evolume is a family of post-top luminaires that provide high performance and light comfort, with specially developed AGC lenses for an optimised light pattern. Evolume 75 is suitable for footpaths and cycle paths, as well as smaller streets and car parks.
Evolume 75Post
Evolume is a family of post-top luminaires that provide high performance and light comfort, with specially developed AGC lenses for an optimised light pattern. Evolume 75 is suitable for footpaths and cycle paths, as well as smaller streets and car parks.
Installation
Luminaire for installation on Ø48, 60 or 76 mm post top or post arm. Accessories for other installation options are ordered separately; see Accessories. Tiltable ±15º. For detailed information, see the installation instructions.
See installation video - Mounting bracketConnection
The luminaire is supplied with a mains cable; select the type and length in Fagerhult Configure. Driver with integrated surge protection, CM 8 kV, DM 6 kV. Additional surge protection of 10 kV on request. Available in Class I and II. CLO (Constant Light Output).
Design
Luminaire body and post bracket made of recycled die-cast aluminium. Aluzink-treated stainless steel screws. Integrated heatsinks for increased efficiency. Screen-printed, hardened flat glass. The luminaire is available in several standard colours; these are selectable in Fagerhult Configure. Other colours on request.
Light Distribution
Choose the light distribution by selecting the AGC lens.
Light data
Optics
AGC lenses (Advanced Glare Control). The E-lenses are designed with a focus on illuminance. The L lenses are the choice if the luminance from the roadway is in focus.
Bioinclusive Lighting
The product can create lighting environments that are kind to nocturnal species and pollinators, and that benefit biodiversity. With light in warm colour temperatures and a low proportion of blue wavelengths, as well as complementary smart controls such as occupancy detectors and night-time dimming, sensitive ecosystems are spared.
Made of recycled aluminium
The product contains die-cast aluminium, a material that in our products consists of approximately 85% recycled content. By using recycled aluminium, energy consumption is reduced by up to 95% compared to virgin aluminium (Source: European Aluminium). This entails a significantly lower carbon footprint.
No additional heat sink
The luminaire’s optimised design efficiently conducts heat away from the LED module, with the result that no separate heat sink is required. This solution saves materials and reduces the carbon footprint.
DALI
Enables flexible and precise control of luminaires – easy installation with two-wire system for both power and control.
Read moreNight-time dimming
Simple dimming where the light level is automatically reduced at preset times during the night, without the need for sensors or more advanced control technology.
Read moreNEMA (on request)Socket
Enables easy integration of sensors and control in smart lighting systems. NEMA socket available on request.
Read moreZhaga Book 18Socket
Enables easy integration of sensors and communication modules via Zhaga socket.
Read morePhilips CityTouch (on request)
Can be supplied preconfigured for Philips CityTouch on request.
Articles
Configure your Evolume 75
Adapt and optimise the luminaire in Fagerhult's configurator.
Need more information?
Download a collection of light data files to guide you in your decision.
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Spigot for Evolume 1 | Spigot to 303595 for installation on Ø 48 mm post arm. | 303594 | |
|
Double post-top bracket for Evolume | Double post-top bracket for Ø 76 mm post top. Alu-grey. | 303558 | |
|
Spigot for Evolume 1 | Spigot to 303596 for installation on Ø 48 mm post arm. | 303599 | |
|
Bracket for Evolume | Bracket for Ø 76 mm post top. Alu-grey. | 303596 | |
|
|
Double post-top bracket for Evolume | Double post-top bracket for Ø 60 mm post top. Alu-grey. | 303557 | |
|
Wall bracket | Wall bracket Ø 60 mm, galvanised | 303419 | |
|
Wall bracket | Wall bracket arm Ø 60, anthracite grey (Gris 900 Sablé). | 303678-329 | |
|
|
Wall bracket | Wall bracket arm Ø 60, black (RAL 9005 texture). | 303678-230 | |
|
|
Wall bracket | Wall bracket arm Ø 60, black (RAL 9005 G70). | 303678-224 | |
|
|
Wall bracket | Wall bracket arm Ø 60, graphite grey (RAL 7024 G70). | 303678-549 | |
|
|
Wall bracket | Wall bracket arm Ø 60, traffic grey (RAL 7042 G70). | 303678-548 | |
|
|
Wall bracket | Wall bracket arm Ø 60, green (RAL 6009 G70). | 303678-552 | |
|
Wall bracket | Wall bracket arm Ø 60, alu-grey (RAL 9006 G70). | 303678-235 | |
|
Citygrid On Pole | The Citygrid On Pole unit enables all luminaires to be integrated into a Citygrid network. The unit is mounted on a pole and connects to the luminaire via cabling behind the pole cover plate. | 86492 | |
|
Citygrid dongle | Citygrid Dongle is the commissioning tool that in combination with the Citygrid Configuration app, enables the configuration of a Citygrid installation. | 86490 | |
|
Citygrid Zhaga Controller MKII | The Citygrid Zhaga Controller MKII is the intelligent device that transforms a luminaire into a smart luminaire. | 86505 | |
|
Wall bracket | Wall bracket Ø 60 mm, anthracite grey. | 303419-329 | |
|
Citygrid Zhaga with sensor MKII | Citygrid Zhaga with sensor MKII is an all-in-one device that instantly provides a luminaire with smart and motion-controlled operation. | 86504 | |
|
|
Bracket for Evolume | Pole bracket for Ø 60 mm arm, 30 degrees. | 309921 | |
|
|
Bracket for Evolume | Pole bracket for Ø 60 mm arm, 30 degrees. RAL 9006. | 309921-235 | |
|
|
Glare shield | 2 LED | 309931 | |
|
Glare shield | 4 LED | 309932 | |
|
Glare shield | 6 LED | 309933 |
