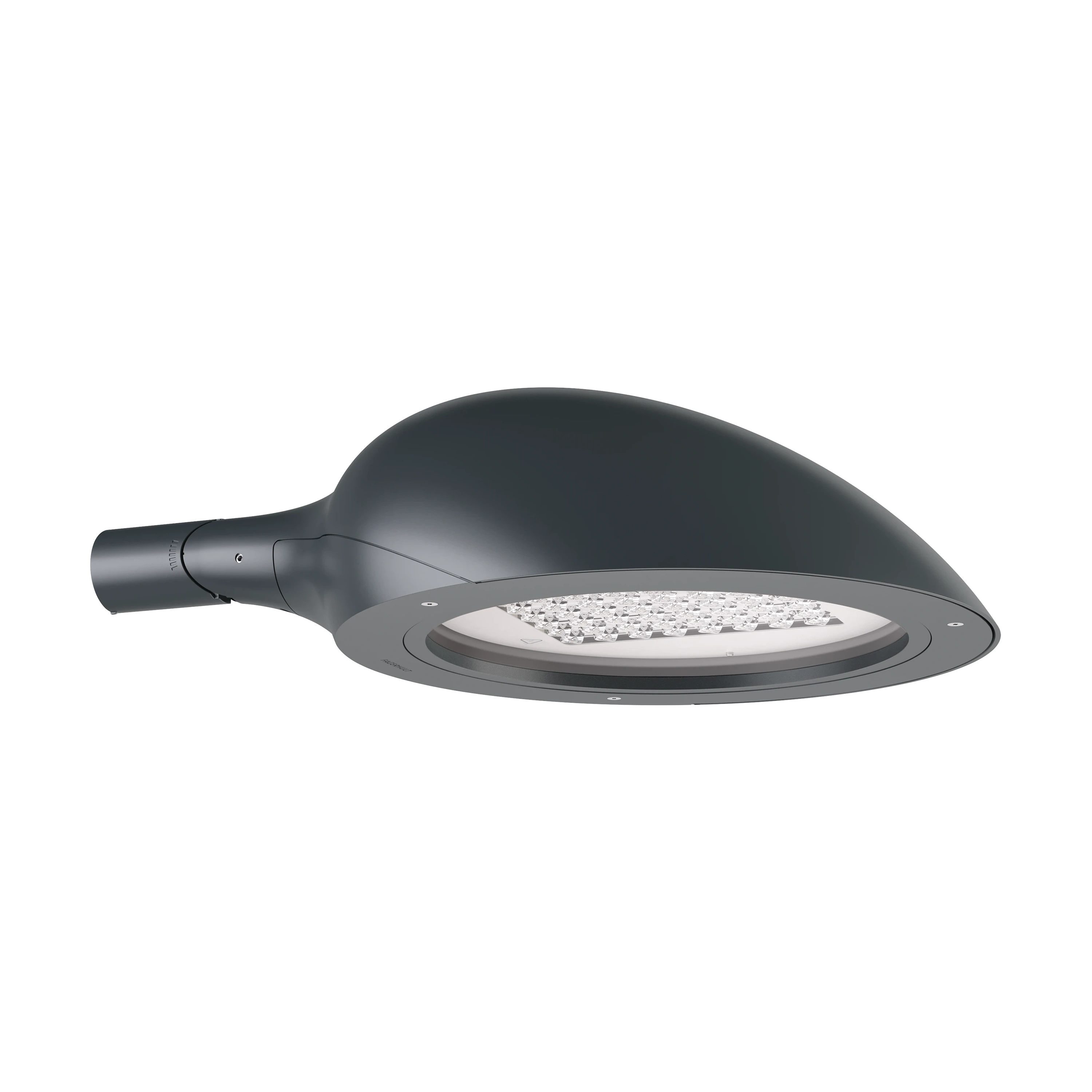

Vialume 1 CrossingPost
Vialume is a family of post-top luminaires in a Nordic design with specially developed AGC lenses for an optimised light pattern. Vialume 1 is available with lenses specially designed for pedestrian crossings in right-hand traffic.
Vialume 1 CrossingPost
Vialume is a family of post-top luminaires in a Nordic design with specially developed AGC lenses for an optimised light pattern. Vialume 1 is available with lenses specially designed for pedestrian crossings in right-hand traffic.
Installation
Post top luminaire that, in its standard version, can be mounted on Ø48 mm post arm. Accessories for other installation options are ordered separately; see Accessories. Variable tilt function ±15º for perfect adjustment. Post height 5-8 m. For detailed information, see the installation instructions.
Connection
The luminaire is supplied with a mains cable; select the type and length in Fagerhult Configure. Integrated driver with integrated surge protection, CM 8 kV, DM 6 kV. Additional surge protection of 10 kV (CM, DM) on request. CLO (Constant Light Output). DALI variant equipped with overheating protection, NTC. Available in Class I and II.
Design
Luminaire housing and post bracket made of die-cast aluminium. Aluzinc-treated stainless steel screws. Alu-grey (RAL 9006, semi-gloss).
Anthracite grey (Gris 900 Sablé), black (RAL 9005) or white (RAL 9010, semi-gloss) on request.
Light Distribution
Asymmetrical
Light data
Optics

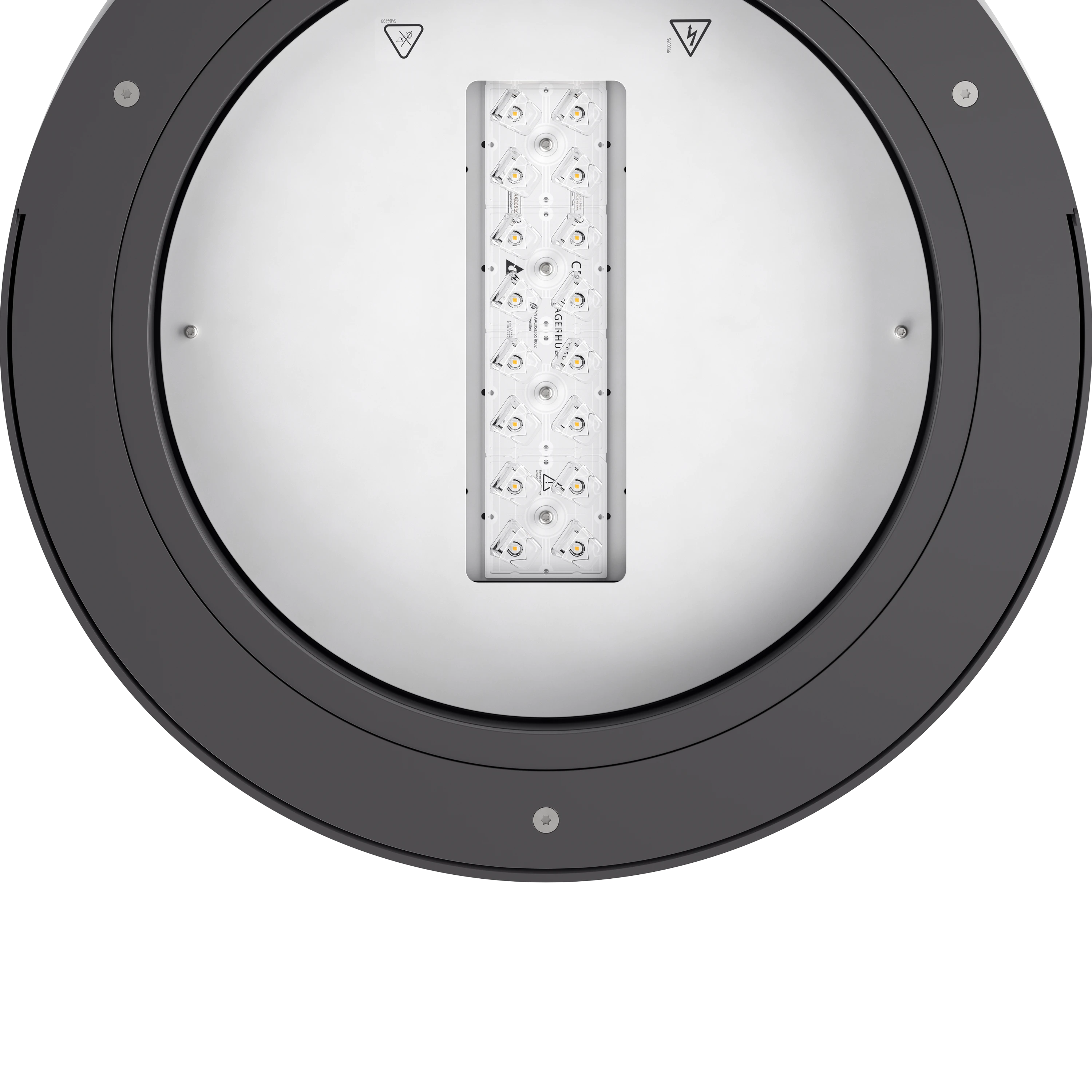

The lenses are specially developed for crossings (right-hand traffic).
Made of recycled aluminium
The product contains die-cast aluminium, a material that in our products consists of approximately 85% recycled content. By using recycled aluminium, energy consumption is reduced by up to 95% compared to virgin aluminium (Source: European Aluminium). This entails a significantly lower carbon footprint.
Resilient over time
The aluminium alloy that is used is of high quality, ensuring good corrosion protection. Together with other material choices that counteract galvanic corrosion, the design can withstand exposed conditions over time. A pressure equalisation valve regulates the air pressure and ensures that moisture cannot enter the luminaire – only escape.
Constant Light Output (CLO)
The luminaire is available with Constant Light Output (CLO), providing the right level of light throughout it’s working life and thereby reducing energy consumption. CLO can save up to 36% energy compared to L70. It is also often the case that fewer luminaires are needed, reducing investment and operating costs as well as climate impact.
DALI (on request)
Enables flexible and precise control of luminaires – easy installation with two-wire system for both power and control. DALI is available on request.
NEMA (on request)Socket
Enables easy integration of sensors and control in smart lighting systems. NEMA socket available on request.
Read moreZhaga Book 18 (on request)Socket
Enables easy integration of sensors and communication modules via Zhaga socket. Zhaga socket available on request.
Read morePhilips CityTouch (on request)
Can be supplied preconfigured for Philips CityTouch on request.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Dimensions, mm | Protective class | CLO time, h | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|
| 304210 | 83 | 11056 | 3000 | 646x440x174 | 1 | 100000 |
|
|
| 304211 | 83 | 11947 | 4000 | 646x440x174 | 1 | 100000 |
|
|
| 304212 | 83 | 12076 | 5700 | 646x440x174 | 1 | 100000 |
|
|
| 304213 | 69 | 8990 | 3000 | 646x440x174 | 1 | 100000 |
|
|
| 304214 | 69 | 9714 | 4000 | 646x440x174 | 1 | 100000 |
|
|
| 304215 | 69 | 9819 | 5700 | 646x440x174 | 1 | 100000 |
|
|
| 304216 | 41 | 5095 | 3000 | 646x440x174 | 1 | 100000 |
|
|
| 304217 | 41 | 5506 | 4000 | 646x440x174 | 1 | 100000 |
|
|
| 304218 | 41 | 5565 | 5700 | 646x440x174 | 1 | 100000 |
|
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Bracket for Vialume 1 | Bracket for Ø 76 mm post top. Alu-grey. | 309902 | |
|
Spigot for post arm Ø 60 mm | Untreated | 309918 | |
|
Double post-top bracket for Vialume 1 | Double post-top bracket for Ø 60 mm post top. Alu-grey. | 309916 | |
|
|
Double post-top bracket for Vialume 1 | Double post-top bracket for Ø 76 mm post top. Alu-grey. | 309917 | |
|
Bracket for Vialume 1 | Bracket for Ø 60 mm post top. Alu-grey. | 309901 | |
|
Wall bracket for Vialume and Opalume | Wall bracket arm Ø 48 (standard). | 303677-235 |
