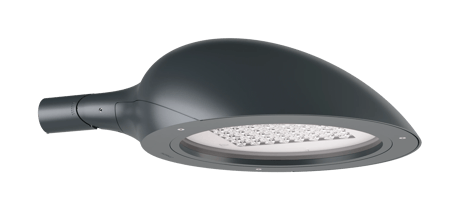

304213 Vialume 1 Crossing

Lumen output

8990

CLO function active

Yes

CLO time, h

100000

lm/W

130

Light source colour

730

CCT, K

3000

CRI

70

SDCM

5

Lumen maintenance 100 000 h

L100

Lumen maintenance L100 B50, h

100000

LED driver, h/max failure %

100000/10

Energy class, LED module

D

Driver brand

Philips

AM

Yes

Rated supply voltage, V

220-240

Mains frequency, Hz

50, 60

Protective class

1

IP rating

66

IK rating

09

Start W

69

End W

77

Average W

73

Stand by W

0.5

Min. ambient temperature, °C

-40

Max. ambient temperature, °C

25

MCB B10A, pcs

5

MCB B16A

8

MCB C10A

8

MCB C16A

13

THD, %

8

Surge protection CM, kV/kA

10

Surge protection DM, kV/kA

6

Power factor, 100 %

0.98

Power factor, 20 %

0.83

Corrosion class

C3

Projected wind area, m2

0.072

Length, mm

646

Width, mm

440

Height, mm

174

Weight, kg

11.2
