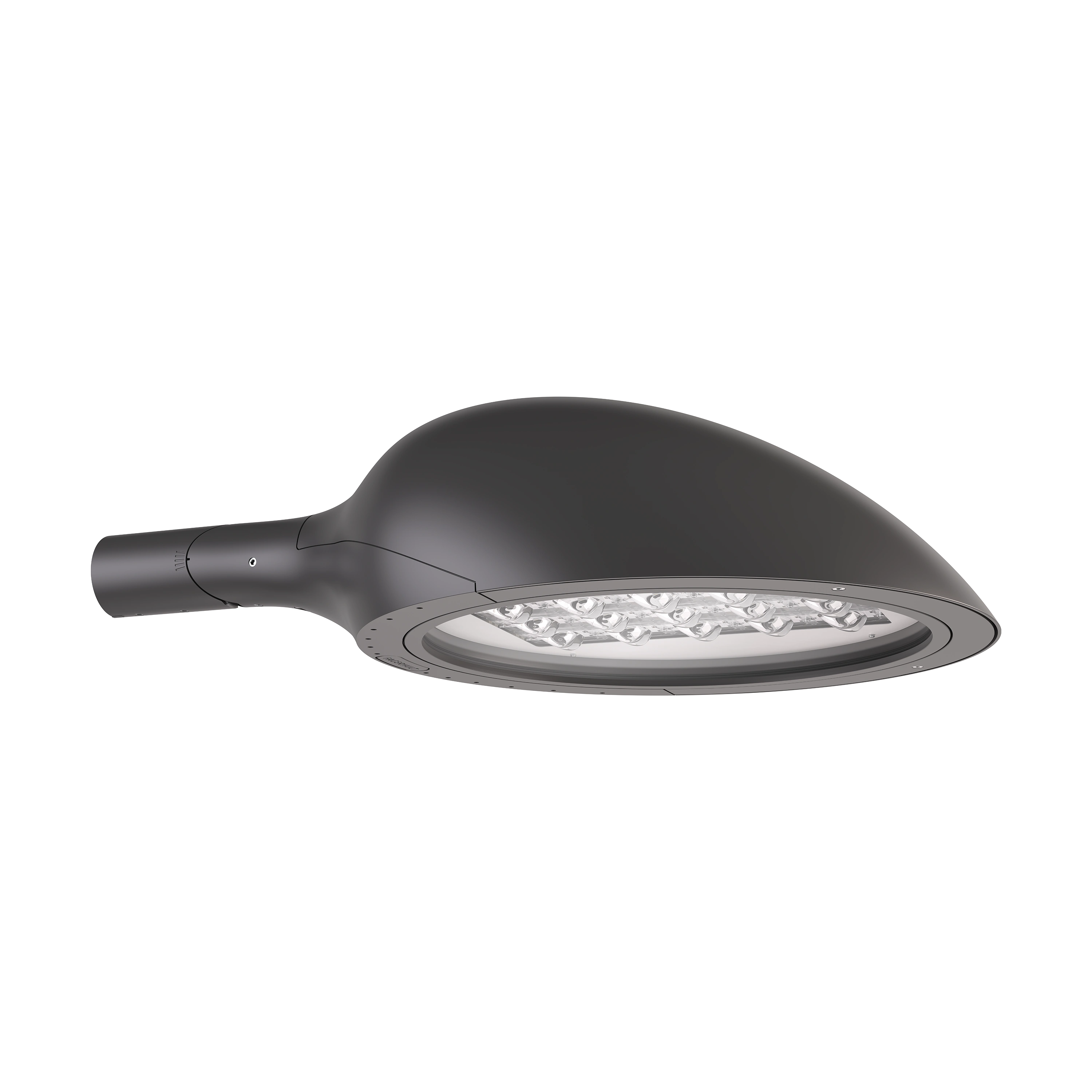

Vialume 2Post
Vialume is a family of post-top luminaires in a Nordic design with specially developed AGC lenses for an optimised light pattern. Vialume 2 is a larger, powerful luminaire for wider main streets, motorways and large car parks.
Vialume 2Post
Vialume is a family of post-top luminaires in a Nordic design with specially developed AGC lenses for an optimised light pattern. Vialume 2 is a larger, powerful luminaire for wider main streets, motorways and large car parks.
Installation
Post top luminaire that, in its standard version, can be mounted on Ø60 mm post arm. Accessories for other installation options are ordered separately; see Accessories. Variable tilt function ±10º for perfect adjustment. Post height 8-15 m. For detailed information, see the installation instructions.
See installation video Vialume 2Connection
The luminaire is supplied with a mains cable; select the type and length in Fagerhult Configure. Integrated driver with integrated surge protection, CM 8 kV, DM 6 kV. Additional surge protection of 10 kV (CM, DM) on request. CLO (Constant Light Output). DALI variant equipped with overheating protection, NTC. Available in Class I and II.
Design
Luminaire housing and post bracket made of die-cast aluminium. Aluzinc-treated stainless steel screws. Driver is integrated in the luminaire. Hardened flat glass. A selection of colours is available in Fagerhult Configure, other colours (RAL) on request. Design by ÅF Lighting and Tuxen Design.
Light Distribution
Choose the light distribution by selecting the AGC lens.
Light data
Optics
AGC lenses (Advanced Glare Control). The E-lenses are designed with a focus on illuminance. The L lenses are the choice if the luminance from the roadway is in focus.
Made of recycled aluminium
The product contains die-cast aluminium, a material that in our products consists of approximately 85% recycled content. By using recycled aluminium, energy consumption is reduced by up to 95% compared to virgin aluminium (Source: European Aluminium). This entails a significantly lower carbon footprint.
Resilient over time
The aluminium alloy that is used is of high quality, ensuring good corrosion protection. Together with other material choices that counteract galvanic corrosion, the design can withstand exposed conditions over time. A pressure equalisation valve regulates the air pressure and ensures that moisture cannot enter the luminaire – only escape.
Constant Light Output (CLO)
The luminaire is available with Constant Light Output (CLO), providing the right level of light throughout it’s working life and thereby reducing energy consumption. CLO can save up to 36% energy compared to L70. It is also often the case that fewer luminaires are needed, reducing investment and operating costs as well as climate impact.
DALI (on request)
Enables flexible and precise control of luminaires – easy installation with two-wire system for both power and control. DALI is available on request.
Night-time dimming
Simple dimming where the light level is automatically reduced at preset times during the night, without the need for sensors or more advanced control technology.
Read moreNEMA (on request)Socket
Enables easy integration of sensors and control in smart lighting systems. NEMA socket available on request.
Read moreZhaga Book 18 (on request)Socket
Enables easy integration of sensors and communication modules via Zhaga socket. Zhaga socket available on request.
Read morePhilips CityTouch (on request)
Can be supplied preconfigured for Philips CityTouch on request.
Articles
Configure your Vialume 2
Adapt and optimise the luminaire in Fagerhult's configurator.
Need more information?
Download a collection of light data files to guide you in your decision.
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Citygrid On Pole | The Citygrid On Pole unit enables all luminaires to be integrated into a Citygrid network. The unit is mounted on a pole and connects to the luminaire via cabling behind the pole cover plate. | 86492 | |
|
Citygrid dongle | Citygrid Dongle is the commissioning tool that in combination with the Citygrid Configuration app, enables the configuration of a Citygrid installation. | 86490 |
