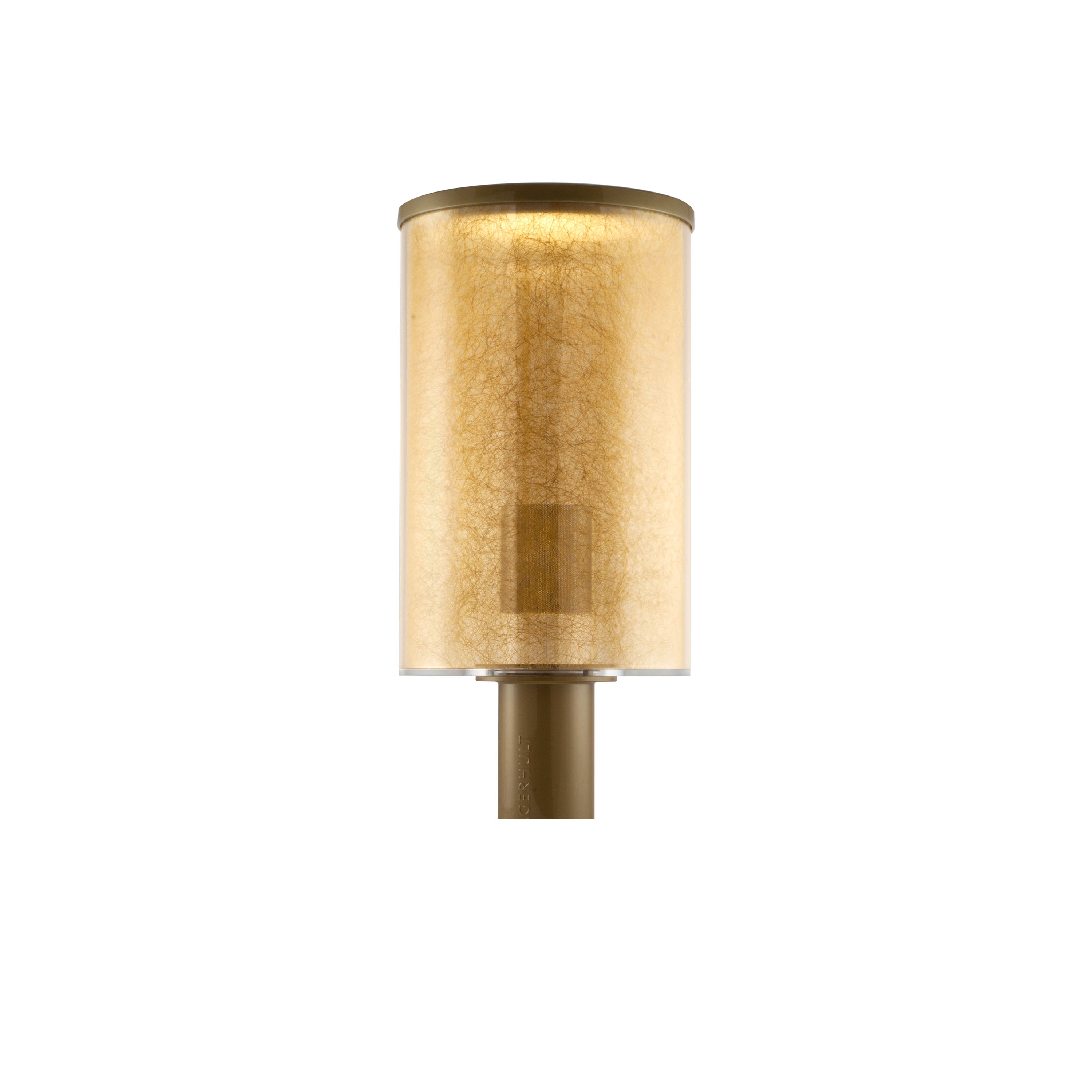

Devina HöstglödPost
Devina is a family of post-top luminaires in a unique Nordic design for residential and park environments. Available in four variants featuring high-quality materials and craftsmanship. Devina Höstglöd is inspired by the dusk.
Devina HöstglödPost
Devina is a family of post-top luminaires in a unique Nordic design for residential and park environments. Available in four variants featuring high-quality materials and craftsmanship. Devina Höstglöd is inspired by the dusk.
Installation
Luminaire for mounting on a post, with post top Ø60 mm, and on a wall via a wall bracket, see Accessories.
Connection
Supplied with 5 m 5x1.5 mm² connection cable, FQQ. Integrated driver with built-in overvoltage protection (DM 6 kV, CM 8 kV). Available in Class I. CLO (Constant Light Output)
Design

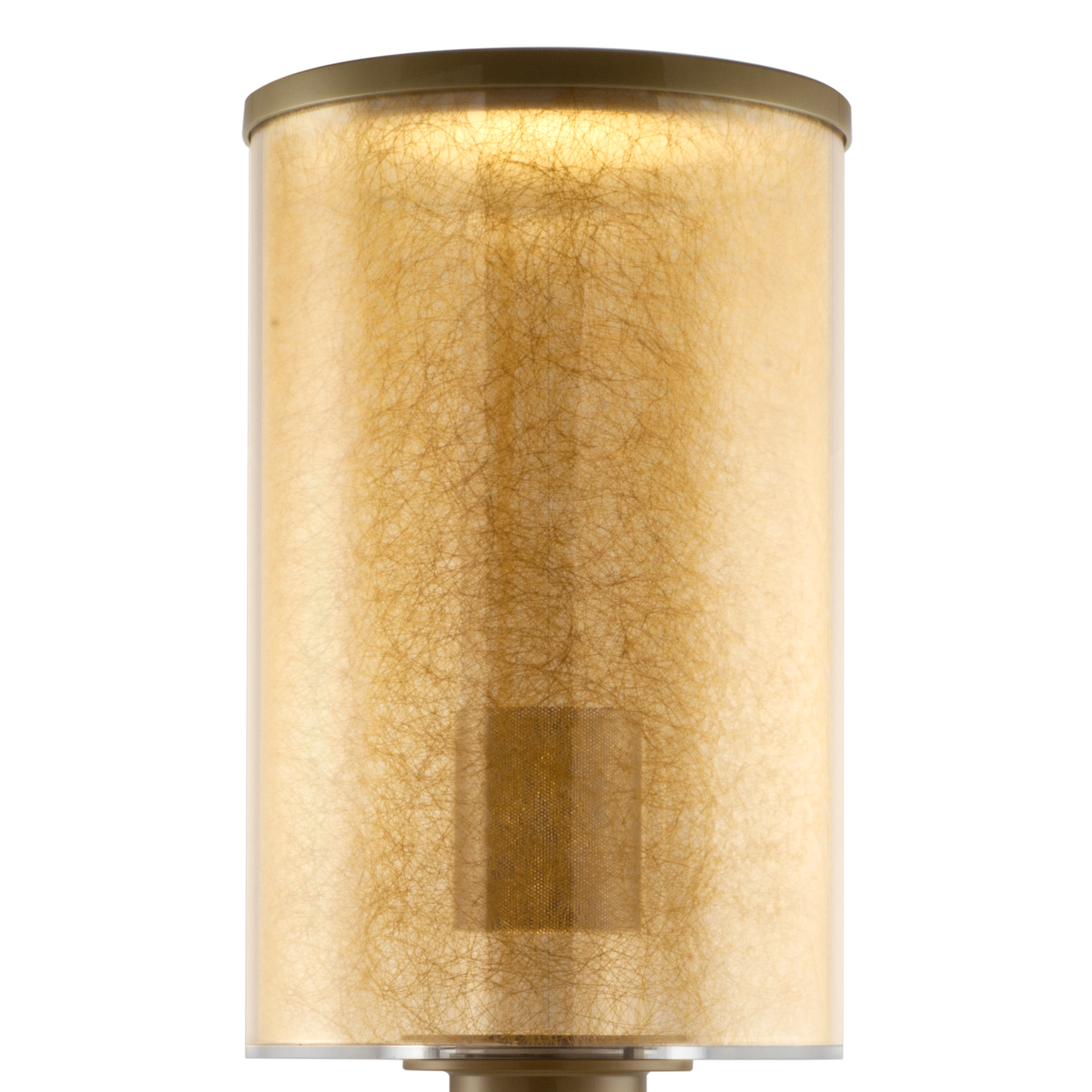

Body and cover in die-cast aluminium. Cylinder made of impact and UV-resistant acrylic (PMMA). The cylinder covers a UV-resistant golden fabric and the inner core has a metal mesh in a honeycomb pattern. Lacquered in clear lacquered gold colour (RAL 1036 G70). The luminaire’s post is recommended to be fitted with collision protection if motorised traffic is present in its vicinity. Design in collaboration with Light Bureau.
Light Distribution
Omnidirectional.
Light data
Optics
Reflector in white enamelled aluminium.
Made of recycled aluminium
The product contains die-cast aluminium, a material that in our products consists of approximately 85% recycled content. By using recycled aluminium, energy consumption is reduced by up to 95% compared to virgin aluminium (Source: European Aluminium). This entails a significantly lower carbon footprint.
Resilient over time
The aluminium alloy that is used is of high quality, ensuring good corrosion protection. Together with other material choices that counteract galvanic corrosion, the design can withstand exposed conditions over time. A pressure equalisation valve regulates the air pressure and ensures that moisture cannot enter the luminaire – only escape.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
DALI
Enables flexible and precise control of luminaires – easy installation with two-wire system for both power and control.
Read moreNight-time dimming
Simple dimming where the light level is automatically reduced at preset times during the night, without the need for sensors or more advanced control technology.
Read more
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Diameter, mm | Dimensions, mm | Light distribution | Light control | Protective class | CLO time, h | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 307004-461 | 32 | 2022 | 3000 | Gold | 410 | 876 | Symmetrical | DALI | 1 | 100000 |
|
|
| 307004-464 | 32 | 2022 | 3000 | Gold | 410 | 876 | Symmetrical | Night dimming 1 | 1 | 100000 |
|
|
| 307004-465 | 32 | 2022 | 3000 | Gold | 410 | 876 | Symmetrical | Night dimming 2 | 1 | 100000 |
|
|
| 307005-461 | 29 | 1994 | 4000 | Gold | 410 | 876 | Symmetrical | DALI | 1 | 100000 |
|
|
| 307005-464 | 29 | 1994 | 4000 | Gold | 410 | 876 | Symmetrical | Night dimming 1 | 1 | 100000 |
|
|
| 307005-465 | 29 | 1994 | 4000 | Gold | 410 | 876 | Symmetrical | Night dimming 2 | 1 | 100000 |
|
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Aluminium post, anthracite grey | Aluminium post with base plate, anthracite grey, H = 3.67 m. | 307042 | |
|
|
Aluminium post, anthracite grey | Aluminium post with base plate, anthracite grey, H = 3.02 m. | 307040 | |
|
|
Aluminium post, anthracite grey | Aluminium post for foundation, anthracite grey, H = 4.17 m (3.67 m above ground). | 307043 | |
|
|
Aluminium post, anthracite grey | Aluminium post for foundation, anthracite grey, H = 3.52 m (3.02 m above ground). | 307041 | |
|
Wall bracket for Devina | Wall bracket Ø 60, gold with pearl effect (RAL 1036 G70). | 303680-560 |
