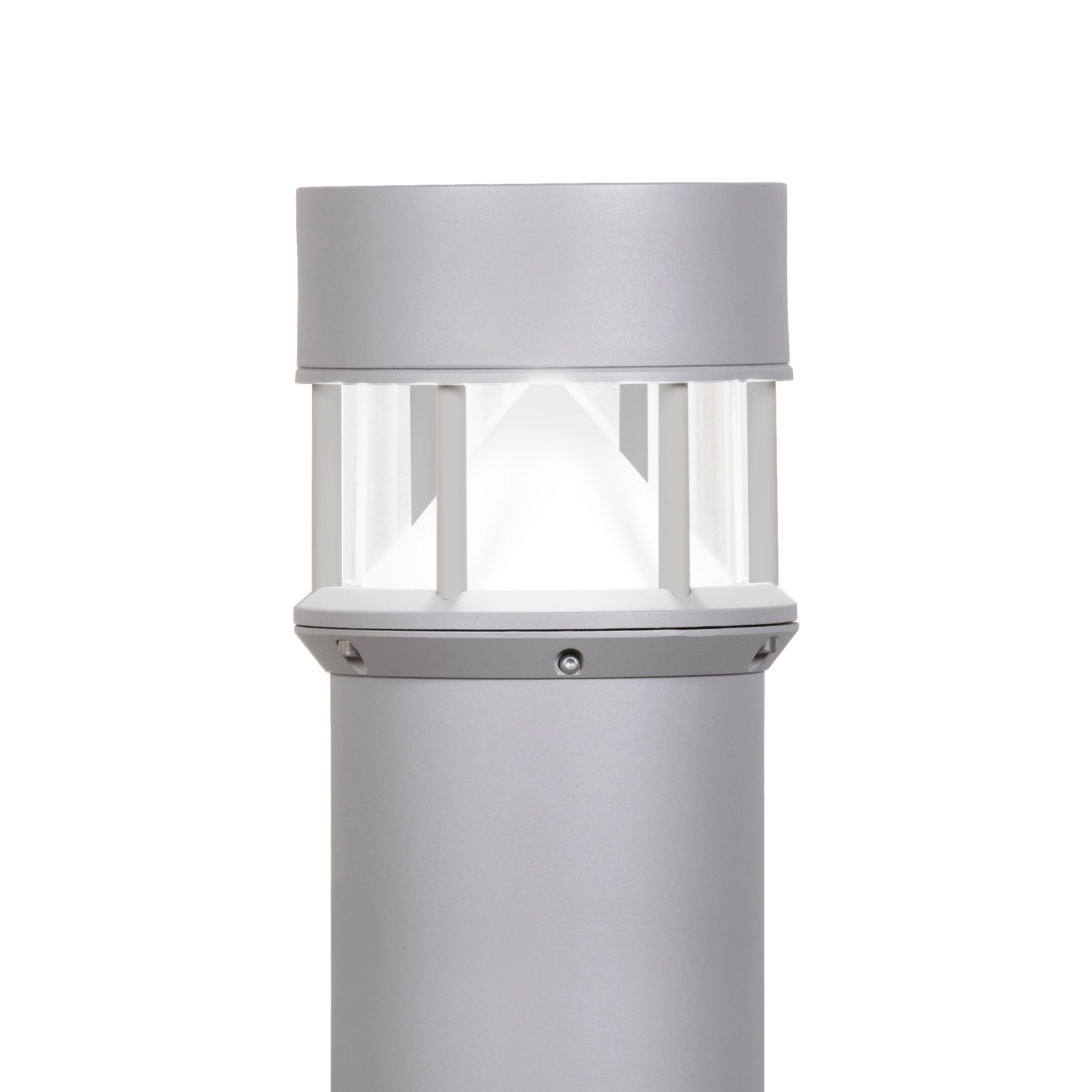

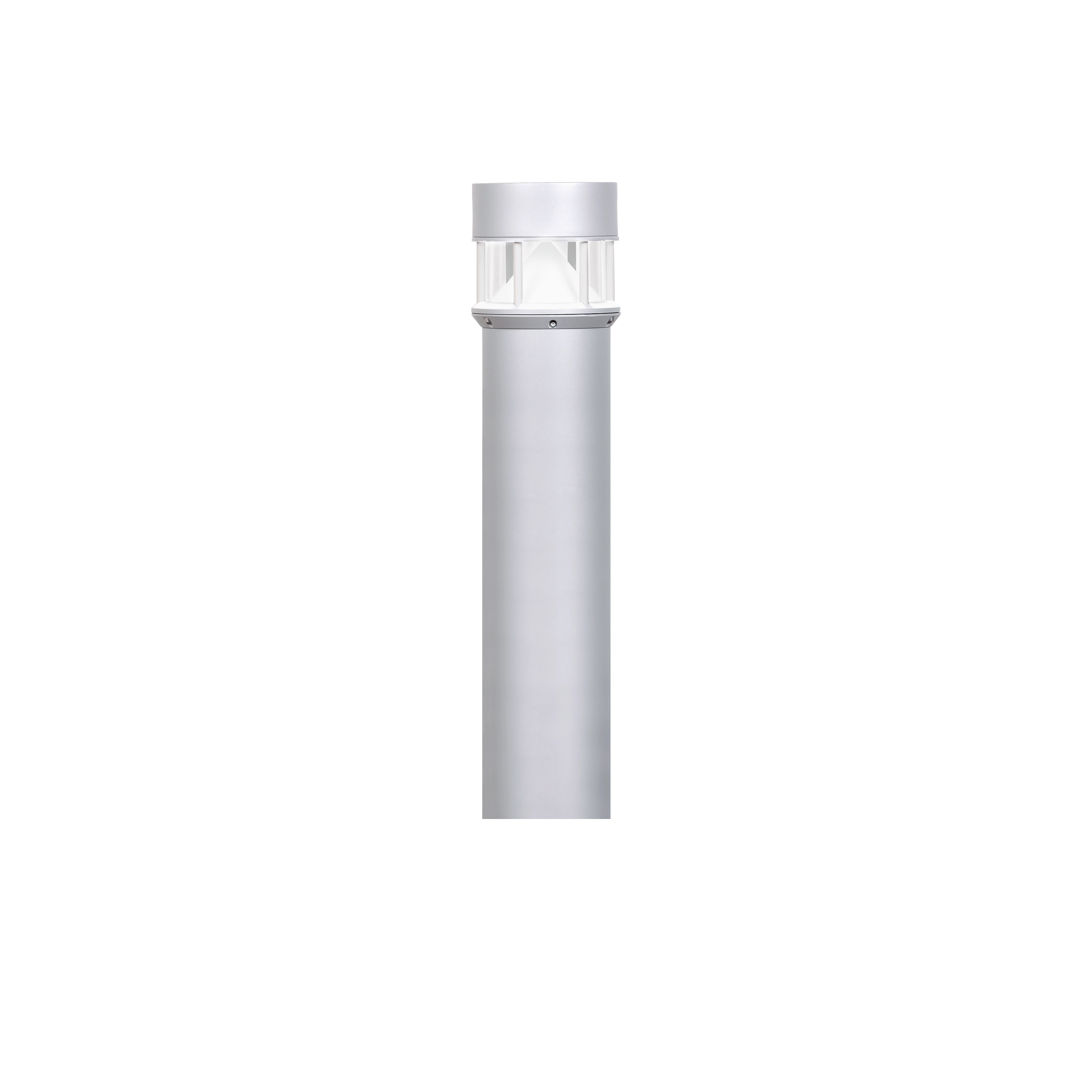

VivitaBollard
Vivita is a family of park lighting luminaires with a minimalist design. The bollard is available in three different heights, allowing for a combination of high and low light points. The luminaire has good light comfort with a low proportion of indirect light.
VivitaBollard
Vivita is a family of park lighting luminaires with a minimalist design. The bollard is available in three different heights, allowing for a combination of high and low light points. The luminaire has good light comfort with a low proportion of indirect light.
Installation
Luminaire for installation in foundations. Can also be cast in-situ or mounted on ground plate. Supplied with ground plate. For detailed information, see the installation instructions.
Connection
Terminal block 5x16 mm². Driver and fuse insert (6A) are integrated in the luminaire. Available in Class I and II.
Design
Body of cast aluminium with screw joints of stainless steel. Polycarbonate (PC) diffuser. Driver and fuse insert are built into the body. Alu-grey (RAL 9006) structured lacquer.
Light Distribution
Symmetrical.
Light data
Optics
Lacquered aluminium.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Dimensions, mm | Protective class | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|
| 301082 | 20 | 1206 | 3000 | Alu grey | 1063 | 1 |
|
|
| 301083 | 20 | 1290 | 4000 | Alu grey | 1063 | 1 |
|
|
| 301084 | 36 | 2533 | 3000 | Alu grey | 1063 | 1 |
|
|
| 301085 | 36 | 2786 | 4000 | Alu grey | 1063 | 1 |
|
|
| 301086 | 20 | 1206 | 3000 | Alu grey | 813 | 1 |
|
|
| 301087 | 20 | 1290 | 4000 | Alu grey | 813 | 1 |
|
|
| 301088 | 36 | 2533 | 3000 | Alu grey | 813 | 1 |
|
|
| 301089 | 36 | 2786 | 4000 | Alu grey | 813 | 1 |
|
|
| 301090 | 20 | 1206 | 3000 | Alu grey | 563 | 1 |
|
|
| 301091 | 20 | 1290 | 4000 | Alu grey | 563 | 1 |
|
|
| 301092 | 36 | 2533 | 3000 | Alu grey | 563 | 1 |
|
|
| 301093 | 36 | 2786 | 4000 | Alu grey | 563 | 1 |
|
