On GroundBollard
On Ground is a very robust ground floodlight for reliable above-ground installation. Ideal for environments that require a durable, robust luminaire with a neutral design and good lighting performance.
On GroundBollard
On Ground is a very robust ground floodlight for reliable above-ground installation. Ideal for environments that require a durable, robust luminaire with a neutral design and good lighting performance.
Installation
Ground luminaire for casting in-situ or installation in Ø108 mm foundation. Mounting tubes for casting in-situ or installation in Ø108 mm foundations are ordered separately as accessories.
Connection
Terminal block 5x1.5 mm² in IP65 box. Through-wiring not possible. DALI as standard. Available in Class I. CLO (Constant Light Output). The luminaire is equipped with overheating protection, NTC.
Design
Body in hot-dip galvanised steel with a durable acrylic or steel cover with light opening. Driver in a separate box mounted in a protected position in the steel body. Acrylic cover plate for the light opening in the steel cover can be ordered as an accessory. Lacquered in anthracite grey (Gris 900 Sablé). Design by Olsson&Linder.

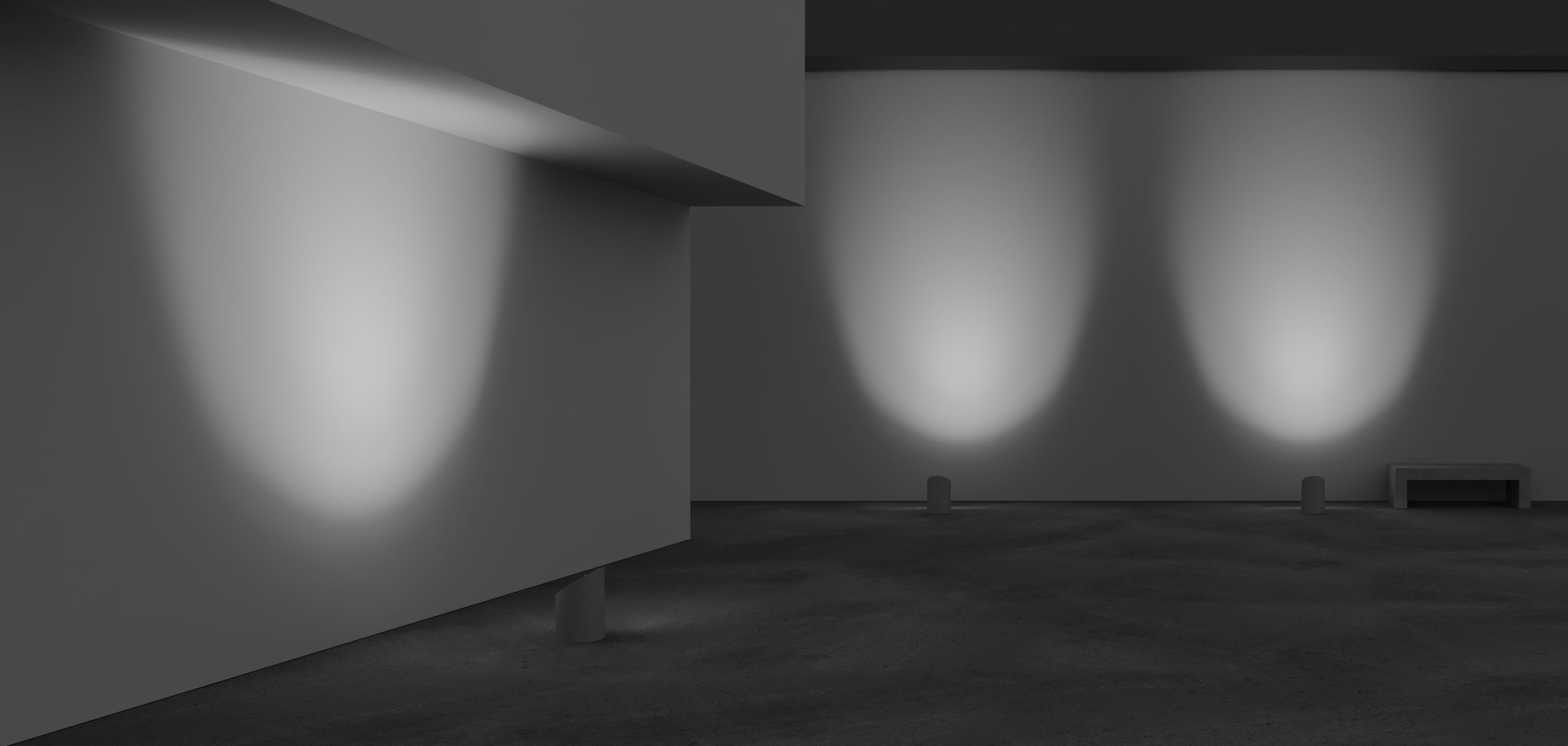

Light Distribution
Narrow and medium-beam light distribution.
Light data
Optics
Reflector of anodised aluminium.
Find the right lighting control for your project
Optimise your energy savings and create efficient spaces
that are easy to manage. Use our guide to find the right lighting control for your project.
DALI
Enables flexible and precise control of luminaires – easy installation with two-wire system for both power and control.
Read more
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Diameter, mm | Dimensions, mm | Light distribution | Light control | Protective class | CLO time, h | Miscellaneous | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 303561-461 | 14 | 1004 | 3000 | Anthracite grey/aluminium grey | 250 | 406 | 42° | DALI | 1 | 100000 | PMMA Cover |
|
|
| 303562-461 | 14 | 1080 | 4000 | Anthracite grey/aluminium grey | 250 | 406 | 42° | DALI | 1 | 100000 | PMMA Cover |
|
|
| 303563-461 | 14 | 1026 | 3000 | Anthracite grey/aluminium grey | 250 | 406 | 20° | DALI | 1 | 100000 | PMMA Cover |
|
|
| 303564-461 | 14 | 1104 | 4000 | Anthracite grey/aluminium grey | 250 | 406 | 20° | DALI | 1 | 100000 | PMMA Cover |
|
|
| 303574-461 | 29 | 1225 | 3000 | Anthracite grey/aluminium grey | 250 | 406 | 20° | DALI | 1 | 100000 | Steel Cover |
|
|
| 303575-461 | 29 | 1317 | 4000 | Anthracite grey/aluminium grey | 250 | 406 | 20° | DALI | 1 | 100000 | Steel Cover |
|
|
| 303576-461 | 29 | 1884 | 3000 | Anthracite grey/aluminium grey | 250 | 406 | 20° | DALI | 1 | 100000 | PMMA Cover |
|
|
| 303577-461 | 29 | 2026 | 4000 | Anthracite grey/aluminium grey | 250 | 406 | 20° | DALI | 1 | 100000 | PMMA Cover |
|
|
| 303578-461 | 29 | 1949 | 3000 | Anthracite grey/aluminium grey | 250 | 406 | 42° | DALI | 1 | 100000 | PMMA Cover |
|
|
| 303579-461 | 29 | 2096 | 4000 | Anthracite grey/aluminium grey | 250 | 406 | 42° | DALI | 1 | 100000 | PMMA Cover |
|
|
| 303591-461 | 29 | 1267 | 3000 | Anthracite grey/aluminium grey | 250 | 406 | 42° | DALI | 1 | 100000 | Steel Cover |
|
|
| 303592-461 | 29 | 1362 | 4000 | Anthracite grey/aluminium grey | 250 | 406 | 42° | DALI | 1 | 100000 | Steel Cover |
|
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Cover plate | Cover plate, acrylic (PMMA) for cover. | 97284 | |
|
On ground cover | On Ground cover PMMA | 303573 | |
|
On ground cover | On Ground cover steel, anthracite (gris 900). | 303572 | |
|
Mounting tube for On Ground LED | Mounting tube for in-situ casting | 303569 | |
|
Mounting tube Multitube | Ø 108 mm pipe, Ø 190 mm bracket. | 301663 | |
|
Mounting tube Multitube | Ø 60 mm pipe, Ø 190 mm bracket. | 301668 |
