VerdaBollard

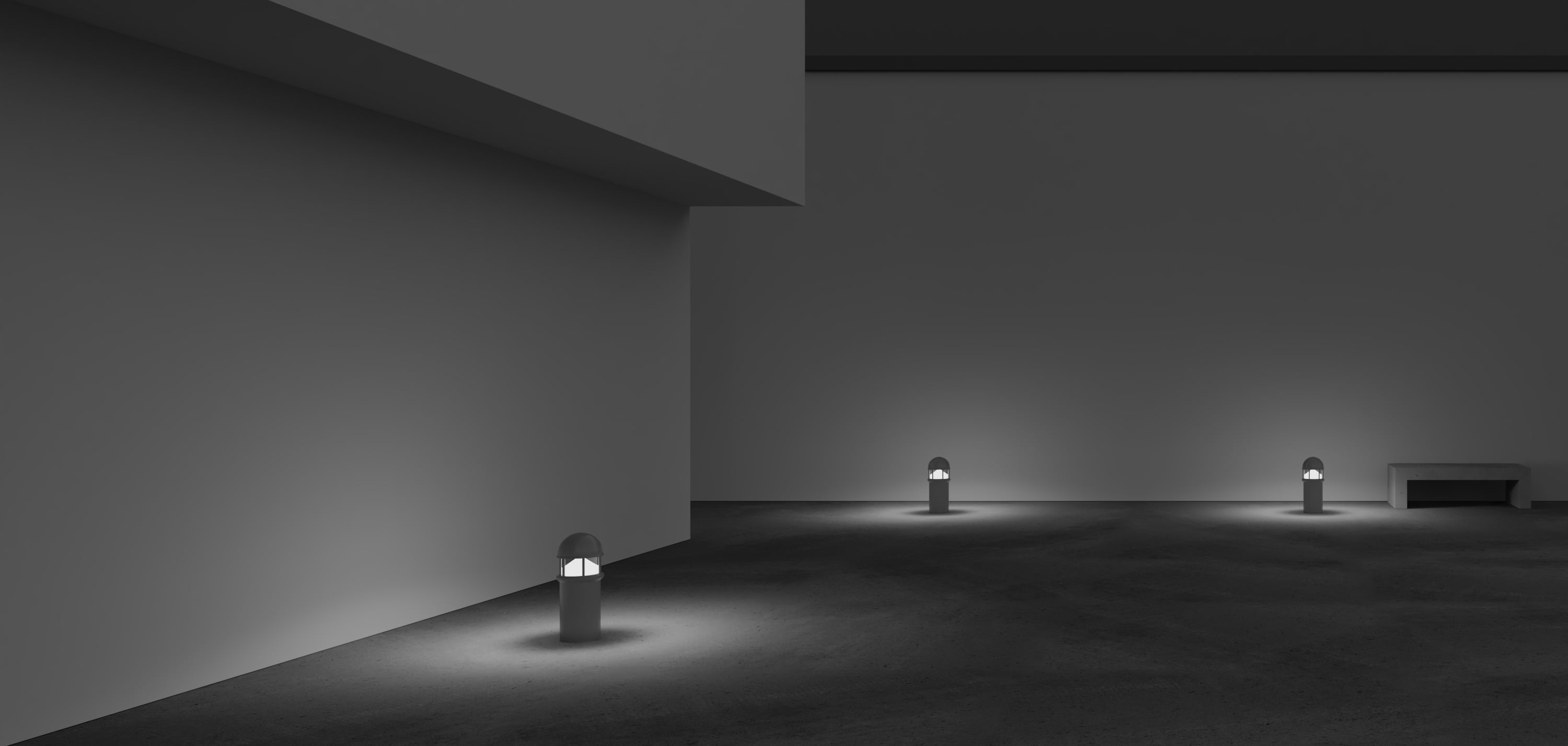

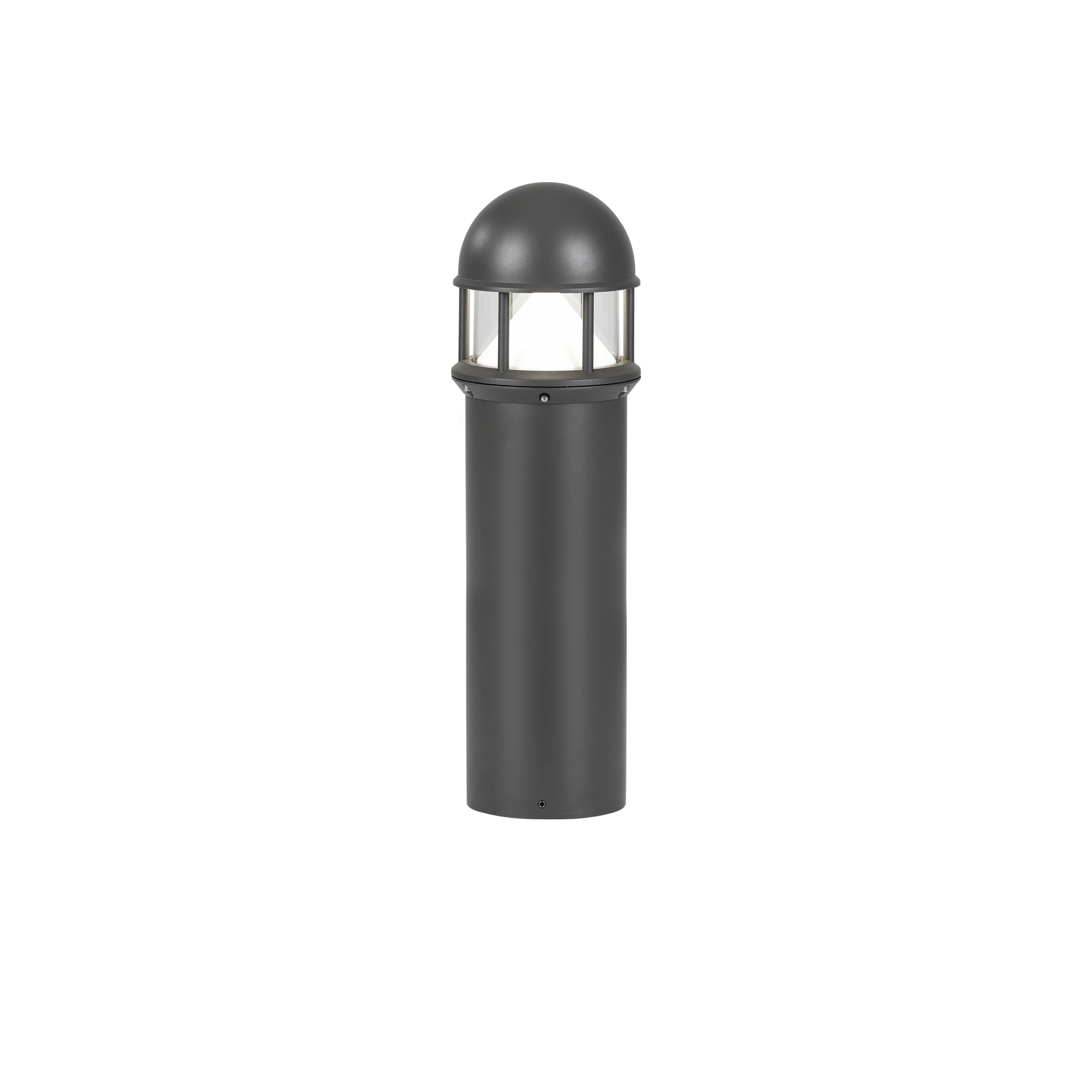

Verda is a family of luminaires for park lighting in a classic design. The bollard is available in three different heights, allowing for a combination of high and low light points. The luminaire has pleasant light comfort with a low proportion of indirect light.
VerdaBollard
Verda is a family of luminaires for park lighting in a classic design. The bollard is available in three different heights, allowing for a combination of high and low light points. The luminaire has pleasant light comfort with a low proportion of indirect light.
Installation
Luminaire for installation in foundations. Can also be cast in-situ or mounted on ground plate. Supplied with ground plate. For detailed information, see the installation instructions.
Connection
Terminal block 5x16 mm². Driver and fuse insert (6A) are integrated in the luminaire. Available in Class I and II.
Design

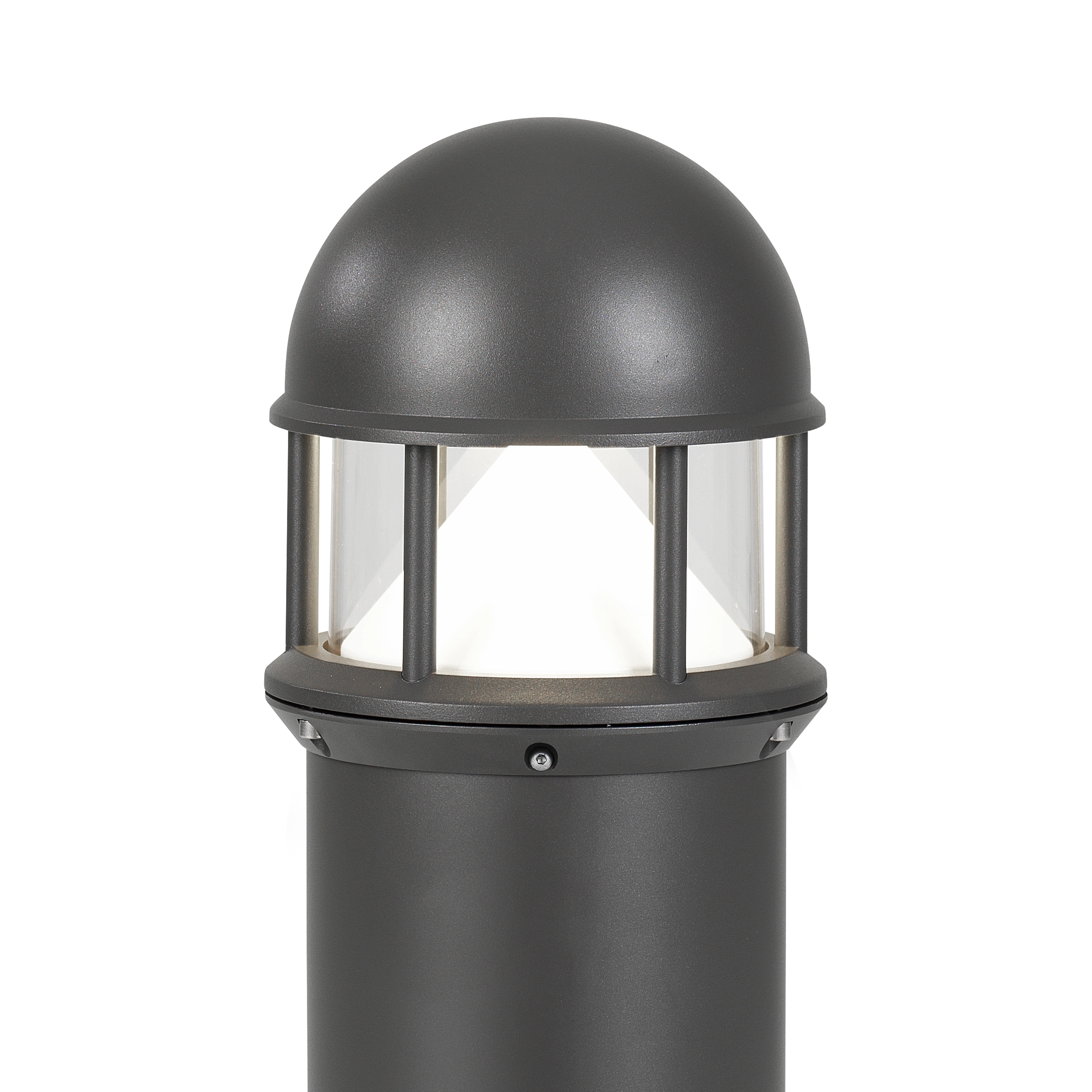

Body of cast aluminium with screw joints of stainless steel. Polycarbonate (PC) diffuser. Driver and fuse insert are built into the body. Anthracite grey (Gris 900 Sablé) structured lacquer.
Light Distribution
Symmetrical.
Light data
Optics
Lacquered aluminium.
Made of recycled aluminium
The product contains die-cast aluminium, a material that in our products consists of approximately 85% recycled content. By using recycled aluminium, energy consumption is reduced by up to 95% compared to virgin aluminium (Source: European Aluminium). This entails a significantly lower carbon footprint.
Made in Sweden
The product is manufactured in Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
Resilient over time
The aluminium alloy that is used is of high quality, ensuring good corrosion protection. Together with other material choices that counteract galvanic corrosion, the design can withstand exposed conditions over time. A pressure equalisation valve regulates the air pressure and ensures that moisture cannot enter the luminaire – only escape.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Dimensions, mm | Protective class | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|
| 301070 | 20 | 1206 | 3000 | Anthracite grey | 1100 | 1 |
|
|
| 301071 | 20 | 1290 | 4000 | Anthracite grey | 1100 | 1 |
|
|
| 301072 | 36 | 2533 | 3000 | Anthracite grey | 1100 | 1 |
|
|
| 301073 | 36 | 2786 | 4000 | Anthracite grey | 1100 | 1 |
|
|
| 301074 | 20 | 1206 | 3000 | Anthracite grey | 850 | 1 |
|
|
| 301075 | 20 | 1290 | 4000 | Anthracite grey | 850 | 1 |
|
|
| 301076 | 36 | 2533 | 3000 | Anthracite grey | 850 | 1 |
|
|
| 301077 | 36 | 2786 | 4000 | Anthracite grey | 850 | 1 |
|
|
| 301078 | 20 | 1206 | 3000 | Anthracite grey | 600 | 1 |
|
|
| 301079 | 20 | 1290 | 4000 | Anthracite grey | 600 | 1 |
|
|
| 301080 | 36 | 2533 | 3000 | Anthracite grey | 600 | 1 |
|
|
| 301081 | 36 | 2786 | 4000 | Anthracite grey | 600 | 1 |
|
