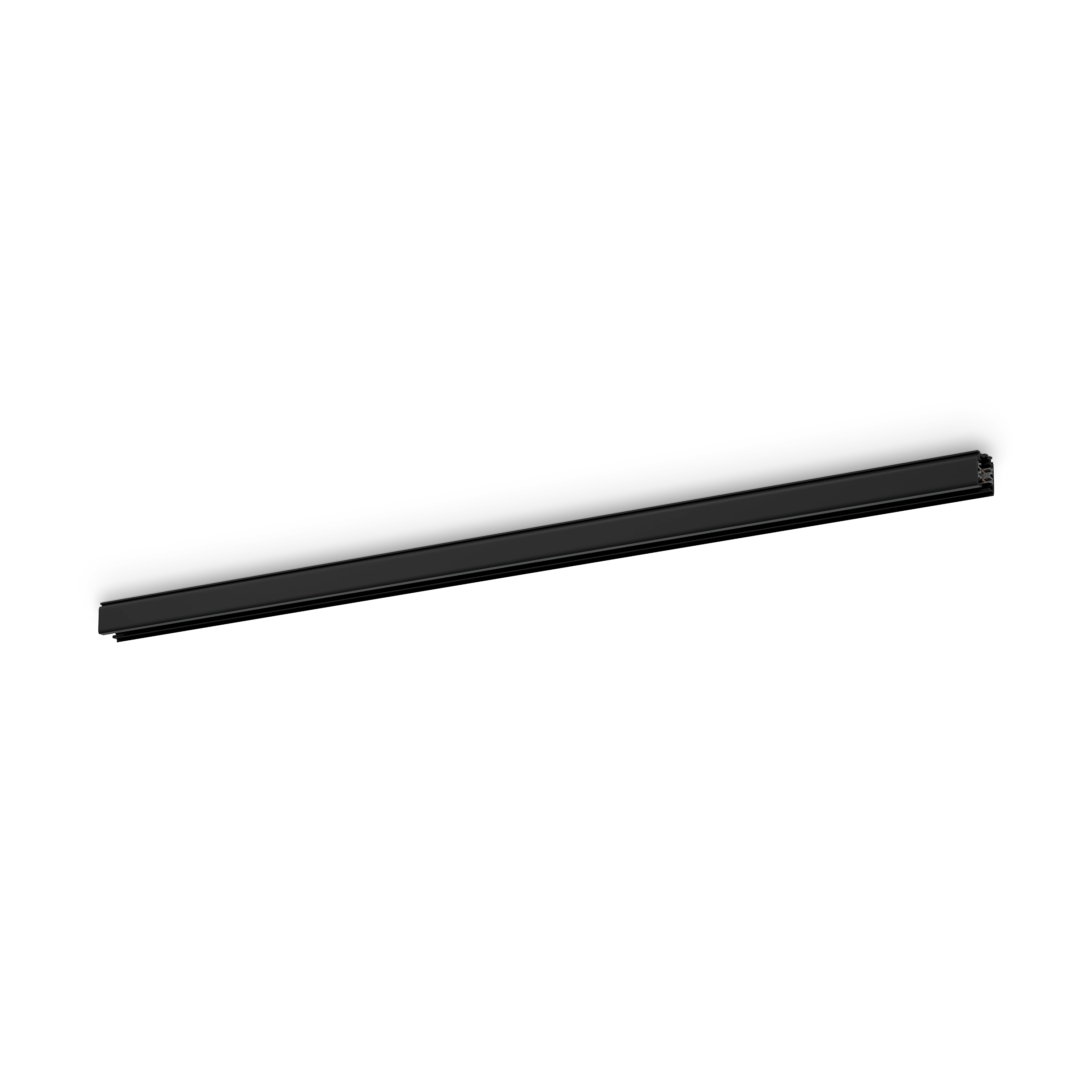

Lighting Track ProSurface
Lighting Track Pro is a ceiling-mounted track that enables highly flexible, customised track systems. The 3-phase track can withstand high loads and can supply independent luminaire groups in all phases.
Black RAL 9005
Alu-grey RAL 9006
White RAL 9016
Lighting Track ProSurface
Lighting Track Pro is a ceiling-mounted track that enables highly flexible, customised track systems. The 3-phase track can withstand high loads and can supply independent luminaire groups in all phases.
Installation
Track for surface-mounted ceiling installation, or suspended with suspension; see Accessories. For detailed information, see the installation instructions.
Connection
Connects in end coupling, see Accessories. The three phases can handle a maximum of 16 A each, which gives a maximum of 3.68 kVA per phase.
Design
Profile body of extruded aluminium. Lacquered in white (RAL 9016), black (RAL 9005) or grey (RAL 9006). Polycarbonate couplings.
Articles
Showing 69 of 69 Accessories
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Track suspension hook | Track suspension hook | 46855 | |
|
Track clip ceiling profiles | Track clip ceiling profiles | 46856 | |
|
Track suspension hook | Track suspension hook | 46854 | |
|
Track L-coupler | Track L-coupler left | 46822 | |
|
Track L-coupler | Track L-coupler left | 46821 | |
|
Track T-coupler | Track T-coupler left | 46830 | |
|
Track T-coupler | Track T-coupler right | 46832 | |
|
Track L-coupler | Track L-coupler right | 46823 | |
|
Track T-coupler | Track T-coupler right | 46833 | |
|
Track clip ceiling profiles | Track clip ceiling profiles PRO-M146T / Black. | 46857 | |
|
Track clip ceiling profiles | Track clip ceiling profiles PRO-M146T / White. | 46853 | |
|
Track T-coupler | Track T-coupler left | 46829 | |
|
Track T-coupler | Track T-coupler left | 46831 | |
|
Track T-coupler | Track T-coupler right | 46835 | |
|
Track T-coupler | Track T-coupler left | 46828 | |
|
Track T-coupler | Track T-coupler right | 46834 | |
|
Track T-coupler | Track T-coupler left | 46827 | |
|
Track T-coupler | Track T-coupler left | 46826 | |
|
Track L-coupler | Track L-coupler right | 46825 | |
|
Track L-coupler | Track L-coupler right | 46824 | |
|
Wallbracket for Lighting Track Pro. Distance from wall to track center: 80mm | Wall bracket white for Lighting Track Pro. | 46780 | |
|
Control Track bracket | Clip for T-bar 25 mm for wire / White. | 97147 | |
|
Wire bracket "snap on" | Wire bracket "snap on" | 97911 | |
|
Track coupler support | Track coupler support / Black. | 46902 | |
|
Track coupler support | Track coupler support, suitable for Lighting Track Pro | 46901 | |
|
Track coupler support | Track coupler support / White. | 46900 | |
|
Track ceiling bracket | Track ceiling bracket | 46885 | |
|
Track adjustable coupler | Track adjustable coupler | 46844 | |
|
Track adjustable coupler | Track adjustable coupler | 46845 | |
|
Track flexible coupler | Track flexible coupler | 46841 | |
|
Track X-coupler | Track X-coupler | 46840 | |
|
Track T-coupler | Track T-coupler right | 46837 | |
|
Track X-coupler | Track X-coupler | 46839 | |
|
Track mini joiner | Track mini joiner | 46847 | |
|
Wire bracket "snap on" | Wire bracket "snap on" | 97910 | |
|
Wire bracket "snap on" | Wire bracket "snap on" | 97912 | |
|
Track T-coupler | Track T-coupler right | 46836 | |
|
Track X-coupler | Track X-coupler | 46838 | |
|
Track flexible coupler | Track flexible coupler | 46842 | |
|
Track flexible coupler | Track flexible coupler | 46843 | |
|
Track adjustable coupler | Track adjustable coupler | 46846 | |
|
Track ceiling bracket | Track ceiling bracket | 46883 | |
|
Track ceiling bracket | Track ceiling bracket | 46884 | |
|
Wallbracket for Lighting Track Pro. Distance from wall to track center: 80mm | Wall bracket black for Lighting Track Pro | 46781 | |
|
Multi-adapter with strain relief | Multiadapter incl strain relief and nippel M13, white | 82798 | |
|
Multi-adapter with strain relief | Multiadapter incl strain relief and nipple M13, black | 82799 | |
|
Track end cap | Track end cap | 46852 | |
|
Track end cap | Track end cap | 46850 | |
|
Track end cap | Track end cap | 46851 | |
|
Track mini joiner | Track mini joiner | 46848 | |
|
Track middle coupler | Track middle coupler | 46815 | |
|
Track mini joiner | Track mini joiner | 46849 | |
|
Track L-coupler | Track L-coupler left | 46820 | |
|
Track main end feed | Track main end feed right | 46812 | |
|
Track middle coupler | Track middle coupler | 46816 | |
|
Track main end feed | Track main end feed left | 46810 | |
|
Track middle coupler | Track middle coupler | 46814 | |
|
Track main end feed | Track main end feed left | 46809 | |
|
Track main end feed | Track main end feed right | 46811 | |
|
Track main end feed | Track main end feed right | 46813 | |
|
|
Track main end feed | Track main end feed left | 46808 | |
|
Pendant package for track 4 m incl. bracket | Pendant package for track 4 m incl. bracket, 10 pieces / White. | 97950 | |
|
Pendant package for track 4 m incl. bracket | Pendant package for track 4 m incl. bracket, gray. 10 pieces. | 97951 | |
|
Pendant package for track 4 m incl. bracket | Pendant package for track 4 m incl. bracket, 10 pieces / Black. | 97952 | |
|
Control Track fixpoint | Track fixpoint / White. | 82040 | |
|
Control Track fixpoint | Track fixpoint / Black. | 82042 | |
|
Track cover | Lighting track pro cover 2000 mm, white | 46890 | |
|
Track cover | Lighting track pro cover 2000 mm, black | 46891 | |
|
Control Track bracket | Clip for T-bar 25 mm for wire / Black. | 97764 |
