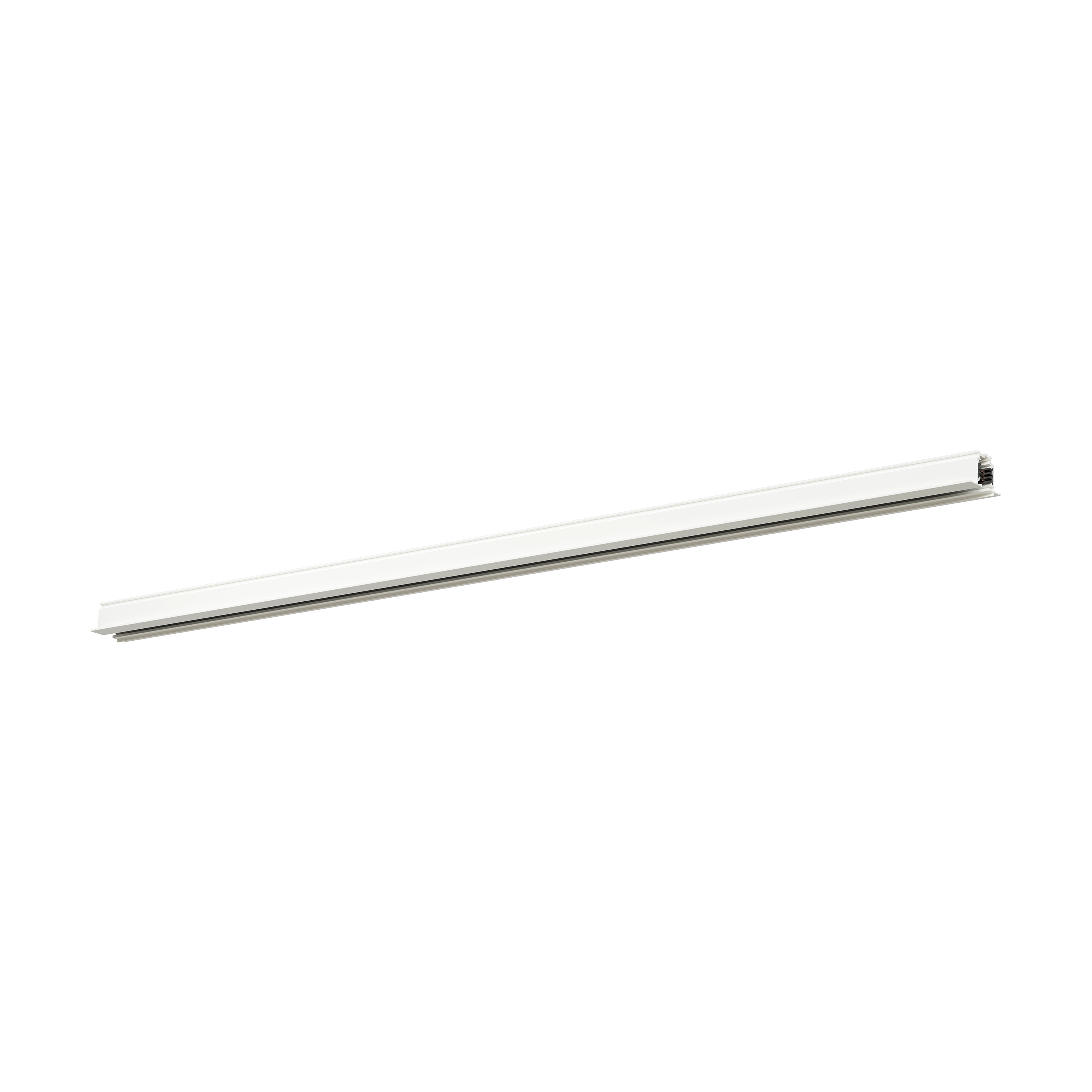

Lighting Track ProRecessed
Lighting Track Pro is a track for recessed ceiling mounting that enables highly flexible, customised track systems. The 3-phase track can withstand high loads and can supply independent luminaire groups in all phases.
Lighting Track ProRecessed
Lighting Track Pro is a track for recessed ceiling mounting that enables highly flexible, customised track systems. The 3-phase track can withstand high loads and can supply independent luminaire groups in all phases.
Installation
Track for recessed ceiling installation. For detailed information, see the installation instructions.
Connection
Connects in end coupling, see Accessories. The three phases can handle a maximum of 16 A each, which gives a maximum of 3.68 kVA per phase.
Design
Profile body of extruded aluminium. Lacquered in white (RAL 9010). Polycarbonate couplings.
Articles
| Art.no. | Colour | Dimensions, mm | Installation | Light data files | Article PDF |
|---|---|---|---|---|---|
| 46806 | White | 3000 | Recessed |
|
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Track mini joiner | Track mini joiner | 46847 | |
|
Track suspension hook | Track suspension hook | 46855 | |
|
Track recessed T-coupler | Track recessed T-coupler R1 | 46869 | |
|
Track suspension hook | Track suspension hook | 46854 | |
|
|
Track recessed T-coupler | Track recessed T-coupler R2 | 46870 | |
|
|
Track recessed T-coupler | Track recessed T-coupler L2 | 46868 | |
|
Multi-adapter with strain relief | Multiadapter incl strain relief and nippel M13, white | 82798 | |
|
Multi-adapter with strain relief | Multiadapter incl strain relief and nipple M13, black | 82799 | |
|
|
Track recessed T-coupler | Track recessed T-coupler L1 | 46867 | |
|
Track recessed L-coupler | Track recessed L-coupler left | 46866 | |
|
|
Track recessed L-coupler | Track recessed L-coupler right | 46865 | |
|
Track recessed middle coupler | Track recessed middle coupler | 46864 | |
|
Track recessed main end | Track recessed main end right | 46863 | |
|
Track recessed main end | Track recessed main end left | 46862 | |
|
Track end cap | Track end cap | 46850 | |
|
Track cover | Lighting track pro cover 2000 mm, white | 46890 | |
|
Track cover | Lighting track pro cover 2000 mm, black | 46891 |
