Pozzo Delta

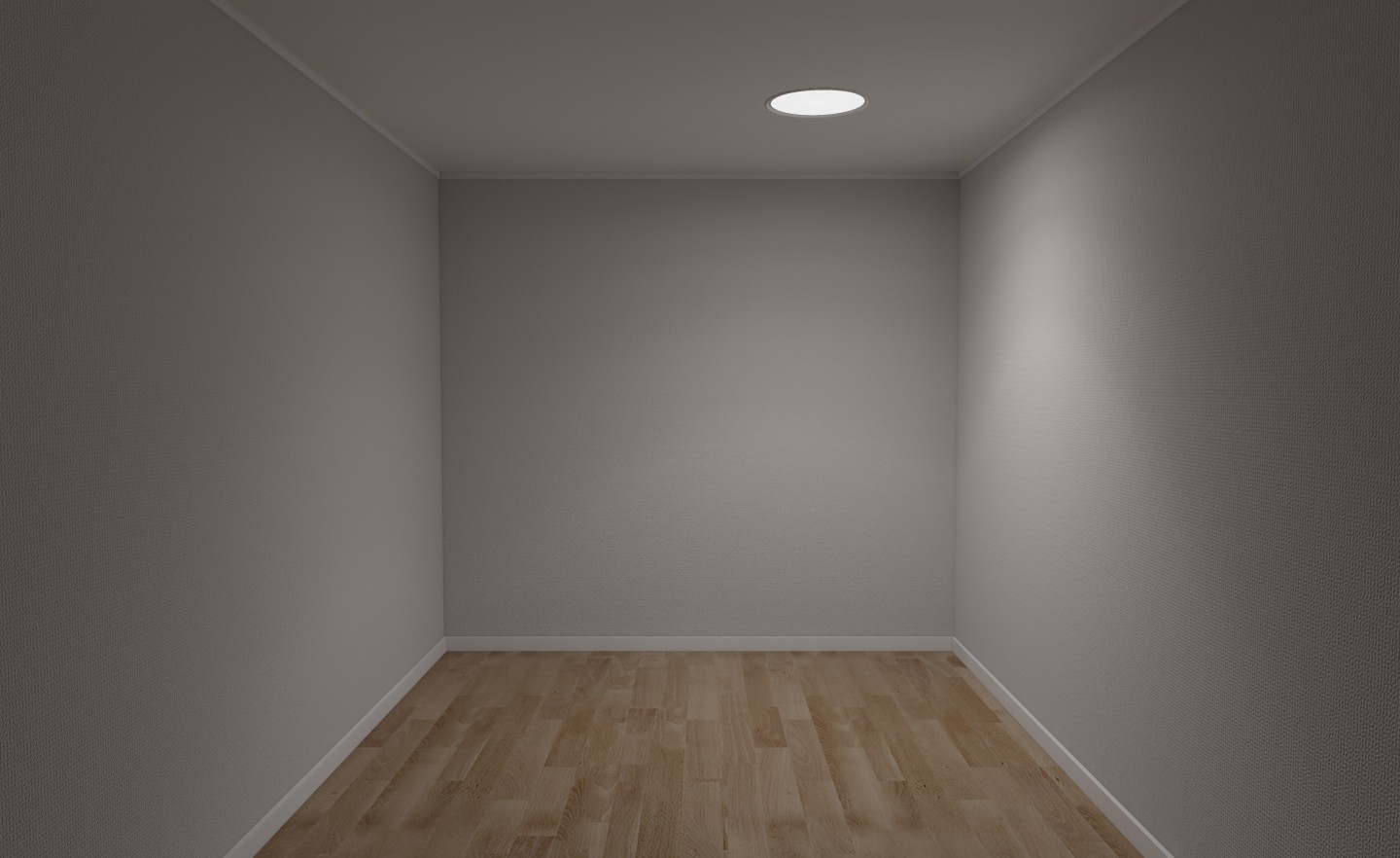

A recessed luminaire in three different sizes. Adjustable Delta louvre shutters with two positions and the possibility of creating a well feel. High level of efficiency and optimal light comfort with different looks. A bevelled outer edge that provides a soft luminance transition to the ceiling.

Installation

Recessed installation in suspended ceilings. Unventilated or ventilated ceilings. Stable assembly springs included. When installing in soft tile ceilings, mounting plates must be used, see accessories. The ballast housing is separate for flexible and quick installation.
Do not cover with insulation. For detailed information, see the installation instructions.

Connection

Connection in separate ballast box. Snap-in terminal block 3x1,5 mm² (x2), through-wiring possible. 5x1,5 mm² (x2) when dimming. Can also be supplied with mains cable and earthed plug or chassis mounted snap-in connector. The luminaire housing and driver are connected via a Quick Connection System.

Design

Luminaire in white (RAL 9016) structured finish. Luminaire housing of enamelled deep drawn aluminium.

Louvre

Delta – microprismatic louvre shutters made from acrylic (PMMA). With a thin opal diffuser (acrylic/PMMA) inside.

Miscellaneous

The luminaire’s diffuser is adjustable vertically – in order to be able to create a light well in the upper position (IP44) or flush with the ceiling in the lower position (IP 34). The luminaire is rated IP 20 from above.
Luminaires with Tunable White (2700 – 6500 K) are equipped with the DALI Device type 8 driver. Luminaires with Tunable White in combination with Amber come with two separate drivers.

CLO (Constant Light Output) means that the luminaire provides the same amount of light for the duration of its specified burn time.
Luminaire body Class III.
The supplied driver must be connected to protective earth.

Media

Pozzo - Installation

Pozzo

Pozzo is like a small piece of sky, a lightwell effect that brings a daylight feel into all types of rooms. Drawing inspiration from natural light, a pleasant daylight feel is created, and the classic round shape and bevelled...

More about the family Pozzo

Document

Customise with Fagerhult Configure

Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.

  • Adapt and optimise the luminaire
  • Download unique data sheet and light data files
  • To order, contact your sales representative
Start configuration

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
Mounting plate Mounting plate 345, 600-module visible T-bars 94513
Mounting plate Mounting plate 445, 600-module visible T-bars 94514
Mounting plate Mounting plate 545, 600-module visible T-bars 94515
Mounting plate Mounting plate 445, 625-module visible T-bars 94517
Mounting plate Mounting plate 545, 625-module visible T-bars 94518
Mounting plate Mounting plate 345, 625-module visible T-bars 94516
Mounting plate Mounting plate for hidden ceiling grid (HB). Adapted for recess dimensions Ø 345. For 38 mm support rail. 41664
Mounting plate Mounting plate for hidden ceiling grid (HB). Adapted for recess dimensions Ø 445. For 38 mm support rail. 41665
Mounting plate Mounting plate for hidden ceiling grid (HB). Adapted for recess dimensions Ø 545. For 38 mm support rail. 41666
no-image placeholder Retrofit kit Pozzo Retrofit kit Ø345/400 41088
no-image placeholder Retrofit kit Pozzo Retrofit kit Ø545/600 41090
no-image placeholder Retrofit kit Pozzo Retrofit kit Ø445/500 41089
