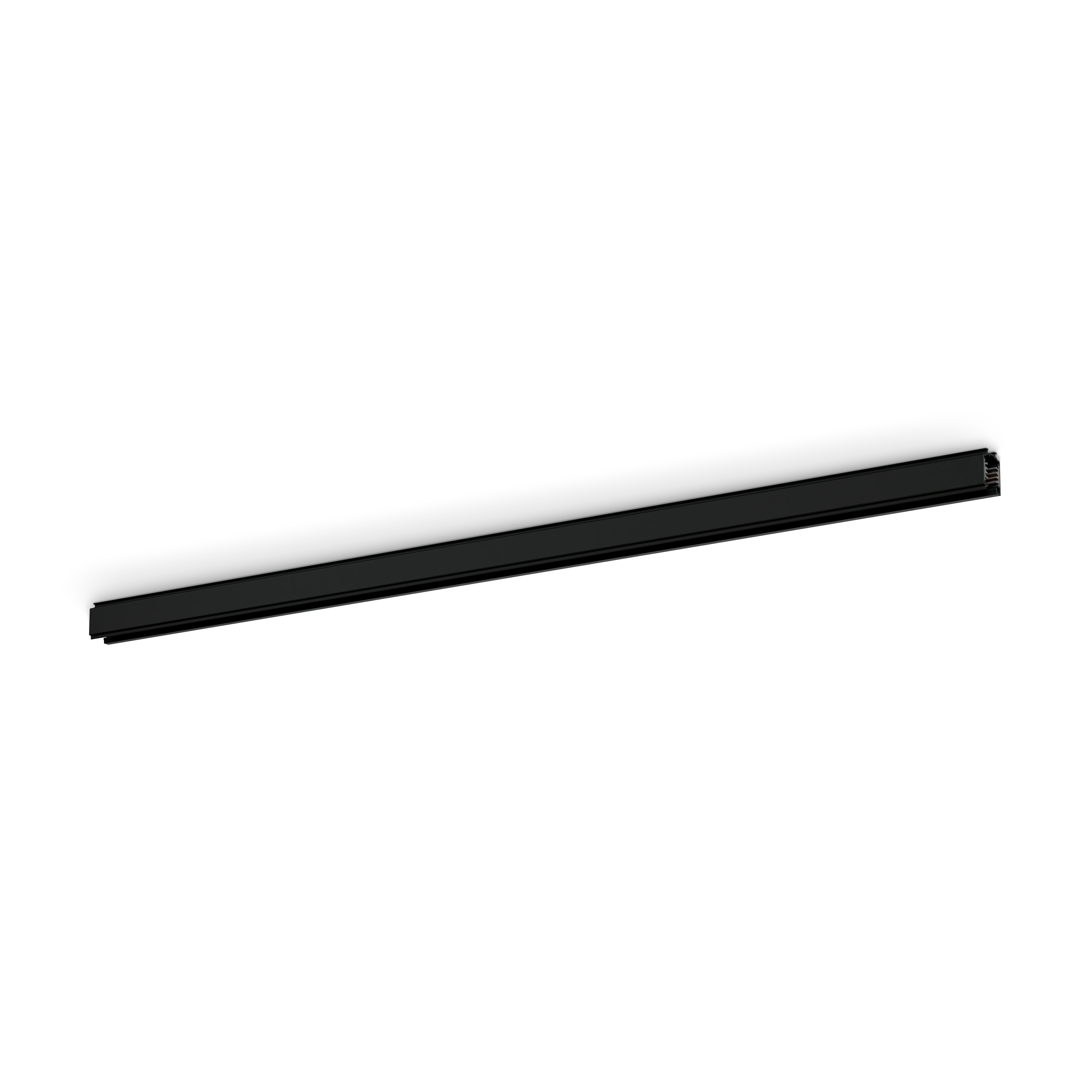

Control TrackSurface
Control Track is a track system that is compatible with the Euro standard plus adapter. The system’s flexibility makes it easy to adapt as the space changes.
Control TrackSurface
Control Track is a track system that is compatible with the Euro standard plus adapter. The system’s flexibility makes it easy to adapt as the space changes.
Installation
Track for surface-mounted ceiling installation, or suspended with suspension; see Accessories. For detailed information, see the installation instructions.
Connection
Connects in end coupling, see Accessories. The three phases can handle a maximum of 16 A each, which gives a maximum of 3.68 kVA per phase.
Design
Profile body of extruded aluminium. Lacquered in white (RAL 9010) or black (RAL 9005). Polycarbonate couplings.
Find the right lighting control for your project
Optimise your energy savings and create efficient spaces
that are easy to manage. Use our guide to find the right lighting control for your project.
DALI
Enables flexible and precise control of luminaires – easy installation with two-wire system for both power and control.
Read moreArticles
Configure your Control Track
Adapt and optimise the luminaire in Fagerhult's configurator.
Need more information?
Download a collection of light data files to guide you in your decision.
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Wall bracket for Control Track. Distance from wall to track center: 80mm | Control Track wall bracket / White. | 46783 | |
|
Wall bracket for Control Track. Distance from wall to track center: 80mm | Control Track wall bracket / Black. | 46784 | |
|
Control Track fixpoint | Track fixpoint / White. | 82040 | |
|
Control Track fixpoint | Track fixpoint / Black. | 82042 | |
|
Control Track cutting tool fort track conductors | Control Track cutting tool fort track conductors. | 82460 | |
|
Control Track Ceiling Bracket | Ceiling bracket in zinc plated steel. | 82461 | |
|
Control Track suspension hook | Control Track suspension hook, white. | 82464 | |
|
Control Track wire bracket | Control Track wire bracket / White. | 82480 | |
|
Control Track wire bracket | Control Track wire bracket / Black. | 82482 | |
|
Control Track suspension hook | Control Track suspension hook, black. | 82483 | |
|
Control Track bracket | Ceiling bracket, T-bars 25 mm / White. | 82496 | |
|
Control Track, main end feed | Control Track main end feed left / White. | 82500 | |
|
Control Track, main end feed | Control Track main end feed left / Black. | 82502 | |
|
|
Control Track, main end feed | Control Track main end feed right / White. | 82503 | |
|
|
Control Track, main end feed | Control Track main end feed right / Black. | 82505 | |
|
Control Track middle feed | Control Track middle feed / White. | 82506 | |
|
Control Track middle feed | Control Track middle feed / Black. | 82508 | |
|
Control Track L-coupler | Control Track L-coupler, left / White. | 82509 | |
|
Control Track L-coupler | Control Track L-coupler left / Black. | 82511 | |
|
|
Control Track L-coupler | Control Track L-coupler right / White. | 82512 | |
|
|
Control Track L-coupler | Control Track L-coupler right / Black. | 82514 | |
|
Control Track T-coupler | Control Track T-coupler left / White. | 82515 | |
|
Control Track T-coupler | Control Track T-coupler left / Black. | 82517 | |
|
|
Control Track T-coupler | Control Track T-coupler right / White. | 82518 | |
|
|
Control Track T-coupler | Control Track T-coupler right / Black. | 82520 | |
|
Control Track X-coupler | Control Track X-coupler / White. | 82521 | |
|
Control Track X-coupler | Control Track X-coupler / Black. | 82523 | |
|
Control Track straight coupler | Control Track straight coupler / White. | 82524 | |
|
Control Track straight coupler | Control Track straight coupler / Black. | 82526 | |
|
Control Track adjustable coupler | Control Track flexible coupler / White. | 82527 | |
|
Control Track adjustable coupler | Control Track flexible coupler / Black. | 82529 | |
|
Control Track end cap | Control Track end cap / White. | 82530 | |
|
Control Track end cap | Control Track end cap / Black. | 82532 | |
|
|
Control Track T-coupler | Control Track T-coupler left / White. | 82536 | |
|
|
Control Track T-coupler | Control Track T-coupler left / Black. | 82538 | |
|
|
Control Track T-coupler | Control Track T-coupler right / White. | 82540 | |
|
|
Control Track T-coupler | Control Track T-coupler right / Black. | 82541 | |
|
Control Track Cover | Control track cover 1000 mm / White. | 82584 | |
|
Control Track Cover | Control track cover 1000 mm / Black. | 82585 | |
|
Control Track adapter incl strain relief and nipple | Control Track adapter incl strain relief and nipple M13 / White. | 96646 | |
|
Control Track adapter incl strain relief and nipple | Control Track adapter incl strain relief and nipple M13 / Black. | 96648 | |
|
Control Track bracket | Clips for t-bar, 25 mm, with hook / White. | 97137 | |
|
Control Track bracket | Clip for T-bar 25 mm for wire / White. | 97147 | |
|
Control Track Dual wire suspension kit | Control Track Dual wire suspension kit 4m, white. | 97599 | |
|
Control Track Dual wire suspension kit | Control Track Dual wire suspension kit 4m, black. | 97611 | |
|
Control Track bracket | Control Track Dual brackets for joint support. | 97690 | |
|
Control Track bracket | Clip for T-bar 25 mm for wire / Black. | 97764 | |
|
Control Track wire bracket including 4 m wire | Control Track wire bracket including 4 m wire 1,2 mm, white. 10 pieces. | 97956 | |
|
Control Track wire bracket including 4 m wire | Control Track wire bracket including 4 m wire 1,2 mm, black. 10 pieces. | 97958 | |
|
Control Track coupler support | Control Track coupler support, white. | 97960 | |
|
Control Track coupler support | Control Track coupler support, black. | 97961 | |
|
|
Control Track bracket | Control Track snap on track bracket for HTB 24mm ceilings, white | 98978 | |
|
|
Control Track bracket | Control Track snap on track bracket for HTB 24mm ceilings, black | 98979 | |
|
|
Control Track straight coupler | Control track, Straight coupler without control connection, white | 98984 | |
|
|
Control Track straight coupler | Control track, Straight coupler without control connection, black | 98985 |
