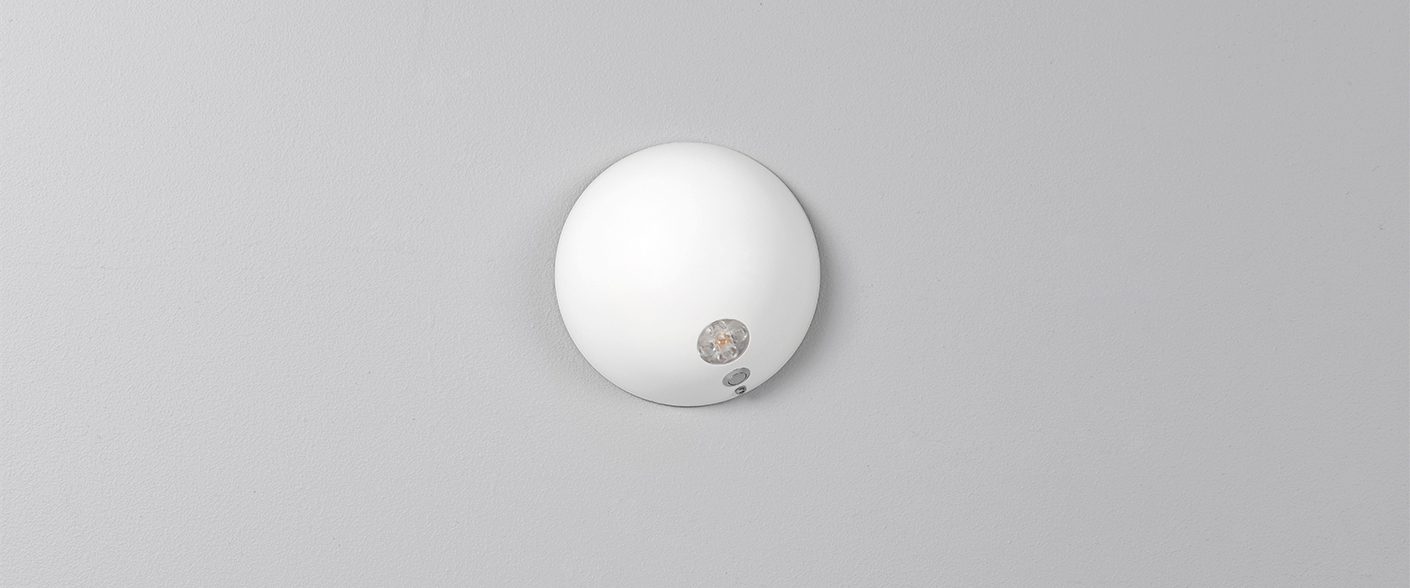

Robust reading luminaire LED G2

A robust wall-mounted reading/bed luminaire with high safety for exposed environments.

Installation

Luminaire for wall installation.

Connection

Connects with 230 V, built-in LED driver. Snap-in terminal block 3x2.5 mm².

Design

Enamelled body in steel. Casing of 1 mm white enamelled (RAL9016) aluminium. Pushbutton for off/on and dimming, safe against damage.

Optics

Casted lens in PC. Direction of light 45° downwards. Adjustable 25° in both directions.

Designed by

AART Designers

Media

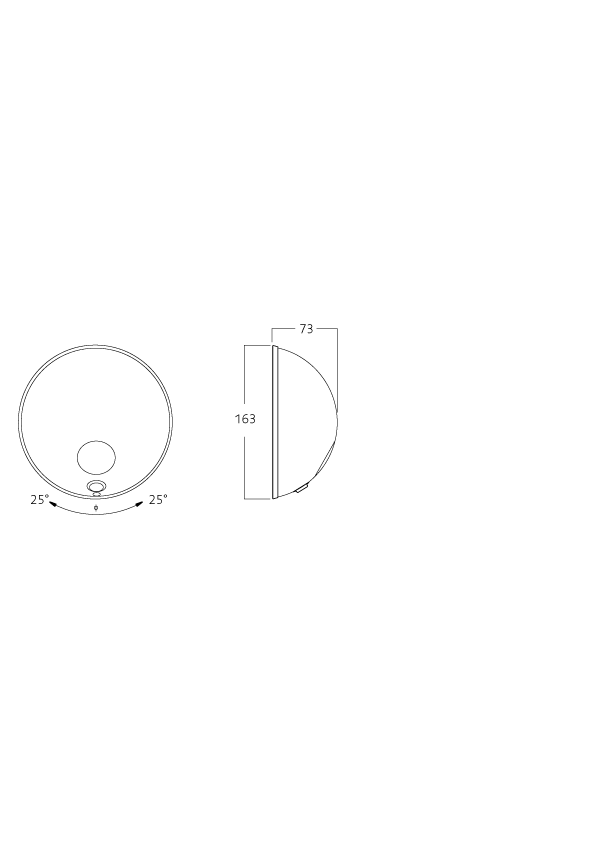

Adjustable 25° in both directions.

Robust reading luminaire LED

Cell bed luminaire LED is a security luminaire for exposed environments.

More about the family Robust reading luminaire LED

Document

Specification

Filter

Art.no. Effect, W Lumen output CCT, K Colour Diameter, mm Miscellaneous
Art.no. Effect, W Lumen output CCT, K Colour Diameter, mm Miscellaneous
56948 4 252 2700 White 163
56948-530 5 347 2700 White 163 Dimming via pushbutton
