Kaskad Flex

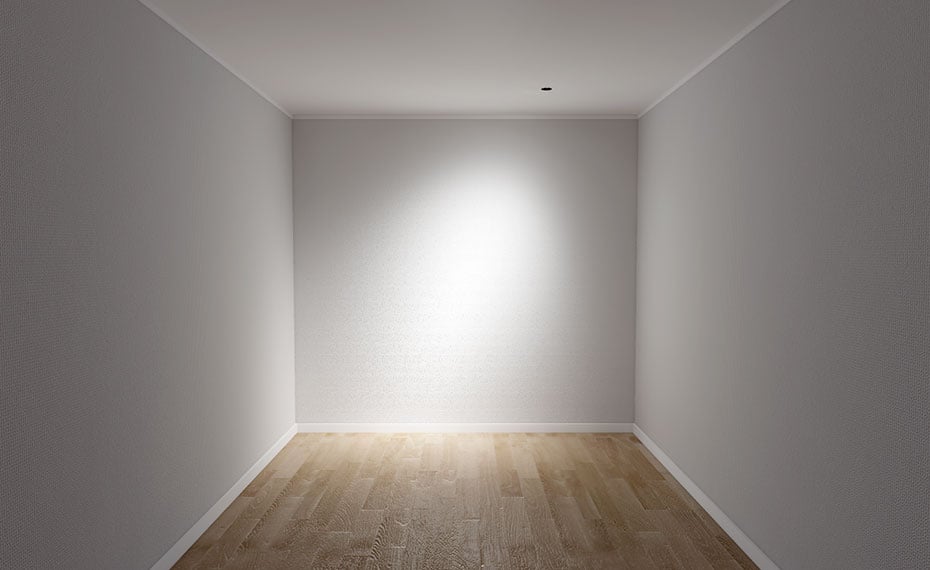

A small, recessed downlight in three colour temperatures. The tilting and rotating Kaskad Flex lets you cast light exactly where you want.

Installation

Recessed mounting in unventilated or ventilated suspended ceilings. Assembly springs for quick assembly included. Separate ballast box for flexible installation. An assembly plate must be used when mounting on soft tile ceilings Do not cover with insulation. For detailed information, please refer to the installation instructions.

Connection

Connections are made to the independent LED driver. The luminaire is delivered with interconnecting cable.

Design

Luminaire body and visible edge ring of sheet steel in white (RAL 9016) structured enamel. Heatsink in black enamelled aluminium.

Louvre

Specular reflector in anodised aluminium with clear front glass. Structured enamelled black baffle.

Miscellaneous

Luminaire housing can be rotated 180° and tilted 30°.
Class III applies to the luminaire body only. The supplied driver should be connected to protective earth.
For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation.

Kaskad

Kaskad is an elegant lighting solution ideal for front-of-house environments such as lounges, hotel lobbies and entrance halls. The distinct trim ring, combined with the black baffle, creates an architecturally exciting solution...

More about the family Kaskad

Document

Specification

Filter

Art.no. Effect, W Lumen output CCT, K Diameter, mm Colour Light distribution Light control Connection SDCM Miscellaneous
Art.no. Effect, W Lumen output CCT, K Diameter, mm Colour Light distribution Light control Connection SDCM Miscellaneous

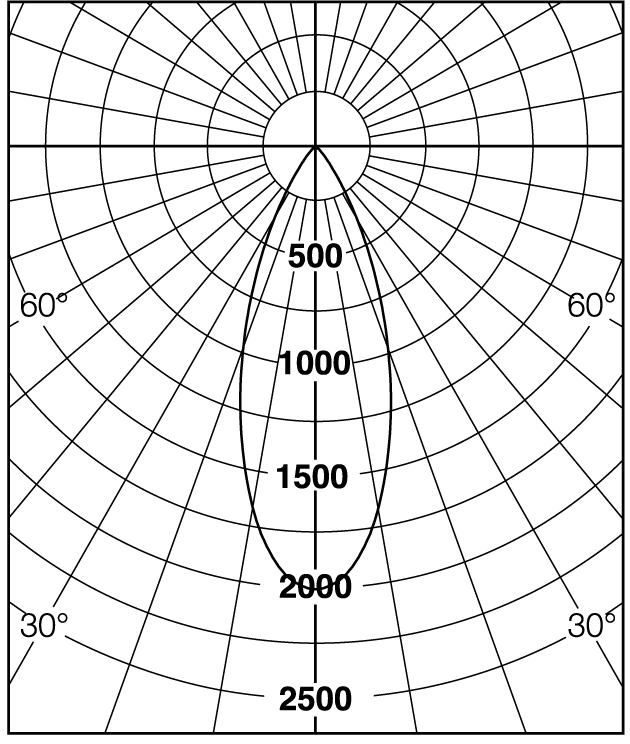

76600 13 827 2700 110 White Medium Beam, 21° 2 SDCM 2
76600-3 13 827 2700 110 White Medium Beam, 21° Connection cable with plug, L=2.5 m 2 SDCM 2
76600-402 13 827 2700 110 White Medium Beam, 21° DALI/Phase-pulse 2 SDCM 2
76602 13 951 3000 110 White Medium Beam, 21° 3 SDCM 3
76602-3 13 951 3000 110 White Medium Beam, 21° Connection cable with plug, L=2.5 m 3 SDCM 3
76602-402 13 951 3000 110 White Medium Beam, 21° DALI/Phase-pulse 3 SDCM 3
76604 13 1030 4000 110 White Medium Beam, 21° 3 SDCM 3
76604-3 13 1030 4000 110 White Medium Beam, 21° Connection cable with plug, L=2.5 m 3 SDCM 3
76604-402 13 1030 4000 110 White Medium Beam, 21° DALI/Phase-pulse 3 SDCM 3

Filter

Name Description Art.no.
Name Description Art.no.
Assembly plateMounting plate for soft tile ceiling, Ø 11041964
