Clarico Down

A recessed luminaire for most types of suspended ceilings. A combination of microprism and opal surfaces in various levels produces direct light on the floor and ambient light on walls and ceilings.

Installation

Recessed mounting in ventilated or unventilated suspended ceilings. Two optional designs.
VTB – for suspended ceilings with visible T-bars 15 or 24 mm.
HB – for suspended ceiling with concealed T-bars/D-edge, symmetrical attachment of ceiling boards (20–22 mm thick). Supplement with fixing brackets for fixed suspended ceiling, see Accessories.

Connection

Connection in driver box. The driver box can be positioned next to the luminaire. Snap-in terminal block 3x1,5 mm² (5x1,5 mm² where dimming is required).

Design

Luminaire body in white enamelled sheet steel (RAL 9016).

Louvre

A combination of microprismatic and frosted opal surfaces in acrylic (PMMA) with a thin opal diffuser (PMMA) on the inside.

Miscellaneous

IP 40 under loft og IP 20 over loft.

CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.

Media

Clarico

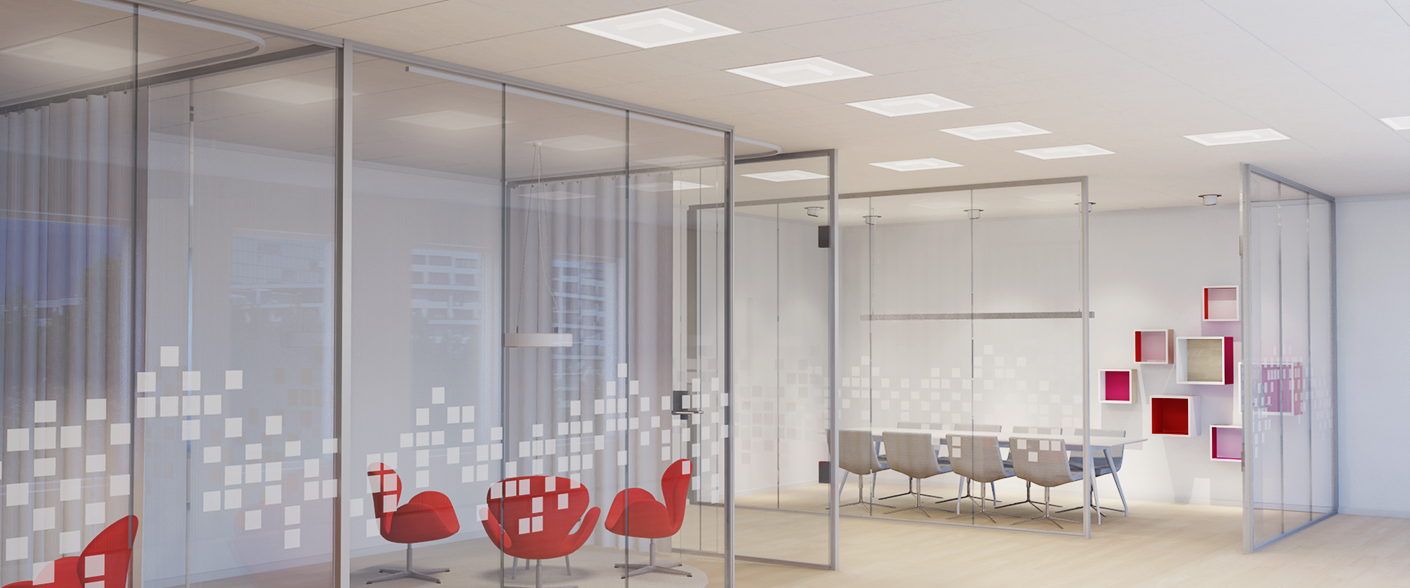

Is it possible to create a recessed LED luminaire which distributes a very soft light directly onto the floor, vertically on the wall and indirectly on the ceiling – all at the same time? Clarico achieves the almost impossible, ...

More about the family Clarico

Document

Specification

Filter

Art.no. Effect, W Lumen output CCT, K CRI Module Installation Light control Connection CLO function on
Art.no. Effect, W Lumen output CCT, K CRI Module Installation Light control Connection CLO function on
23797 24 2808 3000 80 600x600 VTB
23797-111 24 2808 3000 80 600x600 VTB Wieland GST18i3 3-way male
23797-3 24 2808 3000 80 600x600 VTB Connection cable with plug, L=2.5 m
23797-340 24 2808 3000 80 600x600 VTB Wago Winsta 3-way male
23797-402 22 2527 3000 80 600x600 VTB DALI/Phase-pulse Yes
23797-519 24 2808 3000 80 600x600 VTB Ensto 3-way male
23797-520 22 2527 3000 80 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23797-528 22 2527 3000 80 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23797-529 22 2527 3000 80 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23798 24 2808 3000 80 600x600 HB
23798-111 24 2808 3000 80 600x600 HB Wieland GST18i3 3-way male
23798-3 24 2808 3000 80 600x600 HB Connection cable with plug, L=2.5 m
23798-340 24 2808 3000 80 600x600 HB Wago Winsta 3-way male
23798-402 22 2527 3000 80 600x600 HB DALI/Phase-pulse Yes
23798-519 24 2808 3000 80 600x600 HB Ensto 3-way male
23798-520 22 2527 3000 80 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23798-528 22 2527 3000 80 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23798-529 22 2527 3000 80 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes
23799 24 2956 4000 80 600x600 VTB
23799-111 24 2956 4000 80 600x600 VTB Wieland GST18i3 3-way male
23799-3 24 2956 4000 80 600x600 VTB Connection cable with plug, L=2.5 m
23799-340 24 2956 4000 80 600x600 VTB Wago Winsta 3-way male
23799-402 22 2660 4000 80 600x600 VTB DALI/Phase-pulse Yes
23799-519 24 2956 4000 80 600x600 VTB Ensto 3-way male
23799-520 22 2660 4000 80 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23799-528 22 2660 4000 80 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23799-529 22 2660 4000 80 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23800 24 2956 4000 80 600x600 HB
23800-111 24 2956 4000 80 600x600 HB Wieland GST18i3 3-way male
23800-3 24 2956 4000 80 600x600 HB Connection cable with plug, L=2.5 m
23800-340 24 2956 4000 80 600x600 HB Wago Winsta 3-way male
23800-402 22 2660 4000 80 600x600 HB DALI/Phase-pulse Yes
23800-519 24 2956 4000 80 600x600 HB Ensto 3-way male
23800-520 22 2660 4000 80 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23800-528 22 2660 4000 80 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23800-529 22 2660 4000 80 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes
23817 36 4306 3000 80 600x600 VTB
23817-111 36 4306 3000 80 600x600 VTB Wieland GST18i3 3-way male
23817-3 36 4306 3000 80 600x600 VTB Connection cable with plug, L=2.5 m
23817-340 36 4306 3000 80 600x600 VTB Wago Winsta 3-way male
23817-402 33 3875 3000 80 600x600 VTB DALI/Phase-pulse Yes
23817-519 36 4306 3000 80 600x600 VTB Ensto 3-way male
23817-520 33 3875 3000 80 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23817-528 33 3875 3000 80 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23817-529 33 3875 3000 80 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23818 36 4306 3000 80 600x600 HB
23818-111 36 4306 3000 80 600x600 HB Wieland GST18i3 3-way male
23818-3 36 4306 3000 80 600x600 HB Connection cable with plug, L=2.5 m
23818-340 36 4306 3000 80 600x600 HB Wago Winsta 3-way male
23818-402 33 3875 3000 80 600x600 HB DALI/Phase-pulse Yes
23818-519 36 4306 3000 80 600x600 HB Ensto 3-way male
23818-520 33 3875 3000 80 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23818-528 33 3875 3000 80 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23818-529 33 3875 3000 80 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes
23819 36 4533 4000 80 600x600 VTB
23819-111 36 4533 4000 80 600x600 VTB Wieland GST18i3 3-way male
23819-3 36 4533 4000 80 600x600 VTB Connection cable with plug, L=2.5 m
23819-340 36 4533 4000 80 600x600 VTB Wago Winsta 3-way male
23819-402 33 4080 4000 80 600x600 VTB DALI/Phase-pulse Yes
23819-519 36 4533 4000 80 600x600 VTB Ensto 3-way male
23819-520 33 4080 4000 80 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23819-528 33 4080 4000 80 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23819-529 33 4080 4000 80 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23820 36 4533 4000 80 600x600 HB
23820-111 36 4533 4000 80 600x600 HB Wieland GST18i3 3-way male
23820-3 36 4533 4000 80 600x600 HB Connection cable with plug, L=2.5 m
23820-340 36 4533 4000 80 600x600 HB Wago Winsta 3-way male
23820-402 33 4080 4000 80 600x600 HB DALI/Phase-pulse Yes
23820-519 36 4533 4000 80 600x600 HB Ensto 3-way male
23820-520 33 4080 4000 80 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23820-528 33 4080 4000 80 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23820-529 33 4080 4000 80 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes
23879 31 3744 3000 80 600x600 VTB
23879-111 31 3744 3000 80 600x600 VTB Wieland GST18i3 3-way male
23879-3 31 3744 3000 80 600x600 VTB Connection cable with plug, L=2.5 m
23879-340 31 3744 3000 80 600x600 VTB Wago Winsta 3-way male
23879-402 28 3370 3000 80 600x600 VTB DALI/Phase-pulse Yes
23879-519 31 3744 3000 80 600x600 VTB Ensto 3-way male
23879-520 28 3370 3000 80 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23879-528 28 3370 3000 80 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23879-529 28 3370 3000 80 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23880 31 3744 3000 80 600x600 HB
23880-111 31 3744 3000 80 600x600 HB Wieland GST18i3 3-way male
23880-3 31 3744 3000 80 600x600 HB Connection cable with plug, L=2.5 m
23880-340 31 3744 3000 80 600x600 HB Wago Winsta 3-way male
23880-402 28 3370 3000 80 600x600 HB DALI/Phase-pulse Yes
23880-519 31 3744 3000 80 600x600 HB Ensto 3-way male
23880-520 28 3370 3000 80 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23880-528 28 3370 3000 80 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23880-529 28 3370 3000 80 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes
23881 31 3941 4000 80 600x600 VTB
23881-111 31 3941 4000 80 600x600 VTB Wieland GST18i3 3-way male
23881-3 31 3941 4000 80 600x600 VTB Connection cable with plug, L=2.5 m
23881-340 31 3941 4000 80 600x600 VTB Wago Winsta 3-way male
23881-402 28 3547 4000 80 600x600 VTB DALI/Phase-pulse Yes
23881-519 31 3941 4000 80 600x600 VTB Ensto 3-way male
23881-520 28 3547 4000 80 600x600 VTB DALI/Phase-pulse Ensto 5-way male Yes
23881-528 28 3547 4000 80 600x600 VTB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23881-529 28 3547 4000 80 600x600 VTB DALI/Phase-pulse Wago Winsta 5-way male Yes
23882 31 3941 4000 80 600x600 HB
23882-111 31 3941 4000 80 600x600 HB Wieland GST18i3 3-way male
23882-3 31 3941 4000 80 600x600 HB Connection cable with plug, L=2.5 m
23882-340 31 3941 4000 80 600x600 HB Wago Winsta 3-way male
23882-402 28 3547 4000 80 600x600 HB DALI/Phase-pulse Yes
23882-519 31 3941 4000 80 600x600 HB Ensto 3-way male
23882-520 28 3547 4000 80 600x600 HB DALI/Phase-pulse Ensto 5-way male Yes
23882-528 28 3547 4000 80 600x600 HB DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23882-529 28 3547 4000 80 600x600 HB DALI/Phase-pulse Wago Winsta 5-way male Yes

Filter

Name Description Art.no.
Name Description Art.no.
Wieland T-connectorWieland 5-way T-connector91026
Wieland T-connectorWieland 3-way T-connector91025
Fixing bracketsFixing brackets/4 pcs. For fixed ceiling. Only for concealed T-bars (HB-body). 91279
WAGO connection cables, 3-wayLength 3.0 m with female and male connectors, 3x1,5 mm². Halogen free.91244
WAGO connection cables, 5-wayLength 3.0 m with female and male connectors, 5x1,5 mm². Halogen free.91243
Wieland connection cables, 3-wayLength 3.0 m with female and male connectors, 3x1,5 mm². Halogen free.92793
WAGO T-connectorWAGO T-Connector, 3-way, white91067
WAGO T-connectorWAGO T-connector, 5-way, 2 locking levers, blue88228
Wieland connection cables, 5-wayLength 3.0 m with female and male connectors, 5x1,5 mm². Halogen free.92799
