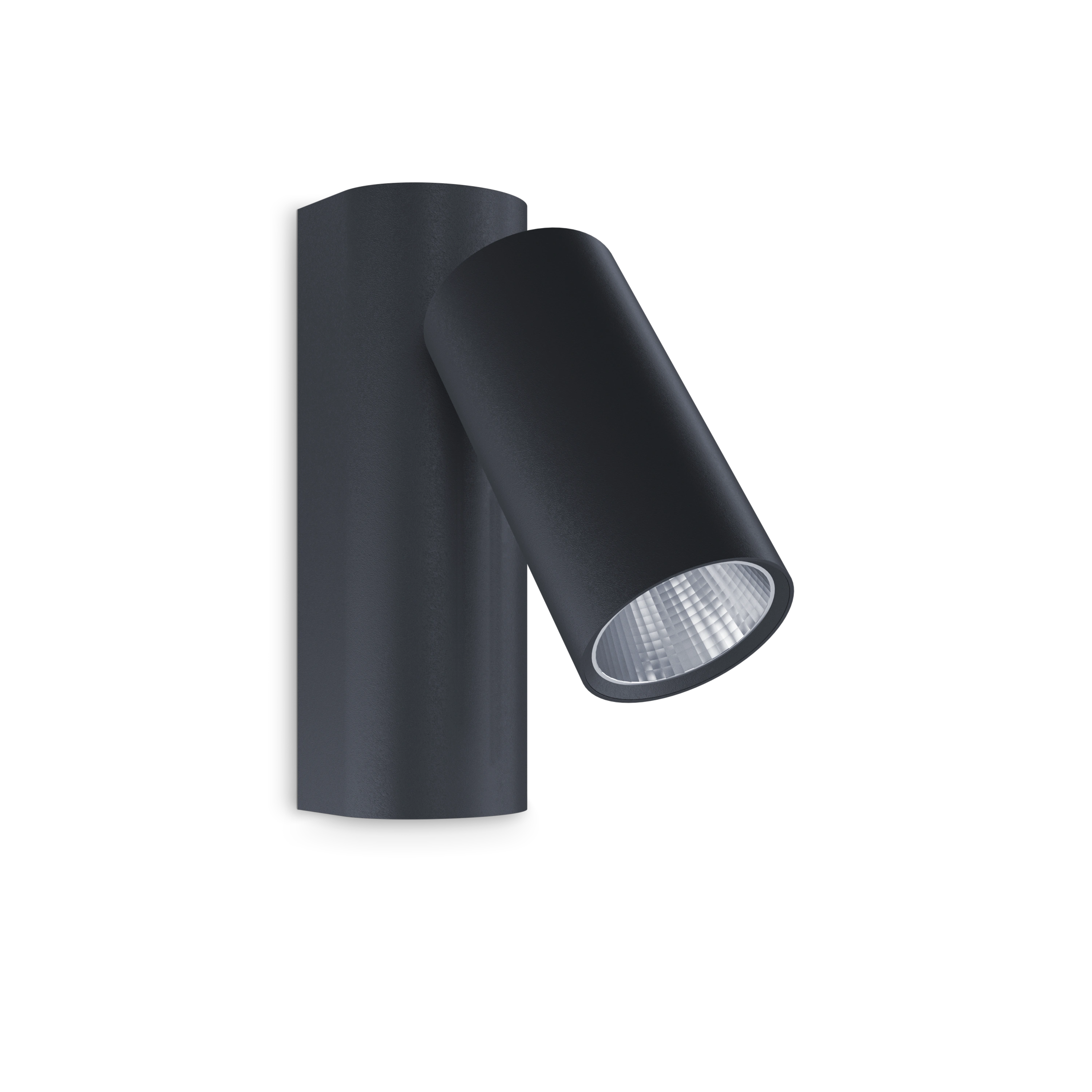

Zkye 55 G2 WallSurface
Zkye is a family of efficient, compact spotlights in a minimalist design for atmospheric lighting in shops and offices. Available with multiple colour temperatures and control options. This variant is wall-mounted and provides a striking raking light.
Zkye 55 G2 WallSurface
Zkye is a family of efficient, compact spotlights in a minimalist design for atmospheric lighting in shops and offices. Available with multiple colour temperatures and control options. This variant is wall-mounted and provides a striking raking light.
Installation
Luminaire for wall installation. For detailed information, see the installation instructions.
Connection
Snap-in terminal block 5x2.5 mm². Driver integrated in wall bracket.
Design
Luminaire housing made of aluminium. White (RAL 9016) or black (RAL 9005) structured lacquer.

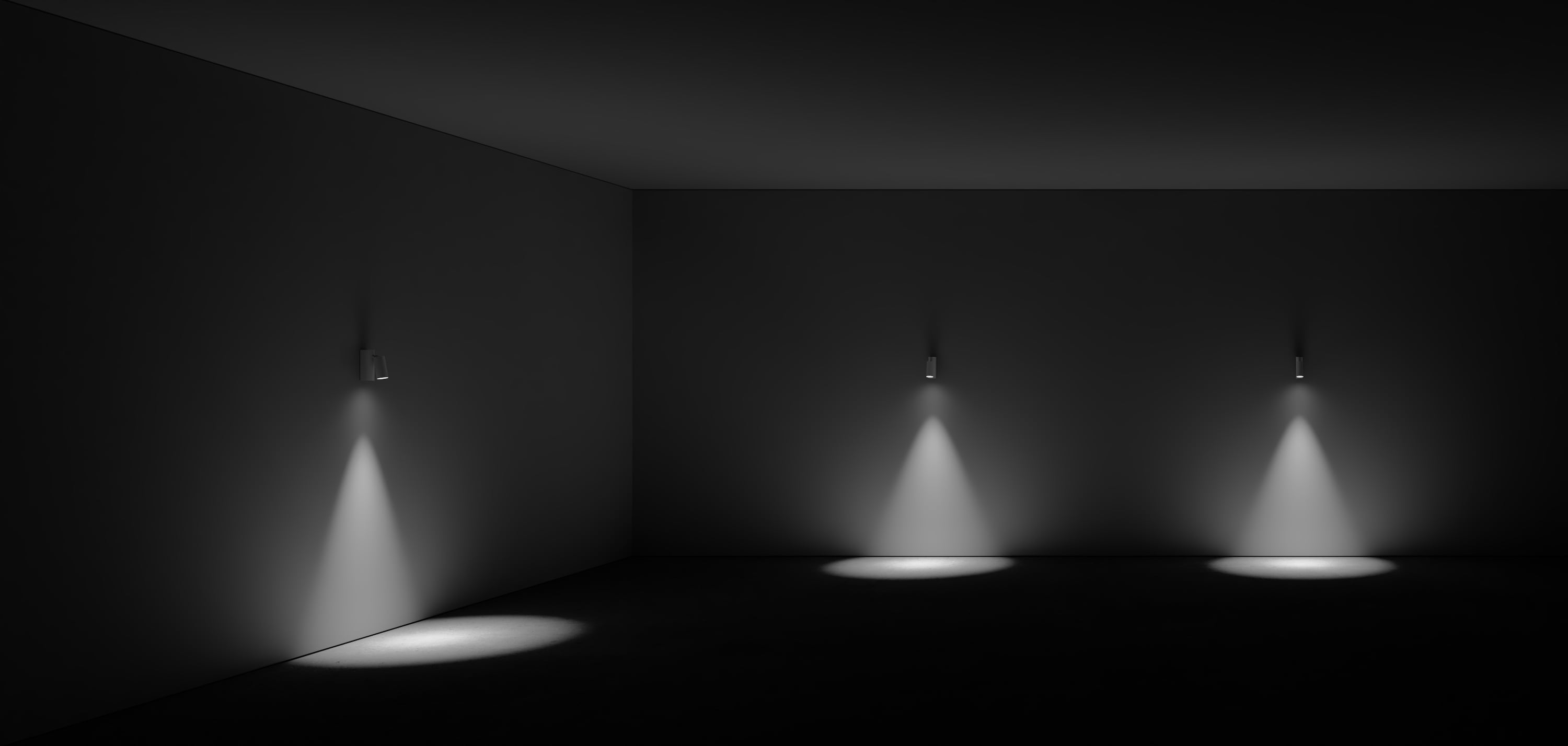

Light Distribution
Narrow, medium or wide beam.
Light data

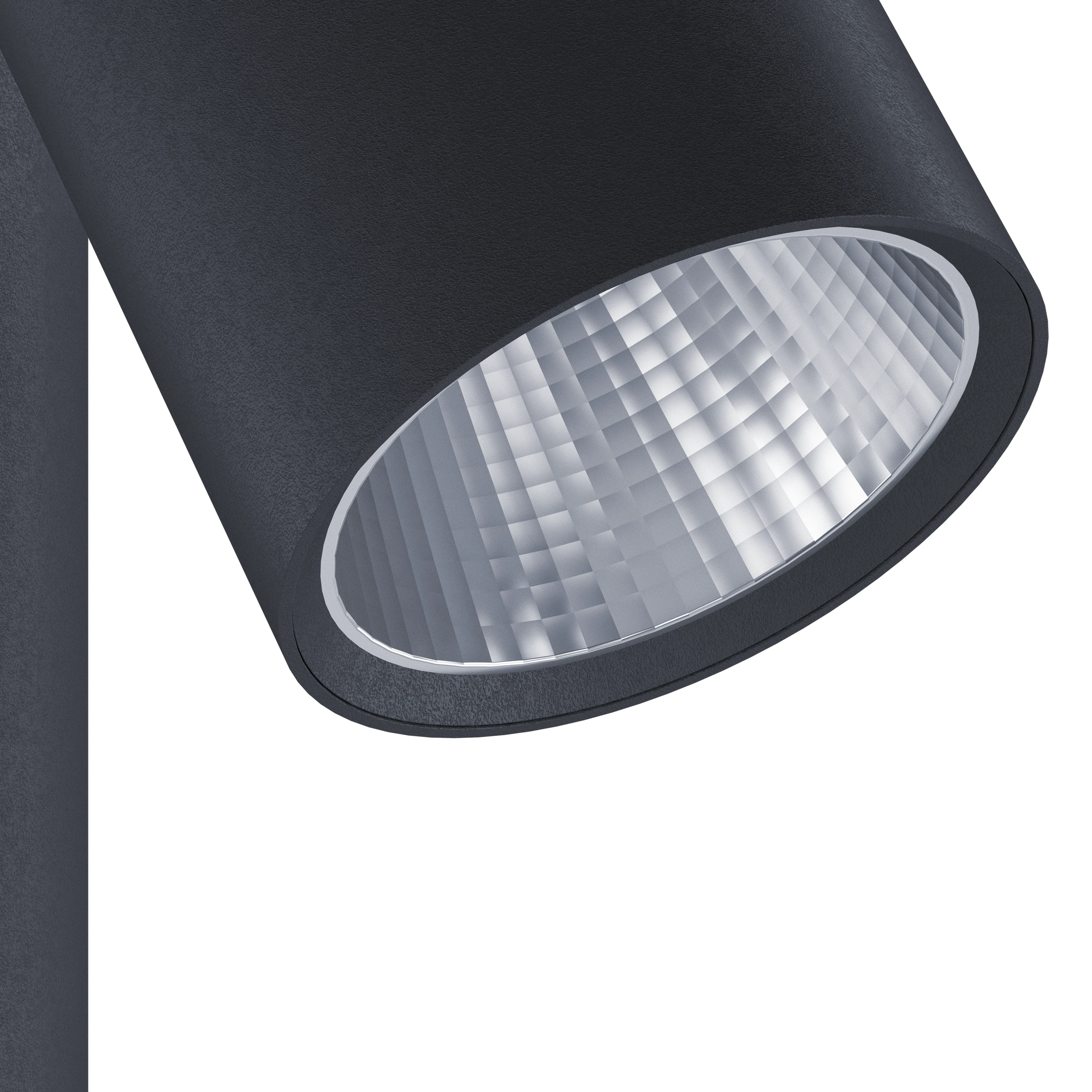

Optics
Spun reflector.
Minimised design
The luminaire’s minimised design, with its high luminous efficacy, means that less material is used in manufacturing. This contributes to a low climate impact and more efficient use of resources compared to traditional, larger luminaires, without compromising on function or light quality.
Optimised packaging
Multiple products can be packaged together, reducing the amount of packaging material and cutting resource use and climate impact in both production and transportation. This makes the logistics more efficient and simplifies the handling and recycling of the packaging, as fewer types of material are used.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
e-Sense StagePIR sensor
Dynamic system for e.g. retail and showrooms, which uses Casambi technology to easily create and control various lighting scenarios via an app.
Read moreOn/Off
Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | CRI | Colour | Dimensions, mm | Light distribution | Light control | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|
| 65220 | 14 | 1501 | 2700 | 90 | White | 175x55x117 | Narrow Beam, 15° | On/off |
|
|
| 65220-402 | 14 | 1501 | 2700 | 90 | White | 175x55x117 | Narrow Beam, 15° | DALI |
|
|
| 65221 | 14 | 1501 | 2700 | 90 | Black | 175x55x117 | Narrow Beam, 15° | On/off |
|
|
| 65221-402 | 14 | 1501 | 2700 | 90 | Black | 175x55x117 | Narrow Beam, 15° | DALI |
|
|
| 65222 | 14 | 1498 | 2700 | 90 | White | 175x55x117 | Medium Beam, 24° | On/off |
|
|
| 65222-402 | 14 | 1498 | 2700 | 90 | White | 175x55x117 | Medium Beam, 24° | DALI |
|
|
| 65223 | 14 | 1498 | 2700 | 90 | Black | 175x55x117 | Medium Beam, 24° | On/off |
|
|
| 65223-402 | 14 | 1498 | 2700 | 90 | Black | 175x55x117 | Medium Beam, 24° | DALI |
|
|
| 65224 | 14 | 1542 | 2700 | 90 | White | 175x55x117 | Wide Beam, 37° | On/off |
|
|
| 65224-402 | 14 | 1542 | 2700 | 90 | White | 175x55x117 | Wide Beam, 37° | DALI |
|
|
| 65225 | 14 | 1542 | 2700 | 90 | Black | 175x55x117 | Wide Beam, 37° | On/off |
|
|
| 65225-402 | 14 | 1542 | 2700 | 90 | Black | 175x55x117 | Wide Beam, 37° | DALI |
|
|
| 65226 | 14 | 1516 | 3000 BBBL | 90 | White | 175x55x117 | Narrow Beam, 15° | On/off |
|
|
| 65226-402 | 14 | 1516 | 3000 BBBL | 90 | White | 175x55x117 | Narrow Beam, 15° | DALI |
|
|
| 65227 | 14 | 1516 | 3000 BBBL | 90 | Black | 175x55x117 | Narrow Beam, 15° | On/off |
|
|
| 65227-402 | 14 | 1516 | 3000 BBBL | 90 | Black | 175x55x117 | Narrow Beam, 15° | DALI |
|
|
| 65228 | 14 | 1513 | 3000 BBBL | 90 | White | 175x55x117 | Medium Beam, 24° | On/off |
|
|
| 65228-402 | 14 | 1513 | 3000 BBBL | 90 | White | 175x55x117 | Medium Beam, 24° | DALI |
|
|
| 65229 | 14 | 1513 | 3000 BBBL | 90 | Black | 175x55x117 | Medium Beam, 24° | On/off |
|
|
| 65229-402 | 14 | 1513 | 3000 BBBL | 90 | Black | 175x55x117 | Medium Beam, 24° | DALI |
|
|
| 65230 | 14 | 1558 | 3000 BBBL | 90 | White | 175x55x117 | Wide Beam, 37° | On/off |
|
|
| 65230-402 | 14 | 1558 | 3000 BBBL | 90 | White | 175x55x117 | Wide Beam, 37° | DALI |
|
|
| 65231 | 14 | 1558 | 3000 BBBL | 90 | Black | 175x55x117 | Wide Beam, 37° | On/off |
|
|
| 65231-402 | 14 | 1558 | 3000 BBBL | 90 | Black | 175x55x117 | Wide Beam, 37° | DALI |
|
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
e-Sense Stage RTC Backup | e-Sense Stage Stand-Alone Control Box RTC Backup | 99816 | |
|
|
e-Sense Stage Relay | e-Sense Stage Stand-Alone Control Box Relay | 99814 | |
|
|
e-Sense Stage Trailing Edge | e-Sense Stage Stand-Alone Control Box Trailing Edge | 99813 | |
|
e-Sense Stage 4CH PWM | e-Sense Stage Stand-Alone Control Box 4 CH PWM | 99815 | |
|
|
e-Sense Stage Stand-alone DALI | e-Sense Stage Stand-Alone Control Box DALI | 99812 | |
|
Xpress push button panel | Xpress push button panel with long range, white. | 82178 | |
|
Xpress push button panel | Xpress push button panel with long range, black. | 82179 |
