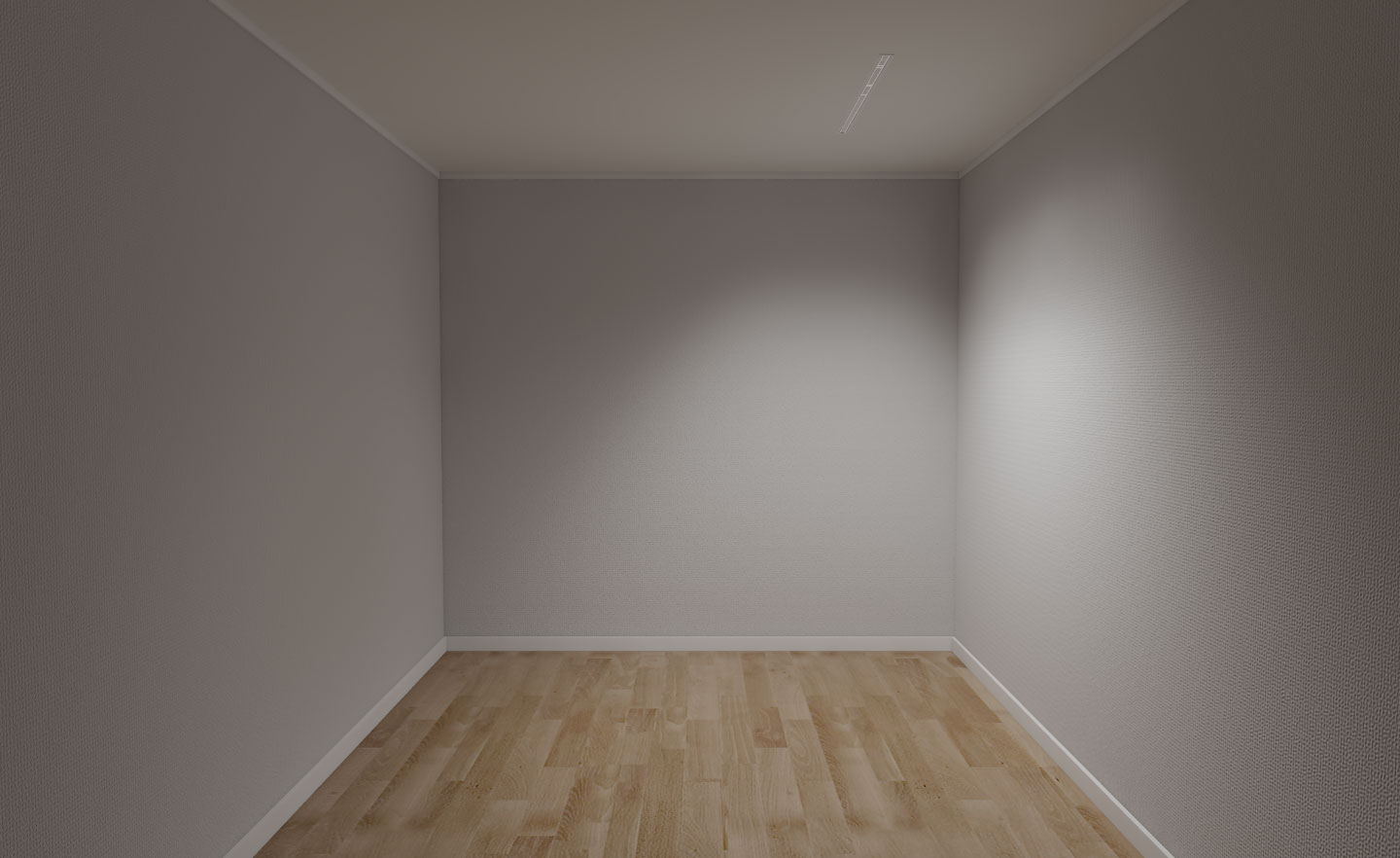

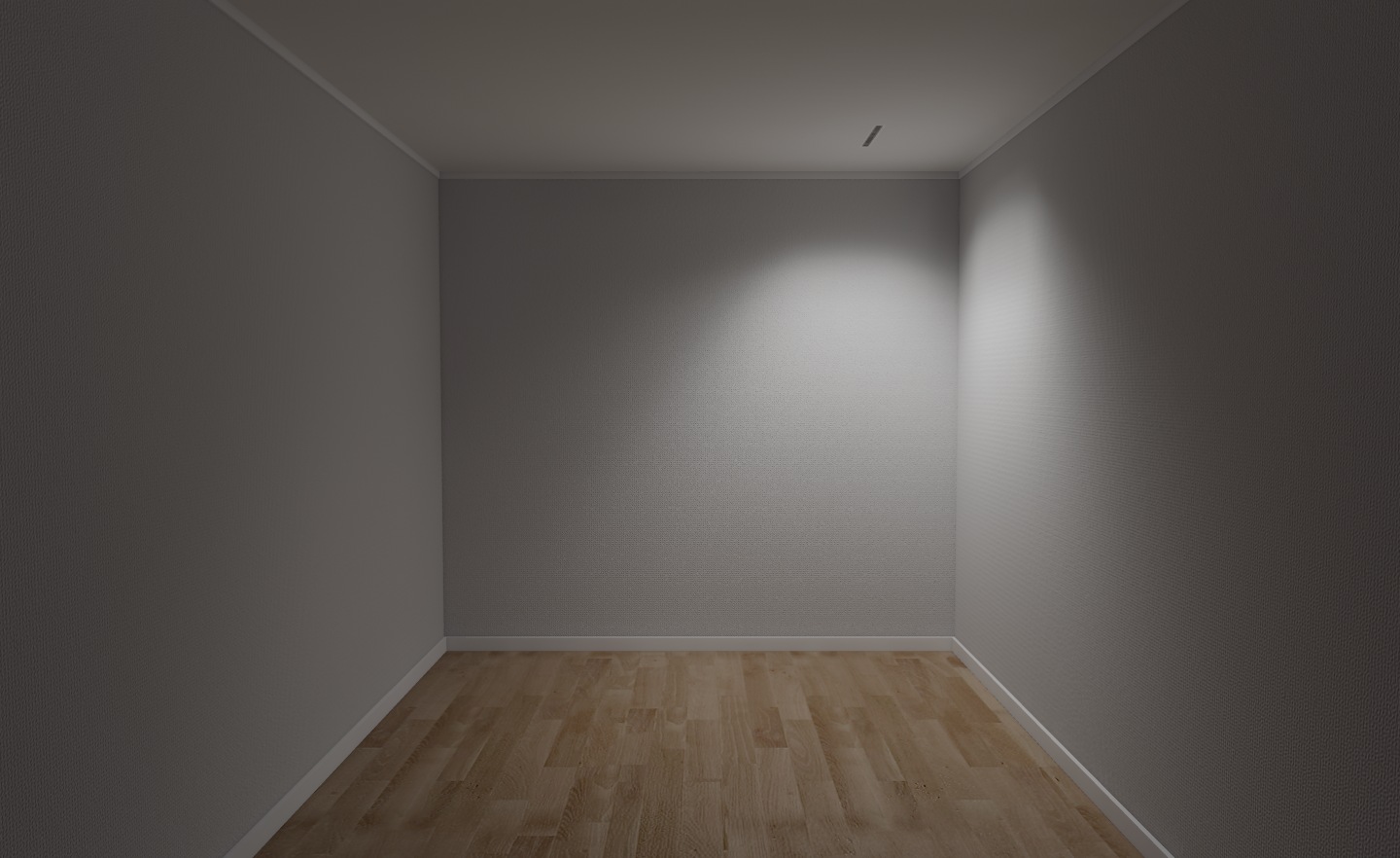

A recessed luminaire for installation in suspended ceilings with Beta Opti Nano louvre. Single or series installation.
Adapt and optimise Notor 36 by using Fagerhult Configure. For example, choose among colour temperatures, optics, luminous fluxes and various accessories. The linear luminaires can be used as single luminaires or in systems. The other shapes are in the system configuration. All choices are saved in a product datasheet, which can be downloaded together with unique light data files. The articles listed below are examples.
Recessed installation in suspended ceilings. Unventilated or ventilated ceilings. For installation in suspended ceilings with visible T-bars, VTB (24 mm) or one-piece suspended ceilings.
For permanent connection with 230 V; built-in LED ballast in luminaire. Single and Start luminaires in systems are equipped with 2.5 m connection cable 5 x 0.75 mm². System units are equipped with a change-over cable (5 x 1.5 mm²) and a quick-connector between the luminaire units. Use Configure for options on the type of connection cable.
Frame painted in white (RAL 9016), silver (RAL 7035 metallic) or black (RAL 9005). Endcaps included in Start/Single luminaires.
Beta Opti Nano – side and cross blades in satin matte, metallised aluminium with an integrated opal surface that minimises the risk of uncomfortable glare from the LEDs and multiple shadows.
CLO (Constant Light Output) and DALI/phase pulse control as standard. CLO means that the luminaire provides the same amount of light for the duration of its service life.
e-Sense Active – PIR sensor with presence and daylight control via DALI. Mounted in a separate unit.
Organic Response – PIR sensor with presence and daylight control. Mounted in a separate unit. All luminaires have master/slave functionality with IR communications. Either cont. or end. A sensor handles up to 4 luminaires. See installation instructions for more information.
The LEDs are protected from contact.
NOTE! Do not combine Low Lumen (LL) and High Lumen (HL) luminaires in a series installation.
Notor 36, a luminaire with a square profile and a Scandinavian design style. Only 36x36 mm, it blends into the background and enables you to create both symmetry and creative patterns. An obvious choice when you want to...More about the family Notor 36
Customise with Fagerhult Configure
Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
|Mounting bracket||Mounting bracket Notor 36, for VTB-ceilings/each.||92750|
|Mounting bracket||Mounting brackets Notor 36, for fixed ceilings/each.||92751|
|Organic Response sensor Notor 36||Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI in both directions. White, 400 mm, for recessed Beta Opti Nano, continuous.||16087-20117|
|e-Sense Active sensor Notor 36||Unit with PIR sensor with presence and daylight control. For connecting max. 5 Notor 36 DALI luminaires. White, 400 mm, for recessed Beta Opti Nano, continuous.||16087-20348|
|e-Sense Active sensor Notor 36||Unit with PIR sensor with presence and daylight control. For connecting max. 5 Notor 36 DALI luminaires. White, 400 mm, for recessed Beta Opti Nano, end.||16087-20349|
