Evolume 1

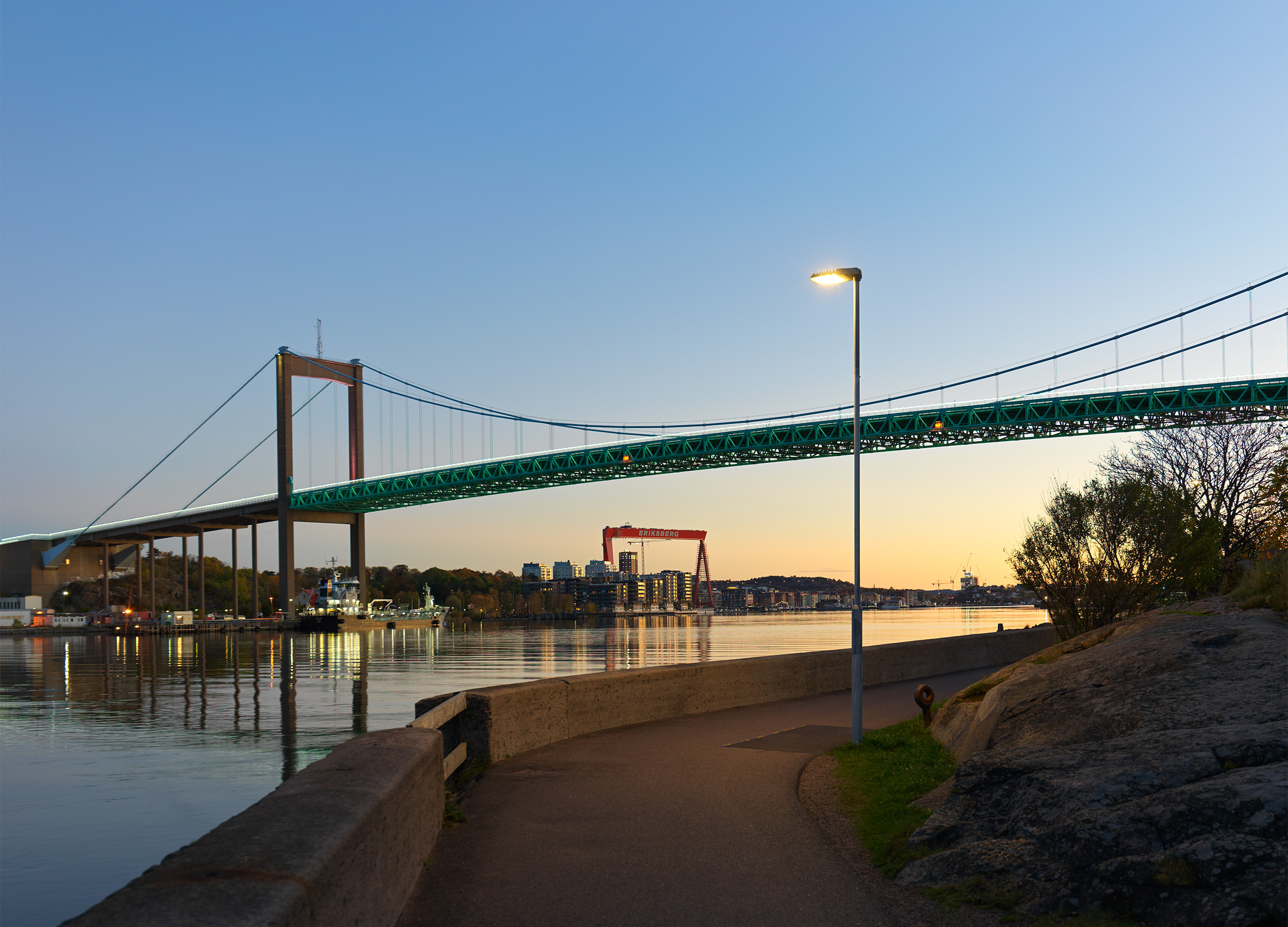

Lamppost luminaire with high performance and light comfort. Optimised beam with AGC lenses designed for road lighting. CLO by default for constant luminous flux over the working life of the luminaire. The luminaire has selectable properties to minimise the impact on the environment: Bioinclusive Lighting.

Installation

Luminaire for installation on Ø48-60 mm post tops or post arms. Accessories for other installation cases are ordered separately: see Accessories. Tiltable ±15º.

Connection

Connecting cable is available in different variants and lengths; these are selectable in Fagerhult Configure.

Design

Luminaire housing and post bracket made of recycled diecast aluminium. Aluzink-treated stainless steel screws. Integrated heatsinks for increased efficiency. Screen-printed, hardened flat glass.

Optics

AGC-lenses (Advanced Glare Control). The E-lens are designed to focus on illuminance. L lenses are ideal if the luminance from the ground is the main priority. The AGC lenses are integrated with a reflector for increased efficiency and light comfort. Plates for backlight screening are available on request. Luminaire variant with optics for pedestrian crossings is available on request.

Dimming

Citygrid – PIR sensors with presence detection. Wireless communication via radio protocol.
Citygrid Linked – a wireless system for one or more luminaires. Can be up-graded to Citygrid Connected.
Citygrid Connected – a web-based solution with the ability to remotely control and review the lighting via a cloud hosted gateway which interacts with the installation. An additional subscription is required.
Citygrid-products, see accessories.
DALI variant and night-time dimming are selectable in the configurator.

Standard colour

The luminaire is available in several standard colours; these are selectable in the configurator. Other colours on request.

LED-information

Driver with integrated surge protection, CM 8kV, DM 6kV.
Extra surge protection on 10 kV available on request.

Miscellaneous

Available in Classes 1 and 2. Zhaga D4i is selectable in Fagerhult Configure. NEMA socket on request.

CLO (Constant Light Output) entails that the luminaire provides the same amount of light for the duration of its specified working life.

Read more about Bioinclusive Lighting

Media

Evolume can be equipped with Zhaga, with various options available in Fagerhult Configure.

Evolume can be equipped with Zhaga, with various options available in Fagerhult Configure.

Evolume can be equipped with Zhaga, with various options available in Fagerhult Configure.

Evolume can be equipped with Zhaga, with various options available in Fagerhult Configure.

Evolume can be equipped with Zhaga, with various options available in Fagerhult Configure.

Evolume can be equipped with Zhaga, with various options available in Fagerhult Configure.

Evolume

Good road and street lighting contribute, among other things, to increased traffic safety, a perceived safer environment and the creation of an attractive and pleasant atmosphere – even outdoors. Fagerhult has taken this into...

More about the family Evolume

Document

Customise with Fagerhult Configure

Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.

  • Adapt and optimise the luminaire
  • Download unique data sheet and light data files
  • To order, contact your sales representative
Start configuration

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
Double post-top bracket for Evolume Double post-top bracket for Ø 76 mm post top. Alu-grey. 303598
Double post-top bracket for Evolume Double post-top bracket for Ø 60 mm post top. Alu-grey. 303597
Bracket for Evolume Bracket for Ø 76 mm post top. Alu-grey. 303596
Spigot for Evolume 1 Spigot to 303596 for installation on Ø 48 mm post arm. 303599
no-image placeholder Spigot for Evolume 1 Spigot to 303595 for installation on Ø 48 mm post arm. 303594
Wall bracket Wall bracket Ø 60 mm, galvanised 303419
no-image placeholder Wall bracket Wall bracket arm Ø 60, black (RAL 9005 G70). 303678-224
no-image placeholder Wall bracket Wall bracket arm Ø 60, black (RAL 9005 texture). 303678-230
Wall bracket Wall bracket arm Ø 60, alu-grey (RAL 9006 G70). 303678-235
Wall bracket Wall bracket arm Ø 60, anthracite grey (Gris 900 Sablé). 303678-329
no-image placeholder Wall bracket Wall bracket arm Ø 60, traffic grey (RAL 7042 G70). 303678-548
no-image placeholder Wall bracket Wall bracket arm Ø 60, graphite grey (RAL 7024 G70). 303678-549
no-image placeholder Wall bracket Wall bracket arm Ø 60, green (RAL 6009 G70). 303678-552
Citygrid dongle Citygrid Dongle is the commissioning tool that in combination with the Citygrid Configuration app, enables the configuration of a Citygrid installation. 86490
Citygrid On Pole The Citygrid On Pole unit enables all luminaires to be integrated into a Citygrid network. The unit is mounted on a pole and connects to the luminaire via cabling behind the pole cover plate. 86492
Citygrid sensor DALI Zhaga 40 The Citygrid Dali sensor integrates seamlessly with outdoor luminaires, enabling true adaptive lighting control, in combination with the Citygrid Zhaga Controller. 86494
Citygrid Gateway Citygrid Gateway is the bridge between the luminaire's Citygrid controllers and the cloud, which enables data to be displayed on the Citygrid Dashboard. Comes with the Citygrid Gateway Cabinet Kit with 2-wire 1.5 m cable for mounting in electrical cabinets. 86495
Citygrid Zhaga Controller MKII The Citygrid Zhaga Controller MKII is the intelligent device that transforms a luminaire into a smart luminaire. 86505
Wall bracket Wall bracket Ø 60 mm, anthracite grey. 303419-329
Citygrid Zhaga with sensor MKII Citygrid Zhaga with sensor MKII is an all-in-one device that instantly provides a luminaire with smart and motion-controlled operation. 86504
