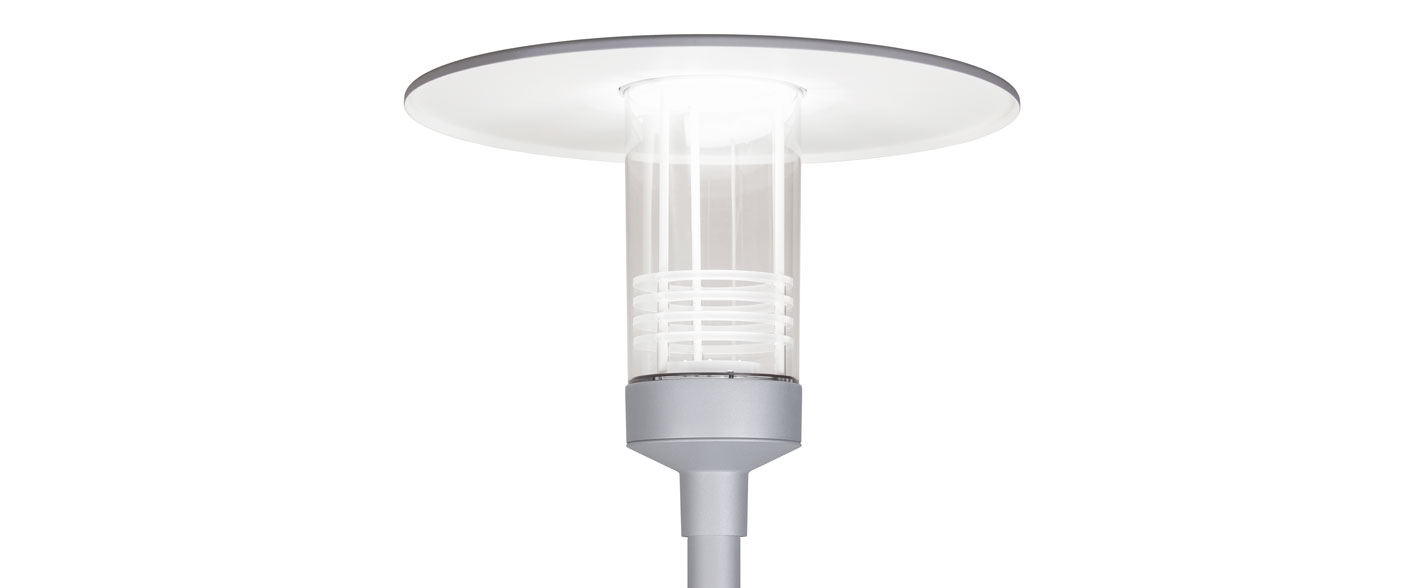

Vivita with decor ring/shade
13637 Vivita & Verda 13637
A post top park luminaire with shade in modern design. Symmetrical or asymmetrical light distribution. The acrylic décor-rings adds a visible variation. CLO for output consistency as standard.
Installation
Luminaire for assembly on a post, with post top Ø 60 mm.
Connection
Supplied with 5 m 3x1,5 mm² connection cable (H05RN-F).
Design
Body, heat sink and cover in cast aluminium. Diffuser of impact resistant UV-stabilised polycarbonate. Ballast integrated in the luminaire.
Louvre
Decor rings in acrylic (PMMA).
Reflector
Symmetrical reflector in acrylic (PMMA) or asymmetrical reflector in sheet metal.
Light distribution
Symmetrical or asymmetrical.
Dimming
Citygrid – PIR sensors with presence detection. Wireless communication via radio protocol.Citygrid Linked – a wireless system for one or more luminaires. Can be up-graded to Citygrid Connected.Citygrid Connected – a web-based solution with the ability to remotely control and review the lighting via a cloud hosted gateway which interacts with the installation. An additional subscription is required.Citygrid-products, see accessories.Night-time dimming 2 – dims down for eight hours.
Other options for light control available on request.
Standard colour
Alu-grey (RAL 9006).
LED-information
Driver with integrated surge protection (DM: 6 kV. CM: 8 kV).
Extra surge protection (DM and CM: 10 kV) available on request.
Miscellaneous
CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.
Vivita & Verda
Contemporary and classic takes on park lightingVivita and Verda are a luminaire family with a shared advanced technical solution and carefully designed proportions and finish for a classic or contemporary appearance. With its...
More about the family Vivita & Verda
Document
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
 | Anti-glare shield | Anti-glare shield to Vivita 120° | 97420 |
 | Anti-glare shield | Anti-glare shield to Vivita 165° | 97421 |
| Wall bracket | Wall bracket post top Ø 60, black (RAL 9005 G70). | 303679-224 |
|
| Wall bracket | Wall bracket post top Ø 60, black (RAL 9005 texture). | 303679-230 |
 | Wall bracket | Wall bracket post top Ø 60, alu-grey (RAL 9006 G70). | 303679-235 |
 | Wall bracket | Wall bracket post top Ø 60, anthracite grey (Gris 900 Sablé). | 303679-329 |
|
| Wall bracket | Wall bracket post top Ø 60, traffic grey (RAL 7042 G70). | 303679-548 |
|
| Wall bracket | Wall bracket post top Ø 60, graphite grey (RAL 7024 G70). | 303679-549 |
|
| Wall bracket | Wall bracket post top Ø 60, green (RAL 6009 G70). | 303679-552 |
 | Citygrid dongle | Citygrid Dongle is the commissioning tool that in combination with the Citygrid Configuration app, enables the configuration of a Citygrid installation. | 86490 |
 | Citygrid On Pole | The Citygrid On Pole unit enables all luminaires to be integrated into a Citygrid network. The unit is mounted on a pole and connects to the luminaire via cabling behind the pole cover plate. | 86492 |
 | Citygrid Gateway | Citygrid Gateway is the bridge between the luminaire's Citygrid controllers and the cloud, which enables data to be displayed on the Citygrid Dashboard. Comes with the Citygrid Gateway Cabinet Kit with 2-wire 1.5 m cable for mounting in electrical cabinets. | 86495 |
|
| Citygrid On Pole mounting kit for gateway | Citygrid Gateway Pole Kit with 2-wire 8 m cable. Enables mounting on poles. | 86496 |
