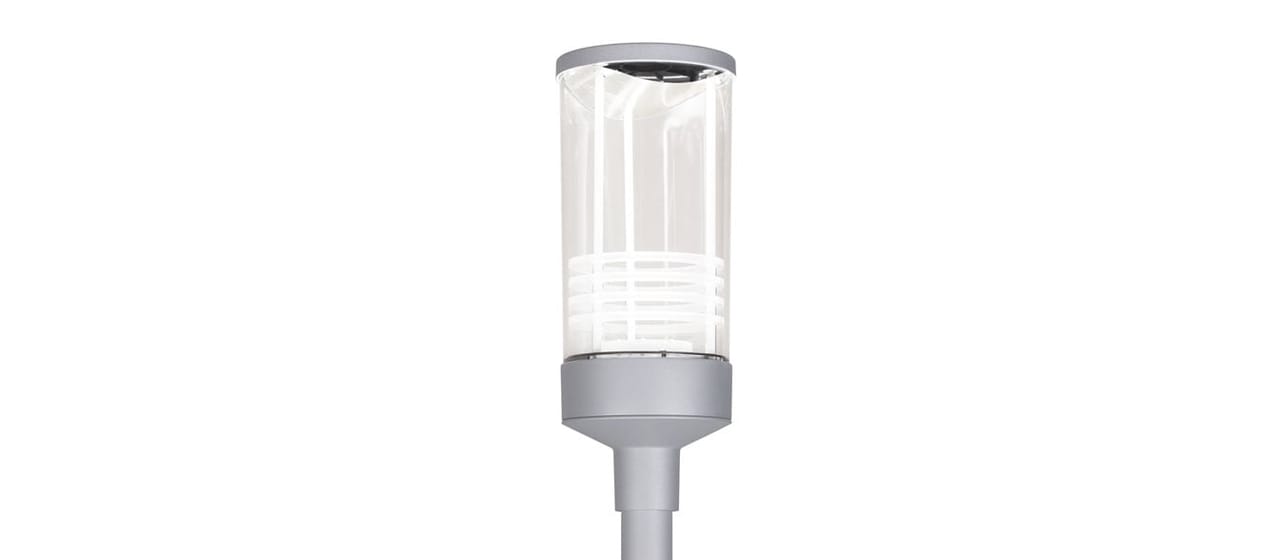

305045 Vivita with decor ring

Light distribution

Asymmetrical

Colour

Alu grey

RAL

9006

Lumen output

3200

CLO function active

Yes

CLO time, h

100000

lm/W

104

Light source colour

830

CCT, K

3000

CRI

80

SDCM

3

Lumen maintenance 100 000 h

L100

Lumen maintenance L100 B50, h

100000

LED driver, h/max failure %

100000/10

Energy class, LED module

E

Driver brand

Philips

AM

Yes

Rated supply voltage, V

220-240

Mains frequency, Hz

50, 60

Protective class

1

IP rating

66

IK rating

10

Start W

31

End W

33

Average W

32

Stand by W

0.4

Min. ambient temperature, °C

-40

Max. ambient temperature, °C

25

MCB B10A, pcs

11

MCB B16A

18

MCB C10A

18

MCB C16A

30

THD, %

8

Surge protection CM, kV/kA

10

Surge protection DM, kV/kA

6

Power factor, 100 %

0.98

Power factor, 20 %

0.78

Projected wind area, m2

0.100

Height, mm

541

Diamater, mm

219

Weight, kg

5.5
