Stelo 75 Fixed

A small recessed downlight with two light distributions and one colour temperature, with an IP44 rating. Provides an elegant general lighting solution for corridors or communal areas.

Installation

Recessed mounting in suspended ceilings. Unventilated or ventilated ceilings. Stable assembly springs included. An assembly plate must be used when mounting on soft tile ceilings. The ballast box is separate for flexible installation. Do not cover with insulation. For detailed information, see the installation instructions.

Connection

Connection takes place in the separately supplied LED ballast. Luminaire housing supplied with interconnecting cable.

Design

Heat sink in black-painted aluminium and visible aluminium edge ring in a white (RAL 9016) or black (RAL 9005) finish.

Louvre

Optical lens with wide light distribution.

Miscellaneous

IP 44 under a suspended ceiling, IP 20 above a suspended ceiling. Luminaire body Class III. For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation.

Media

Stelo 75

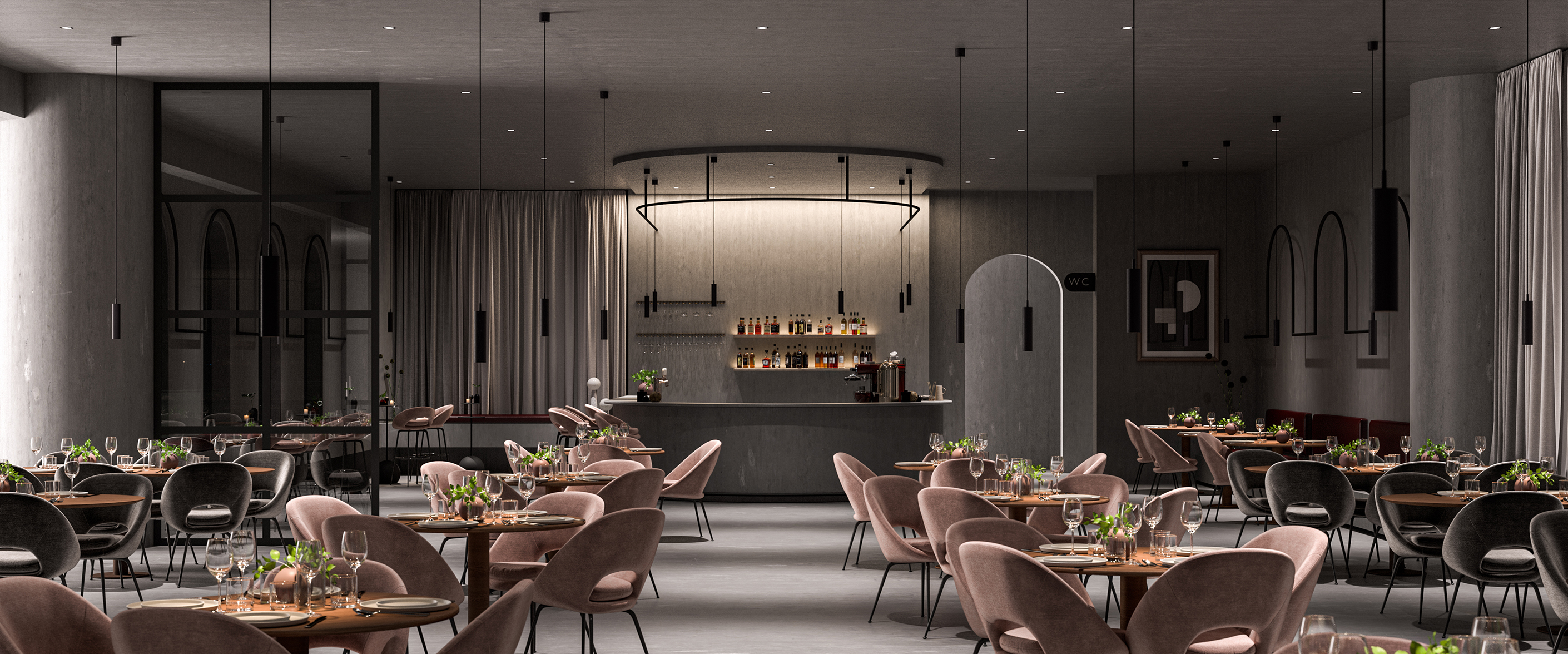

Stelo 75 is a high-quality, compact and recessed downlight for areas in need of a little ambience. This small but effective luminaire is ideal for lounges, lobbies or even relaxation areas. Our luminaires are designed to...

More about the family Stelo 75

Document

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
Mounting plateMounting plate for soft tile ceiling, Ø 75, Ø 95, Ø 10741982
e-Sense Stage RTC Backupe-Sense Stage Stand-Alone Control Box RTC Backup99816
e-Sense Stage Stand-alone DALIe-Sense Stage Stand-Alone Control Box DALI99812
e-Sense Stage Trailing Edgee-Sense Stage Stand-Alone Control Box Trailing Edge99813
e-Sense Stage Relaye-Sense Stage Stand-Alone Control Box Relay99814
e-Sense Stage 4CH PWMe-Sense Stage Stand-Alone Control Box 4 CH PWM99815
Xpress push button panelXpress push button panel, white.82172
Xpress push button panelXpress push button panel, black.82173
no-image placeholder Honeycomb louvreHoneycomb louvre Ø 50 mm black98966
