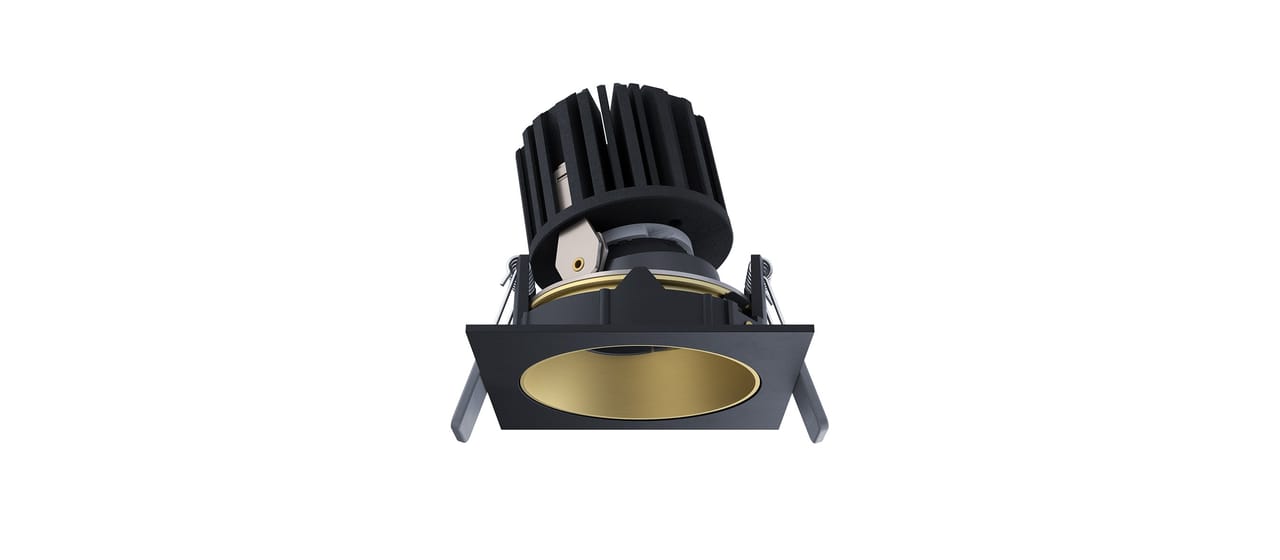

69033-402 Stelo 75 Flex
Documents
Specification
19695Design
Light distribution
Medium Beam
Beam angle, °
26
Colour
Black/gold
Light data & performance
Lumen output
765
lm/W
76
CCT, K
2700
CRI
90
Lumen maintenance 35 000 h
L96
Lumen maintenance 50 000 h
L95
Lumen maintenance 75 000 h
L94
Lumen maintenance 100 000 h
L93
Lumen maintenance L90 B50, h
100000
LED driver, h/max failure %
100000/10
Controls & connectivity
Light control
DALI/Phase-pulse
Driver brand
Tridonic
Electricity & enclosure
Protective class
1
IP rating
44
IP rating (above suspended ceilings)
20
System Wattage
10
Min. ambient temperature, °C
-25
Max. ambient temperature, °C
25
THD, %
8
Power factor, 100 %
0.87
Dimensions
Height, mm
100
Diamater, mm
86
Weight, kg
0.3
Dimensions
Light distribution
Stelo 75
Stelo 75 is a high-quality, compact and recessed downlight for areas in need of a little ambience. This small but effective luminaire is ideal for lounges, lobbies or even relaxation areas. Our luminaires are designed to...
More about the family Stelo 75
