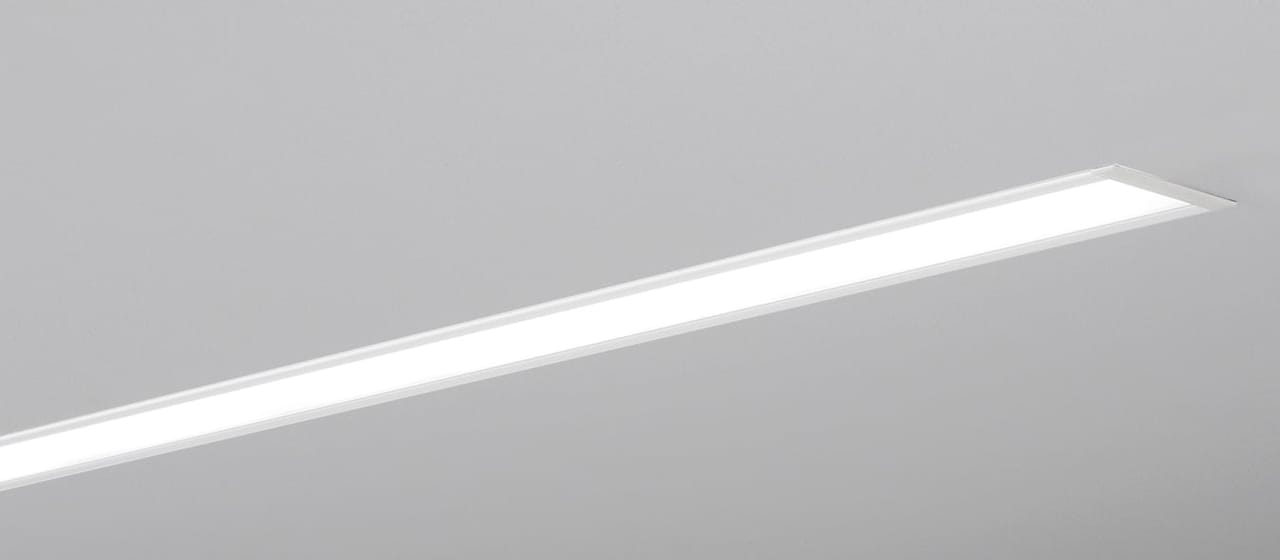

21961 Notor recessed LED Asymmetric

Installation

Start

Module

600

Light distribution

Asymmetrical

Louvre

Opal

Colour

White

Lumen output

733

lm/W

111

CCT, K

3000

CRI

80

SDCM

3

Melanopic DER

0.480

Lumen maintenance 50 000 h

L90

Lumen maintenance 75 000 h

L85

Lumen maintenance 100 000 h

L81

Lumen maintenance L80 B50, h

100000

Lumen maintenance L90 B50, h

50000

LED driver, h/max failure %

100000/10

Energy class, LED module

C

Driver brand

Tridonic

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

20

System Wattage

7

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

25

MCB B10A, pcs

23

MCB B16A

36

MCB C10A

35

MCB C16A

60

THD, %

25

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Power factor, 100 %

0.67

Length, mm

589

Width, mm

91

Height, mm

100

Weight, kg

1.900
