Notor recessed LED Opal flush

A recessed luminaire for all types of suspended ceilings. Single or continuous installation.

Installation

Luminaire for mounted in ventilated or unventilated suspended ceilings. Installed in suspended ceilings with visible T-bars, VTB (15 or 24 mm) or one-piece suspended ceilings. Accessories available for installation in a concealed T-bar structure (HB) with symmetrically positioned panels.

Connection

Connection by means of a connection box on top of the luminaire. Wieland Chassis connector 3-way (GST 18i3), with dimming 5-way (GST 18i5). In a continuous installation the luminaire row should always start with a start luminaire. With continuous installation the luminaire units are interconnected with a connection cable in the connection box.

Design

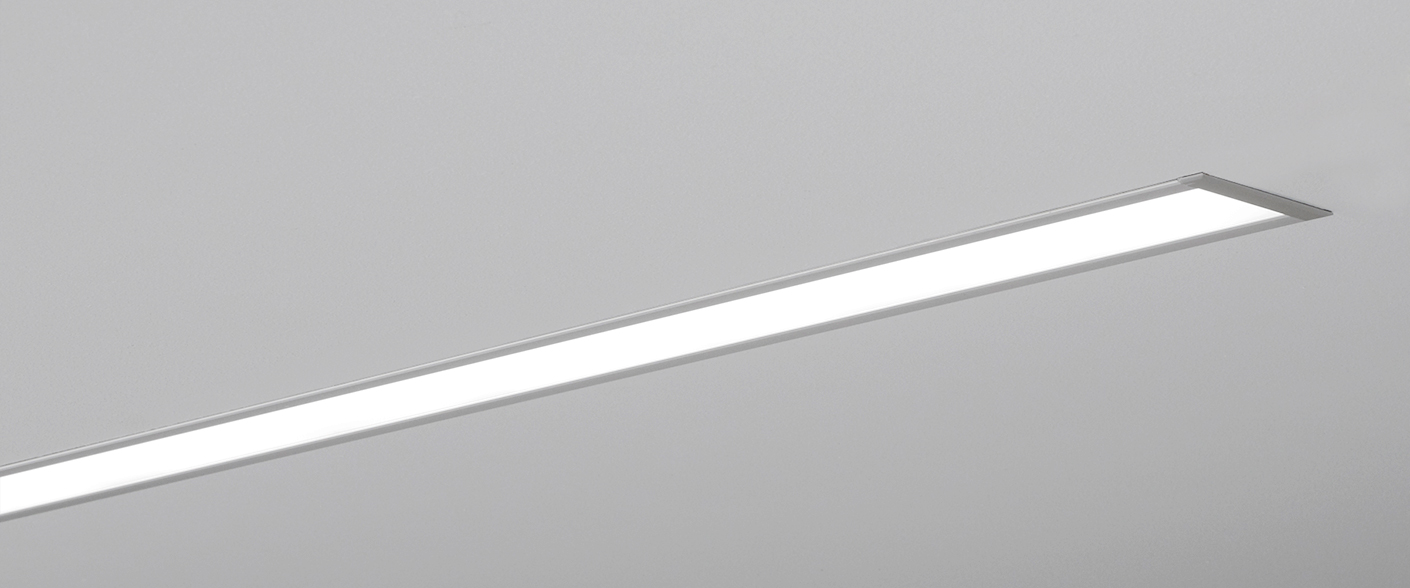

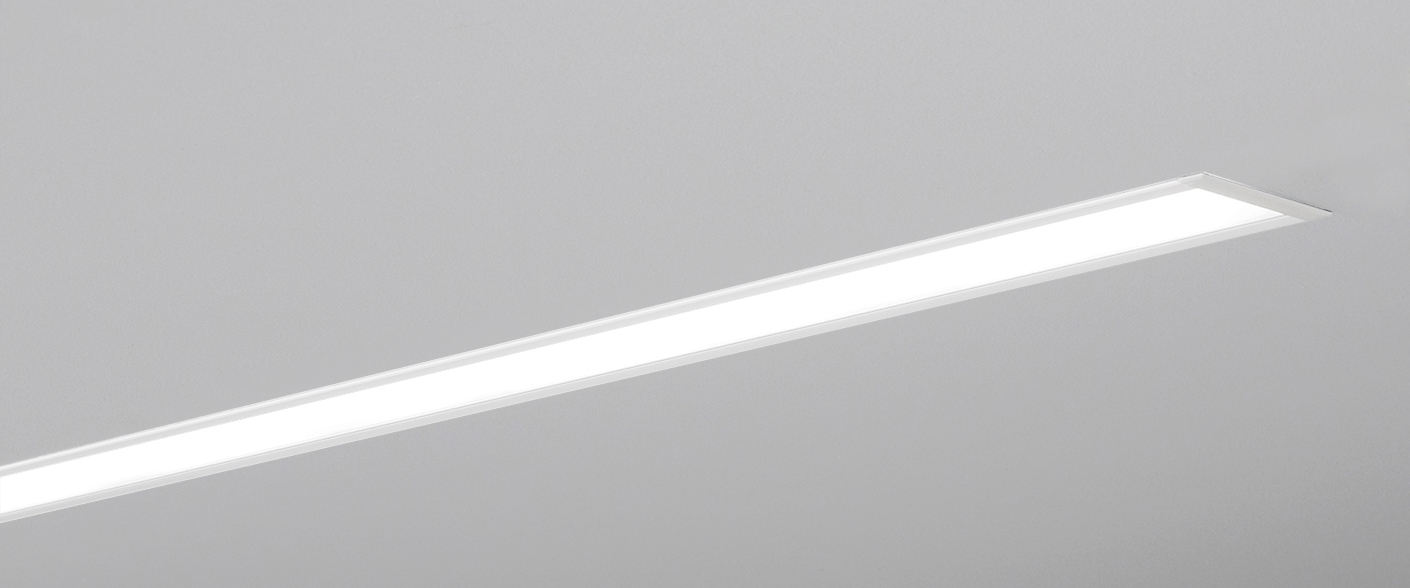

Luminaire body in natural anodised, extruded aluminium or white enamelled (RAL 9016). With continuous installation an unbroken line of light is achieved, even via a L-coupling.

Louvre

Opal – plate in frosted acrylic (PMMA).

Accessories

End caps are ordered separately (not included).

Miscellaneous

Accessories and cables, see Accessories.

To calculate how many luminaires and accessories you will need to complete a run, please use our configurator.

NOTE! Do not mix Low Lumens (LL)- and High Lumen (HL)-luminaires in continuous installations.

Media

Continuous coupler bends into the frame for a single installation.

Notor recessed

Fagerhult’s classic interior luminaire Notor is available in several versions for suspended, surface mounted or recessed installation. Notor is an obvious choice in contexts when there is a desire to create long, unbroken lines...

More about the family Notor recessed

Document

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
Dummy sectionDummy section 600 mm, Opal flush, Delta, Beta Opti – white91127
Dummy sectionDummy section 600 mm, Opal flush, Delta, Beta Opti – anodised91125
Carrier railCarrier rail/pair. L=600 mm.91148
End-capEnd cap/pair, Flat alu-zinc for 600 mm body in VTB ceiling91043
no-image placeholder End-capEnd-cap/pair, Delta, Beta Opti, Opal flush, White91128
End-capEnd-cap/pair, Delta, Lamell, Beta, Opal flush, Anodised91053
Wire50.0 m wire91496
ScrewsScrews 500 pcs B8x6,5. (10 pcs/m needed).91142
Luminaire railNotor rail L=1800/each, excl. screws91141
Luminaire railNotor rail L=1120 mm/pair, incl. screws91144
Luminaire railNotor rail 520 mm/pair, incl. screws91145
Suspension bracket, EcophonSuspension bracket/pair, Ecophon excl. friction lock91149
Suspension bracket, RockfonSuspension bracket/pair, Rockfon, with friction lock.91146
Suspension bracketSuspension bracket/pair91147
Wieland connection cables, 3-wayLength 1.0 m with female and male connectors, 3x1,5 mm²91791
Wieland connection cables, 3-wayLength 3.0 m with female and male connectors, 3x1,5 mm²91793
Wieland connection cables, 3-wayLength 2.5 m with female and male connectors, 3x1,5 mm²91074
Wieland connection cables, 3-wayLength 2.0 m with female and male connectors, 3x1,5 mm²91792
Wieland connection cables, 5-wayLength 3.0 m with female and male connectors, 5x1,5 mm²91031
Wieland connection cables, 5-wayLength 2.5 m with female and male connectors, 5x1,5 mm²91077
Wieland connection cables, 5-wayLength 2.0 m with female and male connectors, 5x1,5 mm²91076
Mains cableMains cable, L=2.0 m, female with earthed plug91790
Mains cableMains cable, female, length 2.0 m91022
Mains cableMains cable, L=2.0 m, female excl. plug91789
Wieland connection cables, 5-wayLength 1.0 m with female and male connectors, 5x1,5 mm²91030
Mounting bracketMounting bracket/pair91045
