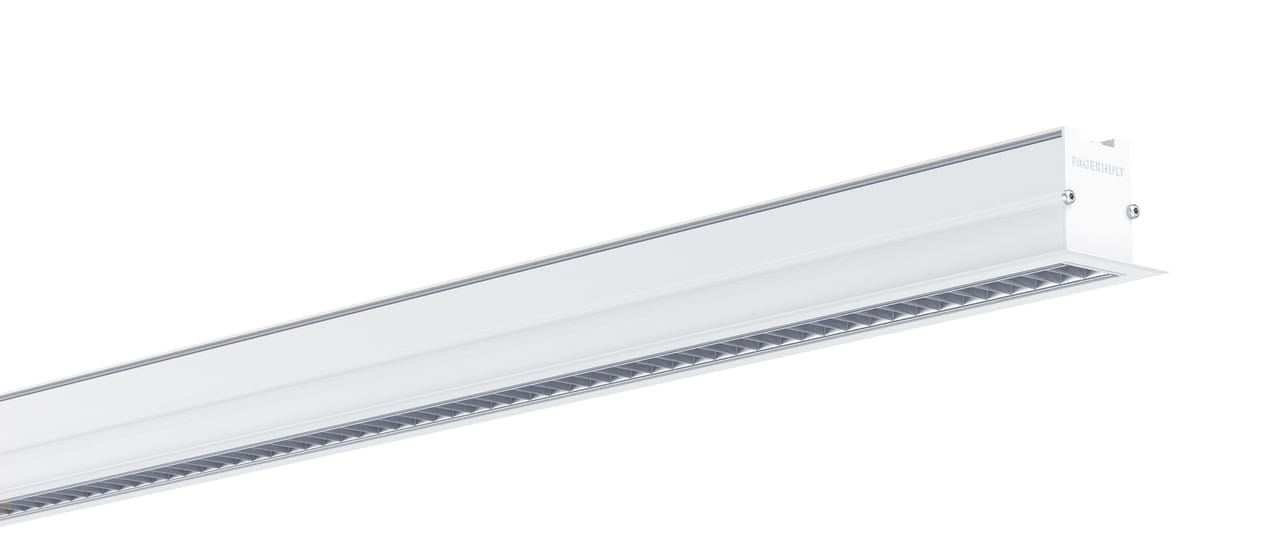

16087-20037 Notor 36 recessed Beta Opti Nano

Installation

Single

Module

2400

Light distribution

Direct

Louvre

Beta Opti Nano

Colour

White

Lumen output

5602

CLO function active

Yes

CLO time, h

50000

lm/W

135

CCT, K

4000

CRI

80

SDCM

3

Melanopic DER

0.600

Lumen maintenance 50 000 h

L100

Lumen maintenance 75 000 h

L86

Lumen maintenance 100 000 h

L82

Lumen maintenance L100 B50, h

50000

LED driver, h/max failure %

100000/10

Energy class, LED module

C

Light control

DALI/Phase-pulse

Driver brand

Osram

Power on last level

Yes

Corridor function

Yes

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

20

Start W

41

End W

46

Average W

43.5

Stand by W

0.15

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

45

MCB B10A, pcs

14

MCB B16A

23

MCB C10A

23

MCB C16A

39

THD, %

10

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Power factor, 100 %

0.99

NTC function

Yes

Length, mm

2389

Width, mm

56

Height, mm

51

Weight, kg

3.400
