Notor 36 pendant Opal

Luminaire with Opal louvre for pendent installation, individually or in a system. Choose between linear modules and shapes X, T, L, ceiling-to-wall and spotlight modules to freely create the system that best suits your project.

Adapt and optimise Notor 36 by using Fagerhult Configure. For example, choose among colour temperatures, optics, luminous fluxes and various accessories. The linear luminaires can be used as single luminaires or in systems. The other shapes are in the system configuration. All choices are saved in a product datasheet, which can be downloaded together with unique light data files. The articles listed below are examples.

Installation

Individual or system installation by means of wire suspension. Can also be wall mounted using the wall bracket. Wire brackets and friction locks are included in the delivery. Use Configure for wire suspension and mounting options.

Connection

For permanent connection with 230 V; built-in LED driver in luminaire. Single and start luminaires in systems are equipped with a 1.5 m connection cable 5 x 0.75 mm². System units are equipped with through-wiring (5 x 1.5 mm²) and a snap-in terminal block between the luminaire units.

Design

Body finished in white (RAL 9016), silver (RAL 7035 metallic) or black (RAL 9005). End caps included with start/single luminaires.

Louvre

Opal – frosted acrylic diffuser (PMMA).

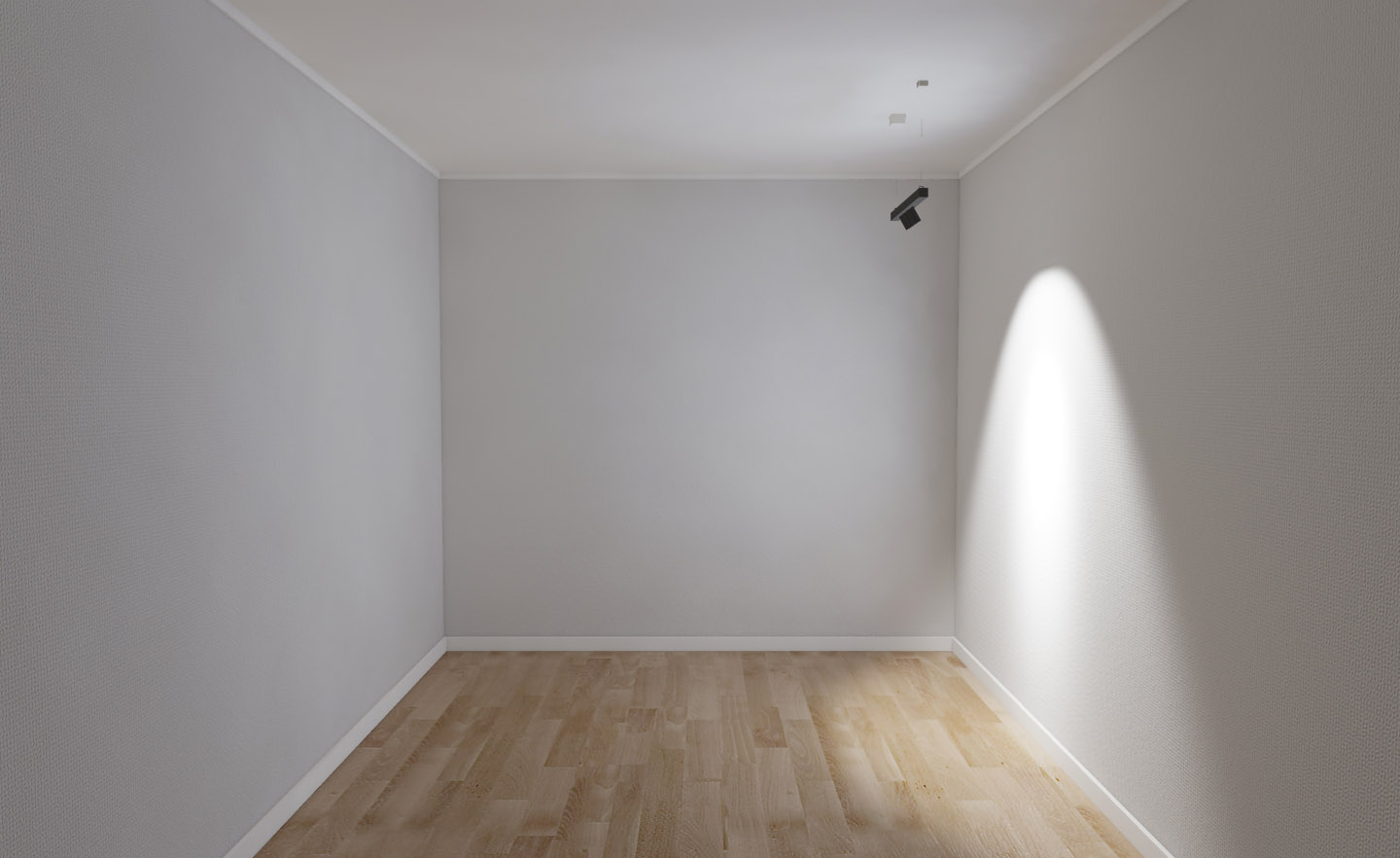

Spot module – 3 spotlights with aluminium reflector.

Light distribution

Direct.

Dimming

CLO (Constant Light Output) and DALI/phase pulse control as standard. CLO means that the luminaire provides the same amount of light for the duration of its service life.
e-Sense Active – PIR sensor with presence and daylight control via DALI. Mounted in a separate unit.
Organic Response – PIR sensor with presence and daylight control. Mounted in a separate unit. All luminaires have master/slave functionality with IR communications. Either cont. or end. A sensor handles up to 4 luminaires. See installation instructions for more information.

LED-information

The LEDs are protected from contact.

Notor 36

Notor 36, a luminaire with a square profile and a Scandinavian design style. Only 36x36 mm, it blends into the background and enables you to create both symmetry and creative patterns. An obvious choice when you want to...

More about the family Notor 36

Document

Customise with Fagerhult Configure

Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.

  • Adapt and optimise the luminaire
  • Download unique data sheet and light data files
  • To order, contact your sales representative
Configure single Configure systems

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
Wire suspension for continuous installation L: 1,4mSmall round ceiling cup/each96382
Wire suspension for continuous installation L: 1,4mSmall round ceiling cup for T-bars 25 mm/each96384
Wire suspension for continuous installation L: 1,4mSmall square ceiling cup for T-bars 25 mm/each96372
Wire suspension for continuous installation L: 1,4mSmall square ceiling cup/each96370
Wall socketWall socket Notor 36/pair, alu-grey.92726
Wall socketWall socket Notor 36/pair, white.92727
Wall socketWall socket Notor 36, black.92728
Ceiling cup with wire suspensionLarge round ceiling cup with wire 1,5 m for T-bars 25 mm/each, without mains cable.95345
Ceiling cup with wire suspensionLarge round ceiling cup with wire 1,5 m, without mains cable.95346
Ceiling cup with wire suspensionLarge square ceiling cup with wire 1,5 m for T-bars 25 mm/each, without mains cable.95347
Ceiling cup with wire suspensionLarge square ceiling cup with wire 1,5 m, without mains cable.95348
Spare part Wire bracket incl. friction locksWire bracket incl. friction lock, silver/each92752
Spare part Wire bracket incl. friction locksWire bracket incl. friction lock, white/each.92753
Spare part Wire bracket incl. friction locksWire bracket incl. friction lock, black/each.92754
Organic Response sensor Notor 36Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI to the left and breaks DALI to the right. White, 400 mm, for pendant Opal, end.16085-20271
e-Sense Active sensor Notor 36Unit with PIR sensor with presence and daylight control. For connecting max. 5 Notor 36 DALI luminaires. White, 400 mm, for pendant Opal, continuous.16085-20365
Organic Response sensor Notor 36Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI in both directions. White, 400 mm, for pendant Opal, continuous.16085-20422
Organic Response sensor Notor 36Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI to the right and breaks DALI to the left. White, 400 mm, for pendant Opal, continuous.16085-20423
Organic Response sensor Notor 36Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI to the left and breaks DALI to the right. White, 400 mm, for pendant Opal, continuous.16085-20446
Spacers incl. through-wiring Notor 36Spacers 200 mm, pendant, Opal, continuous.16085-20447
Spacers incl. through-wiring Notor 36Spacers 400 mm, pendant, Opal, continuous.16085-20448
Spacers incl. through-wiring Notor 36Spacers 600 mm, pendant, Opal, continuous.16085-20449
Spacers incl. through-wiring Notor 36Spacers 800 mm, pendant, Opal, continuous.16085-20450
Spacers incl. through-wiring Notor 36Spacers 1000 mm, pendant, Opal, continuous.16085-20451
Spacers incl. through-wiring Notor 36Spacers 1200 mm, pendant, Opal, continuous.16085-20452
Spacers incl. through-wiring Notor 36Spacers 1200 mm, pendant, Opal, end.16085-20453
e-Sense Active sensor Notor 36Unit with PIR sensor with presence and daylight control. For connecting max. 5 Notor 36 DALI luminaires. White, 400 mm, for pendant Opal, end.16085-20454
Spacers incl. through-wiring Notor 36Spacers 200 mm, pendant, Opal, end.16085-20455
Spacers incl. through-wiring Notor 36Spacers 400 mm, pendant, Opal, end.16085-20456
Spacers incl. through-wiring Notor 36Spacers 600 mm, pendant, Opal, end.16085-20457
Spacers incl. through-wiring Notor 36Spacers 800 mm, pendant, Opal, end.16085-20458
Spacers incl. through-wiring Notor 36Spacers 1000 mm, pendant, Opal, end.16085-20459
