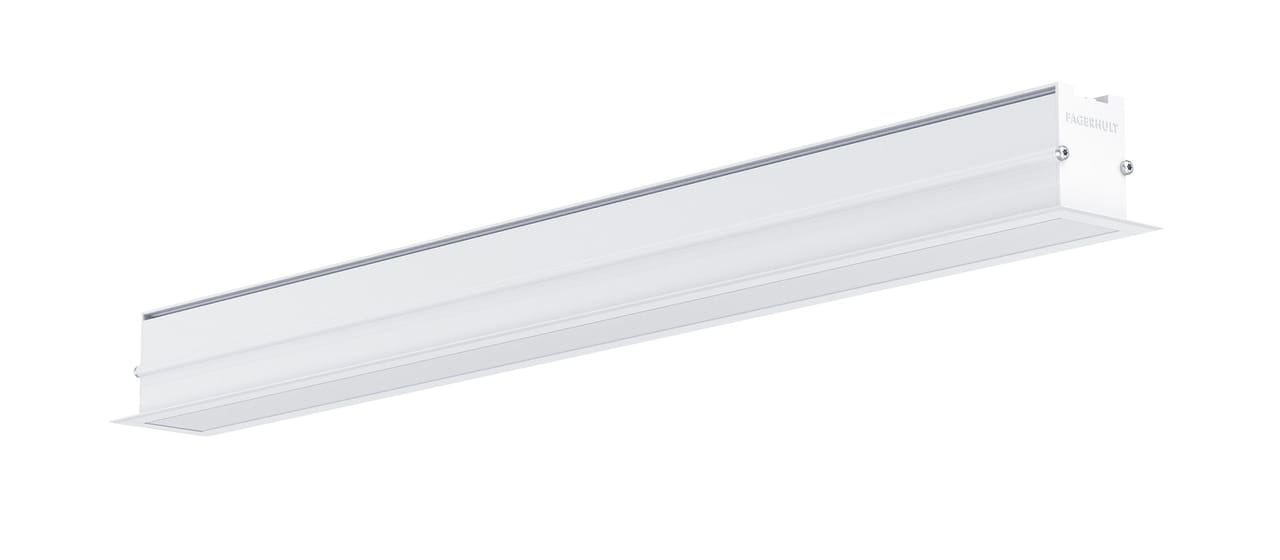

16087-20023 Notor 36 recessed Opal

Installation

Single

Light distribution

Direct

Louvre

Opal

Colour

White

Lumen output

1287

CLO function active

Yes

CLO time, h

50000

lm/W

107

CCT, K

4000

CRI

80

SDCM

3

Melanopic DER

0.600

Lumen maintenance 50 000 h

L100

Lumen maintenance 75 000 h

L86

Lumen maintenance 100 000 h

L82

Lumen maintenance L100 B50, h

50000

LED driver, h/max failure %

100000/10

Energy class, LED module

C

Light control

DALI/Phase-pulse

Driver brand

Osram

Power on last level

Yes

Corridor function

Yes

Switch control, max no.

20

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

20

Start W

12

End W

13

Average W

12.5

Stand by W

0.15

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

45

MCB B10A, pcs

20

MCB B16A

31

MCB C10A

32

MCB C16A

52

THD, %

19

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Power factor, 100 %

0.85

NTC function

Yes

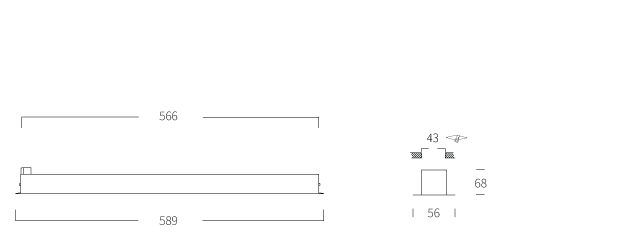

Length, mm

589

Width, mm

56

Height, mm

68

Weight, kg

1.000
