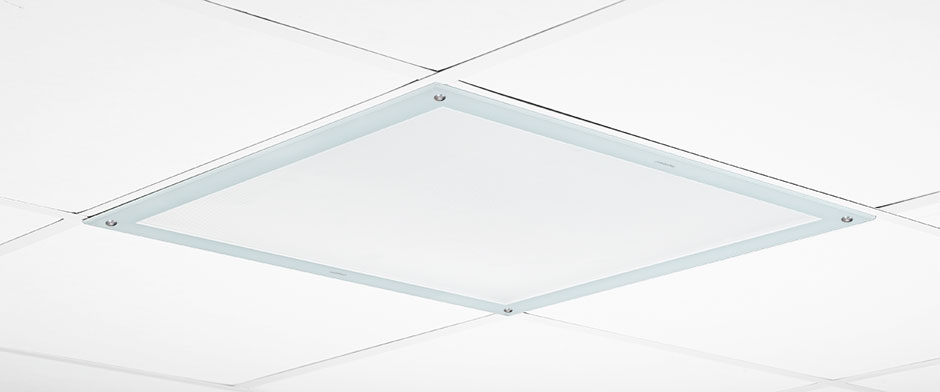

Multilume Hydro Robust LED

Recessed or surface mounted with Delta louvres and PEGT sheet in various sizes for demanding and safe environments. IK 10. Dust and moisture proof with IP 65 beneath suspended ceilings, and IP 50 above suspended ceilings.

Installation

Recessed or surface mounted. The recessed model is suitable for fixed suspended ceilings or suspended ceilings with visible T-bars. Suspension fittings in the corners, tamper-proof torx.

Connection

Connection in separate driver box. The driver box can be positioned next to the luminaire. Snap-in terminal block 3x1.5 mm² (when dimming 5x1.5 mm²). Version with Tunable White or Tunable White/Amber night light is connected in terminal block at the top of the luminaire. The surface mounted model has cable entries fitted with blanking grommets on the back and in each end-cap and snap-in terminal block.

Design

Luminaire body in extruded aluminium and enamelled sheet steel. Surface mounted model in white enamelled sheet steel (RAL 9016).

Louvre

Delta – microprismatic acrylic louvre (PMMA) with impact resistant PETG plastic protective glass.

Dimming

Tunable White / Amber night light requires 2 DALI addresses.

Miscellaneous

Recessed model IP 65 under suspended ceiling, IP 50 above. Surface mounted model IP 65.
Versions with Amber:
Art.no. 23608 – 30 W, 1998 lm, 67 lm/w, 600x600.
Art.no. 23610 – 14 W, 1063 lm, 76 lm/w, 300x600.

Multilume Hydro LED

Multilume Hydro LED is a new generation of energy-efficient luminaires for demanding environments. By combining a slender, tempered glass cover with a microprismatic Delta louvre, we have created an aesthetically pleasing...

More about the family Multilume Hydro LED

Document

Specification

Luminaires with Tunable White and Amber Nightlight are listed with values for 4000 K. Please refer to Miscellaneous for Amber Nightlight system wattage, luminous flux and efficiency.

Filter

Art.no. Effect, W Lumen output CCT, K CRI Module Installation Light control Connection CLO function on Miscellaneous
Art.no. Effect, W Lumen output CCT, K CRI Module Installation Light control Connection CLO function on Miscellaneous
23608 37 3743 90 600x600 Recessed Yes Tunable White + Amber
23610 24 2054 90 300x600 Recessed Yes Tunable White + Amber
23612 40 4195 90 600x600 Recessed Yes Tunable White
23613 40 4190 90 300x1200 Recessed Yes Tunable White
23614 24 2054 90 300x600 Recessed Yes Tunable White
23615 40 4190 90 300x1200 Surface mounted Yes Tunable White
23616 38 4134 3000 80 600x600 Recessed
23616-3 38 4134 3000 80 600x600 Recessed Connection cable with plug, L=2.5 m
23616-402 35 3721 3000 80 600x600 Recessed DALI/Phase-pulse Yes
23617 33 4193 3000 80 300x1200 Recessed
23617-3 33 4193 3000 80 300x1200 Recessed Connection cable with plug, L=2.5 m
23617-402 30 3774 3000 80 300x1200 Recessed DALI/Phase-pulse Yes
23618 20 2315 3000 80 300x600 Recessed
23618-3 20 2315 3000 80 300x600 Recessed Connection cable with plug, L=2.5 m
23618-402 19 2084 3000 80 300x600 Recessed DALI/Phase-pulse Yes
23619 40 4184 3000 80 300x1200 Surface mounted
23619-3 40 4184 3000 80 300x1200 Surface mounted Connection cable with plug, L=2.5 m
23619-402 40 4184 3000 80 300x1200 Surface mounted DALI/Phase-pulse
23620 38 4351 4000 80 600x600 Recessed
23620-3 38 4351 4000 80 600x600 Recessed Connection cable with plug, L=2.5 m
23620-402 35 3916 4000 80 600x600 Recessed DALI/Phase-pulse Yes
23621 33 4415 4000 80 300x1200 Recessed
23621-3 33 4415 4000 80 300x1200 Recessed Connection cable with plug, L=2.5 m
23621-402 30 3794 4000 80 300x1200 Recessed DALI/Phase-pulse Yes
23622 20 2437 4000 80 300x600 Recessed
23622-3 20 2437 4000 80 300x600 Recessed Connection cable with plug, L=2.5 m
23622-402 19 2193 4000 80 300x600 Recessed DALI/Phase-pulse Yes
23623 41 4288 4000 80 300x1200 Surface mounted
23623-3 41 4288 4000 80 300x1200 Surface mounted Connection cable with plug, L=2.5 m
23623-402 41 4288 4000 80 300x1200 Surface mounted DALI/Phase-pulse
