Multilume Hydro LED

Recessed or surface mounted with Delta louvres and hardened glass sheet in various sizes for demanding environments. Dust and moisture proof with IP 65 beneath suspended ceilings, and IP 50 above suspended ceilings.

Installation

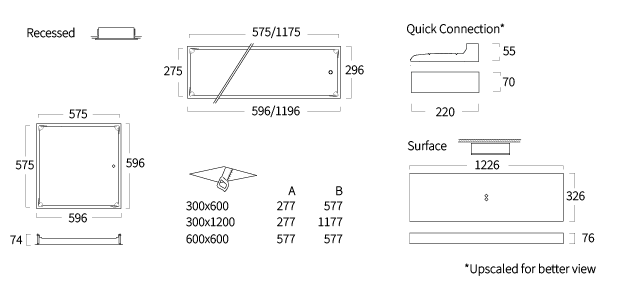

Recessed or surface mounted. The recessed model is suitable for fixed suspended ceilings or suspended ceilings with visible T-bars.

Connection

Connection in separate driver box. The driver box can be positioned next to the luminaire. Snap-in terminal block 3x1.5 mm² (when dimming 5x1.5 mm²). Version with Tunable White or Tunable White/Amber night light is connected in terminal block at the top of the luminaire. The surface mounted model has cable entries fitted with blanking grommets on the back and in each end-cap and snap-in terminal block.

Design

Luminaire body in extruded aluminium and enamelled sheet steel. Surface mounted model in white enamelled sheet steel (RAL 9016).

Louvre

Delta – microprismatic acrylic louvre (PMMA) above hardened 4 mm glass cover.

Dimming

Tunable White / Amber night light requires 2 DALI addresses.

Miscellaneous

Recessed model IP 65 under suspended ceiling, IP 50 above. Surface mounted model IP 65.

Fulfils cleanroom standard ISO 14644-1, certified according Fraunhofer Institute.

Media

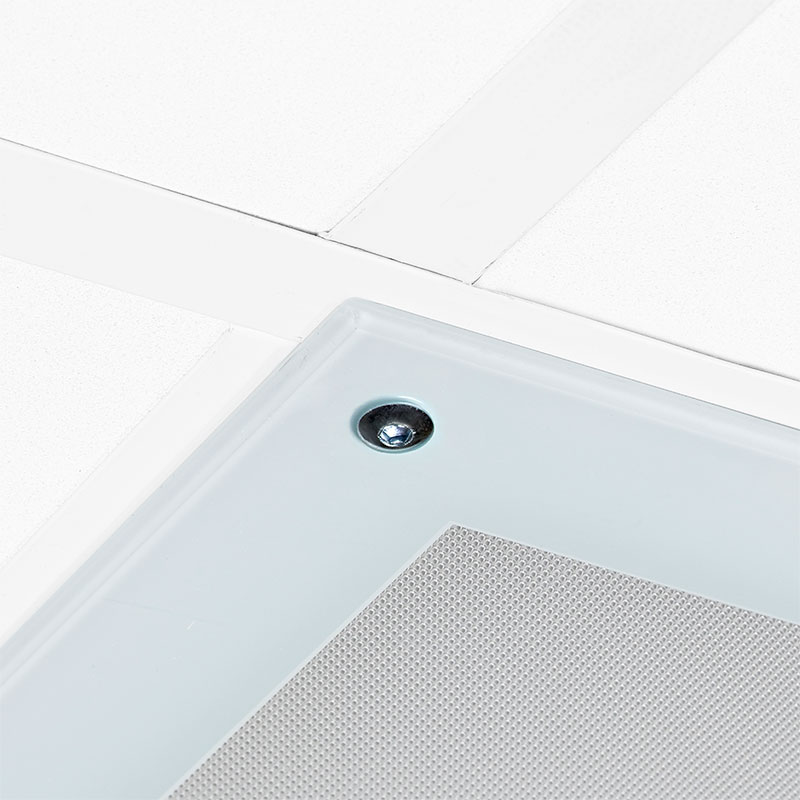

Tempered glass cover with microprismatic louvre.

Multilume Hydro LED

Multilume Hydro LED is a new generation of energy-efficient luminaires for demanding environments. By combining a slender, tempered glass cover with a microprismatic Delta louvre, we have created an aesthetically pleasing...

More about the family Multilume Hydro LED

Document

Specification

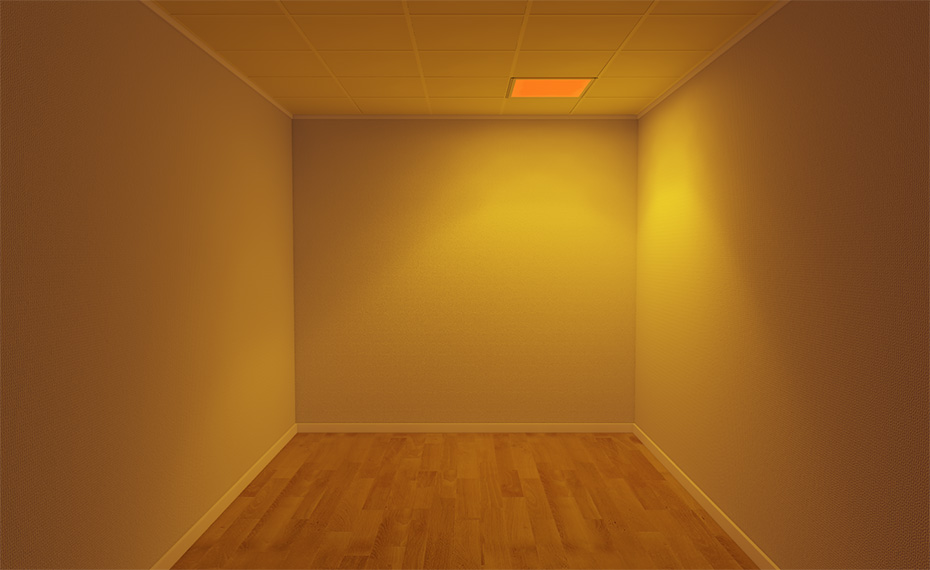

Luminaires with Tunable White and Amber Nightlight are listed with values for 4000 K. Please refer to Miscellaneous for Amber Nightlight system wattage, luminous flux and efficiency.

Filter

Art.no. Effect, W Lumen output CCT, K CRI Module Installation Light control Connection CLO function on Miscellaneous
Art.no. Effect, W Lumen output CCT, K CRI Module Installation Light control Connection CLO function on Miscellaneous
23340 20 2329 3000 80 300x600 Recessed
23340-111 20 2329 3000 80 300x600 Recessed Wieland GST18i3 3-way male
23340-3 20 2329 3000 80 300x600 Recessed Connection cable with plug, L=2.5 m
23340-340 20 2329 3000 80 300x600 Recessed Wago Winsta 3-way male
23340-402 19 2096 3000 80 300x600 Recessed DALI/Phase-pulse Yes
23340-519 20 2329 3000 80 300x600 Recessed Ensto 3-way male
23340-520 19 2096 3000 80 300x600 Recessed DALI/Phase-pulse Ensto 5-way male Yes
23340-528 19 2096 3000 80 300x600 Recessed DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23340-529 19 2096 3000 80 300x600 Recessed DALI/Phase-pulse Wago Winsta 5-way male Yes
23341 20 2452 4000 80 300x600 Recessed
23341-111 20 2452 4000 80 300x600 Recessed Wieland GST18i3 3-way male
23341-340 20 2452 4000 80 300x600 Recessed Wago Winsta 3-way male
23341-402 19 2207 4000 80 300x600 Recessed DALI/Phase-pulse Yes
23341-519 20 2452 4000 80 300x600 Recessed Ensto 3-way male
23341-520 19 2207 4000 80 300x600 Recessed DALI/Phase-pulse Ensto 5-way male Yes
23341-528 19 2207 4000 80 300x600 Recessed DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23341-529 19 2207 4000 80 300x600 Recessed DALI/Phase-pulse Wago Winsta 5-way male Yes
23343 30 2973 4000 90 300x600 Recessed
23343-111 30 2973 4000 90 300x600 Recessed Wieland GST18i3 3-way male
23343-340 30 2973 4000 90 300x600 Recessed Wago Winsta 3-way male
23343-402 28 2676 4000 90 300x600 Recessed DALI/Phase-pulse Yes
23343-519 30 2973 4000 90 300x600 Recessed Ensto 3-way male
23343-520 28 2676 4000 90 300x600 Recessed DALI/Phase-pulse Ensto 5-way male Yes
23343-528 28 2676 4000 90 300x600 Recessed DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23343-529 28 2676 4000 90 300x600 Recessed DALI/Phase-pulse Wago Winsta 5-way male Yes
23344 38 4159 3000 80 600x600 Recessed
23344-111 38 4159 3000 80 600x600 Recessed Wieland GST18i3 3-way male
23344-3 38 4159 3000 80 600x600 Recessed Connection cable with plug, L=2.5 m
23344-340 38 4159 3000 80 600x600 Recessed Wago Winsta 3-way male
23344-402 35 3743 3000 80 600x600 Recessed DALI/Phase-pulse Yes
23344-519 38 4159 3000 80 600x600 Recessed Ensto 3-way male
23344-520 35 3743 3000 80 600x600 Recessed DALI/Phase-pulse Ensto 5-way male Yes
23344-528 35 3743 3000 80 600x600 Recessed DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23344-529 35 3743 3000 80 600x600 Recessed DALI/Phase-pulse Wago Winsta 5-way male Yes
23345 38 4378 4000 80 600x600 Recessed
23345-111 38 4378 4000 80 600x600 Recessed Wieland GST18i3 3-way male
23345-3 38 4378 4000 80 600x600 Recessed Connection cable with plug, L=2.5 m
23345-340 38 4378 4000 80 600x600 Recessed Wago Winsta 3-way male
23345-402 35 3940 4000 80 600x600 Recessed DALI/Phase-pulse Yes
23345-519 38 4378 4000 80 600x600 Recessed Ensto 3-way male
23345-520 35 3940 4000 80 600x600 Recessed DALI/Phase-pulse Ensto 5-way male Yes
23345-528 35 3940 4000 80 600x600 Recessed DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23345-529 35 3940 4000 80 600x600 Recessed DALI/Phase-pulse Wago Winsta 5-way male Yes
23347 58 5901 4000 90 600x600 Recessed
23347-3 58 5901 4000 90 600x600 Recessed Connection cable with plug, L=2.5 m
23347-402 53 5311 4000 90 600x600 Recessed DALI/Phase-pulse Yes
23348 33 4219 3000 80 300x1200 Recessed
23348-111 33 4219 3000 80 300x1200 Recessed Wieland GST18i3 3-way male
23348-340 33 4219 3000 80 300x1200 Recessed Wago Winsta 3-way male
23348-402 30 3797 3000 80 300x1200 Recessed DALI/Phase-pulse Yes
23348-519 33 4219 3000 80 300x1200 Recessed Ensto 3-way male
23348-520 30 3797 3000 80 300x1200 Recessed DALI/Phase-pulse Ensto 5-way male Yes
23348-528 30 3797 3000 80 300x1200 Recessed DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23348-529 30 3797 3000 80 300x1200 Recessed DALI/Phase-pulse Wago Winsta 5-way male Yes
23349 33 4442 4000 80 300x1200 Recessed
23349-111 33 4442 4000 80 300x1200 Recessed Wieland GST18i3 3-way male
23349-3 33 4442 4000 80 300x1200 Recessed Connection cable with plug, L=2.5 m
23349-340 33 4442 4000 80 300x1200 Recessed Wago Winsta 3-way male
23349-402 30 3998 4000 80 300x1200 Recessed DALI/Phase-pulse Yes
23349-519 33 4442 4000 80 300x1200 Recessed Ensto 3-way male
23349-520 30 3998 4000 80 300x1200 Recessed DALI/Phase-pulse Ensto 5-way male Yes
23349-528 30 3998 4000 80 300x1200 Recessed DALI/Phase-pulse Wieland GST18i5 5-way male Yes
23349-529 30 3998 4000 80 300x1200 Recessed DALI/Phase-pulse Wago Winsta 5-way male Yes
23351 58 6262 4000 90 300x1200 Recessed
23351-402 53 5636 4000 90 300x1200 Recessed DALI/Phase-pulse Yes
23390 41 4200 3000 80 300x1200 Surface mounted
23390-402 41 4200 3000 80 300x1200 Surface mounted DALI/Phase-pulse
23391 41 4300 4000 80 300x1200 Surface mounted
23391-402 41 4300 4000 80 300x1200 Surface mounted DALI/Phase-pulse
23393 66 6330 4000 90 300x1200 Surface mounted
23393-402 66 6330 4000 90 300x1200 Surface mounted DALI/Phase-pulse
23600 37 3766 90 600x600 Recessed Yes Tunable White + Amber
23602 24 2066 90 300x600 Recessed Yes Tunable White + Amber
23604 40 4220 90 600x600 Recessed Yes Tunable White
23605 40 4215 90 300x1200 Recessed Yes Tunable White
23606 24 2066 90 300x600 Recessed Yes Tunable White
23607 40 4215 90 300x1200 Surface mounted Yes Tunable White
