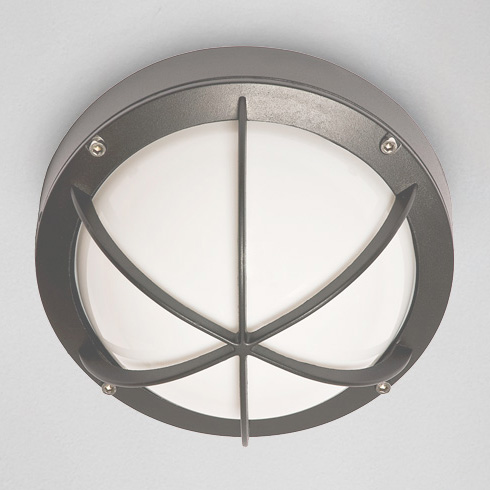

Robust Ceiling/Wall LED

Installation

Luminaire for ceiling mounting.

Connection

Terminal block 3x4 mm².

Design

Body of aluminium and diffuser of opal UV stabilised polycarbonate. Ballast integrated in the luminaire. Surface mounted cable via knock-out (0º, 90º, 180º and 270º).

Accessories

See Accessories.

Standard colour

Alu-grey (RAL 9006). Anthracite grey (Gris 900 Sablé). Black (RAL 9005). White (RAL 9010).

LED-information

Driver life-time: up to 50.000 h/10 % (max failure).

Media

Robust

Wall and ceiling luminaire for entrances and walkways. Available in three different styles.

More about the family Robust

Document

Specification

Filter

Art.no. Effect, W Lumen output CCT, K Length, mm Colour
Art.no. Effect, W Lumen output CCT, K Length, mm Colour
301630 13.5 392 3000 260 Anthracite grey
301631 13.5 392 3000 260 White
301632 13.5 392 3000 260 Black
301633 13.5 392 3000 260 Alu grey
301634 13.5 671 3000 260 Anthracite grey
301635 13.5 671 3000 260 White
301636 13.5 671 3000 260 Black
301637 13.5 671 3000 260 Alu grey

Filter

Name Description Art.no.
Name Description Art.no.

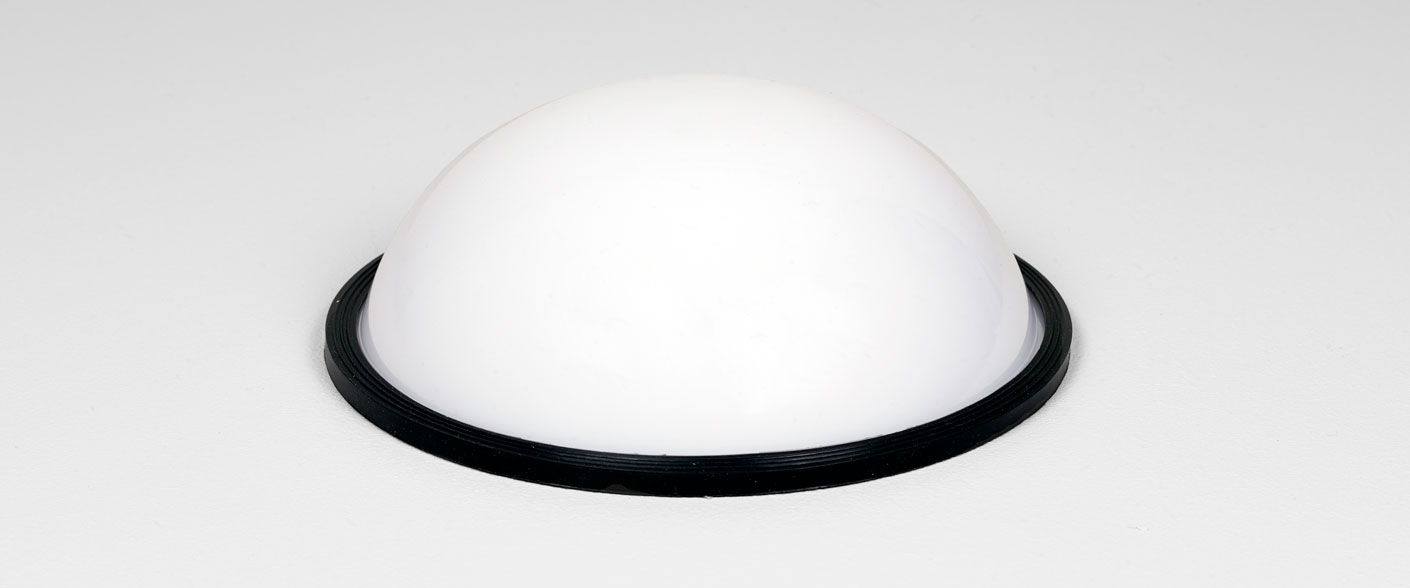

DiffuserPolycarbonate diffuser300862
