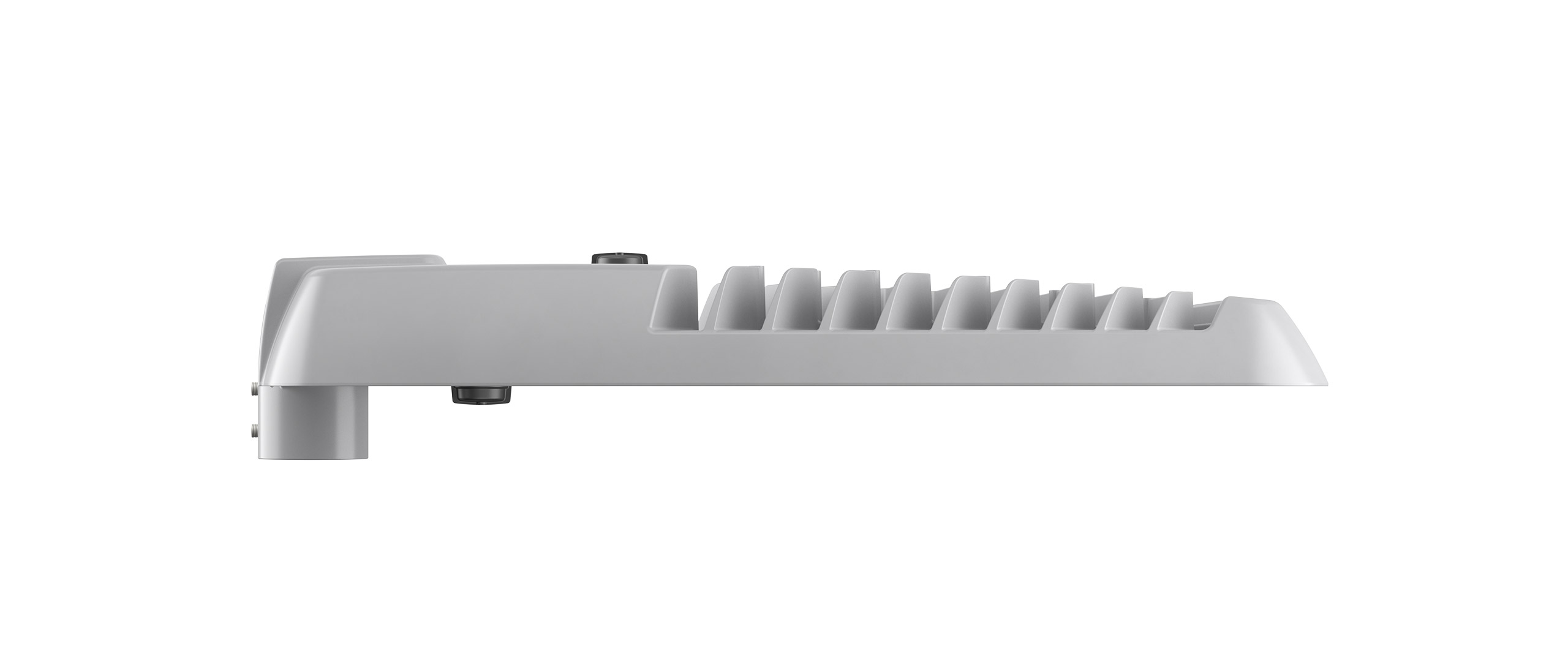

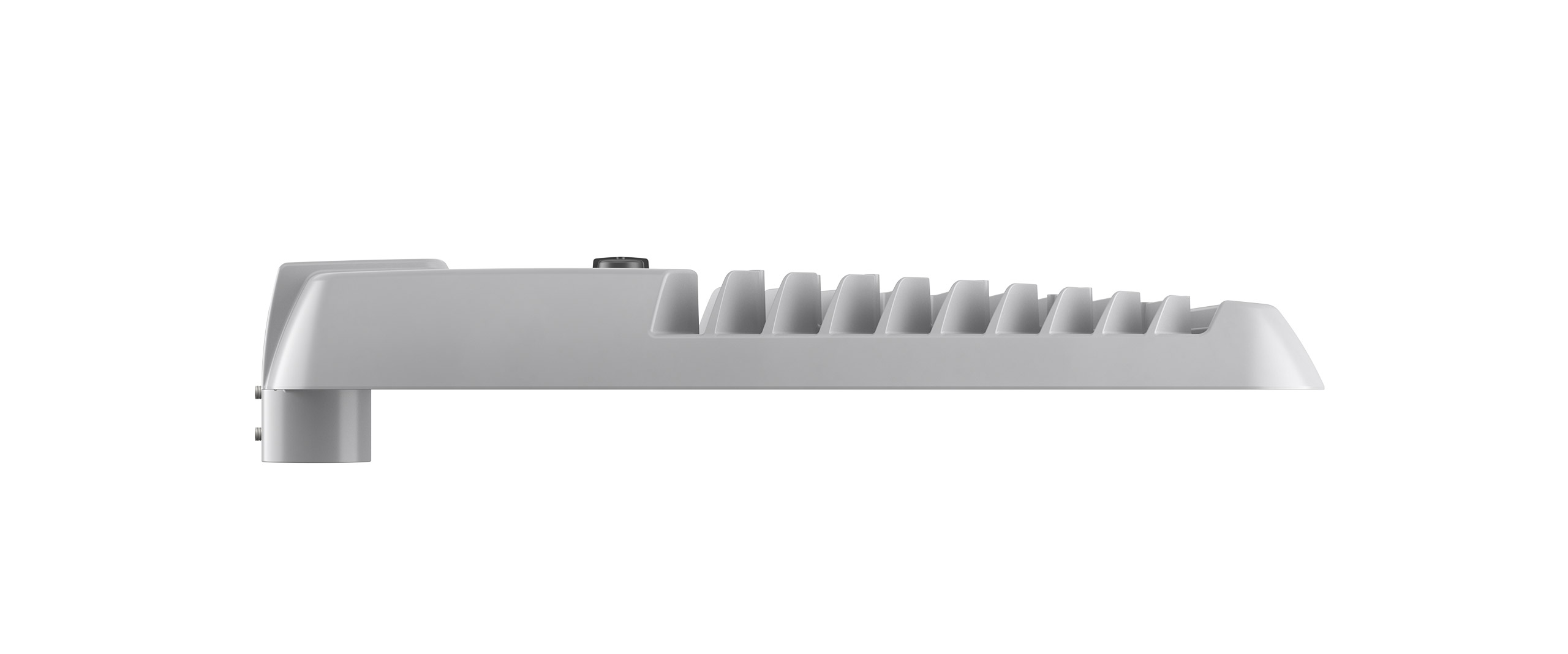

Evolume 2+

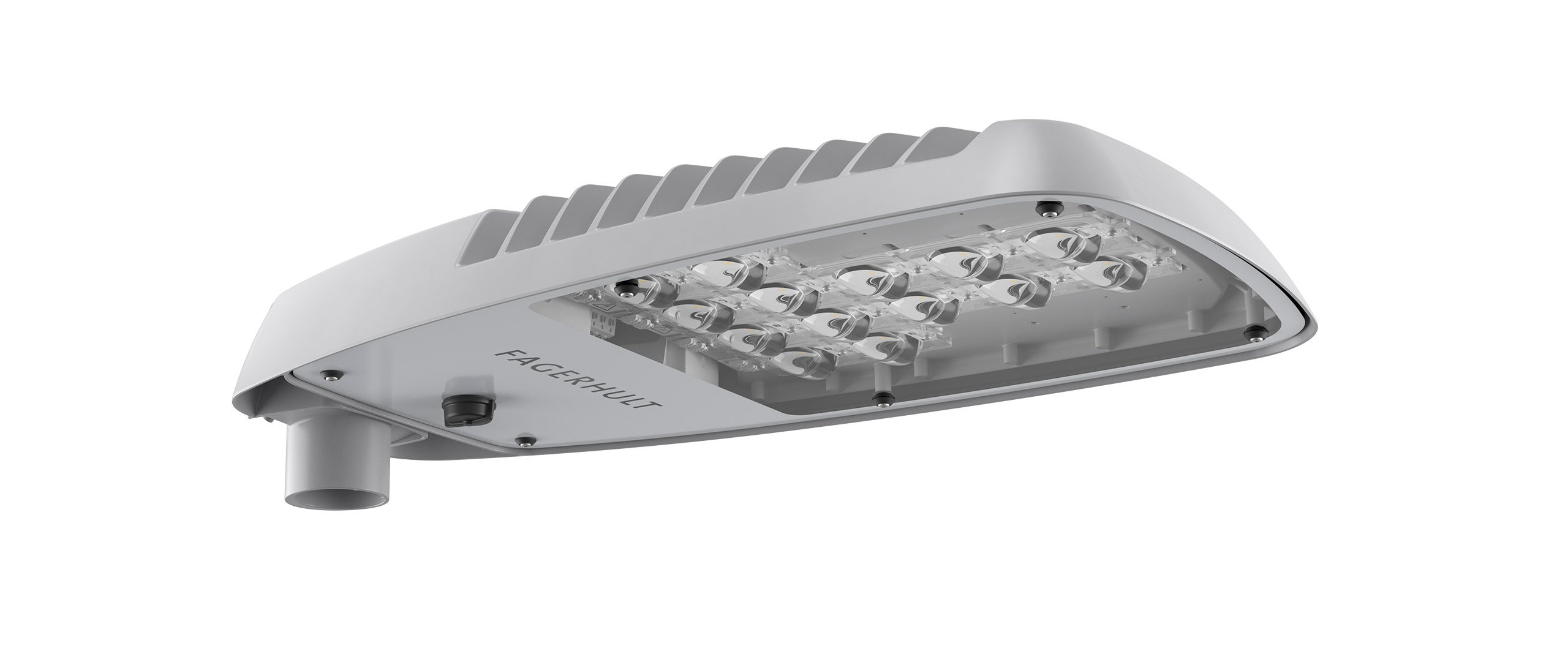

A high-power post top luminaire for illuminating motorways, car parks and roundabouts. CLO for output consistency as standard.

Installation

Post top luminaire as standard can be mounted on a Ø 60 mm post top or post arm. Accessories for 76 mm and twin mounting are ordered separately, please see Accessories. Tilting function +10º, -15º. Post height 8–18 m.

Connection

Halogen free connection cable 3x1.5 mm² type FQQ. Delivered with 16 m cable. DALI version available on request, delivered with a 5-pin cable. Other cable versions on request.

Design

Body and post bracket in cast aluminium. Aluminium-zinc coated screws. Ballast is built into the luminaire. Flanges for optimum cooling. Screen printed saftey glass.

Optics

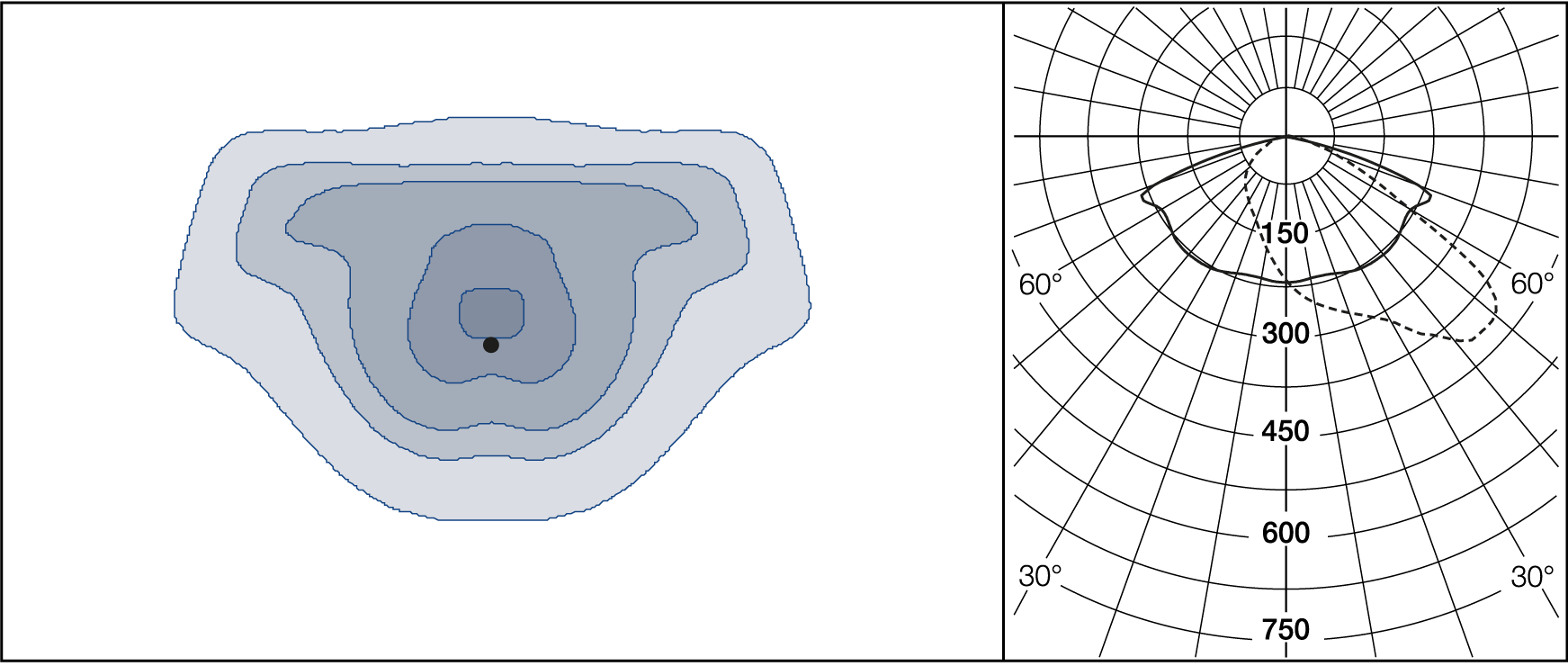

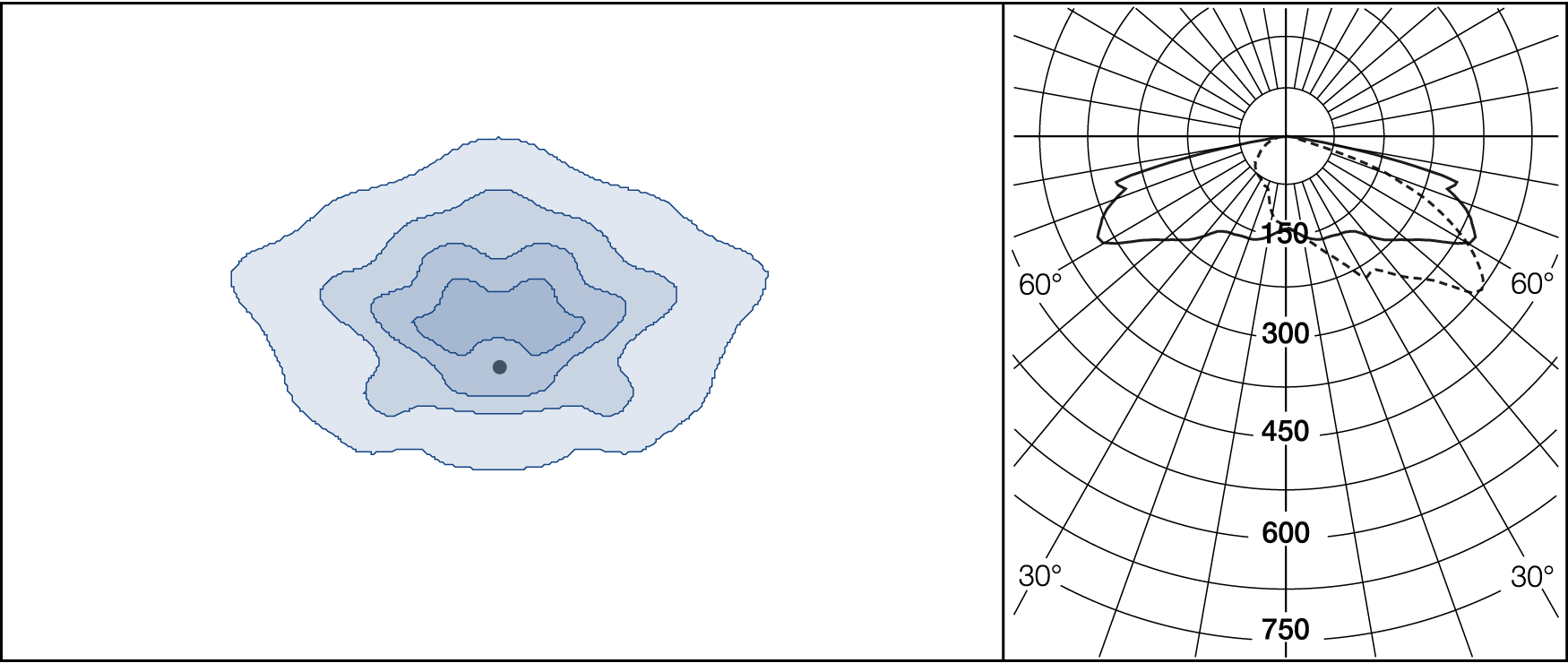

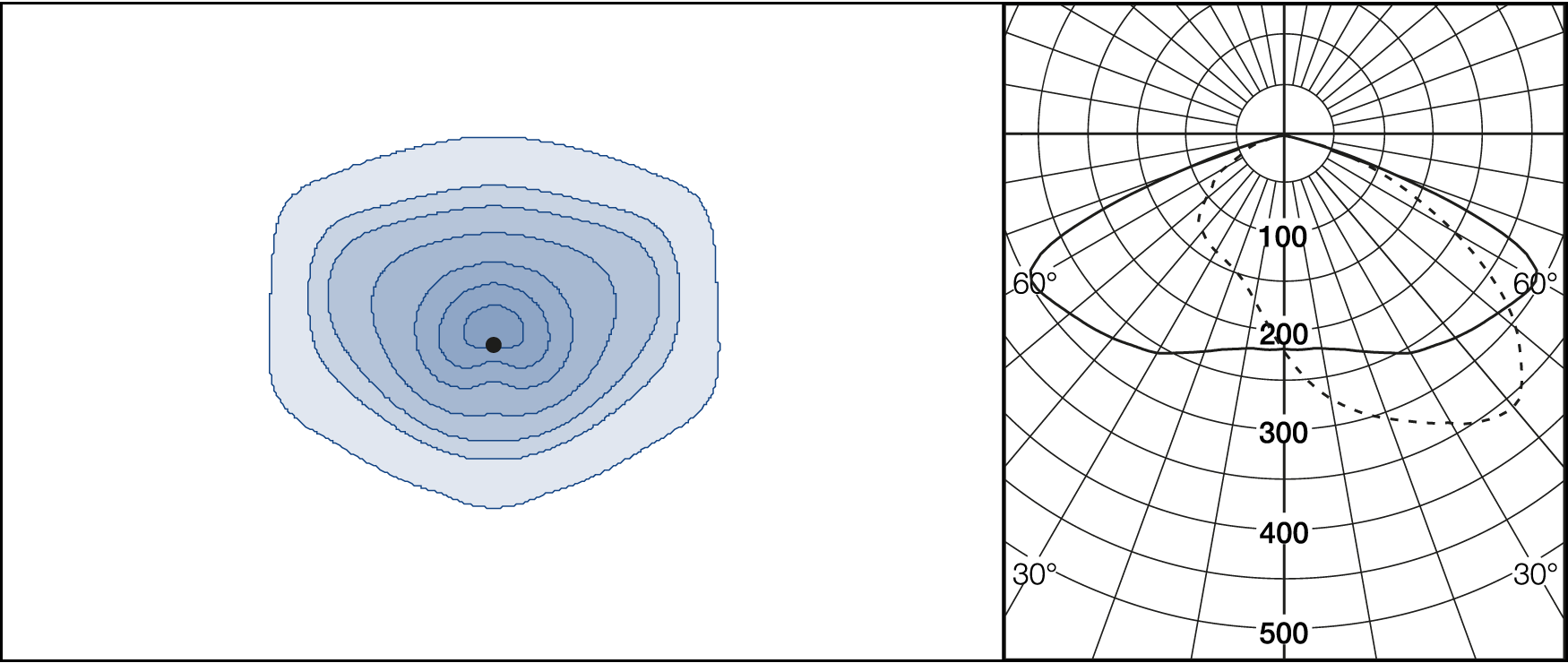

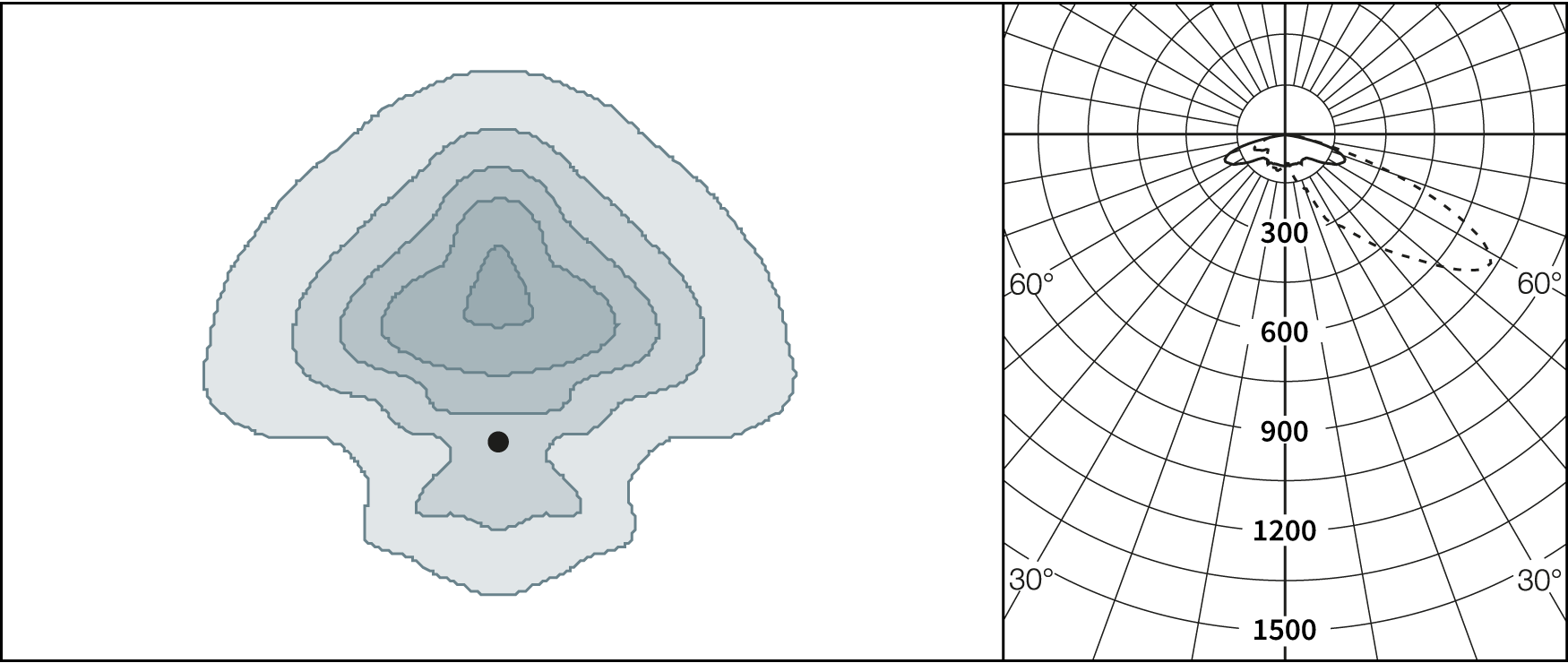

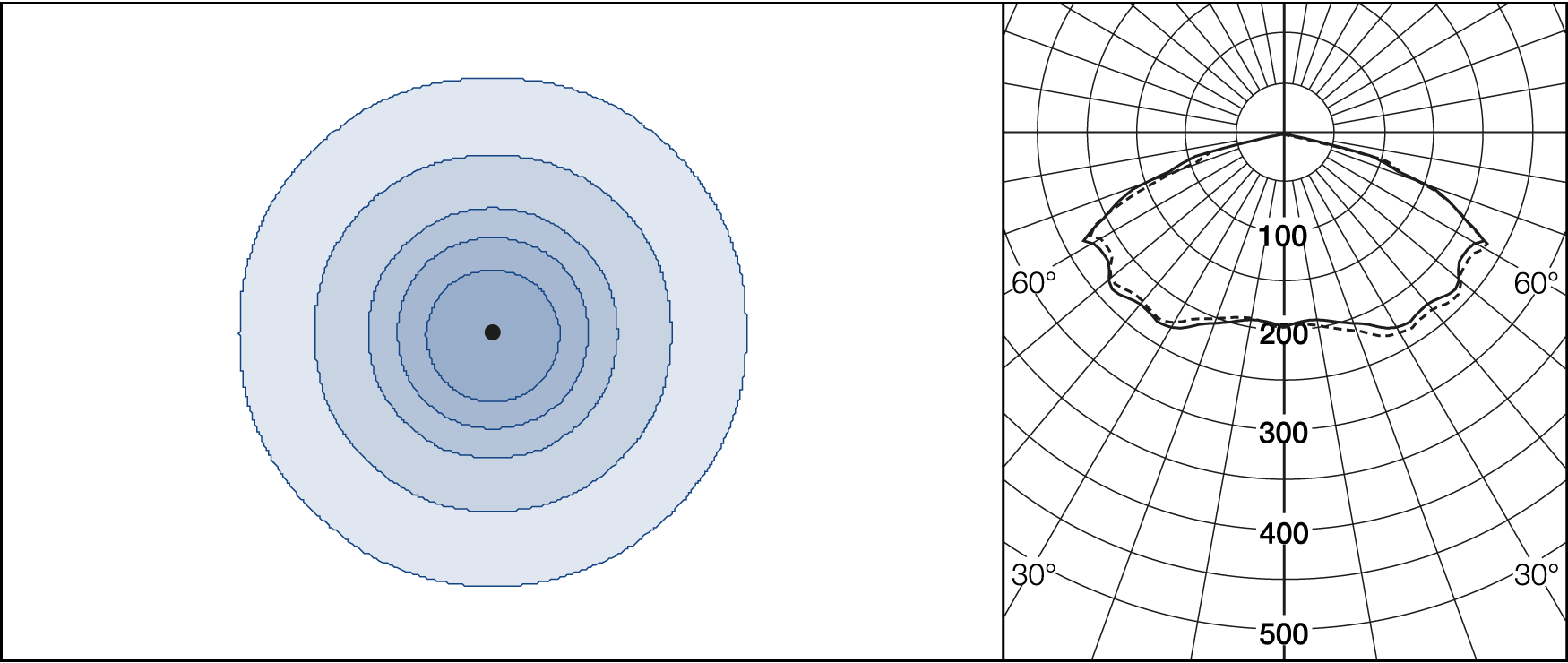

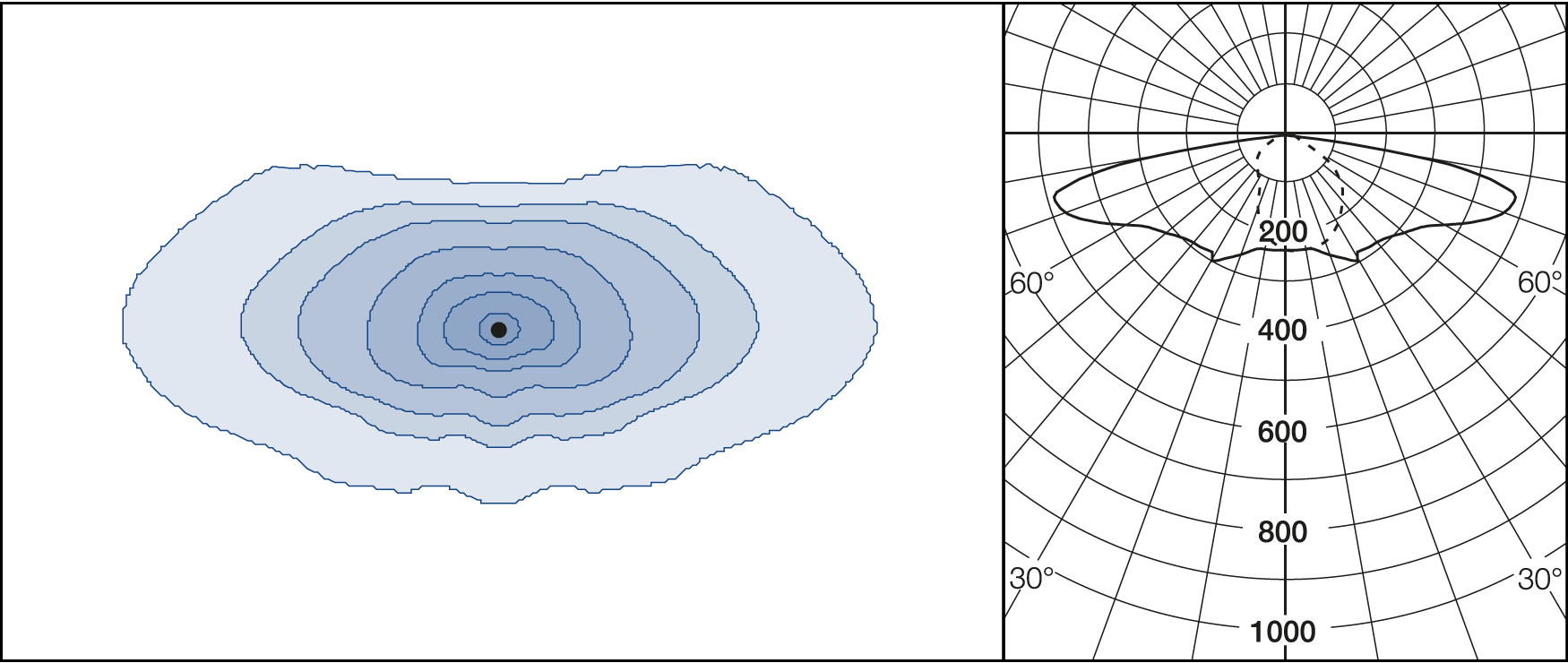

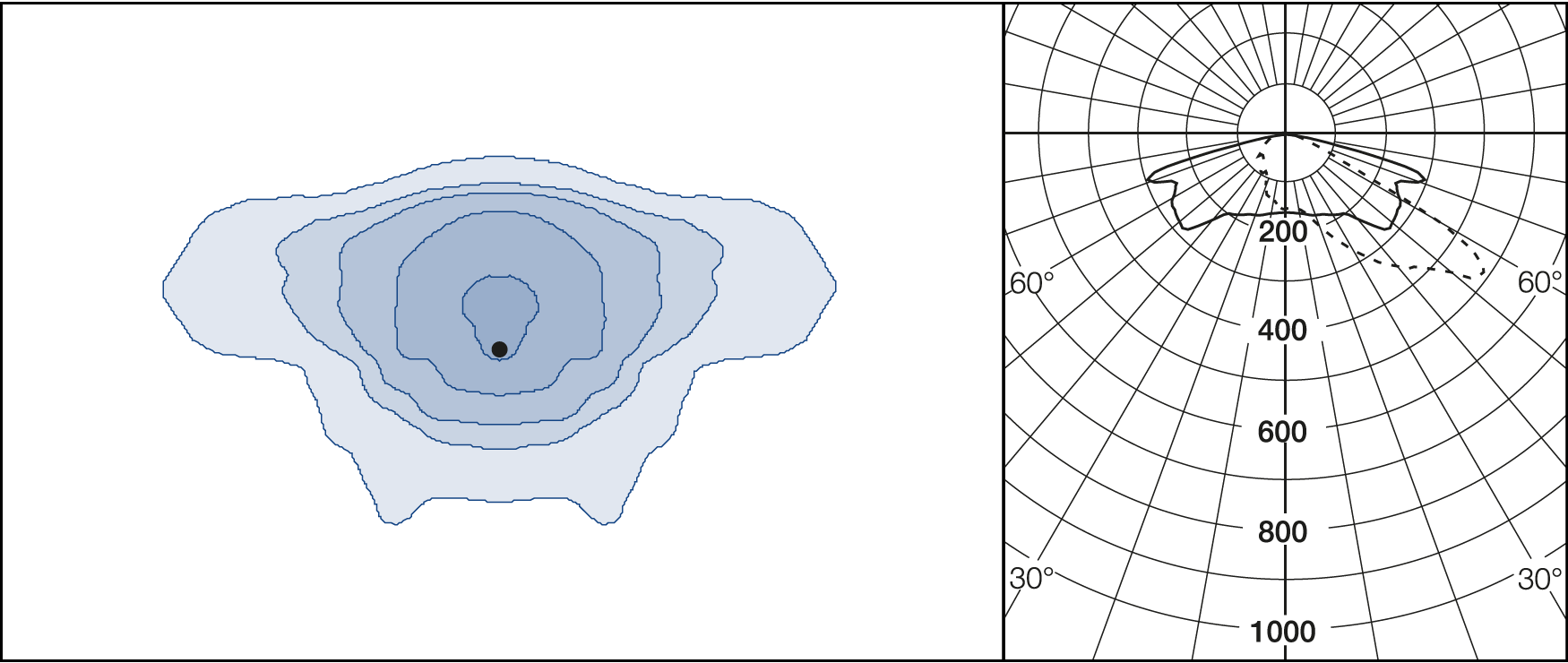

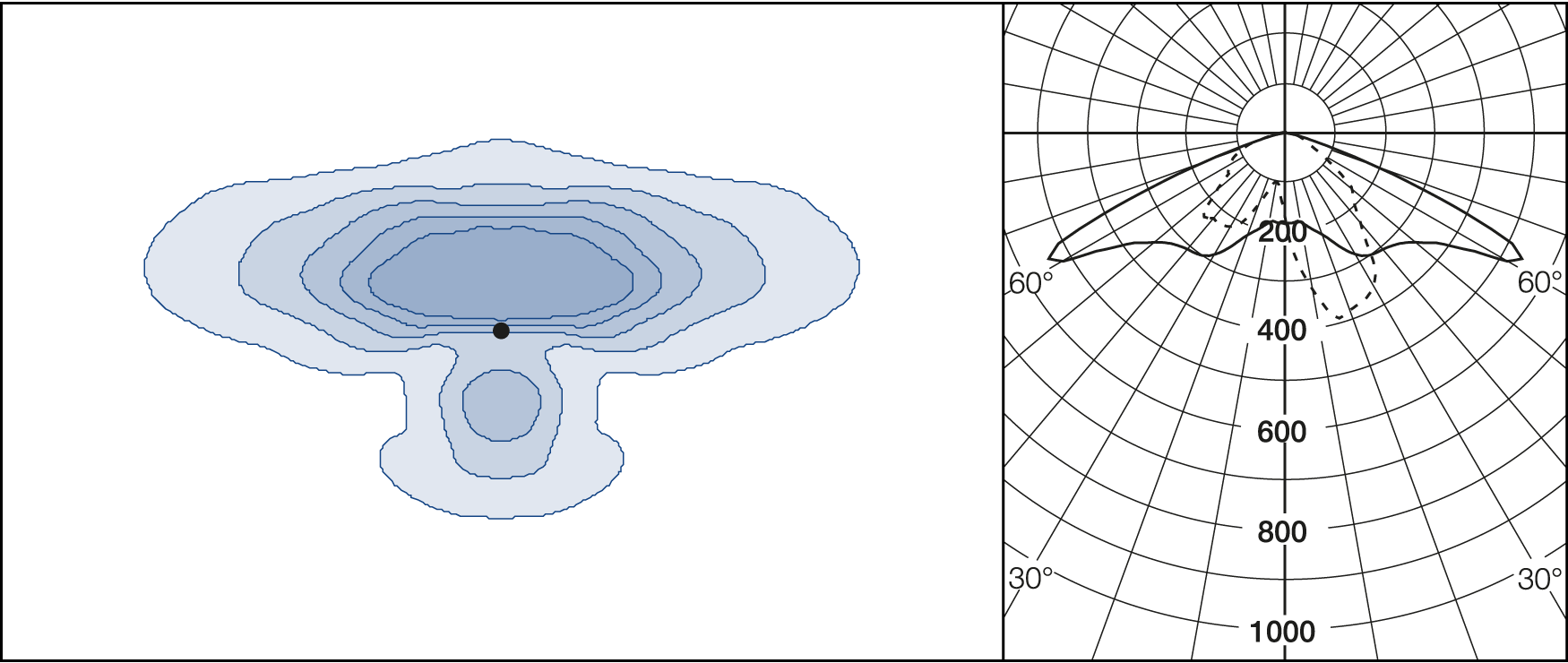

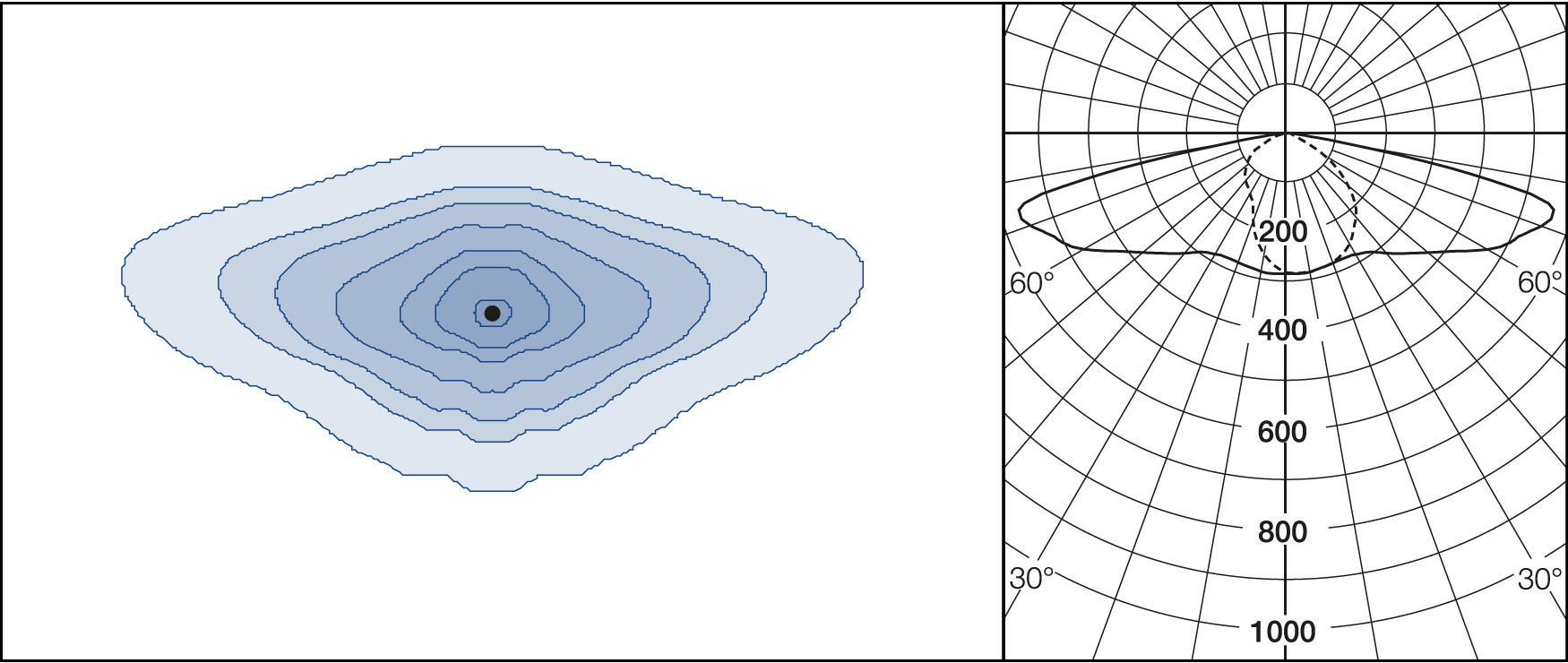

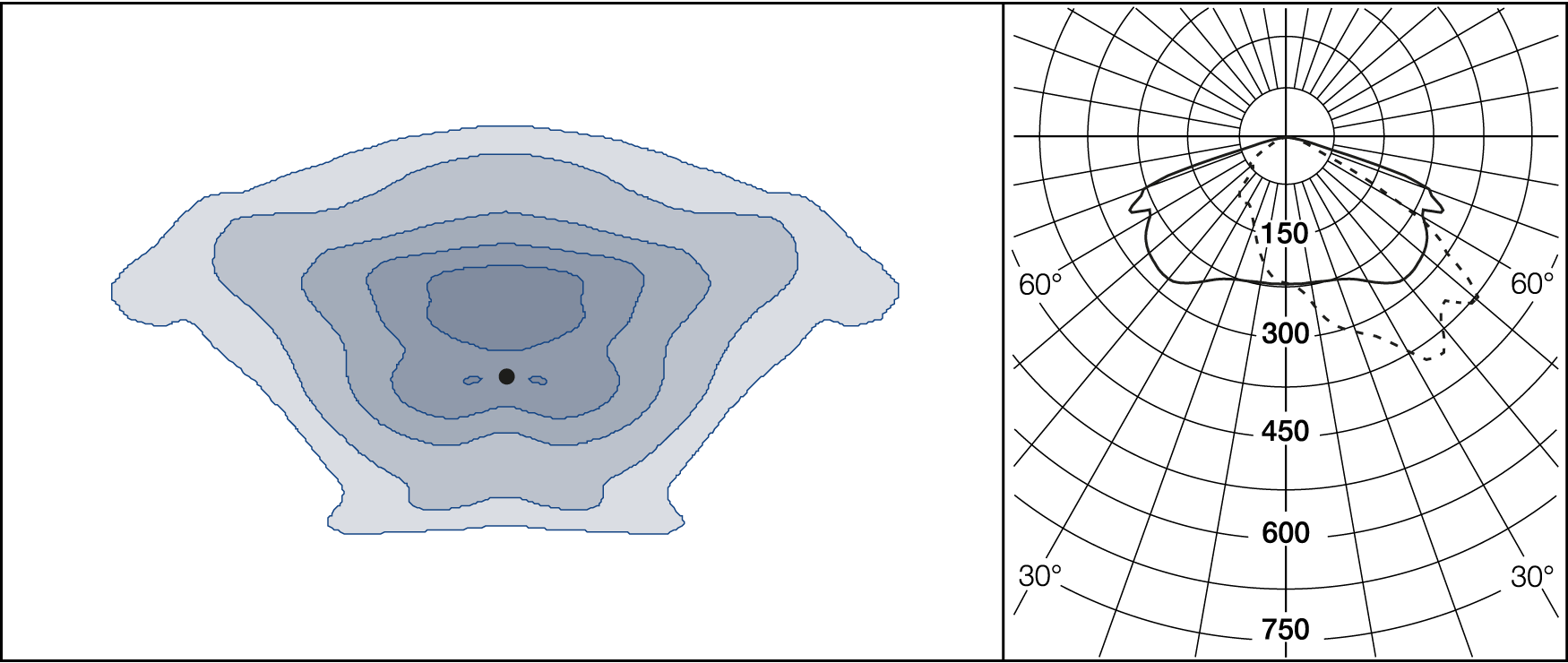

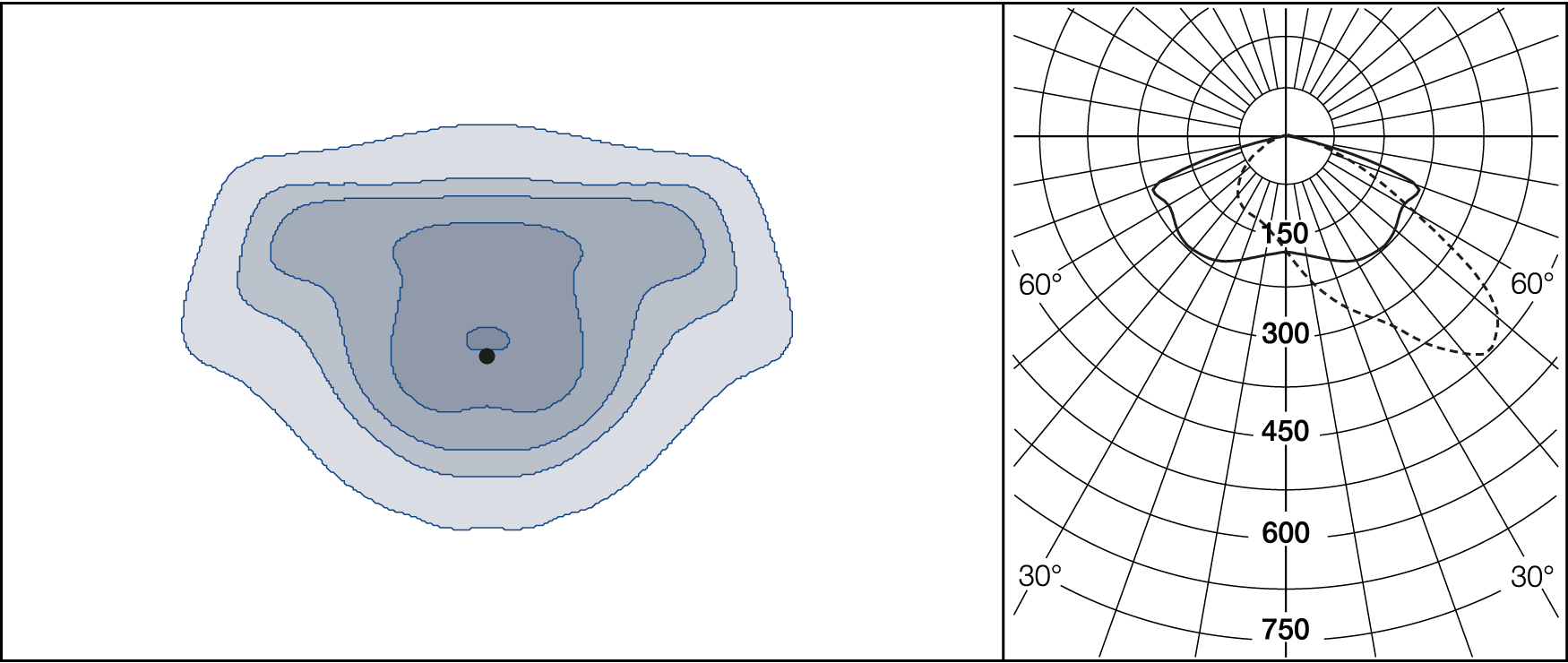

AGC-lenses (Advanced Glare Control). The E-lens are designed to focus on illuminance. L lenses are ideal if the luminance from the ground is the main priority.

Dimming

Night dimming or DALI version available on request.

Standard colour

Alu-grey (RAL 9006, semi-gloss).

LED-information

DALI version is equipped with NTC, over-heat protection.
Driver with integrated surge protection (DM: 6 kV. CM: 8 kV).
Extra surge protection (DM and CM: 10 kV) available on request.

Miscellaneous

Zhaga and NEMA adapter on request.

CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.

Media

Document

Specification

The luminaires can be supplied with an output up to 37 000lm upon request. In addition to the featured lens selection more optics are available on request.

Filter

Art.no. Start W Average W Lumen output Light source colour Lens No. of LEDs CLO function on Protection class
Art.no. Start W Average W Lumen output Light source colour Lens No. of LEDs CLO function on Protection class
301510-489 141 145 20300 740 L7 20 Yes 1
301511-489 156 161 22300 740 L7 20 Yes 1
301512-489 172 178 24300 740 L7 20 Yes 1
301513-489 189 195 26300 740 L7 20 Yes 1
301514-489 207 214 28300 740 L7 20 Yes 1
301515-489 226 233 30300 740 L7 20 Yes 1
301516-489 245 254 32300 740 L7 20 Yes 1
301517-489 265 274 34300 740 L7 20 Yes 1
301518-489 296 306 37000 740 L7 20 Yes 1

Filter

Name Description Art.no.
Name Description Art.no.
Double post-top bracket for Evolume 1Double post-top bracket for Ø 76 mm post top. Alu-grey.303598
Double post-top bracket for Evolume 1Double post-top bracket for Ø 60 mm post top. Alu-grey.303597
Bracket for Evolume Bracket for Ø 60 mm post top. Alu-grey.303595
Bracket for Evolume Bracket for Ø 76 mm post top. Alu-grey.303596
