Closs LED Direct/Indirect

A suspended workplace luminaire that produces direct/indirect light. Beta Opti louvres with direct light provide high efficiency and optimal lighting comfort.

Installation

Wire pendent. Installation via wire suspension requires wire suspension and wire bracket 94489, see accessories. The luminaire is supplied in a balanced design for single wires.

Connection

Two Ø 19 mm cable entries fitted with blanking grommets on the top of the luminaire, see dimension chart. 3-way snap-in terminal block at each end. Luminaires for dimming, 5-way snap-in terminal block, 1-phase through-wiring possible.

Design

Luminaire body in sheet steel and end-caps of die-cast aluminium in a white (RAL 9016) structured or alu-grey (RAL 9006) structured finish.

Louvre

Beta Opti – double parabolic reflector louvre with satin matt metallised aluminium side and cross-blades with an integrated opal film that minimises the risk of uncomfortable glare from the diodes.

Reflector

The louvre acts as a reflector.

Dimming

e-Sense Active – PIR sensor with presence and daylight control via DALI.
e-Sense BrightSwitch – PIR sensors with lux threshold. Presence control on/off. Absence dimming high/low available on request.
e-Sense Connect – presence and daylight control. Sensor luminaires with PIR sensor. RF communications via controller.

Designed by

Epsilon.

Media

Closs can be continuously mounted via a coupler. Please note that the luminaire is delivered without through-wiring.

Closs

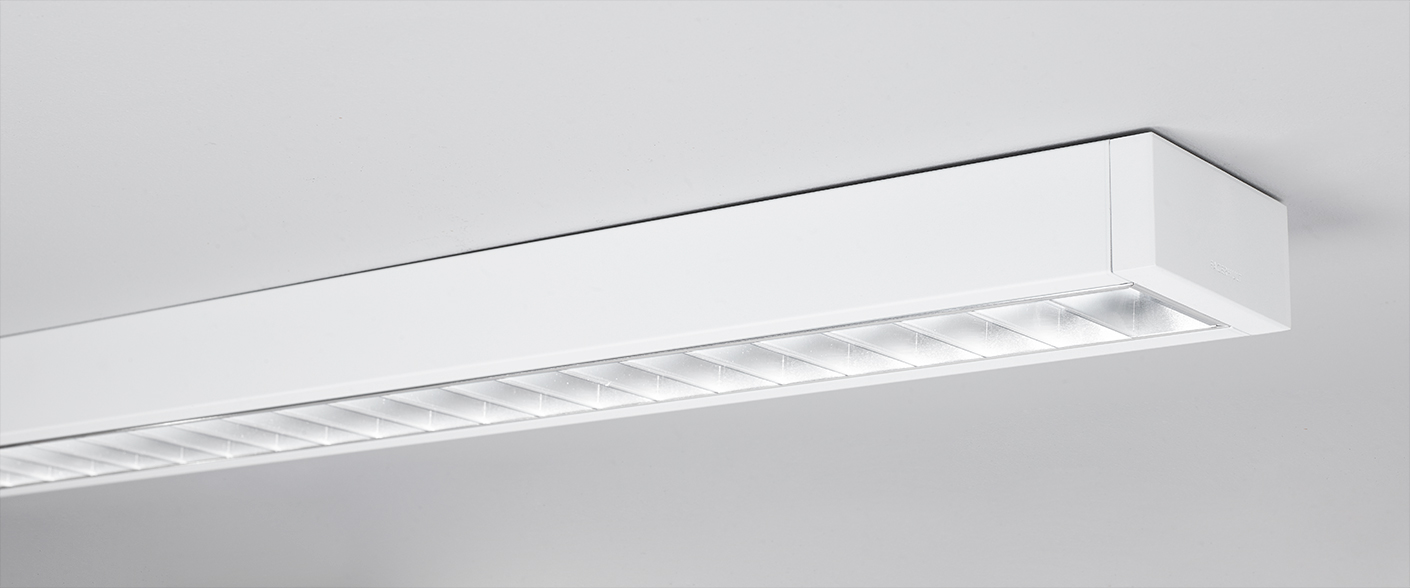

Closs LED has a classic minimalist shape and a unique visual appearance that naturally belongs in most environments. The design makes Closs LED a simple choice in projects where you are looking for an effective luminaire with...

More about the family Closs

Document

Specification

Filter

Art.no. Effect, W Lumen output CCT, K Colour Module Length, mm Width, mm Height, mm Light distribution Light control CLO function on Miscellaneous
Art.no. Effect, W Lumen output CCT, K Colour Module Length, mm Width, mm Height, mm Light distribution Light control CLO function on Miscellaneous
12168 26 3300 3000 White 1200 1217 125 55 Direct/indirect
12168-402 26 3300 3000 White 1200 1217 125 55 Direct/indirect DALI/Phase-pulse
12168-457 26 3300 3000 White 1200 1217 125 55 Direct/indirect e-Sense Connect sensor
12168-458 26 3300 3000 White 1200 1217 125 55 Direct/indirect e-Sense Connect
12168-459 26 3300 3000 White 1200 1217 125 55 Direct/indirect e-Sense Active Master (previously ActiLume)
12168-516 26 3300 3000 White 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch absence
12168-517 26 3300 3000 White 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch on/off
12169 40 5000 3000 White 1200 1217 125 55 Direct/indirect
12169-402 40 5000 3000 White 1200 1217 125 55 Direct/indirect DALI/Phase-pulse
12169-457 40 5000 3000 White 1200 1217 125 55 Direct/indirect e-Sense Connect sensor
12169-458 40 5000 3000 White 1200 1217 125 55 Direct/indirect e-Sense Connect
12169-459 40 5000 3000 White 1200 1217 125 55 Direct/indirect e-Sense Active Master (previously ActiLume)
12169-516 40 5000 3000 White 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch absence
12169-517 40 5000 3000 White 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch on/off
12170 48 5950 3000 White 1200 1217 125 55 Direct/indirect
12170-402 48 5950 3000 White 1200 1217 125 55 Direct/indirect DALI/Phase-pulse
12170-457 48 5950 3000 White 1200 1217 125 55 Direct/indirect e-Sense Connect sensor
12170-458 48 5950 3000 White 1200 1217 125 55 Direct/indirect e-Sense Connect
12170-459 48 5950 3000 White 1200 1217 125 55 Direct/indirect e-Sense Active Master (previously ActiLume)
12170-516 48 5950 3000 White 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch absence
12170-517 48 5950 3000 White 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch on/off
12171 57 6900 3000 White 1200 1217 125 55 Direct/indirect
12171-402 57 6900 3000 White 1200 1217 125 55 Direct/indirect DALI/Phase-pulse
12171-457 57 6900 3000 White 1200 1217 125 55 Direct/indirect e-Sense Connect sensor
12171-458 57 6900 3000 White 1200 1217 125 55 Direct/indirect e-Sense Connect
12171-459 57 6900 3000 White 1200 1217 125 55 Direct/indirect e-Sense Active Master (previously ActiLume)
12171-516 57 6900 3000 White 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch absence
12171-517 57 6900 3000 White 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch on/off
12172 26 3300 3000 Alu grey 1200 1217 125 55 Direct/indirect
12172-402 26 3300 3000 Alu grey 1200 1217 125 55 Direct/indirect DALI/Phase-pulse
12172-457 26 3300 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Connect sensor
12172-458 26 3300 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Connect
12172-459 26 3300 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Active Master (previously ActiLume)
12172-516 26 3300 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch absence
12172-517 26 3300 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch on/off
12173 40 5000 3000 Alu grey 1200 1217 125 55 Direct/indirect
12173-402 40 5000 3000 Alu grey 1200 1217 125 55 Direct/indirect DALI/Phase-pulse
12173-457 40 5000 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Connect sensor
12173-458 40 5000 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Connect
12173-459 40 5000 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Active Master (previously ActiLume)
12173-516 40 5000 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch absence
12173-517 40 5000 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch on/off
12174 48 5950 3000 Alu grey 1200 1217 125 55 Direct/indirect
12174-402 48 5950 3000 Alu grey 1200 1217 125 55 Direct/indirect DALI/Phase-pulse
12174-457 48 5950 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Connect sensor
12174-458 48 5950 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Connect
12174-459 48 5950 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Active Master (previously ActiLume)
12174-516 48 5950 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch absence
12174-517 48 5950 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch on/off
12175 57 6900 3000 Alu grey 1200 1217 125 55 Direct/indirect
12175-402 57 6900 3000 Alu grey 1200 1217 125 55 Direct/indirect DALI/Phase-pulse
12175-457 57 6900 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Connect sensor
12175-458 57 6900 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Connect
12175-459 57 6900 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Active Master (previously ActiLume)
12175-516 57 6900 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch absence
12175-517 57 6900 3000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch on/off
12176 26 3450 4000 White 1200 1217 125 55 Direct/indirect
12176-402 26 3450 4000 White 1200 1217 125 55 Direct/indirect DALI/Phase-pulse
12176-457 26 3450 4000 White 1200 1217 125 55 Direct/indirect e-Sense Connect sensor
12176-458 26 3450 4000 White 1200 1217 125 55 Direct/indirect e-Sense Connect
12176-459 26 3450 4000 White 1200 1217 125 55 Direct/indirect e-Sense Active Master (previously ActiLume)
12176-516 26 3450 4000 White 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch absence
12176-517 26 3450 4000 White 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch on/off
12177 40 5250 4000 White 1200 1217 125 55 Direct/indirect
12177-402 40 5250 4000 White 1200 1217 125 55 Direct/indirect DALI/Phase-pulse
12177-457 40 5250 4000 White 1200 1217 125 55 Direct/indirect e-Sense Connect sensor
12177-458 40 5250 4000 White 1200 1217 125 55 Direct/indirect e-Sense Connect
12177-516 40 5250 4000 White 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch absence
12177-517 40 5250 4000 White 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch on/off
12177-537 37 4779 4000 White 1200 1217 125 55 Direct/indirect e-Sense Active Master Yes
12177-538 37 4779 4000 White 1200 1217 125 55 Direct/indirect e-Sense Active Yes 1 pull dim
12178 48 6300 4000 White 1200 1217 125 55 Direct/indirect
12178-402 48 6300 4000 White 1200 1217 125 55 Direct/indirect DALI/Phase-pulse
12178-457 48 6300 4000 White 1200 1217 125 55 Direct/indirect e-Sense Connect sensor
12178-458 48 6300 4000 White 1200 1217 125 55 Direct/indirect e-Sense Connect
12178-459 48 6300 4000 White 1200 1217 125 55 Direct/indirect e-Sense Active Master (previously ActiLume)
12178-516 48 6300 4000 White 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch absence
12178-517 48 6300 4000 White 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch on/off
12179 57 7300 4000 White 1200 1217 125 55 Direct/indirect
12179-402 57 7300 4000 White 1200 1217 125 55 Direct/indirect DALI/Phase-pulse
12179-457 57 7300 4000 White 1200 1217 125 55 Direct/indirect e-Sense Connect sensor
12179-458 57 7300 4000 White 1200 1217 125 55 Direct/indirect e-Sense Connect
12179-516 57 7300 4000 White 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch absence
12179-517 57 7300 4000 White 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch on/off
12179-537 52 6625 4000 White 1200 1217 125 55 Direct/indirect e-Sense Active Master Yes
12180 26 3450 4000 Alu grey 1200 1217 125 55 Direct/indirect
12180-402 26 3450 4000 Alu grey 1200 1217 125 55 Direct/indirect DALI/Phase-pulse
12180-457 26 3450 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Connect sensor
12180-458 26 3450 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Connect
12180-459 26 3450 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Active Master (previously ActiLume)
12180-516 26 3450 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch absence
12180-517 26 3450 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch on/off
12181 40 5250 4000 Alu grey 1200 1217 125 55 Direct/indirect
12181-402 40 5250 4000 Alu grey 1200 1217 125 55 Direct/indirect DALI/Phase-pulse
12181-457 40 5250 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Connect sensor
12181-458 40 5250 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Connect
12181-459 40 5250 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Active Master (previously ActiLume)
12181-516 40 5250 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch absence
12181-517 40 5250 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch on/off
12182 48 6300 4000 Alu grey 1200 1217 125 55 Direct/indirect
12182-402 48 6300 4000 Alu grey 1200 1217 125 55 Direct/indirect DALI/Phase-pulse
12182-457 48 6300 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Connect sensor
12182-458 48 6300 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Connect
12182-459 48 6300 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Active Master (previously ActiLume)
12182-516 48 6300 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch absence
12182-517 48 6300 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch on/off
12183 57 7300 4000 Alu grey 1200 1217 125 55 Direct/indirect
12183-402 57 7300 4000 Alu grey 1200 1217 125 55 Direct/indirect DALI/Phase-pulse
12183-457 57 7300 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Connect sensor
12183-458 57 7300 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Connect
12183-459 57 7300 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense Active Master (previously ActiLume)
12183-516 57 7300 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch absence
12183-517 57 7300 4000 Alu grey 1200 1217 125 55 Direct/indirect e-Sense BrightSwitch on/off

Filter

Name Description Art.no.
Name Description Art.no.
Remote control for e-Sense ConnectRemote control (for grouping) to e-Sense Connect86301

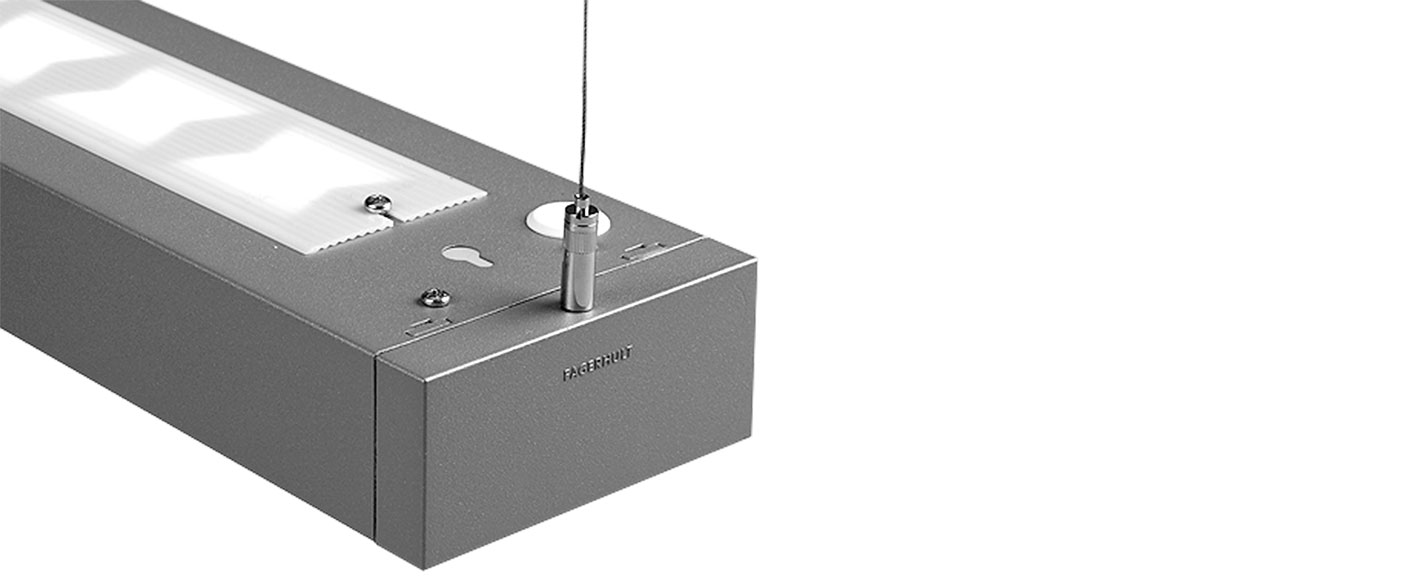

Opal diffuserOpal diffuser, 1200 mm94191
Support rail (cat. no./pair)L=600/650, section: 15, max. load: 75N/pair90015
Support rail (cat. no./pair)L=600/625, section: 25, max. load: 75N/pair94067

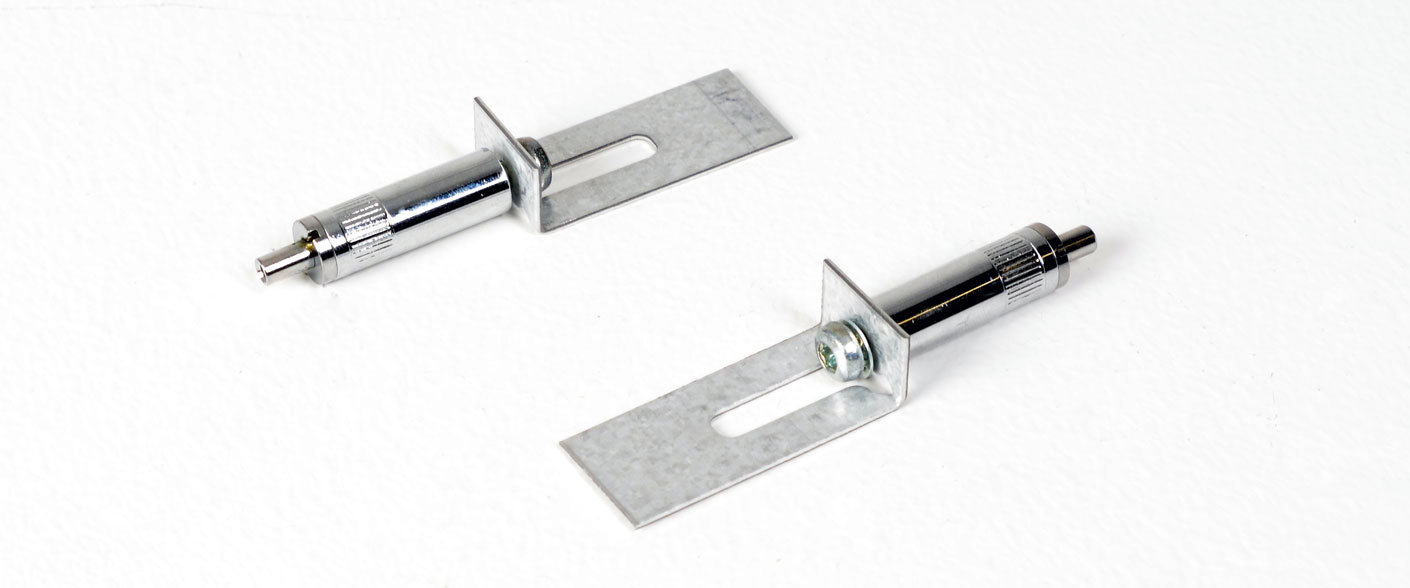

Wire suspension for support railsWire suspension for support rails 90015, 90016, 90017, 94052, 94067, 9406891426
Support rail (cat. no./pair)L=200/1250, section: 15, max. load: 120/30N/pair90016
Support rail (cat. no./pair)L=1200/1250, section: 25, max. load: 120/30N/pair94068
Support rail (cat. no./pairL=600 mm, T-bars: 25/15, max load: 75 N/pair90017
Wire suspension for single installation, 3x0.75 mm² Round ceiling cups – small + large, transparent mains cable (96382+96390)95355
Wire suspension for single installation, 3x0.75 mm² Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96388)95356
Wire suspension for continuous installation, 3x0.75 mm²Large square ceiling cup, white mains cable/each96374
Wire suspension for single installation, 3x0.75 mm² Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96376)95364
Wire suspension for single installation, 3x0.75 mm² Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96379)95365
Wire suspension for continuous installation, 3x0.75 mm²Large square ceiling cup for T-bars 25 mm, transparent mains cable/each96379
Wire suspension for single installation, 3x0.75 mm² Square ceiling cups – small + large, white mains cable (96370+96374)95362
Wire suspension for single installation, 3x0.75 mm² Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96391)95353
Wire suspension for continuous installation, 3x0.75 mm²Large round ceiling cup, white mains cable/each96386
Wire suspension for single installation, 3x0.75 mm² Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96379)95361
Wire suspension for continuous installation Large round ceiling cup for T-bars 25 mm/each96385
Wire suspension for single installation, 3x0.75 mm² Square ceiling cups – small + large, transparent mains cable (96370+96378)95363
Wire suspension for single installation, 3x0.75 mm² Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96376)95360
Wire suspension for continuous installation Small round ceiling cup/each96382
Wire suspension for single installation, 3x0.75 mm² Square ceiling cups – large, transparent mains cable (96371+96378)95359
Wire suspension for single installation, 3x0.75 mm² Square ceiling cups – large, white mains cable (96371+96374)95358
Wire suspension for continuous installation Small round ceiling cup for T-bars 25 mm/each96384
Wire suspension for single installation, 3x0.75 mm² Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96391)95357
Wire suspension for single installation, 3x0.75 mm² Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96388)95352
Wire suspension for continuous installation Small square ceiling cup/each96370
Wire suspension for single installation, 3x0.75 mm² Round ceiling cups – large, white mains cable (96383+96386)95350
Wire suspension for continuous installation Large round ceiling cup/each96383
Continuous mounting couplerContinuous coupler including friction locks – grey/each91970
Remote control e-Sense BrightSwitchRemote control86359
Wire suspension for single installation, 3x0.75 mm² Round ceiling cups – large, transparent mains cable (96383+96390)95351
Wire suspension for single installation, 3x0.75 mm² Round ceiling cups – small + large, white mains cable (96382+96386)95354
Continuous mounting couplerContinuous coupler including friction locks – white/each91969
Controller for e-Sense ConnectControl unit to e-Sense Connect86300
Wire suspension for single installation, 5x0.75 mm²Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96389)95372
Wire suspension for continuous installation, 5x0.75 mm²Large round ceiling cup, white mains cable/each96387
Wire suspension for single installation, 5x0.75 mm²Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96381)95381
Wire suspension for continuous installation, 5x0.75 mm²Large round ceiling cup for T-bars 25 mm, transparent mains cable/each96393
Wire suspension for single installation, 5x0.75 mm²Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96377)95380
Wire suspension for continuous installation, 5x0.75 mm²Large round ceiling cup for T-bars 25 mm, white mains cable/each96389
Wire suspension for single installation, 5x0.75 mm²Square ceiling cups – small + large, transparent mains cable (96370+96380)95379
Wire suspension for continuous installation, 5x0.75 mm²Large square ceiling cup, white mains cable/each96375
Wire bracket including friction locksWire bracket/pair94489
Wire suspension for single installation, 5x0.75 mm²Square ceiling cups – small + large, white mains cable (96370+96375)95378
Wire suspension for continuous installation, 5x0.75 mm²Large square ceiling cup, transparent mains cable/each96380
Wire suspension for continuous installation, 5x0.75 mm²Large square ceiling cup for T-bars 25 mm, transparent mains cable/each96381
Wire suspension for single installation, 5x0.75 mm²Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96381)95377
Wire suspension for continuous installation, 5x0.75 mm²Large square ceiling cup for T-bars 25 mm, white mains cable/each96377
Wire suspension for single installation, 5x0.75 mm²Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96377)95376
Wire suspension for single installation, 5x0.75 mm²Square ceiling cups – large, transparent mains cable (96371+96380)95375
Wire suspension for single installation, 5x0.75 mm²Square ceiling cups – large, white mains cable (96371+96375)95374
Wire suspension for single installation, 5x0.75 mm²Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96393)95373
Wire suspension for single installation, 5x0.75 mm²Round ceiling cups – large, white mains cable (96383+96387)95366
Ceiling bracket in chrome with wireWire suspension with ceiling bracket in chrome, L=1.5 m/pair91696
CuttersCutters, each94248
Connection cable for controller for e-Sense ConnectConnection cable between control unit and controller to e-Sense Connect86303
Remote controlRemote control 86415
Programming remote control e-Sense ActiveProgramming remote control 86414
