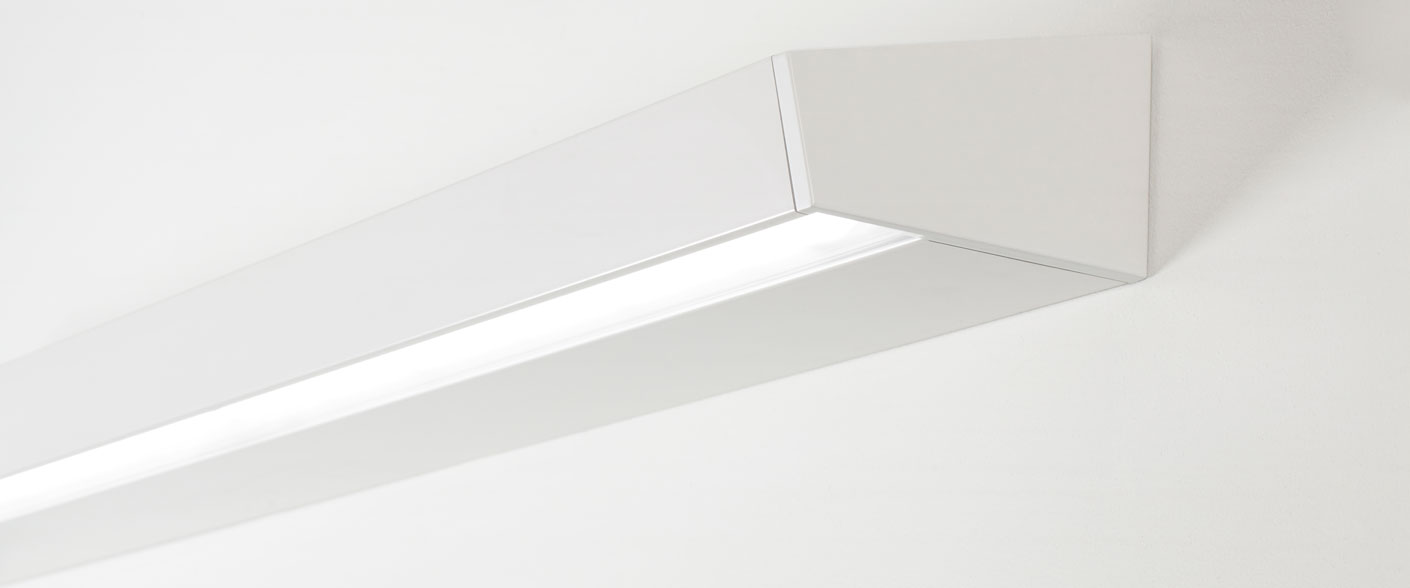

Aluflex Medica

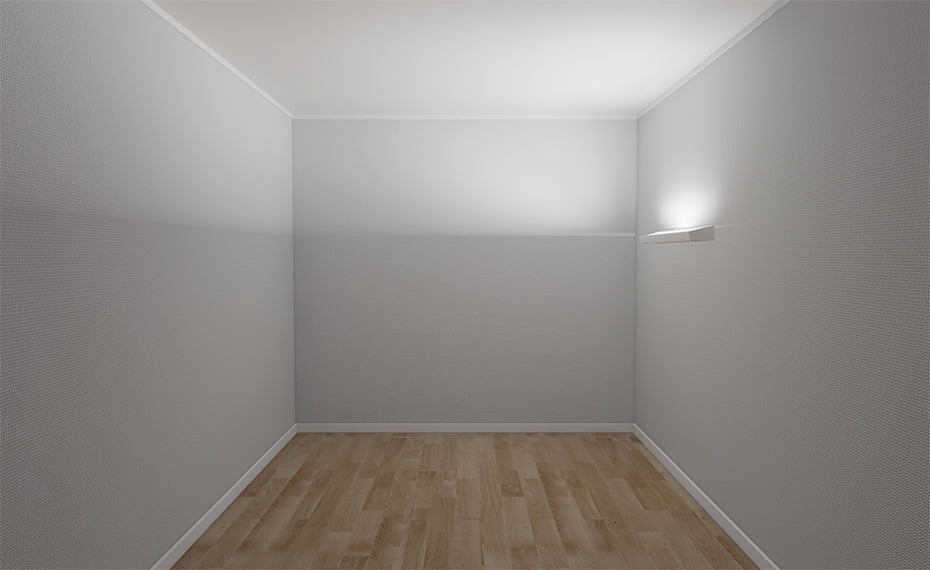

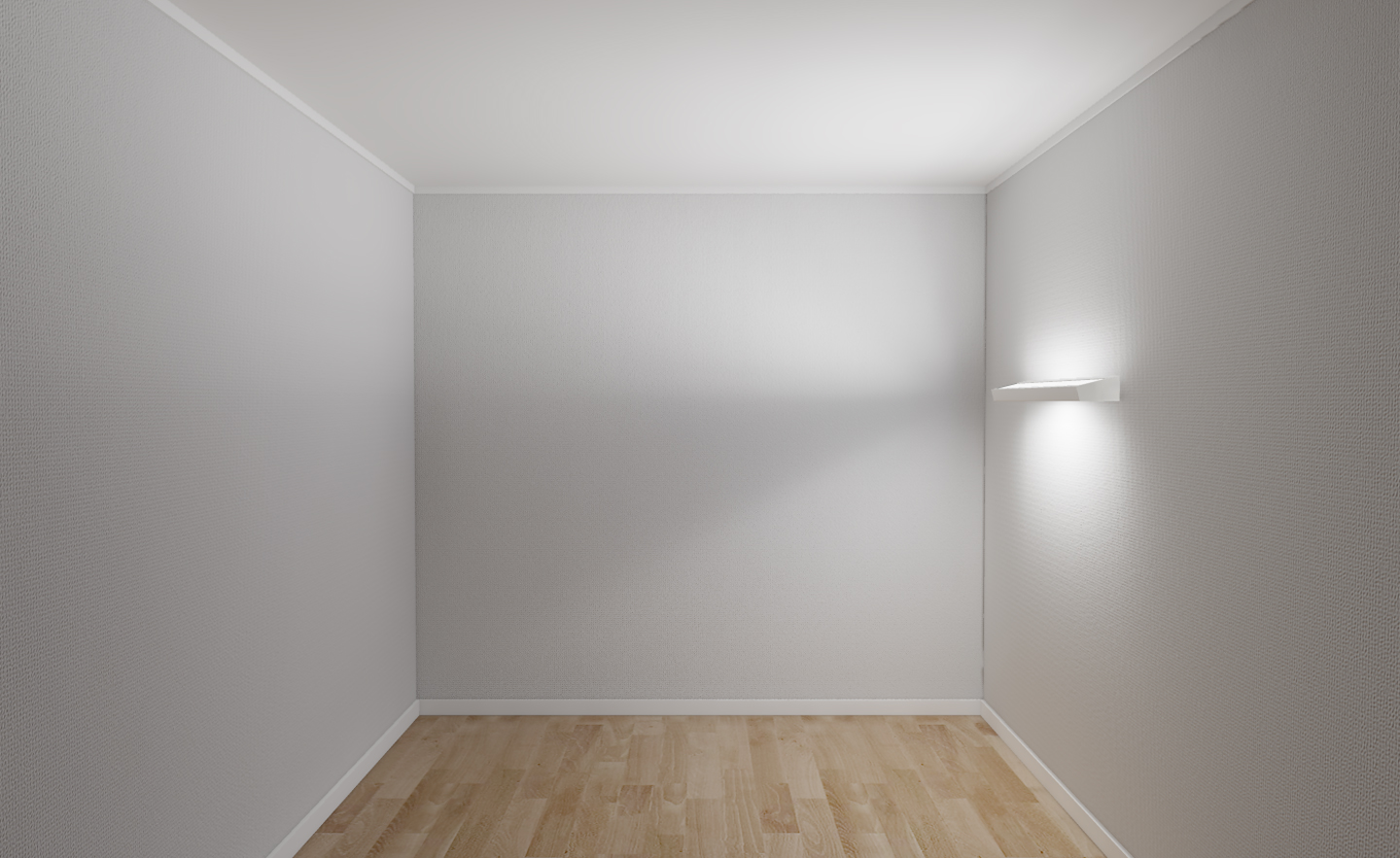

A wall luminaire for health and medical care in various configurations, from solutions with only indirect light to versions with indirect general light and direct light for reading and examination.

Installation

Wall bracket.

Connection

Connection in the center at the back of the luminaire. Snap-in connector 5x2,5mm². 1-phase through-wiring possible with recessed cable.

Design

Body in extruded aluminium and ends in cast aluminium, (RAL 9016). The top is covered with a transparent acrylic plastic diffuser.

Reflector

Reflector material of metallized aluminium with satin matt surface.

Dimming

DALI/phase-pulse control as standard. All versions with direct/indirect light requires 2 DALI addresses, versions with Amber night light requires 3 DALI addresses.

Miscellaneous

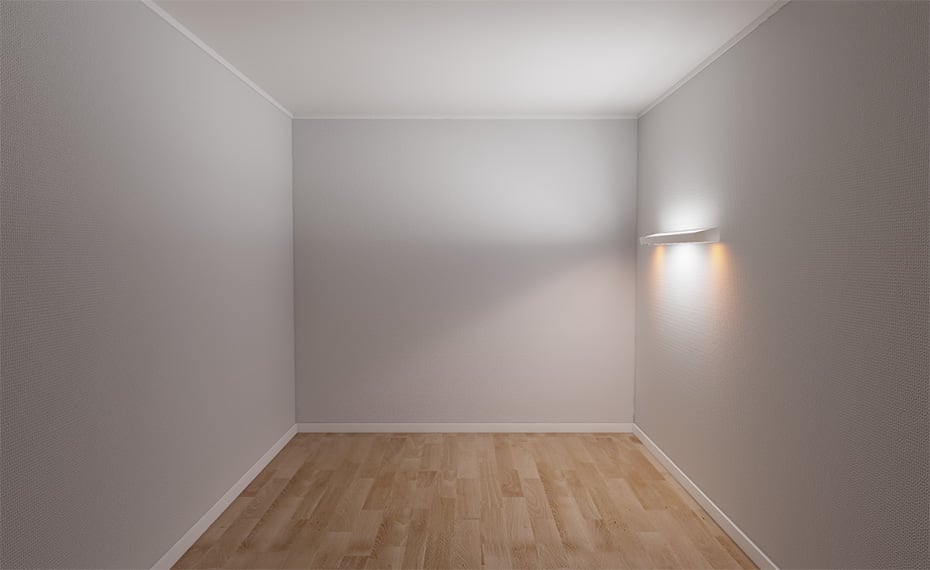

Versions with Amber: 6 W, 250 lm, 42 lm/w

Aluflex Medica

Aluflex Medica is a versatile wall luminaire primarily developed for healthcare facilities but also different types of homes designed for the elderly. A clean, timeless design contributes to a calm, harmonious care environment...

More about the family Aluflex Medica

Document

Specification

Luminaires with Tunable White and Amber Nightlight are listed with values for 4000 K. Please refer to Miscellaneous for Amber Nightlight system wattage, luminous flux and efficiency.

Filter

Art.no. Effect, W Lumen output CCT, K Length, mm Light distribution Miscellaneous
Art.no. Effect, W Lumen output CCT, K Length, mm Light distribution Miscellaneous
18600-402 78 6369 3000 1130 Direct/indirect
18601-402 78 6930 4000 1130 Direct/indirect
18602 81 7281 4000 1130 Direct/indirect Tunable White
18603-402 78 6369 3000 1130 Direct/indirect Amber
18604-402 78 6930 4000 1130 Direct/indirect Amber
18605 81 7281 4000 1130 Direct/indirect Tunable White + Amber
18606-402 52 4115 3000 1130 Indirect
18607-402 52 4485 4000 1130 Indirect
18608 50 4187 4000 1130 Indirect Tunable White
