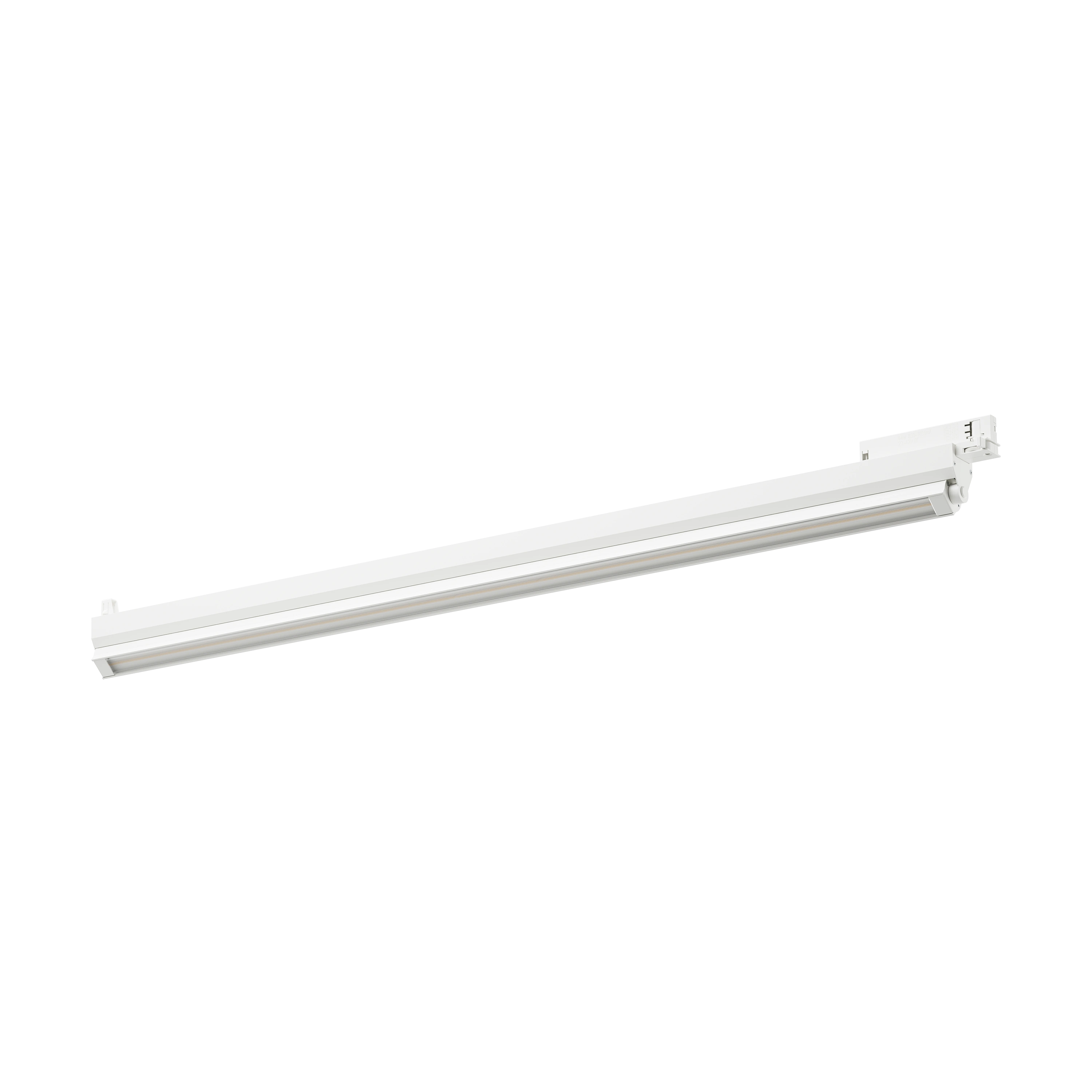

Line UpTrack

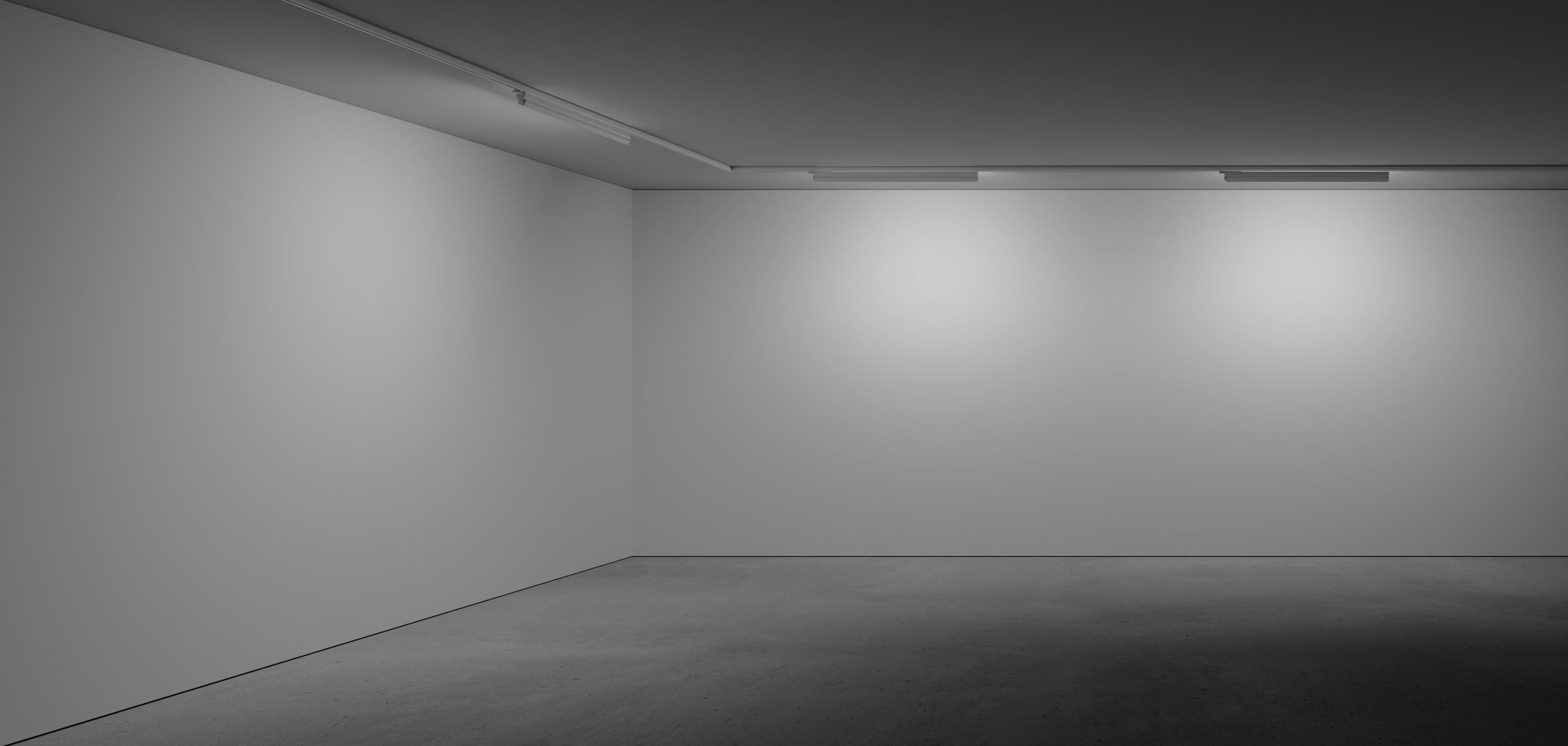

Line Up is a track-mounted luminaire with wide light distribution and high colour rendering, developed for lighting large wall surfaces. The luminaire can be tilted 70 degrees in either direction, providing an even, glare-free light pattern.
Line UpTrack
Line Up is a track-mounted luminaire with wide light distribution and high colour rendering, developed for lighting large wall surfaces. The luminaire can be tilted 70 degrees in either direction, providing an even, glare-free light pattern.
Installation
Luminaire for installation in Lighting Track Pro 3-phase track. The adapter locks mechanically to the track with a knob. Phase 1, 2 or 3 can then be selected with the phase selector knob. For detailed information, see the installation instructions.
Connection
3-phase adapter for Lighting Track Pro. Intrack driver in adapter. CLO (Constant Light Output).
Design
Luminaire body of extruded aluminium. White (RAL 9016) or black (RAL 9017) structured lacquer. Tiltable ±70º.
Light Distribution
Wide Beam.
Light data
Optics
Linear extruded lens.
Verified environmental information
The product’s environmental and climate impact has been analysed from a life cycle perspective and documented in a third‑party verified Environmental Product Declaration (EPD). The purpose is to provide reliable environmental information and to clearly identify where impacts occur, thereby supporting insights that can help reduce the climate impact.
e-Sense StagePIR sensor
Dynamic system for e.g. retail and showrooms, which uses Casambi technology to easily create and control various lighting scenarios via an app.
Read moreOn/Off
Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | CRI | Colour | Dimensions, mm | Installation | Light control | CLO time, h | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 85064 | 46 | 4972 | 3000 BBBL | 90 | White | 1235x48x98 | 3-phase track | On/off |
|
||
| 85064-544 | 39 | 4240 | 3000 BBBL | 90 | White | 1235x48x98 | 3-phase track | e-Sense Stage in-track driver | 50000 |
|
|
| 85065 | 46 | 4972 | 3000 BBBL | 90 | Black | 1235x48x98 | 3-phase track | On/off |
|
||
| 85065-544 | 39 | 4240 | 3000 BBBL | 90 | Black | 1235x48x98 | 3-phase track | e-Sense Stage in-track driver | 50000 |
|
|
| 85066 | 46 | 5079 | 4000 BBBL | 90 | White | 1235x48x98 | 3-phase track | On/off |
|
||
| 85066-544 | 39 | 4331 | 4000 BBBL | 90 | White | 1235x48x98 | 3-phase track | e-Sense Stage in-track driver | 50000 |
|
|
| 85067 | 46 | 5079 | 4000 BBBL | 90 | Black | 1235x48x98 | 3-phase track | On/off |
|
||
| 85067-544 | 39 | 4331 | 4000 BBBL | 90 | Black | 1235x48x98 | 3-phase track | e-Sense Stage in-track driver | 50000 |
|
Downloads
