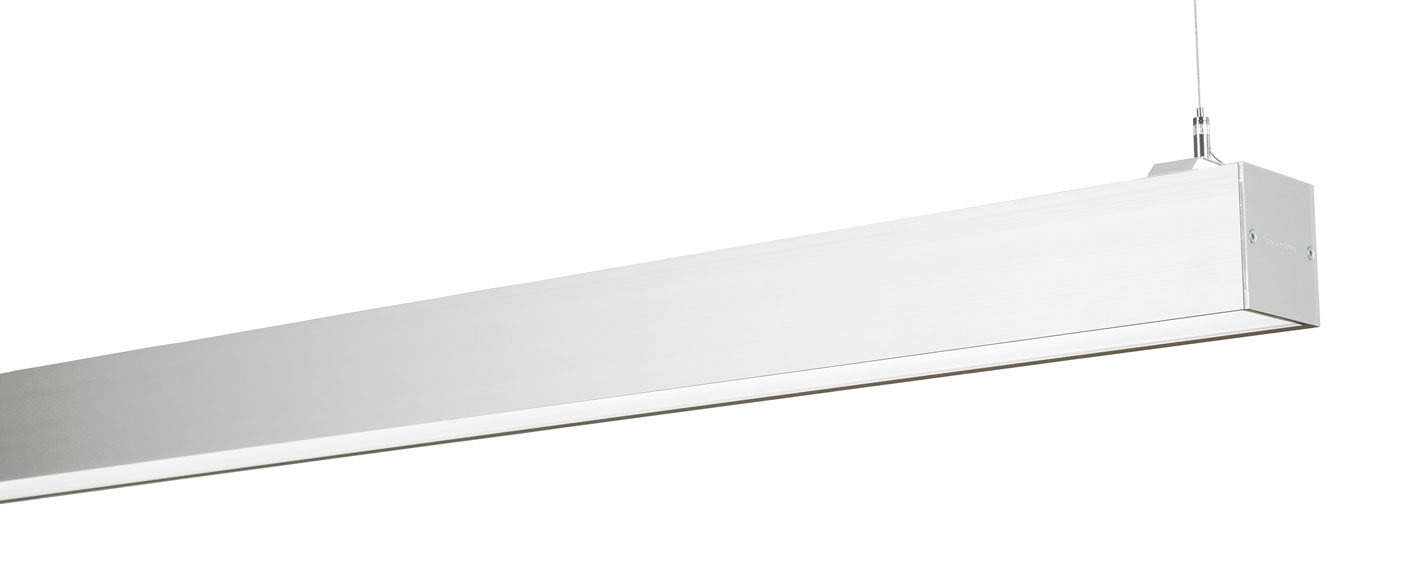

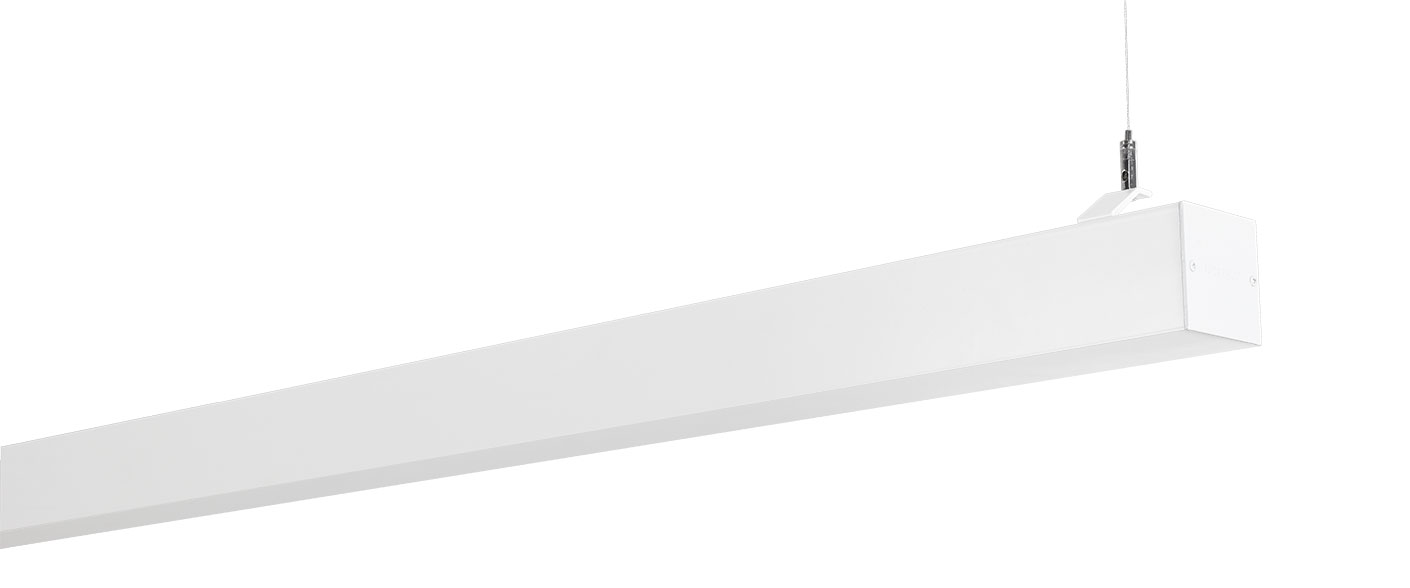

Notor 65 Asymmetrical
35632 Notor 35632
Suspended or ceiling mounted with asymmetric light and Opal louvre shutters. Single or continuous installation. Can also be mounted on wall or bookcase with bracket.
Installation
Single or continuous installation in wire suspension or surface mounted. For wire suspension mounting, a wire bracket is required for flexible c/c; see accessories. Can also be mounted on walls or bookcases with bracket; see accessories.
Connection
The luminaire is equipped with an insertion hole on the top for cabling. For external wiring, a special end cap with insertion hole is used; see accessories. The luminaire unit is equipped with a through-wire (5 x 1.5 mm²) and a snap-in connector in each end cap. For continuous installation, the luminaire row must always begin with a start luminaire
Design
Frame lacquered in white (RAL 9016) or black (RAL 9005) or extruded aluminium with natural anodised finish. End caps included in Start/Single luminaires.
Louvre
Reflector in miro plate, sheet in frosted acrylic (PMMA).
Reflector
Metallized aluminum with excellent reflection properties (> 92%).
Light distribution
Asymmetrical.
Dimming
CLO (Constant Light Output) and DALI/phase pulse control as standard.
Organic Response – Passive infrared sensor (PIR) sensor with presence and daylight-responsive control. All luminaires act as master/slave with IR communication.
Miscellaneous
Ra (CRI) 90 on request.
Media
Notor

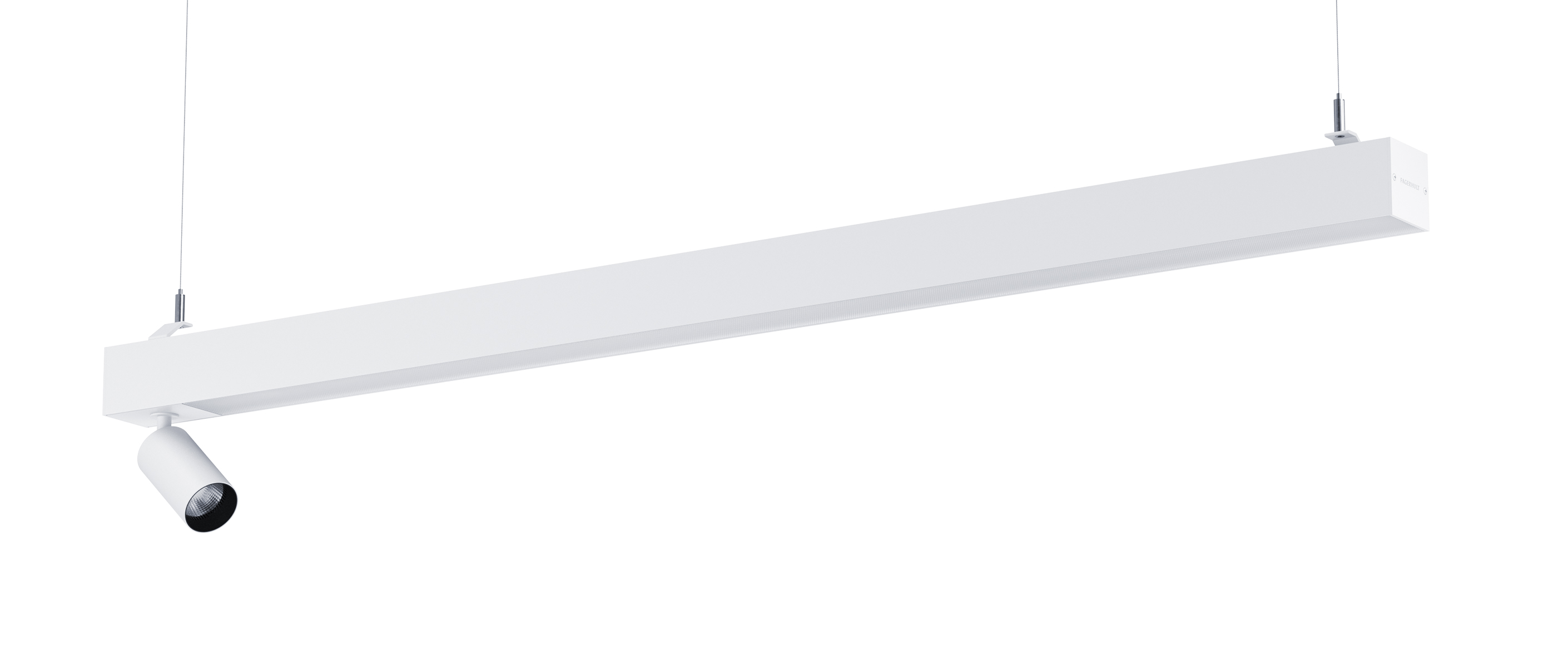

Fagerhult’s classic interior luminaire Notor is available in several versions for suspended, surface mounted or recessed installation. Notor is an obvious choice in circumstances when there is a desire to create long, unbroken...
More about the family NotorOther products
Document
Customise with Fagerhult Configure
Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.
- Adapt and optimise the luminaire
- Download unique data sheet and light data files
- To order, contact your sales representative
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
|

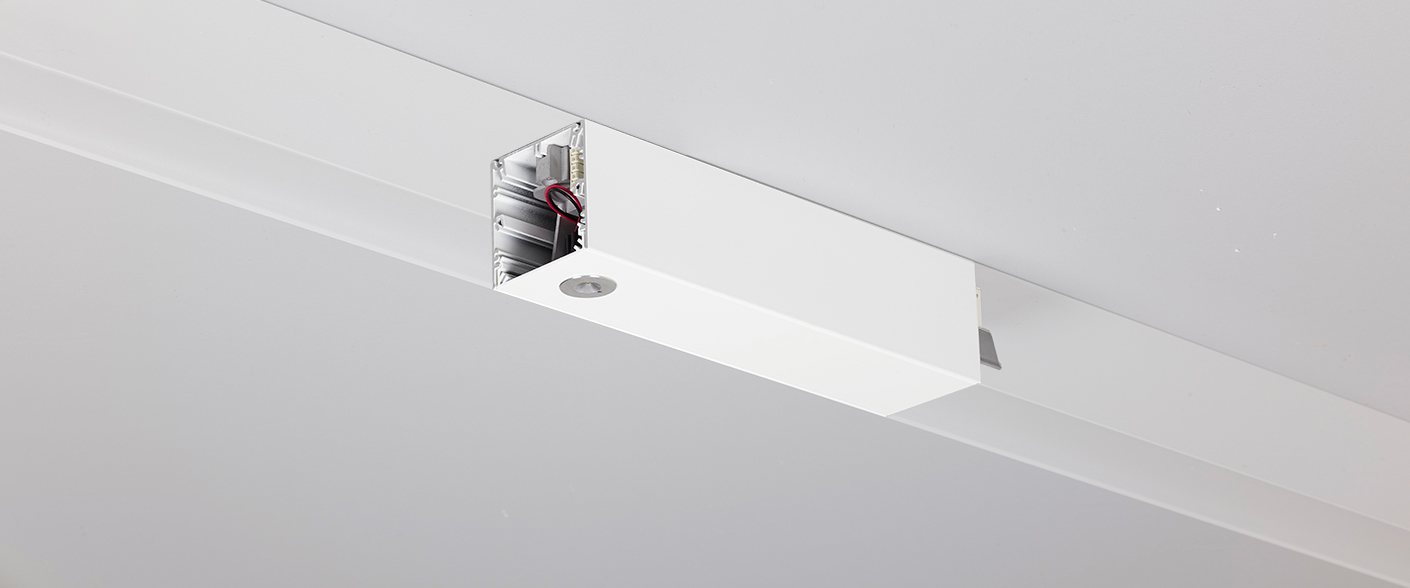

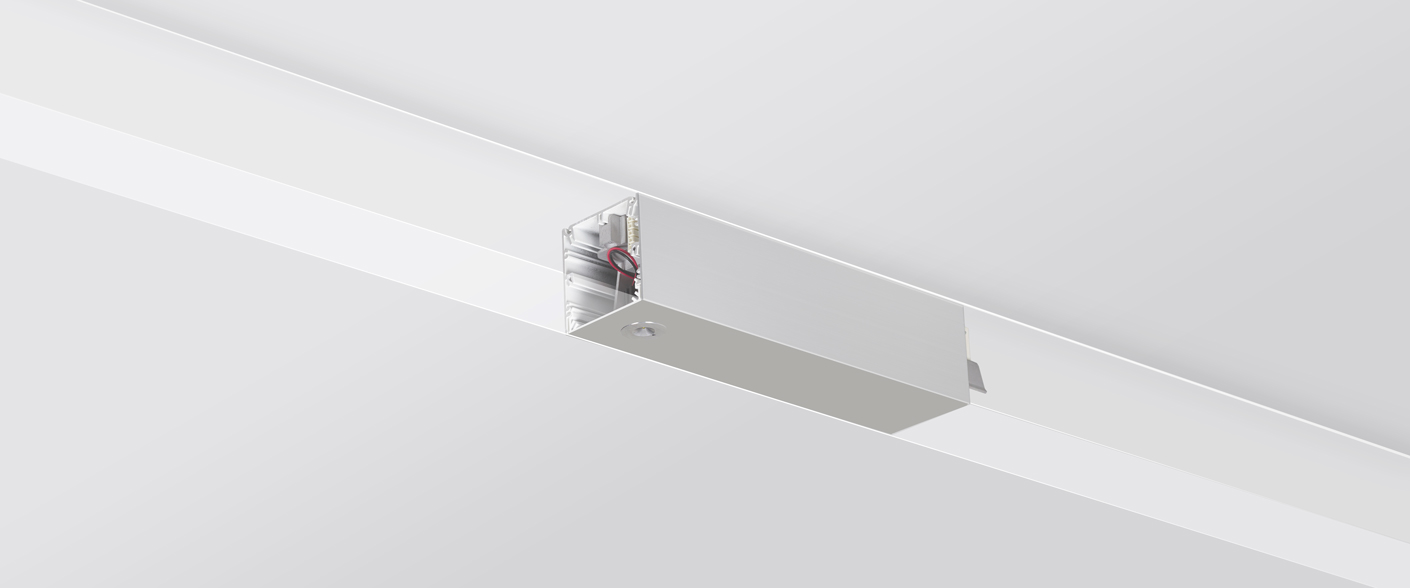

emLED-unit | Continuous luminaire emLED-unit, 270 mm | 92678 |
|

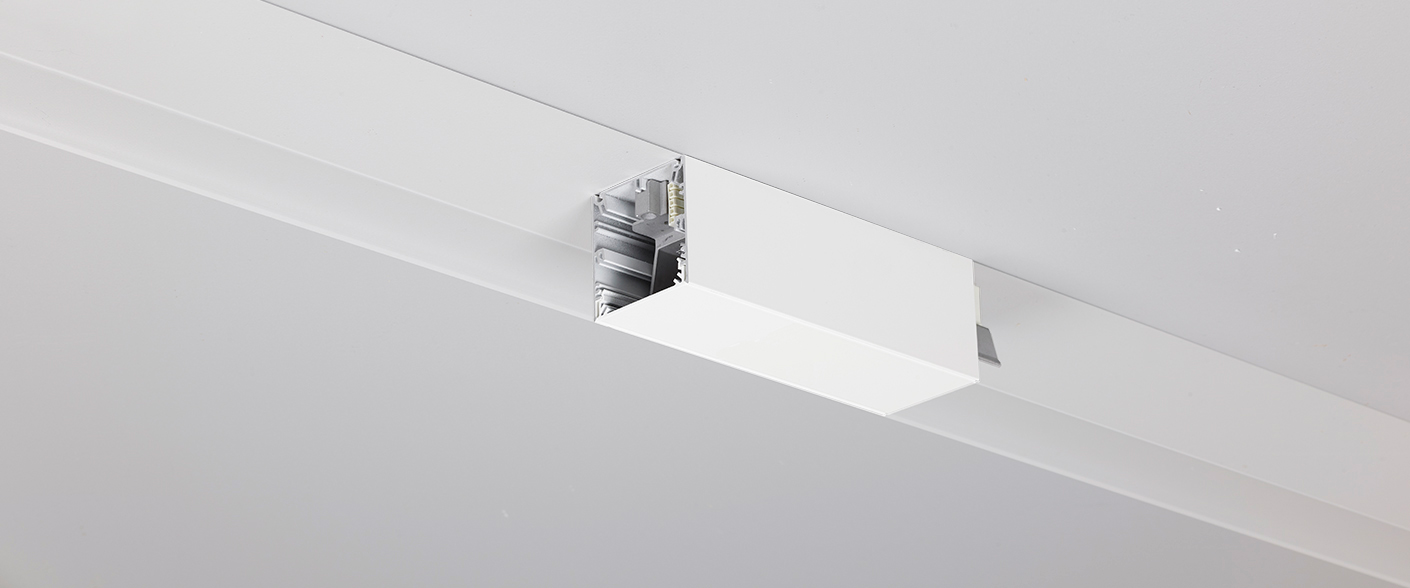

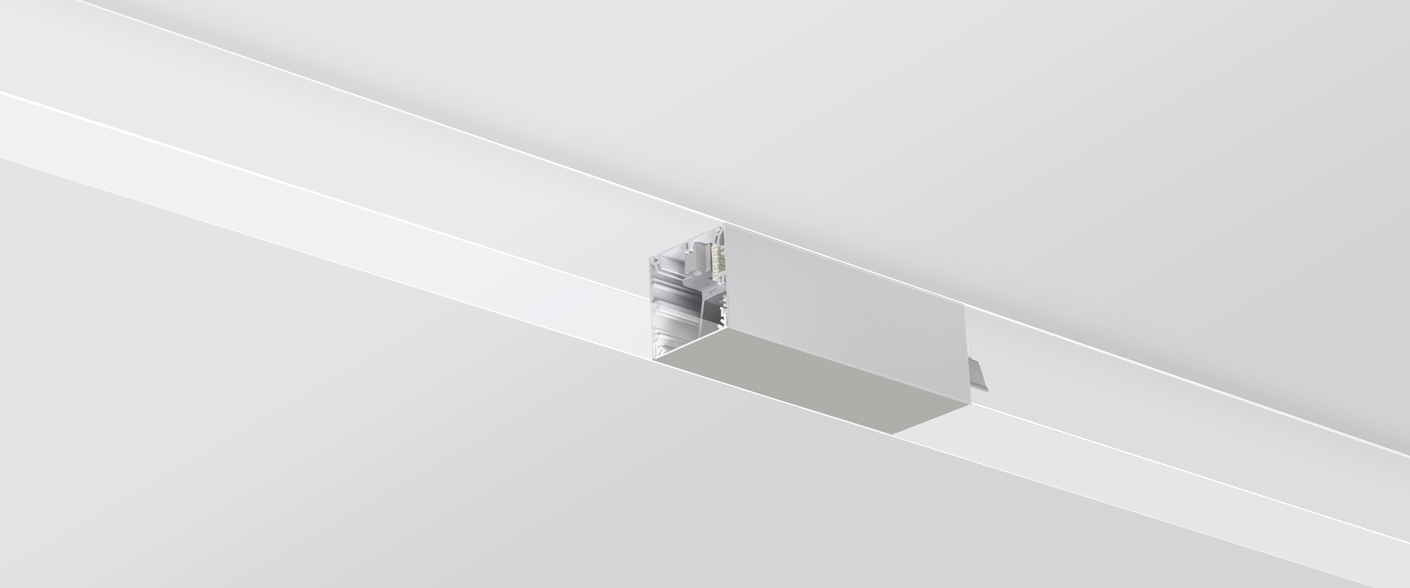

Spacers | Spacers 600 mm | 92665 |
|
|
Spacers | Spacers 200 mm | 92661 |
|
Spacers | Spacers 600 mm | 92664 |
|
|
Spacers | Spacers 200 mm | 92660 |
|
|
Spacers | Spacers 1200 mm | 92671 |
|
|
Spacers | Spacers 400 mm | 92663 |
|

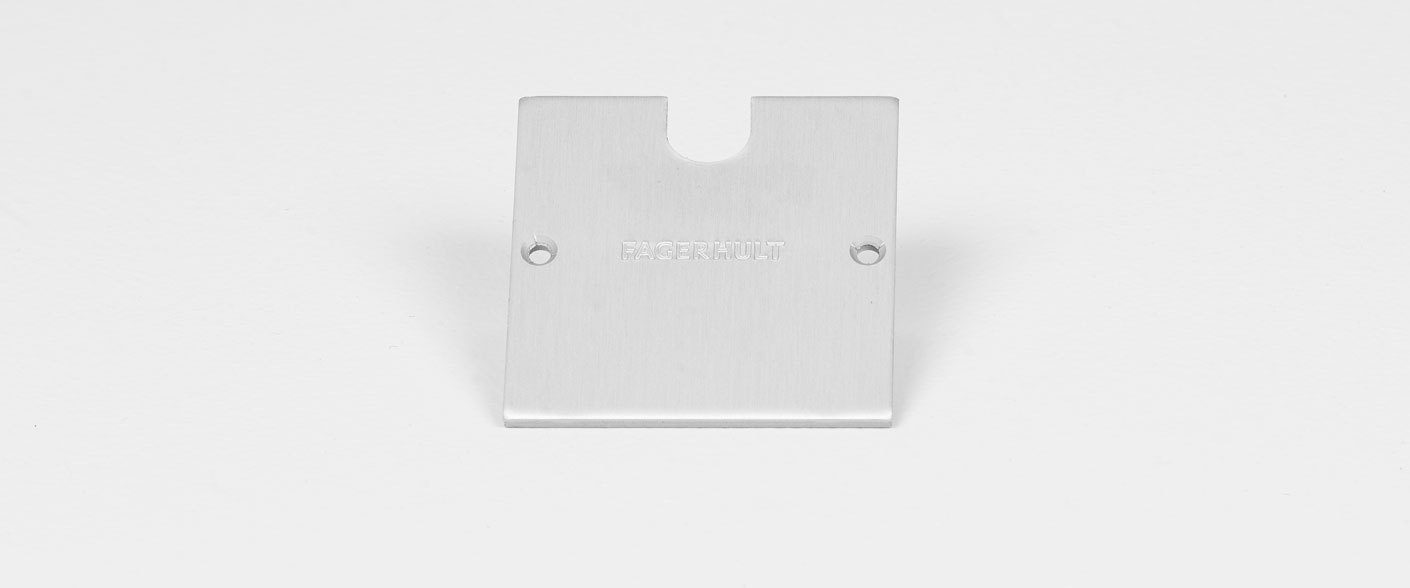

End-cap Notor 65 | End-cap with hole for surface mounted cable/each. White. | 92677 |
|
|
Spacers | Spacers 1200 mm | 92670 |
|
|
Spacers | Spacers 800 mm | 92666 |
|
End-cap Notor 65 | End-cap with hole for surface mounted cable/each. Anodised. | 92676 |
|
emLED-unit | Continuous luminaire emLED-unit, 270 mm | 92679 |
|
|
Spacers | Spacers 1000 mm | 92669 |
|

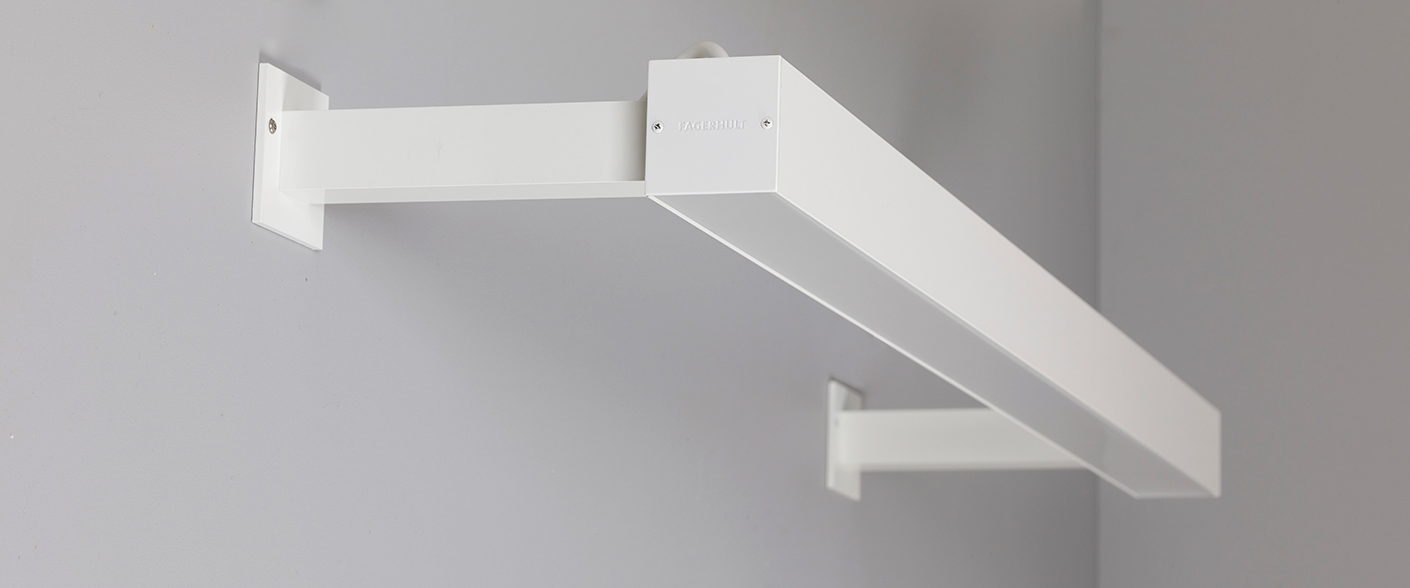

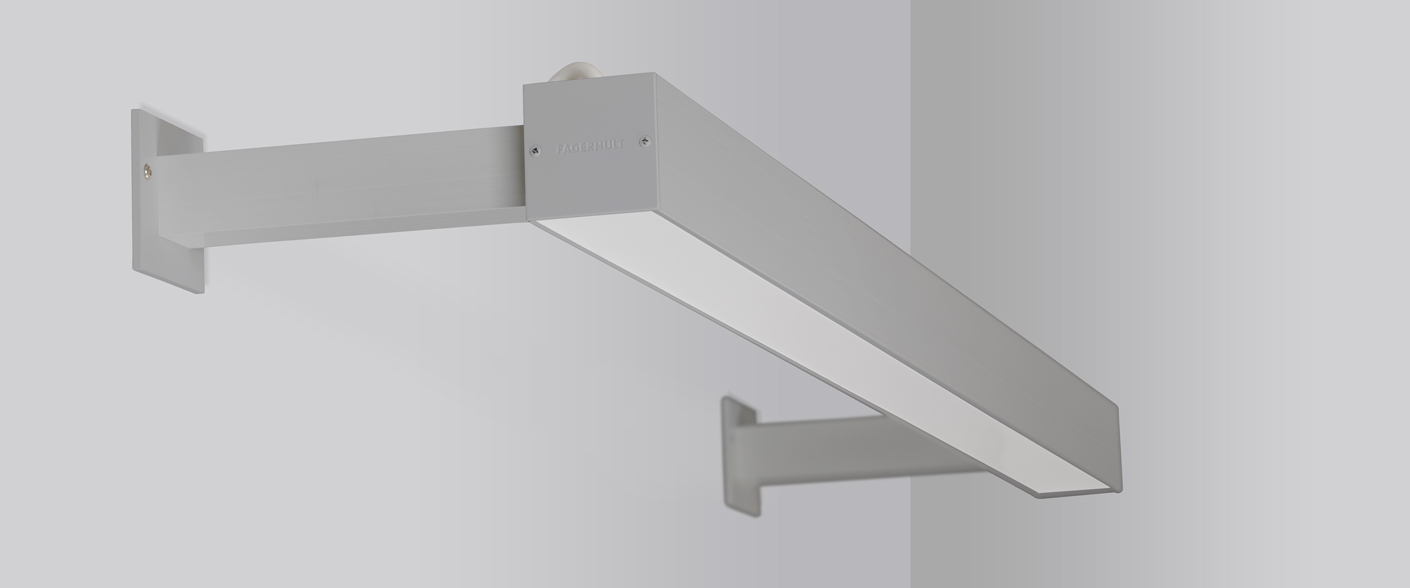

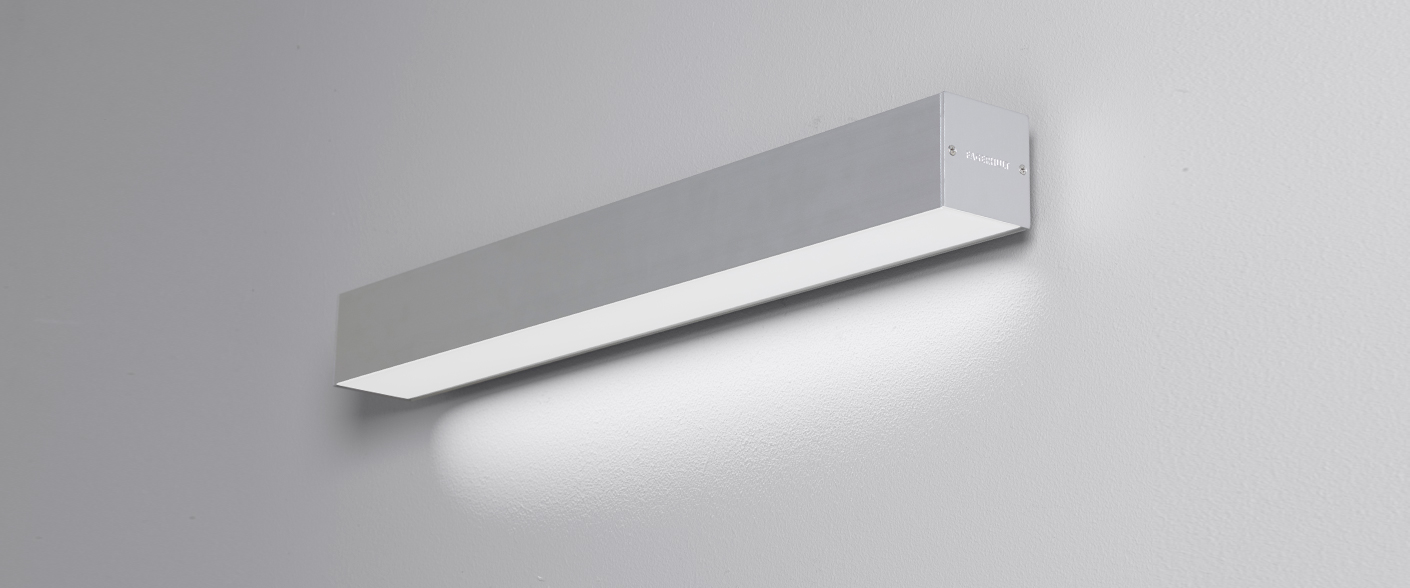

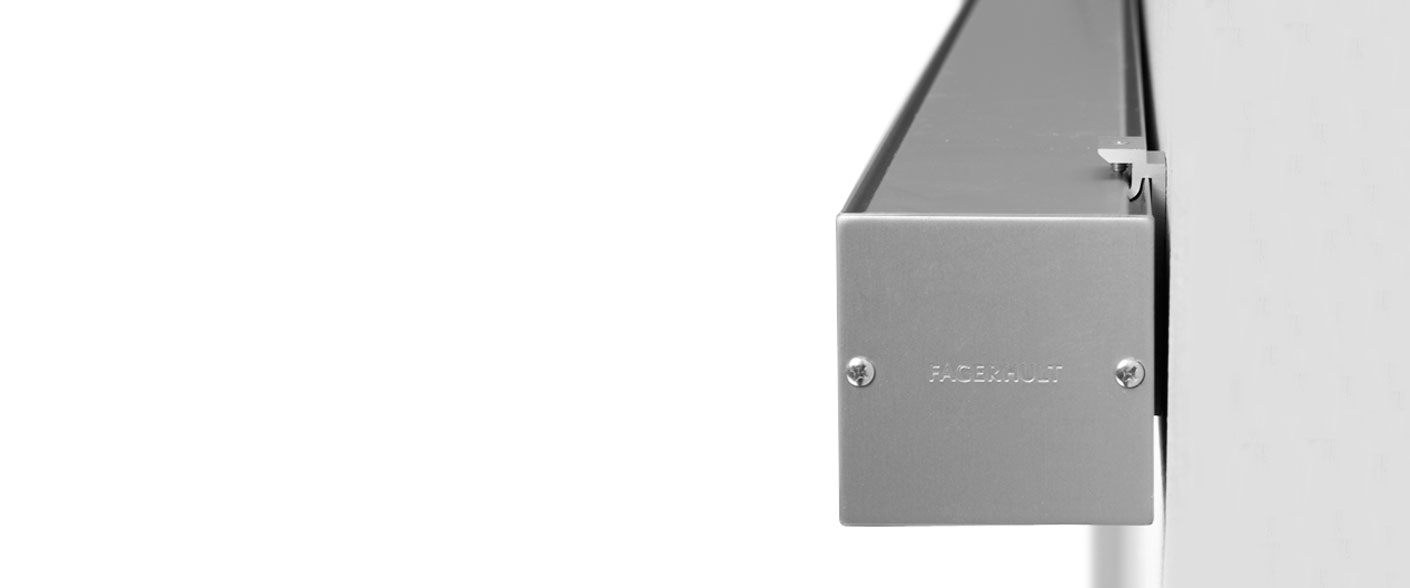

Wall bracket Notor 65 | Wall bracket 1 piece with terminal block, 200 mm. White. | 92686 |
|
|
Spacers | Spacers 1000 mm | 92668 |
|
Wall bracket Notor 65 | Wall bracket 1 piece with terminal block, 200 mm. Anodised. | 92685 |
|
|
Spacers | Spacers 800 mm | 92667 |
|
|
Wall bracket Notor 65 | Wall bracket 1 piece, 200 mm. White. | 92675 |
|
|
Spacers | Spacers 400 mm | 92662 |
|
|
Wall bracket Notor 65 | Wall bracket 1 piece, 200 mm. Anodised. | 92674 |
|

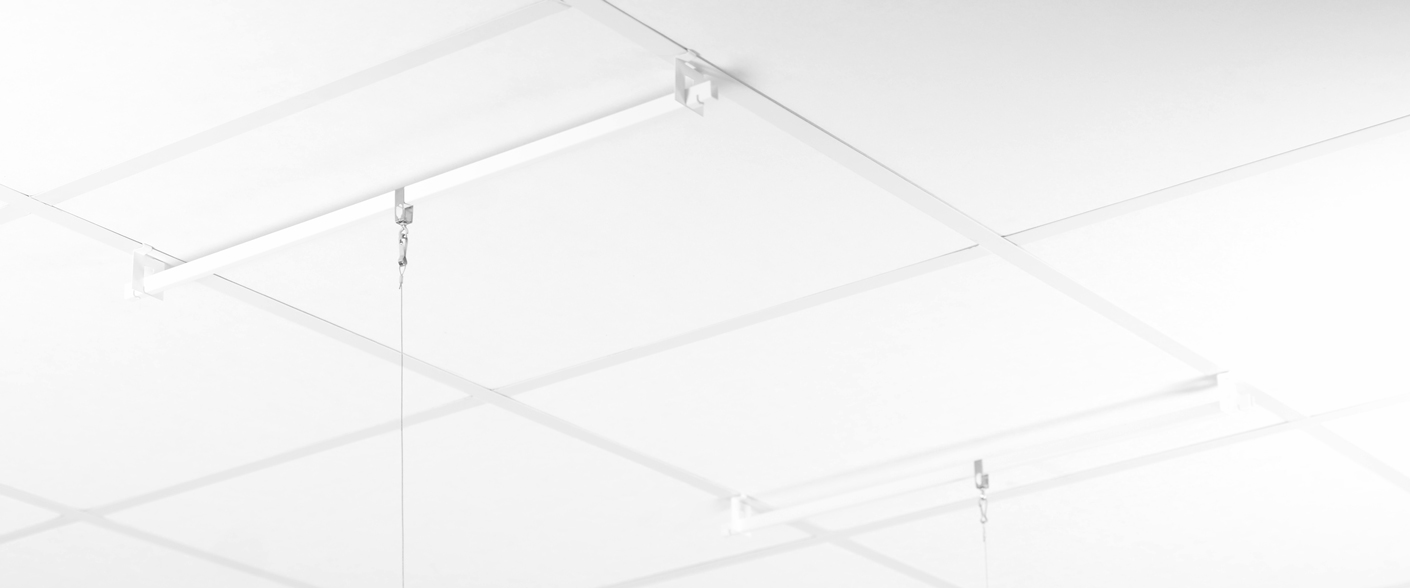

Support rail (cat. no./pair) | L=600/650, section: 15, max. load: 75N/pair | 90015 |
|
|
Support rail (cat. no./pair) | L=600/625, section: 25, max. load: 75N/pair | 94067 |
|

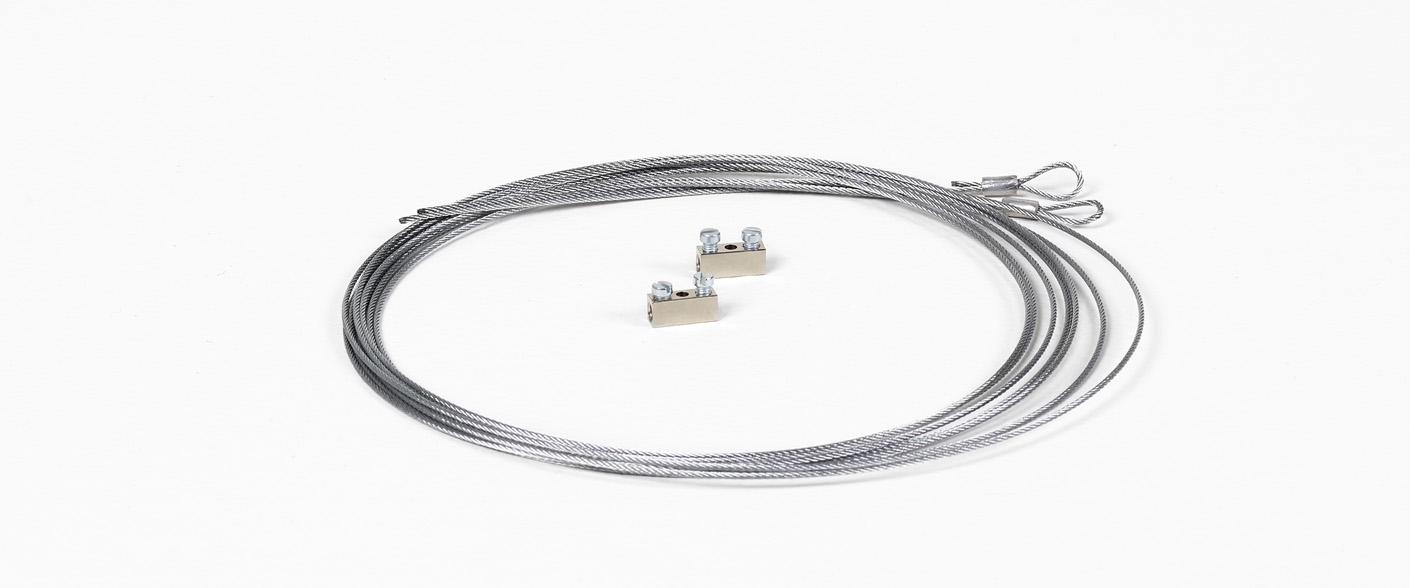

Wire suspension for support rails L: 1,5m | Wire suspension for support rails 90015, 90016, 90017, 94052, 94067, 94068 | 91426 |
|
|
Support rail (cat. no./pair) | L=200/1250, section: 15, max. load: 120/30N/pair | 90016 |
|
|
Support rail (cat. no./pair) | L=1200/1250, section: 25, max. load: 120/30N/pair | 94068 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, transparent mains cable (96382+96390) | 95355 |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, white mains cable/each | 96388 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96388) | 95356 |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup, white mains cable/each | 96374 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96376) | 95364 |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup, transparent mains cable/each | 96378 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96379) | 95365 |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, transparent mains cable/each | 96379 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large, white mains cable (96370+96374) | 95362 |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, white mains cable/each | 96376 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96391) | 95353 |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup, white mains cable/each | 96386 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96379) | 95361 |
|
Wire suspension for continuous installation L: 1,4m | Large round ceiling cup for T-bars 25 mm/each | 96385 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large, transparent mains cable (96370+96378) | 95363 |
|
Wire suspension for continuous installation L: 1,4m | Large square ceiling cup for T-bars 25 mm/each | 96373 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96376) | 95360 |
|
Wire suspension for continuous installation L: 1,4m | Small round ceiling cup/each | 96382 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, transparent mains cable (96371+96378) | 95359 |
|
Wire suspension for continuous installation L: 1,4m | Large square ceiling cup/each | 96371 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, white mains cable (96371+96374) | 95358 |
|
Wire suspension for continuous installation L: 1,4m | Small round ceiling cup for T-bars 25 mm/each | 96384 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96391) | 95357 |
|
Wire suspension for continuous installation L: 1,4m | Small square ceiling cup for T-bars 25 mm/each | 96372 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96388) | 95352 |
|
Wire suspension for continuous installation L: 1,4m | Small square ceiling cup/each | 96370 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, white mains cable (96383+96386) | 95350 |
|
Wire suspension for continuous installation L: 1,4m | Large round ceiling cup/each | 96383 |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup, transparent mains cable/each | 96390 |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, transparent mains cable/each | 96391 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, transparent mains cable (96383+96390) | 95351 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, white mains cable (96382+96386) | 95354 |
|
Wall socket | Wall socket Notor 65/pair | 92673 |
|

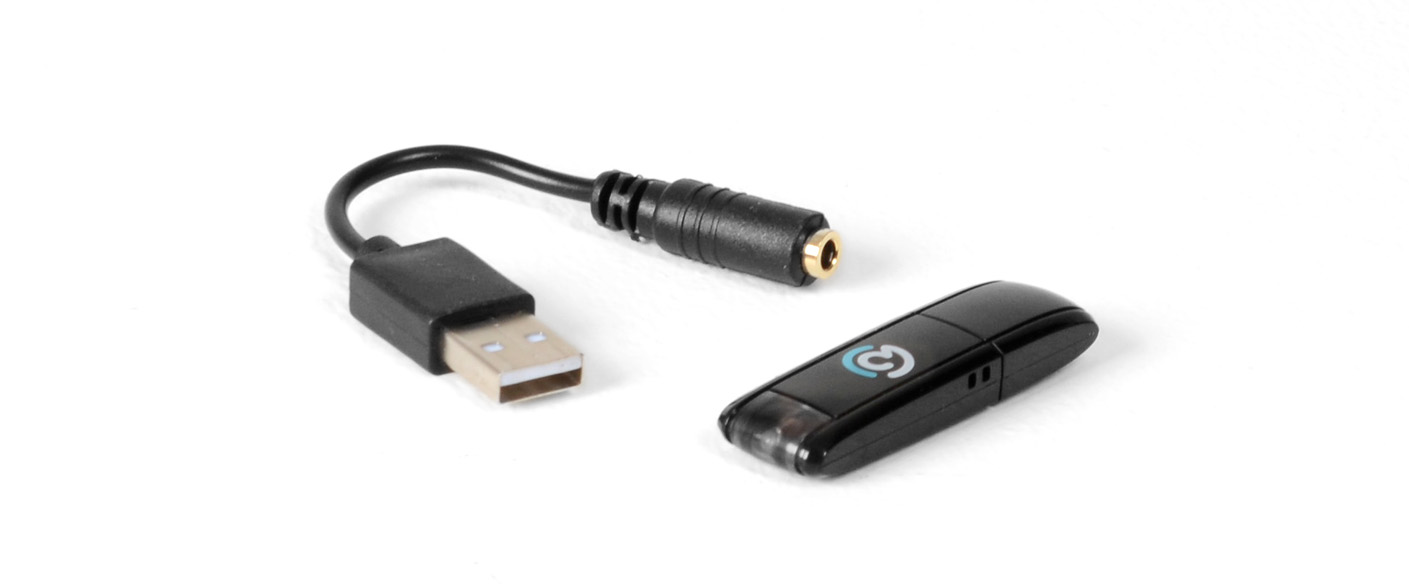

IR dongle for Organic Response | IR dongle for Organic Response equipped luminaire. | 86279 |
|

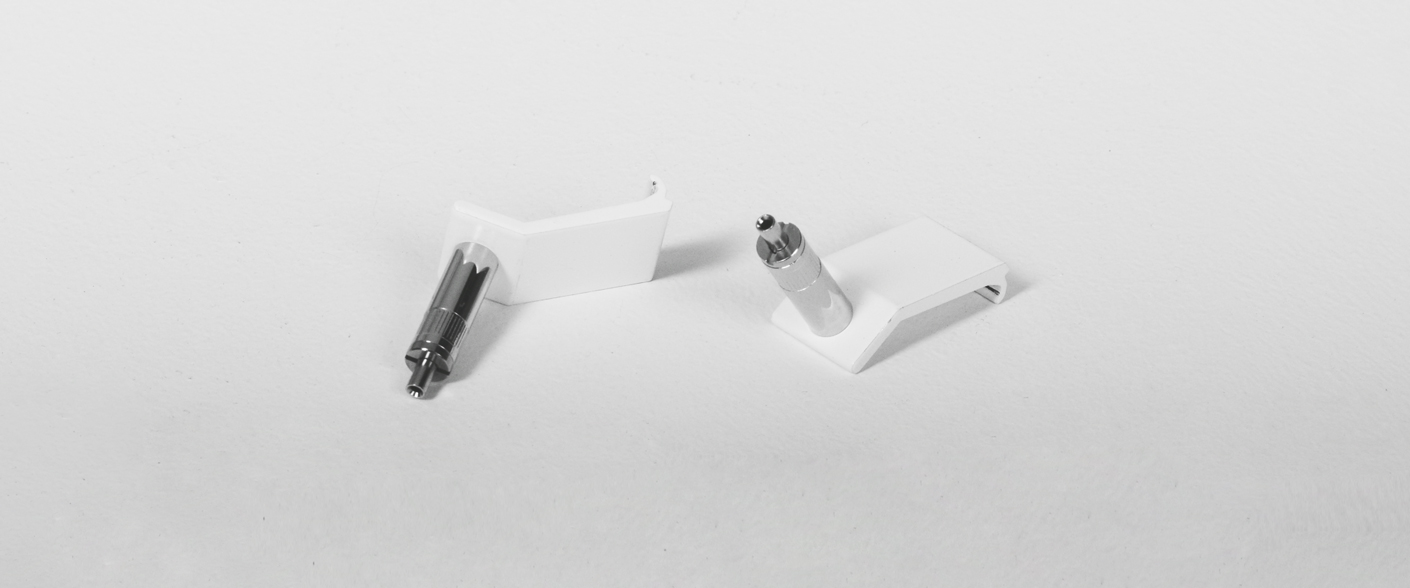

Wire bracket incl. friction locks | Wire bracket/pair | 92683 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96389) | 95372 |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup, white mains cable/each | 96387 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96381) | 95381 |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, transparent mains cable/each | 96393 |
|
Wire bracket incl. friction locks | Wire bracket/pair | 92682 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96377) | 95380 |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, white mains cable/each | 96389 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large, transparent mains cable (96370+96380) | 95379 |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup, white mains cable/each | 96375 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large, white mains cable (96370+96375) | 95378 |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup, transparent mains cable/each | 96380 |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, transparent mains cable/each | 96381 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96381) | 95377 |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, white mains cable/each | 96377 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96377) | 95376 |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup, transparent mains cable/each | 96392 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, transparent mains cable (96371+96380) | 95375 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, white mains cable (96371+96375) | 95374 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96389) | 95368 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96393) | 95373 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, white mains cable (96382+96387) | 95370 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, transparent mains cable (96383+96392) | 95367 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, transparent mains cable (96382+96392) | 95371 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, white mains cable (96383+96387) | 95366 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96393) | 95369 |
|

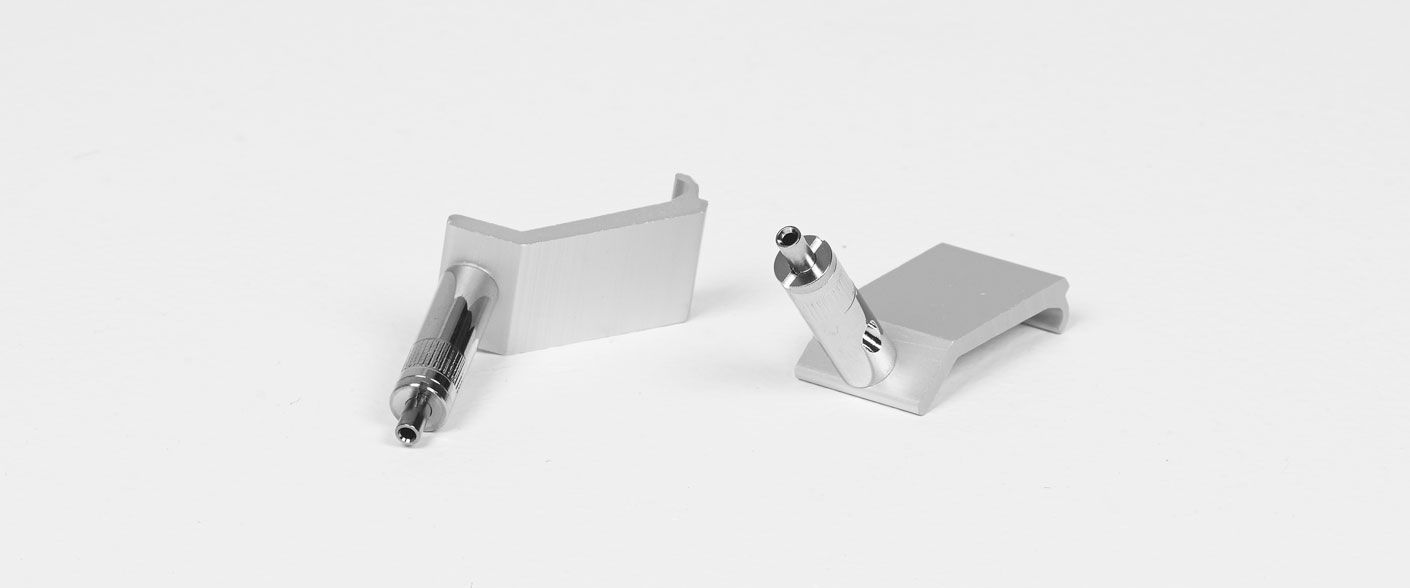

Ceiling bracket in chrome with wire | Wire suspension with ceiling bracket in chrome, L=1.5 m/pair | 91696 |
|
Cutters | Cutters, each | 94248 |
|

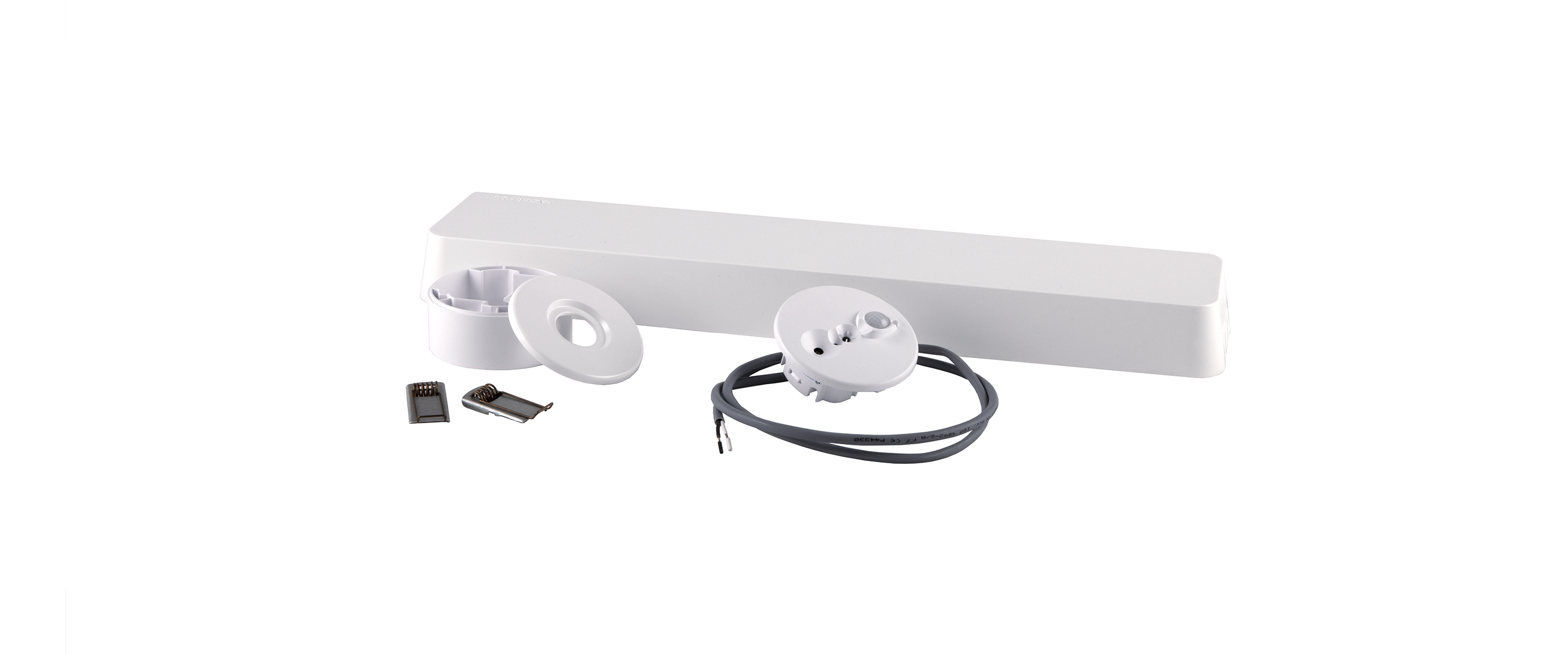

Organic Response I/O box | I/O box with potential-free 16A relay for controlling external units. | 86413 |
|
Organic Response-unit Notor 65 | Organic Response-unit, alu. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI in both directions. 200 mm. | 92688 |
|
|
Organic Response-unit Notor 65 | Organic Response-unit, alu. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI to the left and breaks DALI to the right. 200 mm. | 92690 |
|
Organic Response-unit Notor 65 | Organic Response-unit, white. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI to the left and breaks DALI to the right. 200 mm. | 92693 |
|
|
Organic Response-unit Notor 65 | Organic Response-unit, white. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI to the right and breaks DALI to the left. 200 mm. | 92692 |
|
|
Organic Response-unit Notor 65 | Organic Response-unit, alu. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI to the right and breaks DALI to the left. 200 mm. | 92689 |
|
|
Organic Response-unit Notor 65 | Organic Response-unit, white. For connecting max. 4 Notor 65 DALI luminaires in continuous installation. Connects DALI in both directions. 200 mm. | 92691 |
|

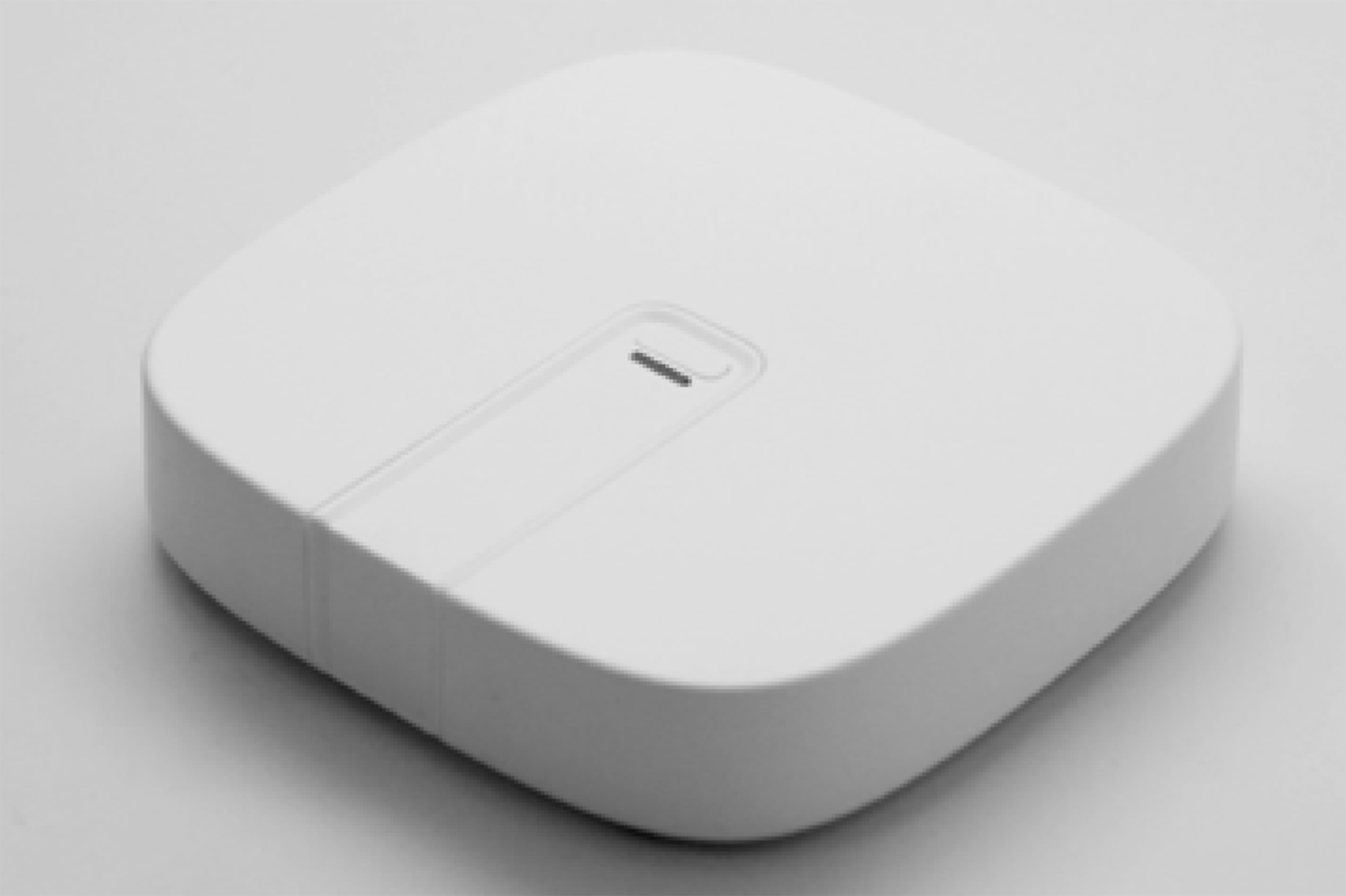

Organic Response IoT Gateway | Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors. | 86296 |
|

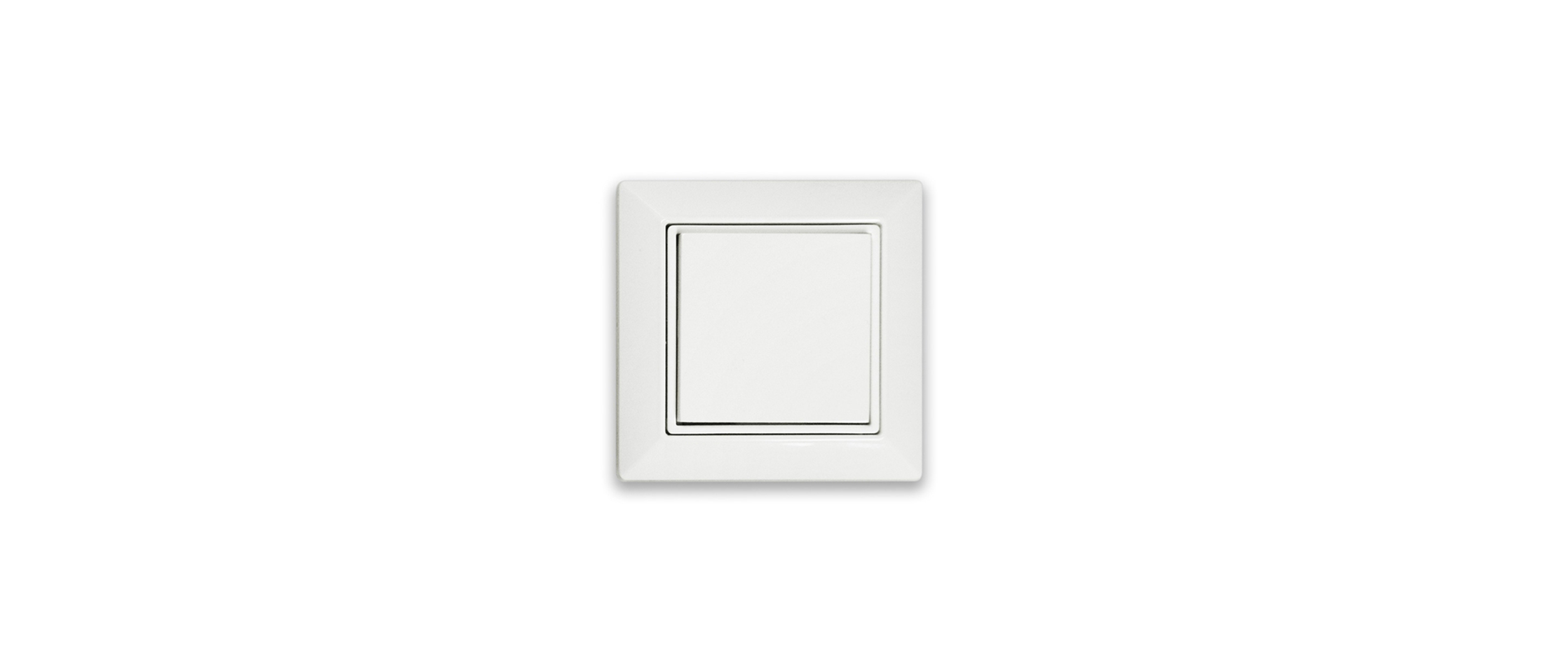

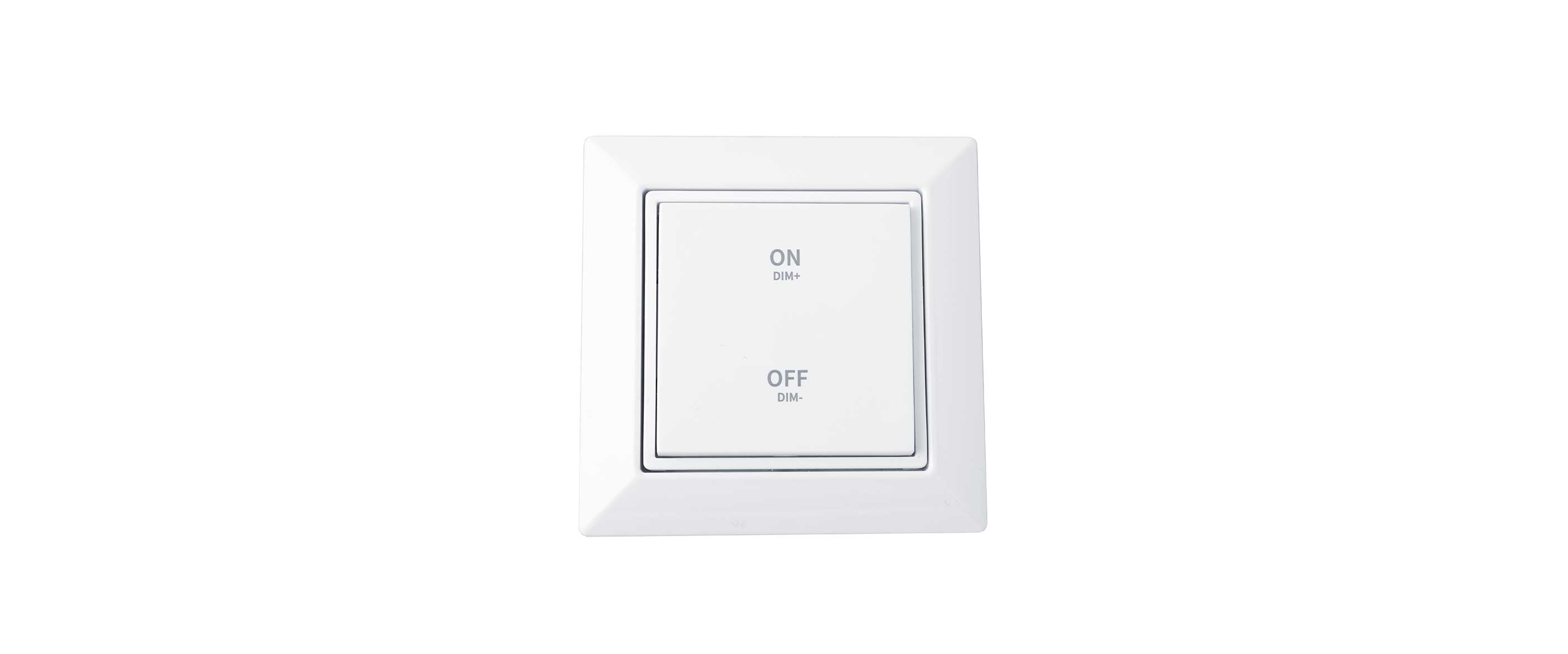

Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, white | 86416 |
|

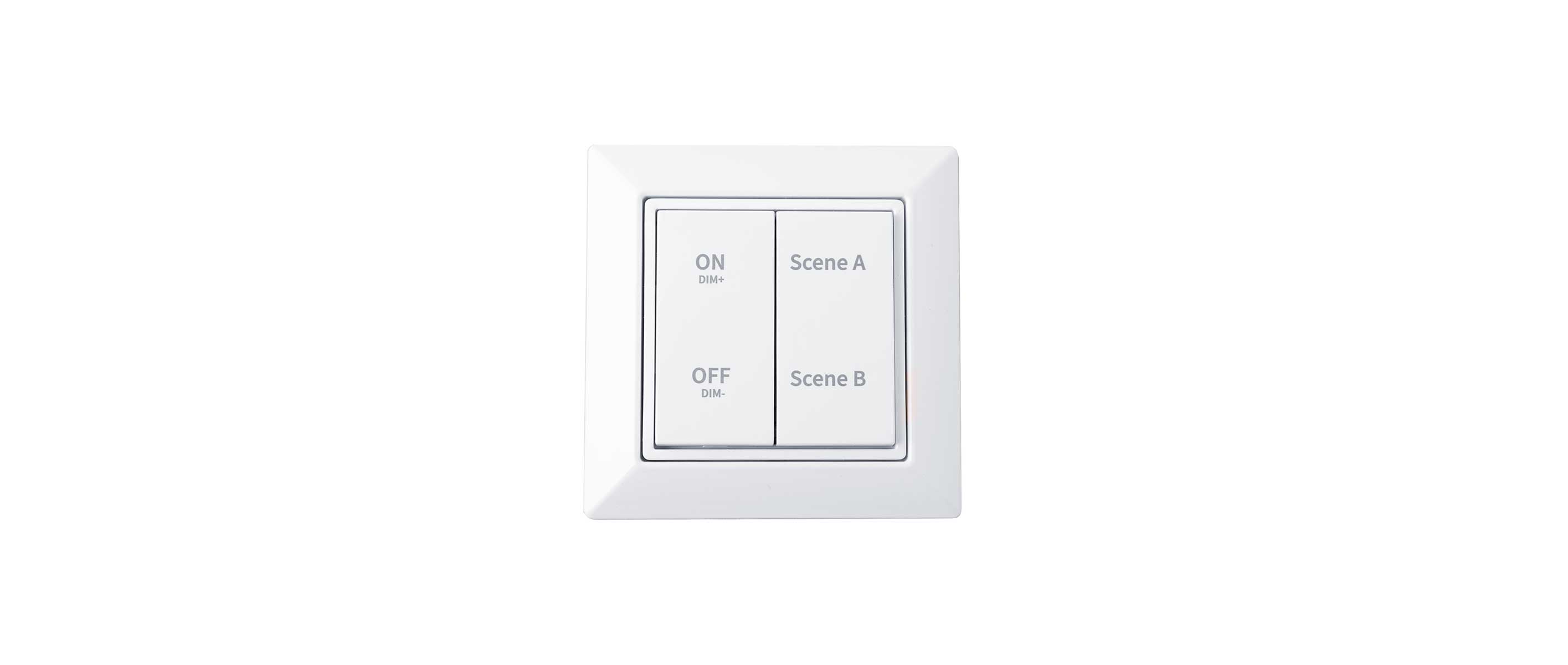

Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, white | 86417 |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, labeled, white | 86437 |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, labeled, white | 86436 |
|

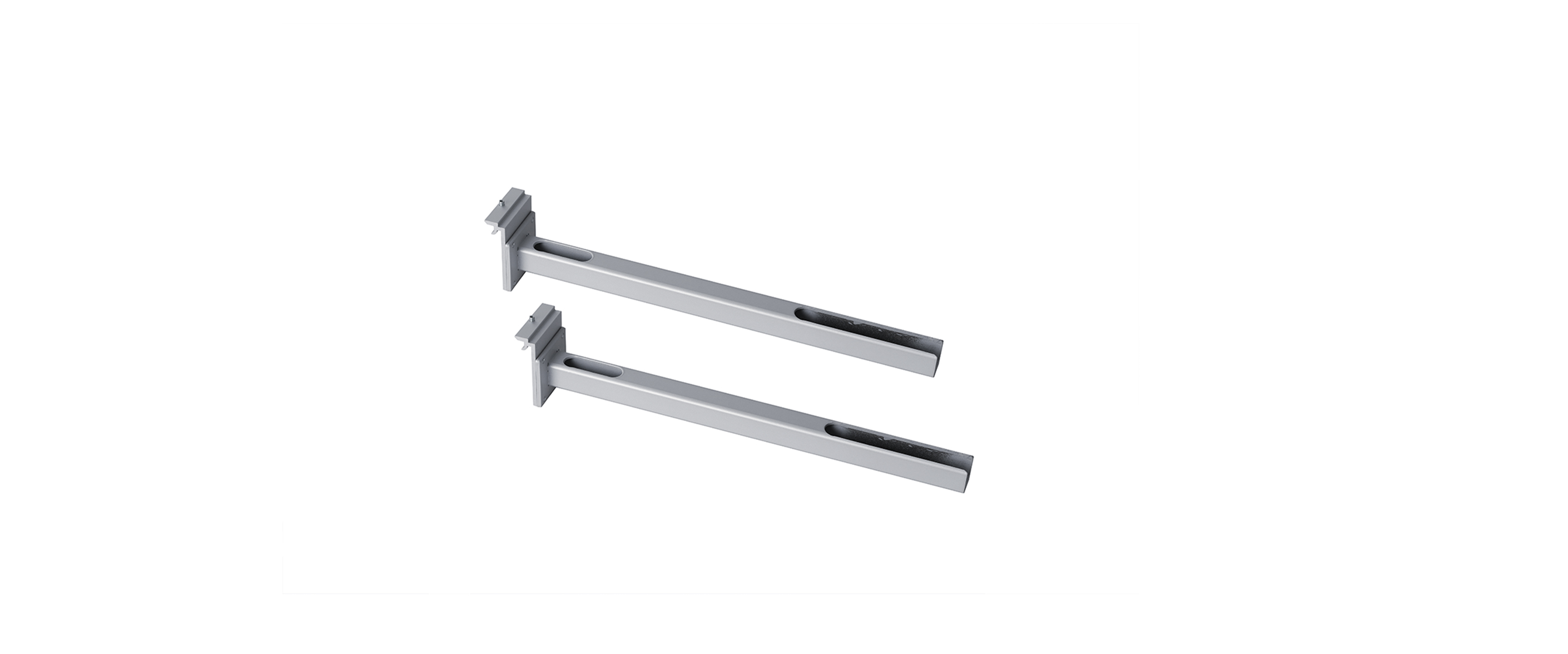

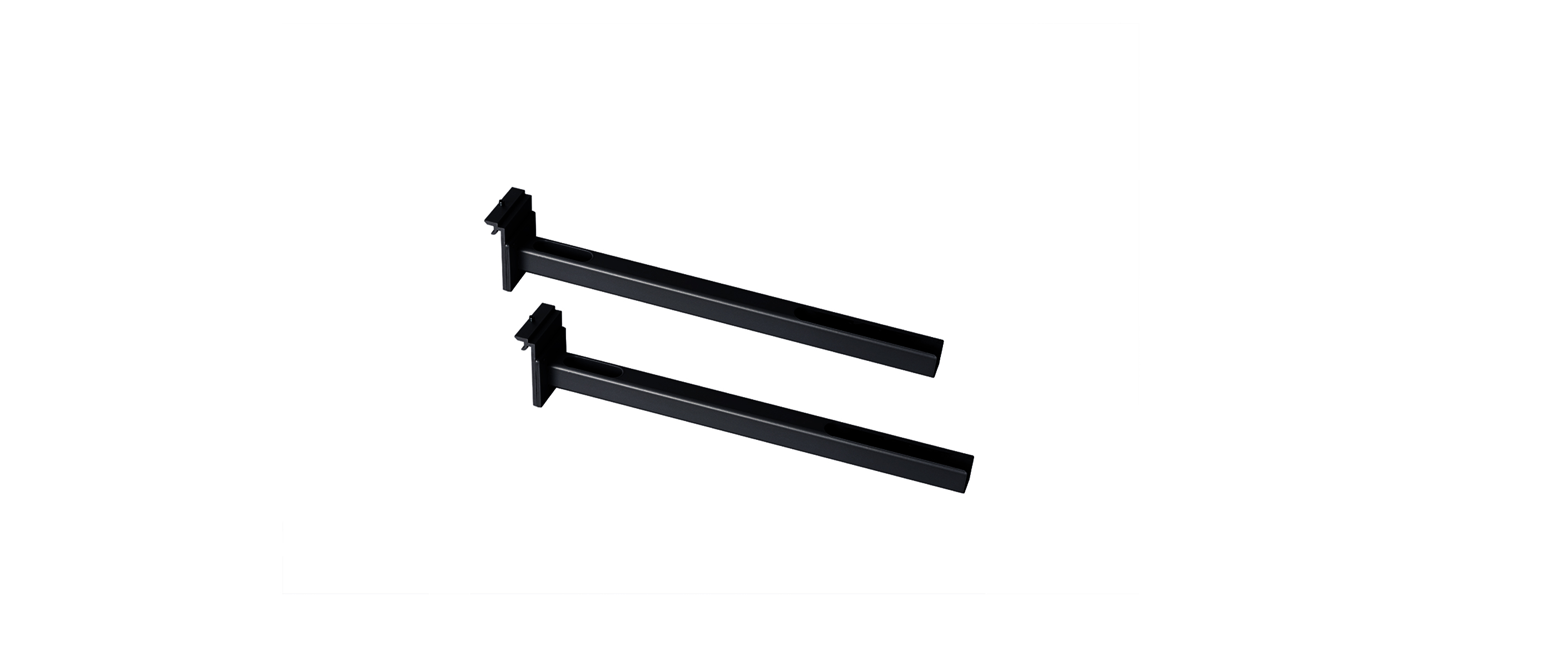

Shelf Brackets Notor 65 | Shelf Bracket for Notor 65, 200 mm. Alu grey. 2 pieces. | 92776 |
|

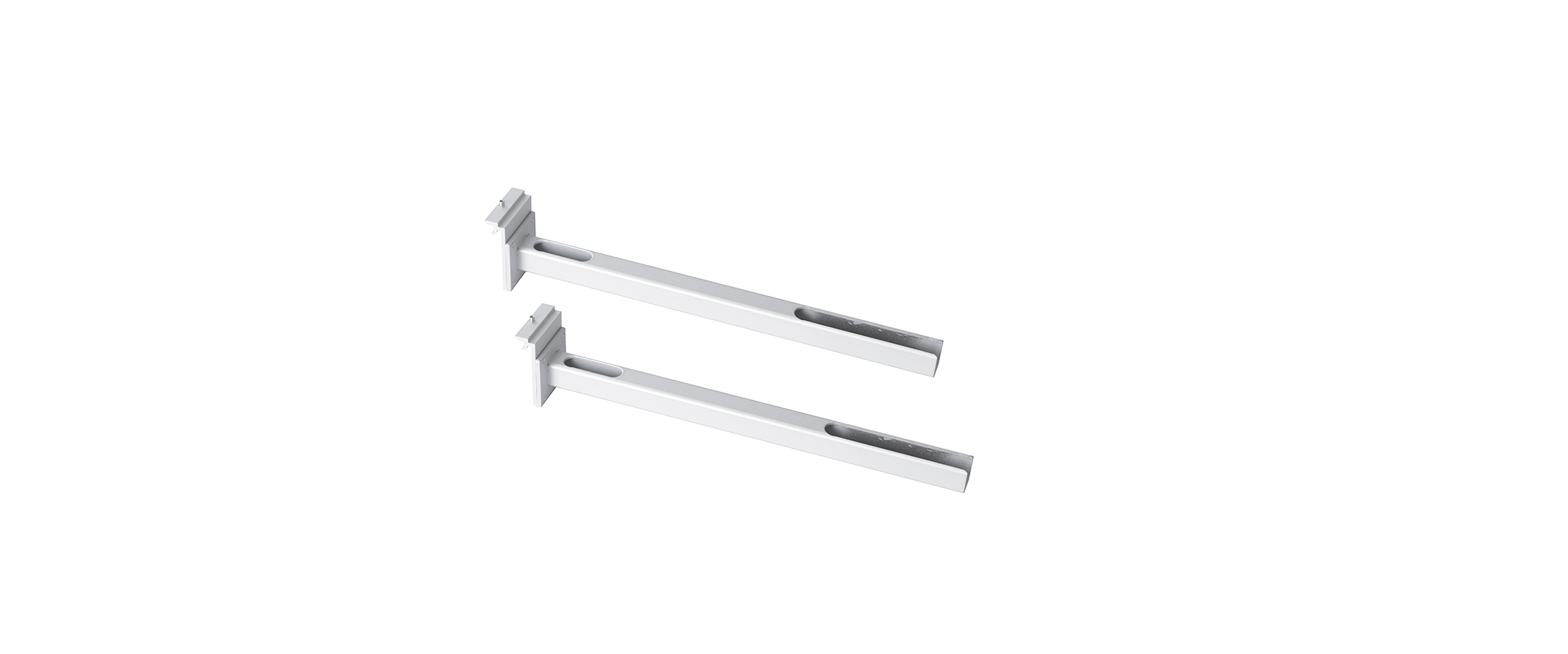

Shelf Brackets Notor 65 | Shelf bracket for Notor 65, 200 mm. White. 2 pieces. | 92777 |
|
Shelf Brackets Notor 65 | Shelf bracket for Notor 65, 200 mm. Black. 2 pieces. | 92778 |
|
|
Organic Response I/O box | I/O box with potential-free 8A relay for controlling external units. | 86433 |
|

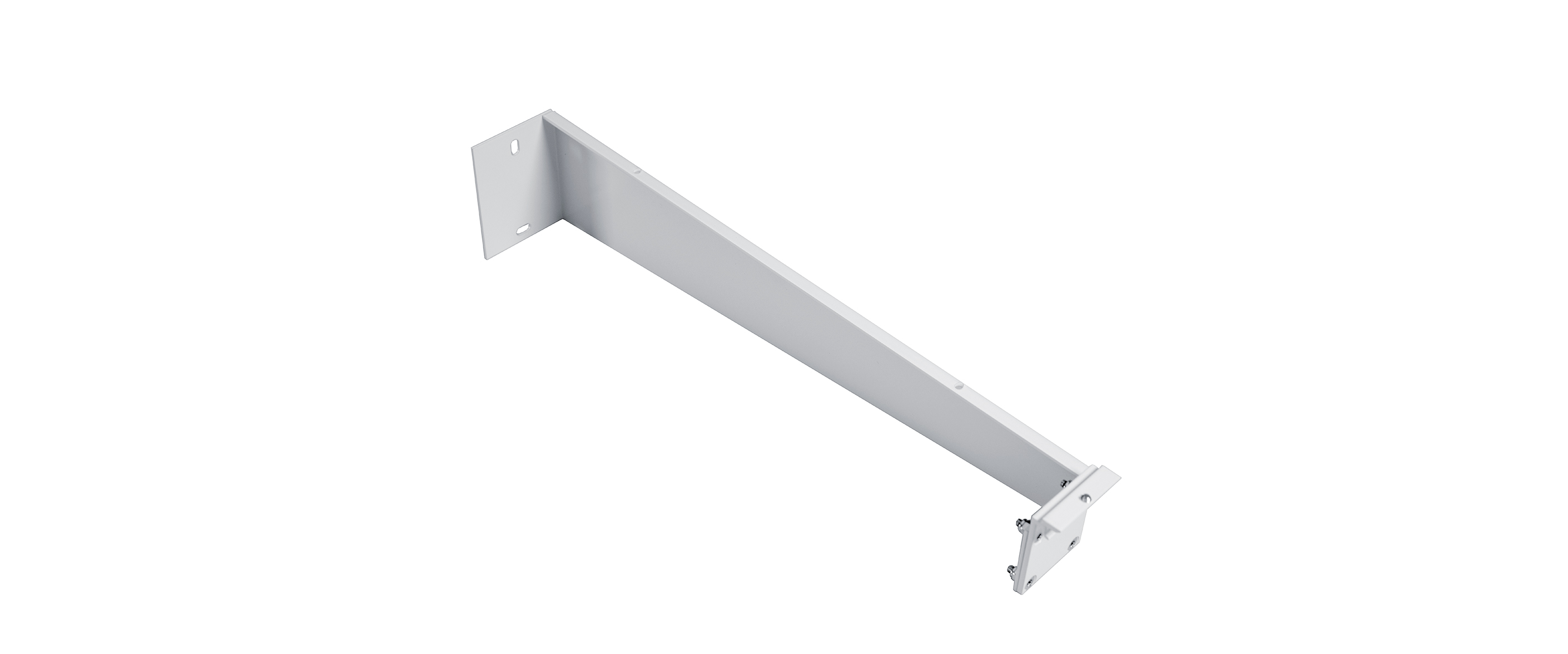

Wall bracket Notor 65 | Wall bracket for Notor 65. 1 piece, 400 mm. White. | 92779 |
