Notor 36Surface
Notor 36 is a family of luminaires that uses minimal materials and highlights comfort and performance. It has a range of louvres, lengths and shapes. Made from recycled aluminium for a low carbon footprint. Ceiling luminaire for single and system installation.
Notor 36Surface
Notor 36 is a family of luminaires that uses minimal materials and highlights comfort and performance. It has a range of louvres, lengths and shapes. Made from recycled aluminium for a low carbon footprint. Ceiling luminaire for single and system installation.
Installation

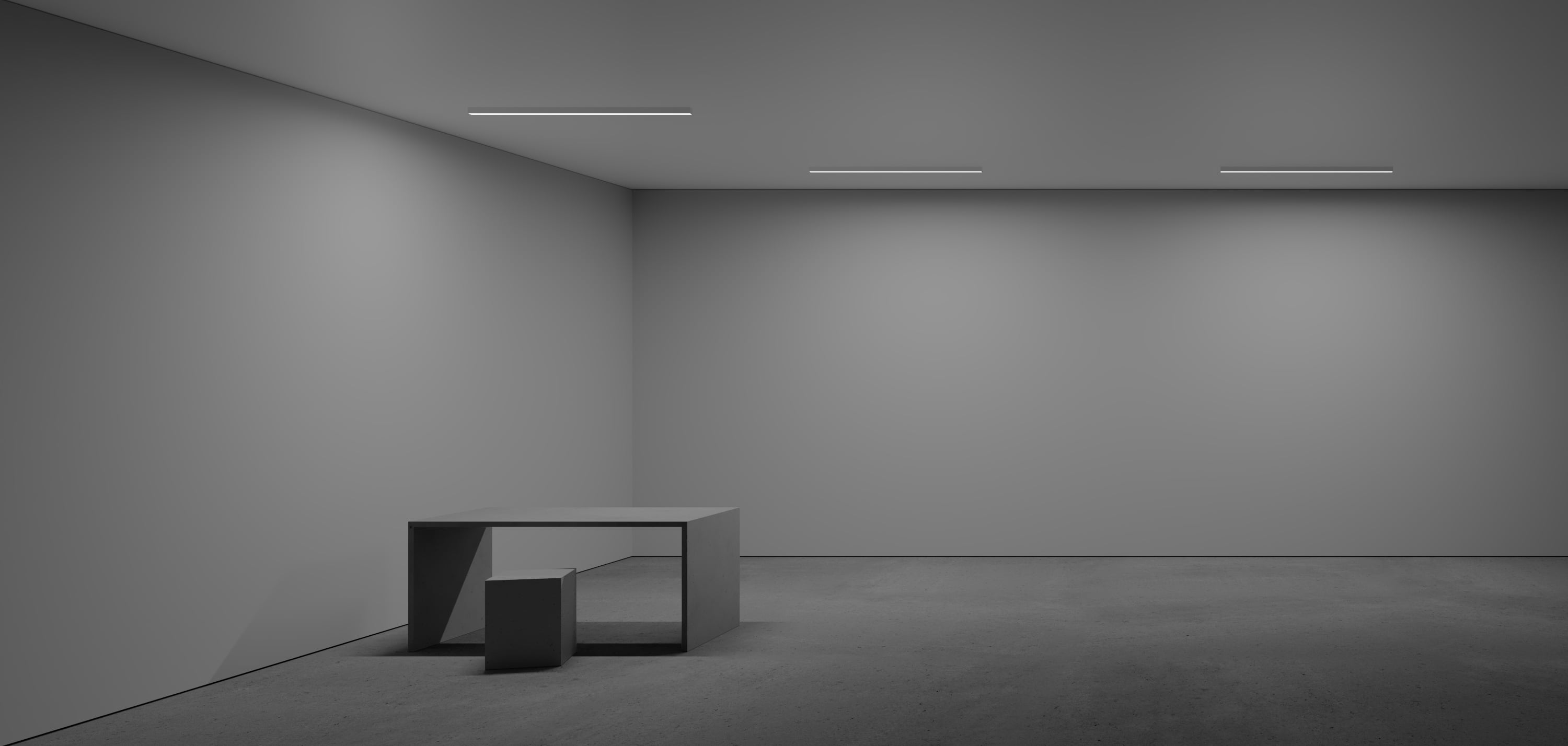

Luminaire for surface-mounted ceiling installation, single or in a system. Mounting via keyhole slots. For detailed information, see the installation instructions.
Connection
For permanent connection; integrated driver in the luminaire. Single and start luminaires in systems are equipped with a 1.5 m mains cable, 5x0.75 mm². System luminaires are equipped with through-wiring (5x1.5 mm²) and a snap-in connector between the luminaire units. For options on the type of connection cable and cable entry, use Fagerhult Configure. CLO (Constant Light Output).
Design
Extruded aluminium luminaire body, made from 75% post-consumer recycled material. Lacquered in white (RAL 9016 G40), light grey (RAL 7035 metallic) or black (RAL 9005 G30).
Light Distribution
Direct.
Light data
Optics

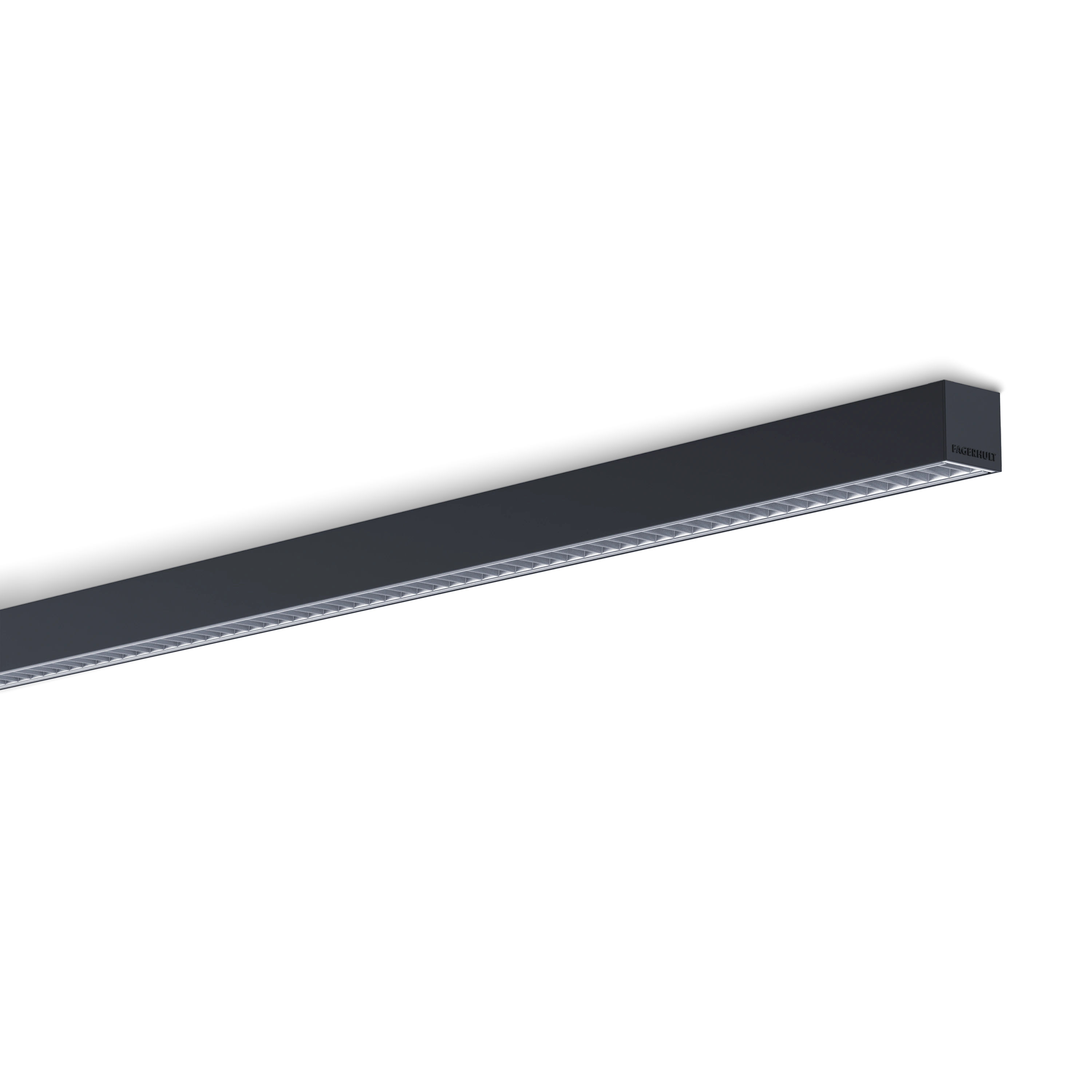

Beta Opti Nano – side and crosswise semi-gloss reflectors in metallised aluminium with an integrated opal film that minimises the risk of uncomfortable glare from the LEDs. Opal – frosted acrylic (PMMA) disc.
Made of recycled aluminium
The luminaire body is made of recycled aluminium, which consists of 75% post-consumer material (end-of-life scrap) from Europe. This aluminium (excluding extrusion) has a 71% lower climate impact compared to average primary aluminium from Europe (Source: European Aluminium). These calculations are based on the climate impact reported in the EPD compared to the average values.
Minimised design
The luminaire’s minimised design, with its high luminous efficacy, means that less material is used in manufacturing. This contributes to a low climate impact and more efficient use of resources compared to traditional, larger luminaires, without compromising on function or light quality.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Organic ResponsePIR sensor
Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.
Read more
Articles
Configure your Notor 36
Adapt and optimise the luminaire in Fagerhult's configurator.
Need more information?
Download a collection of light data files to guide you in your decision.
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Organic Response sensor Notor 36 | Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI to the left and breaks DALI to the right. White, 400 mm, for ceiling Opal, continuous. | 16086-20574 | |
|
|
Organic Response sensor Notor 36 | Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI in both directions. White, 400 mm, for ceiling Opal, continuous. | 16086-20249 | |
|
|
Organic Response sensor Notor 36 | Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI to the left and breaks DALI to the right. White, 400 mm, for ceiling Opal, end. | 16086-20419 | |
|
|
Organic Response sensor Notor 36 | Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI to the right and breaks DALI to the left. White, 400 mm, for ceiling Opal, continuous. | 16086-20396 | |
|
|
Organic Response sensor Notor 36 | Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI to the right and breaks DALI to the left. White, 400 mm, for ceiling Beta Opti Nano, continuous. | 16086-20578 | |
|
|
Organic Response sensor Notor 36 | Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI in both directions. White, 400 mm, for ceiling Beta Opti Nano, continuous. | 16086-20414 | |
|
Spacers incl. through-wiring Notor 36 | Spacers 200 mm, ceiling, Beta Opti Nano, continuous. | 16086-20587 | |
|
|
Spacers incl. through-wiring Notor 36 | Spacers 400 mm, ceiling, Beta Opti Nano, continuous. | 16086-20588 | |
|
|
Spacers incl. through-wiring Notor 36 | Spacers 600 mm, ceiling, Beta Opti Nano, continuous. | 16086-20589 | |
|
|
Spacers incl. through-wiring Notor 36 | Spacers 800 mm, ceiling, Beta Opti Nano, continuous. | 16086-20591 | |
|
|
Spacers incl. through-wiring Notor 36 | Spacers 1000 mm, ceiling, Beta Opti Nano, continuous. | 16086-20592 | |
|
|
Spacers incl. through-wiring Notor 36 | Spacers 1200 mm, ceiling, Beta Opti Nano, continuous. | 16086-20593 | |
|
|
Organic Response sensor Notor 36 | Unit with PIR sensor with presence and daylight control. For connecting max. 4 Notor 36 DALI luminaires. Connects DALI to the left and breaks DALI to the right. White, 400 mm, for ceiling Beta Opti Nano, continuous. | 16086-20415 |
