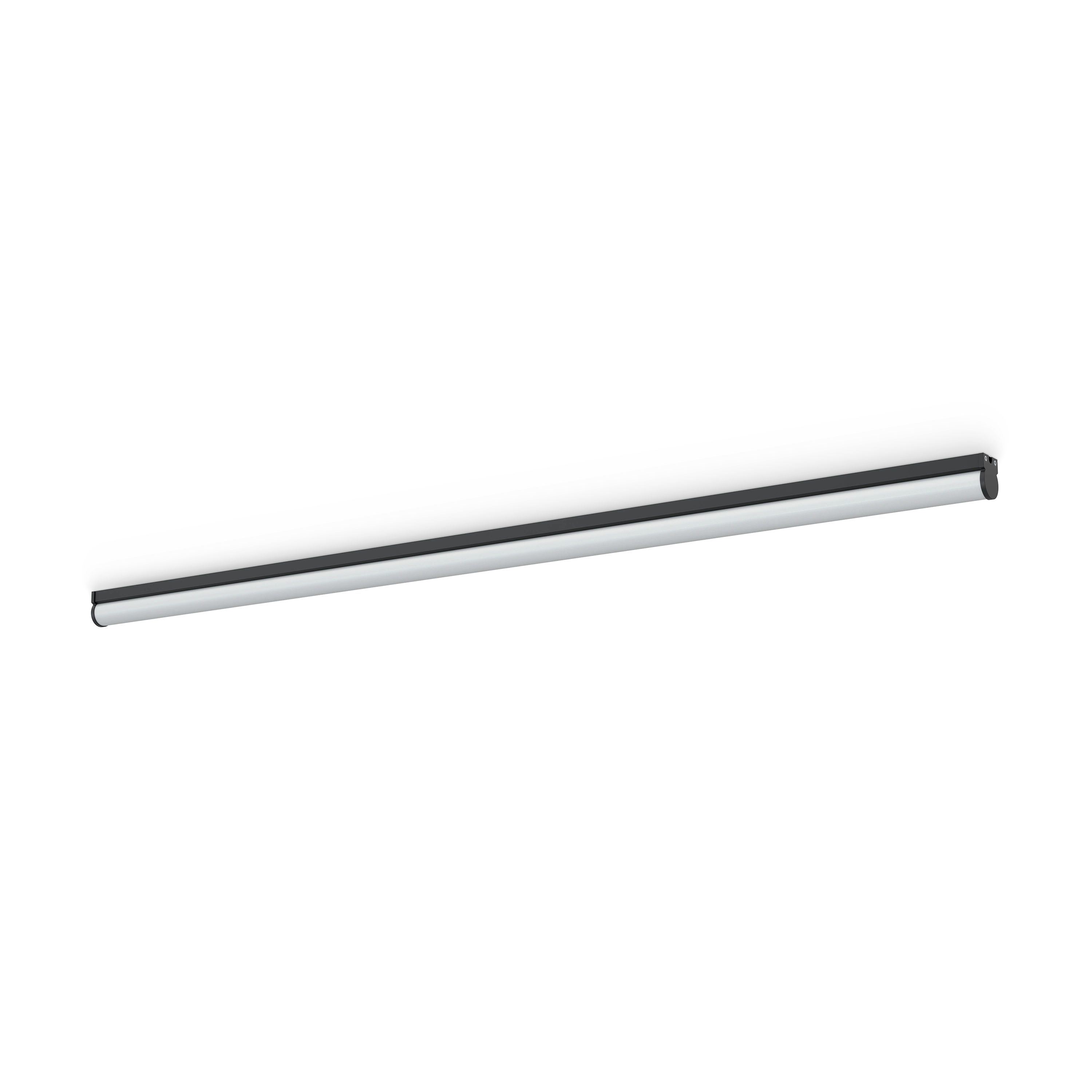

Dress UpSurface

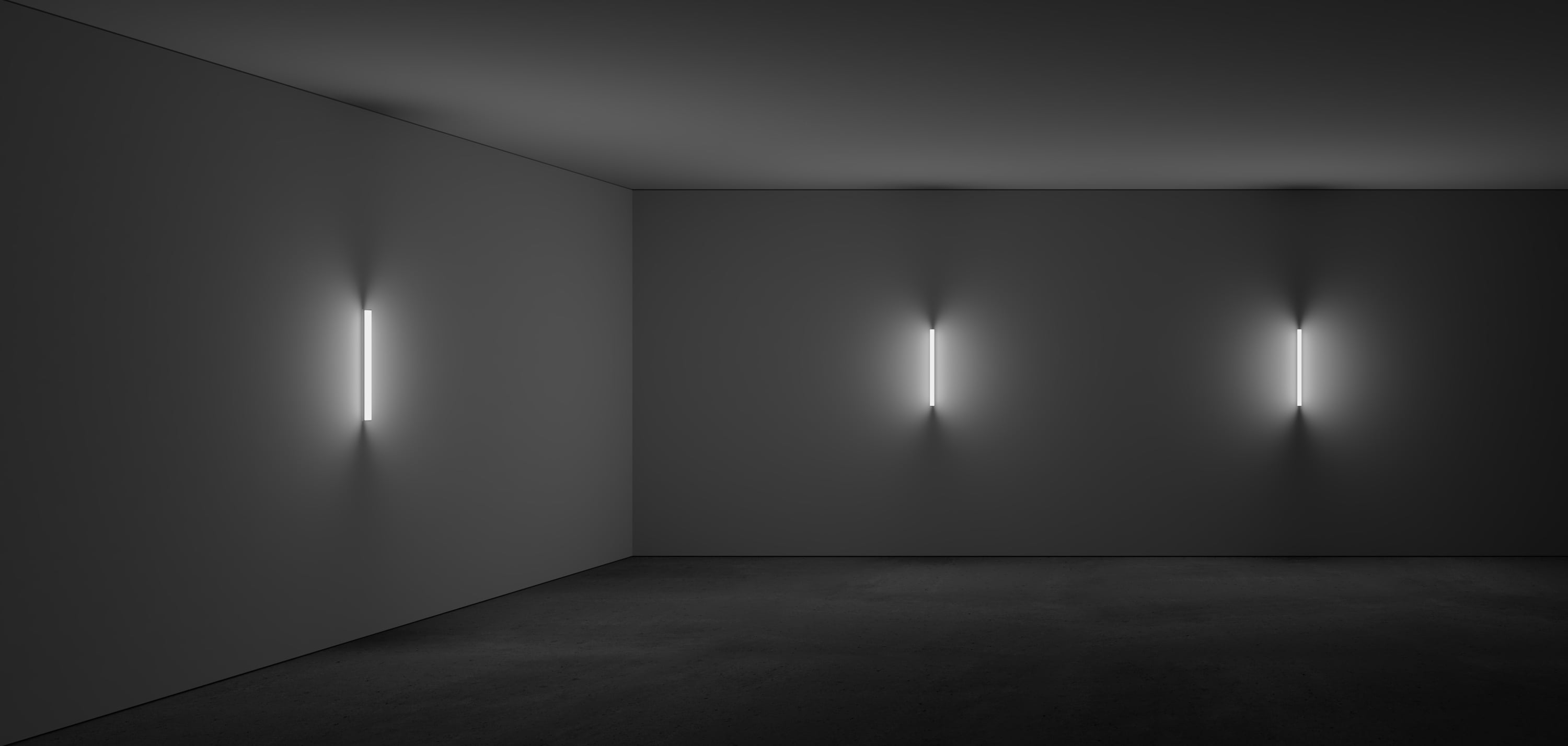

Dress Up is a wall luminaire developed for fitting rooms. A soft, vertical front light with good colour rendering creates a pleasant atmosphere and highlights the garments. Available in several colours and easy to install with Plug and Play.
Dress UpSurface
Dress Up is a wall luminaire developed for fitting rooms. A soft, vertical front light with good colour rendering creates a pleasant atmosphere and highlights the garments. Available in several colours and easy to install with Plug and Play.
Installation
Luminaire for wall installation. For detailed information, see the installation instructions.
Connection
Separate 24 V driver on/off or DALI (ordered separately, see under Accessories). The luminaire is supplied with 3 m mains cable and connector for 6-way splitter on the driver as standard. For detailed information, see the installation instructions.
Design
Luminaire body of sheet steel. White (RAL 9016), black (RAL 9017) or grey (RAL 7038) structured lacquer or stainless steel. Luminaire lengths 628 mm or 1228 mm.
Light Distribution
Wide Beam.
Light data
Optics
Opal acrylic diffuser (PMMA).
Find the right lighting control for your project
Optimise your energy savings and create efficient spaces
that are easy to manage. Use our guide to find the right lighting control for your project.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
On/Off
Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | CRI | Colour | Dimensions, mm | Louvre | Light distribution | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|
| 80170 | 6 | 736 | 3000 | 90 | White | 628x35x45 | Opal | Wide Beam |
|
|
| 80171 | 12 | 1558 | 3000 | 90 | White | 1228x35x45 | Opal | Wide Beam |
|
|
| 80174 | 6 | 764 | 4000 | 90 | White | 628x35x45 | Opal | Wide Beam |
|
|
| 80175 | 12 | 1616 | 4000 | 90 | White | 1228x35x45 | Opal | Wide Beam |
|
|
| 80176 | 6 | 736 | 3000 | 90 | Black | 628x35x45 | Opal | Wide Beam |
|
|
| 80177 | 12 | 1558 | 3000 | 90 | Black | 1228x35x45 | Opal | Wide Beam |
|
|
| 80180 | 6 | 764 | 4000 | 90 | Black | 628x35x45 | Opal | Wide Beam |
|
|
| 80181 | 12 | 1616 | 4000 | 90 | Black | 1228x35x45 | Opal | Wide Beam |
|
|
| 80182 | 6 | 736 | 3000 | 90 | Stainless steel | 628x35x45 | Opal | Wide Beam |
|
|
| 80183 | 12 | 1558 | 3000 | 90 | Stainless steel | 1228x35x45 | Opal | Wide Beam |
|
|
| 80186 | 6 | 764 | 4000 | 90 | Stainless steel | 628x35x45 | Opal | Wide Beam |
|
|
| 80187 | 12 | 1616 | 4000 | 90 | Stainless steel | 1228x35x45 | Opal | Wide Beam |
|
|
| 80188 | 6 | 736 | 3000 | 90 | Grey | 628x35x45 | Opal | Wide Beam |
|
|
| 80189 | 12 | 1558 | 3000 | 90 | Grey | 1228x35x45 | Opal | Wide Beam |
|
|
| 80192 | 6 | 764 | 4000 | 90 | Grey | 628x35x45 | Opal | Wide Beam |
|
|
| 80193 | 12 | 1616 | 4000 | 90 | Grey | 1228x35x45 | Opal | Wide Beam |
|
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Accessories Integrated Lighting | 100W 24V constant voltage DALI driver with 6-way splitter | 99024-1002 | |
|
Accessories Integrated Lighting | 60W 24V constant voltage driver with 6-way splitter | 99804-1000 | |
|
Accessories Integrated Lighting | 60W 24V constant voltage DALI driver with 6-way splitter | 99050-1000 | |
|
|
Accessories Integrated Lighting | 35W 24V constant voltage driver with 6-way splitter | 99876 |
Downloads
