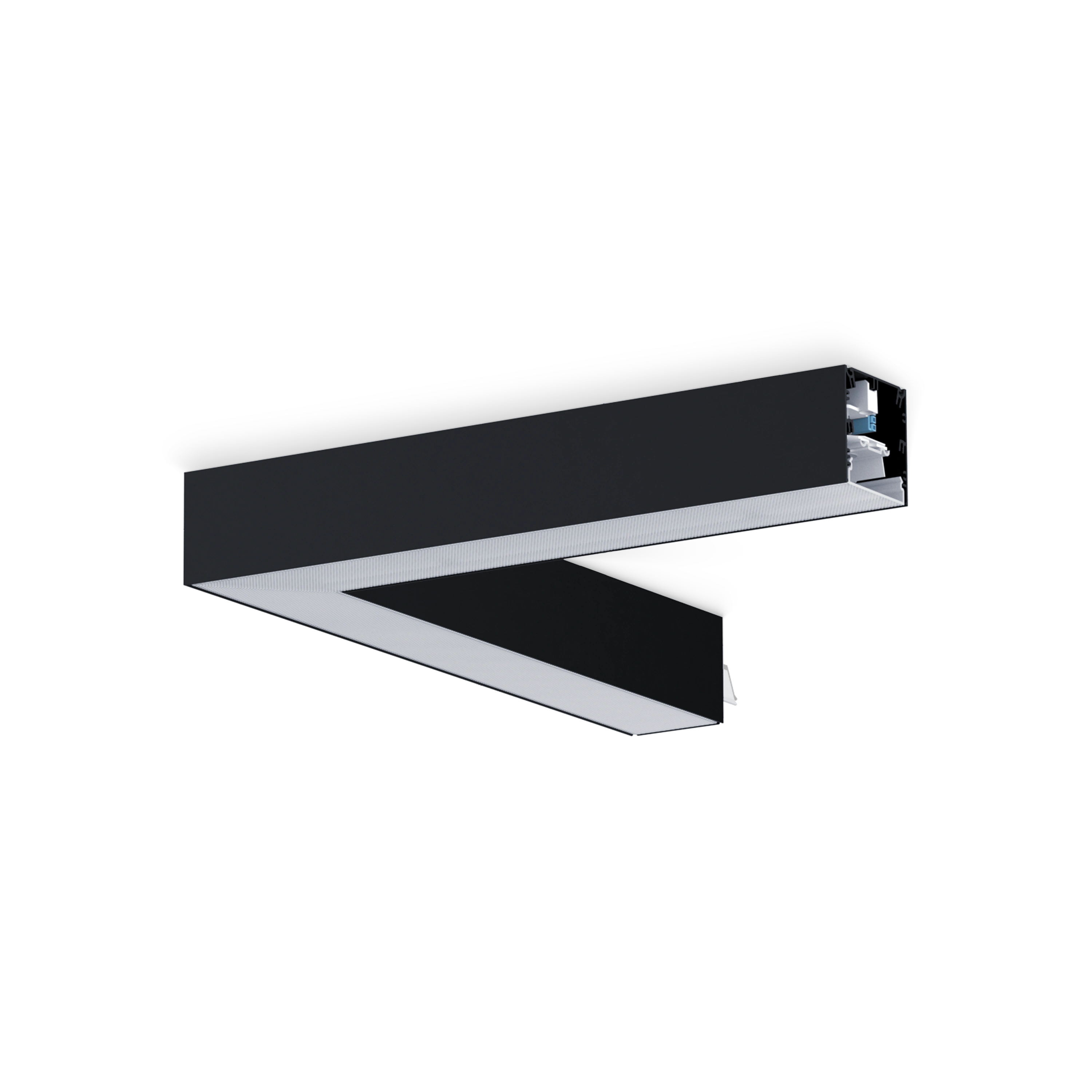

Notor 65 CornerSurface

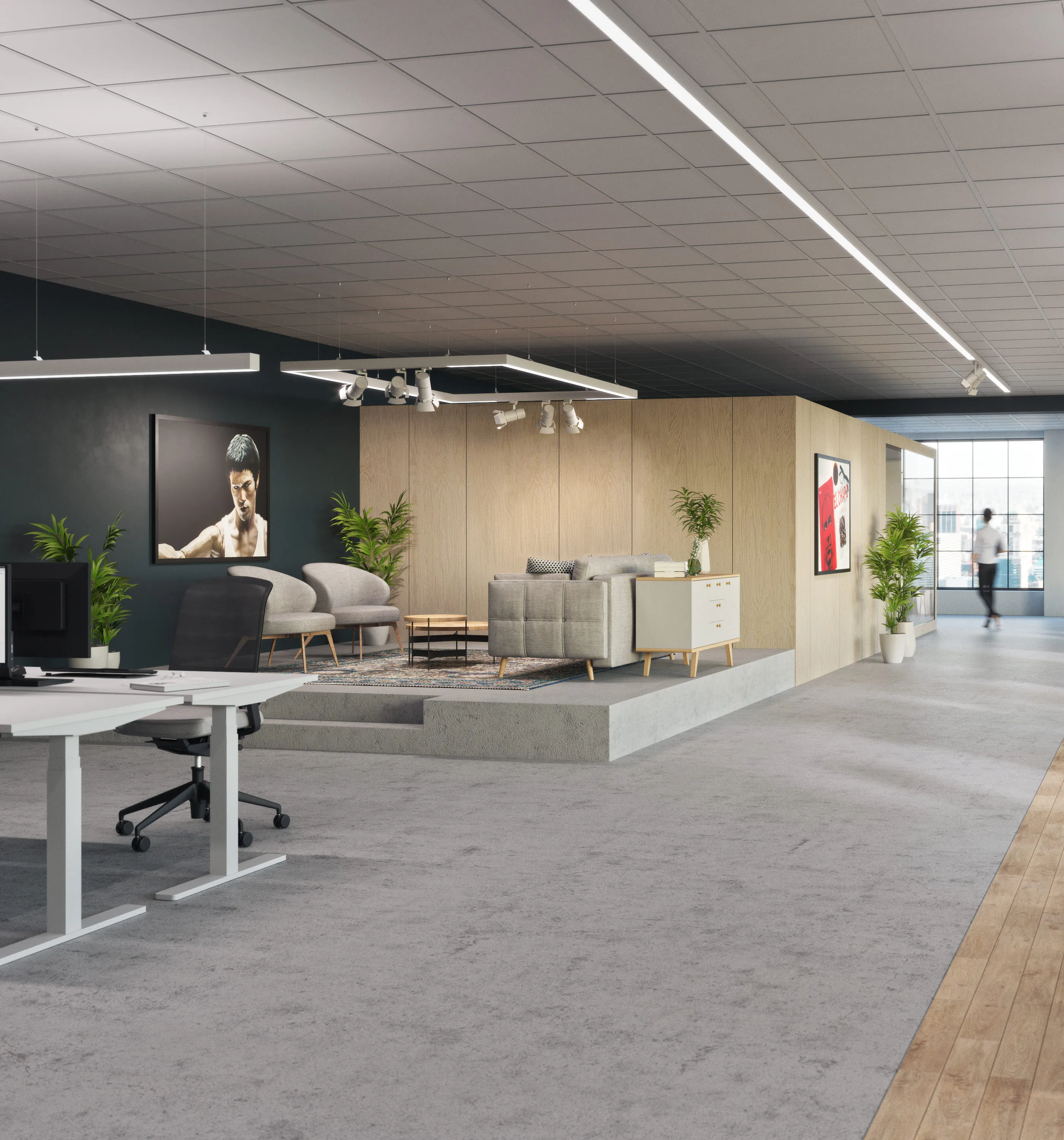

Notor 65 is a luminaire family that combines design aesthetics with high lighting comfort and performance. Notor Corner provides direct light, is available with two different louvres and can be suspended or ceiling-mounted for creative lighting.
Notor 65 CornerSurface
Notor 65 is a luminaire family that combines design aesthetics with high lighting comfort and performance. Notor Corner provides direct light, is available with two different louvres and can be suspended or ceiling-mounted for creative lighting.
Installation
Luminaire for surface-mounted or pendant installation, single or continuous. Used in systems to create luminous lines. For pendant installation, wire suspension is ordered separately, see Accessories. For detailed information, see the installation instructions.
Connection
For permanent connection; integrated driver in the luminaire. The luminaire is supplied with a cable entry on the top. For continuous installation, the luminaire row must always begin with a start luminaire. Continuous luminaires are equipped with a through-wire (5x1.5 mm²) and a snap-in connector in each end cap. To create a closed system, you need to use one of the corners as a start luminaire. Illuminated corners as a start luminaire only have through-wiring components and a snap-in connector at one end. CLO (Constant Light Output).
Design
Extruded aluminium luminaire body, made from 75% post-consumer recycled material. Lacquered in white (RAL 9016 G40), Black (RAL 9005 G30) or natural anodised extruded aluminium.
Light Distribution
Direct.
Light data
Optics
Delta – micro-prism louvre in acrylic (PMMA). Opal – frosted acrylic (PMMA) disc.
Made of recycled aluminium
The luminaire body is made of recycled aluminium, which consists of 75% post-consumer material (end-of-life scrap) from Europe. This aluminium (excluding extrusion) has a 71% lower climate impact compared to average primary aluminium from Europe (Source: European Aluminium). These calculations are based on the climate impact reported in the EPD compared to the average values.
Timeless design & long-term use
A timeless design results in a classic product that is less sensitive to trends. This increases the likelihood of reuse, making the luminaire a sensible choice for construction projects with a long-term sustainability perspective.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Articles
Configure your Notor 65 Corner
Adapt and optimise the luminaire in Fagerhult's configurator.
Need more information?
Download a collection of light data files to guide you in your decision.
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, white mains cable (96383+96387) | 95366 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, transparent mains cable (96383+96392) | 95367 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96389) | 95368 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96393) | 95369 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, white mains cable (96382+96387) | 95370 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, transparent mains cable (96382+96392) | 95371 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96389) | 95372 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96393) | 95373 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, white mains cable (96371+96375) | 95374 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, transparent mains cable (96371+96380) | 95375 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96377) | 95376 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96381) | 95377 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large, white mains cable (96370+96375) | 95378 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large, transparent mains cable (96370+96380) | 95379 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96377) | 95380 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96381) | 95381 | |
|
Wire suspension for support rails L: 1,5m | Wire suspension for support rails 90015, 90016, 90017, 94052, 94067, 94068 | 91426 | |
|
Wire bracket incl. friction locks | Wire bracket/pair | 92682 | |
|
Wire bracket incl. friction locks | Wire bracket/pair | 92683 | |
|
Wire bracket incl. friction locks | Wire bracket/pair | 92684 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup, white mains cable/each | 96374 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, white mains cable/each | 96376 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup, transparent mains cable/each | 96378 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, transparent mains cable/each | 96379 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup, white mains cable/each | 96386 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, white mains cable/each | 96388 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup, transparent mains cable/each | 96390 | |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, transparent mains cable/each | 96391 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup, white mains cable/each | 96375 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, white mains cable/each | 96377 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup, transparent mains cable/each | 96380 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, transparent mains cable/each | 96381 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup, white mains cable/each | 96387 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, white mains cable/each | 96389 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup, transparent mains cable/each | 96392 | |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, transparent mains cable/each | 96393 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, white mains cable (96383+96386) | 95350 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, transparent mains cable (96383+96390) | 95351 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96388) | 95352 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96391) | 95353 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, white mains cable (96382+96386) | 95354 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, transparent mains cable (96382+96390) | 95355 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96388) | 95356 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96391) | 95357 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, white mains cable (96371+96374) | 95358 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, transparent mains cable (96371+96378) | 95359 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96376) | 95360 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96379) | 95361 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large, white mains cable (96370+96374) | 95362 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large, transparent mains cable (96370+96378) | 95363 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96376) | 95364 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96379) | 95365 | |
|
Wire suspension for continuous installation L: 1,4m | Small square ceiling cup for T-bars 25 mm/each | 96372 | |
|
Wire suspension for continuous installation L: 1,4m | Small square ceiling cup/each | 96370 | |
|
Wire suspension for continuous installation L: 1,4m | Large square ceiling cup/each | 96371 | |
|
Wire suspension for continuous installation L: 1,4m | Large square ceiling cup for T-bars 25 mm/each | 96373 | |
|
Wire suspension for continuous installation L: 1,4m | Small round ceiling cup/each | 96382 | |
|
Wire suspension for continuous installation L: 1,4m | Large round ceiling cup/each | 96383 | |
|
Wire suspension for continuous installation L: 1,4m | Small round ceiling cup for T-bars 25 mm/each | 96384 | |
|
Wire suspension for continuous installation L: 1,4m | Large round ceiling cup for T-bars 25 mm/each | 96385 | |
|
Ceiling bracket in chrome with wire | Wire suspension with ceiling bracket in chrome, L=1.5 m/pair | 91696 |
