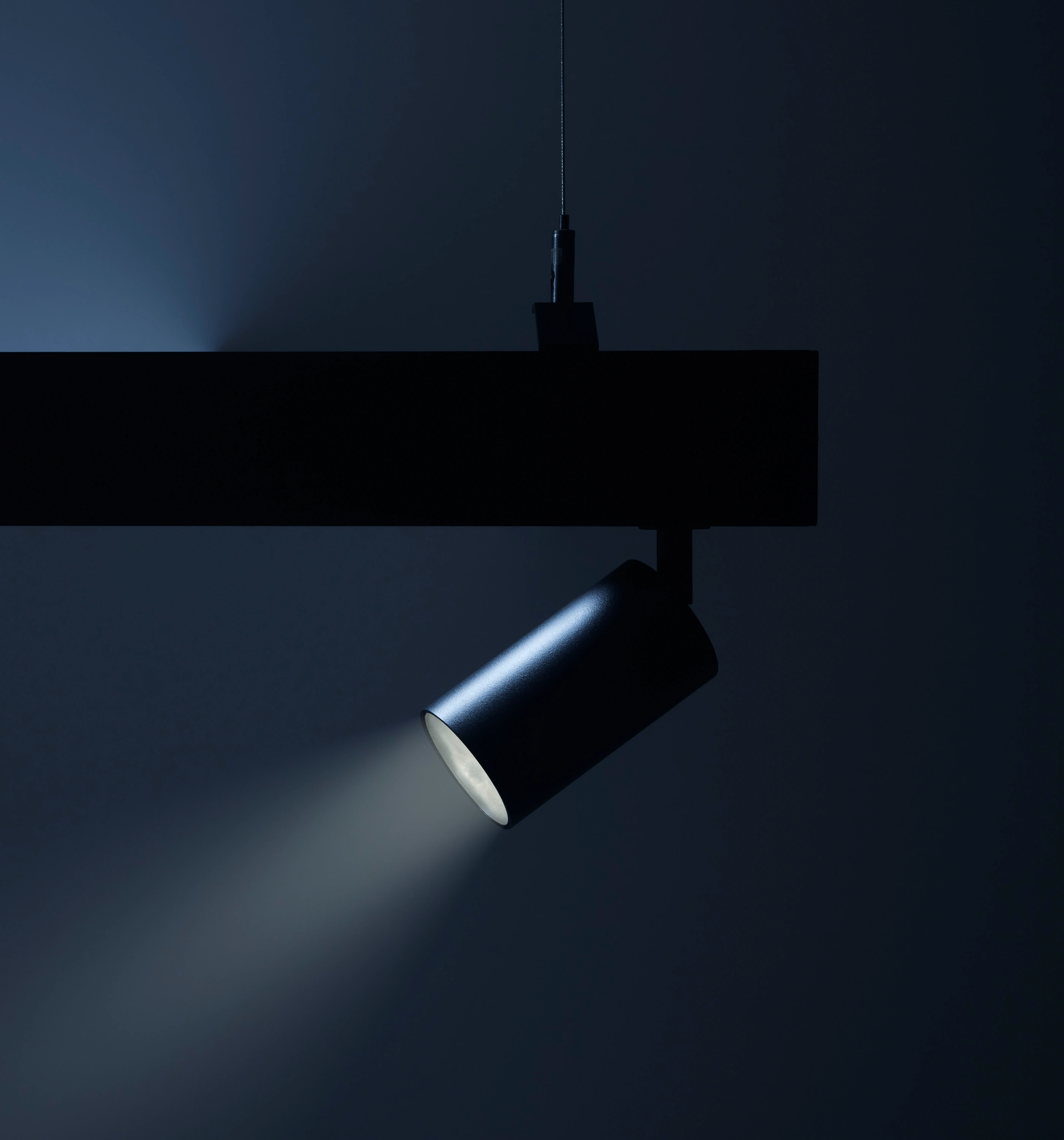

Notor 65 DynamicPendant
Notor 65 Dynamic is based on research into how natural light can have a positive effect on people. The luminaire mimics daylight with different colour temperatures and a combination of diffused, direct, and indirect light, as well as spotlight-directed light.

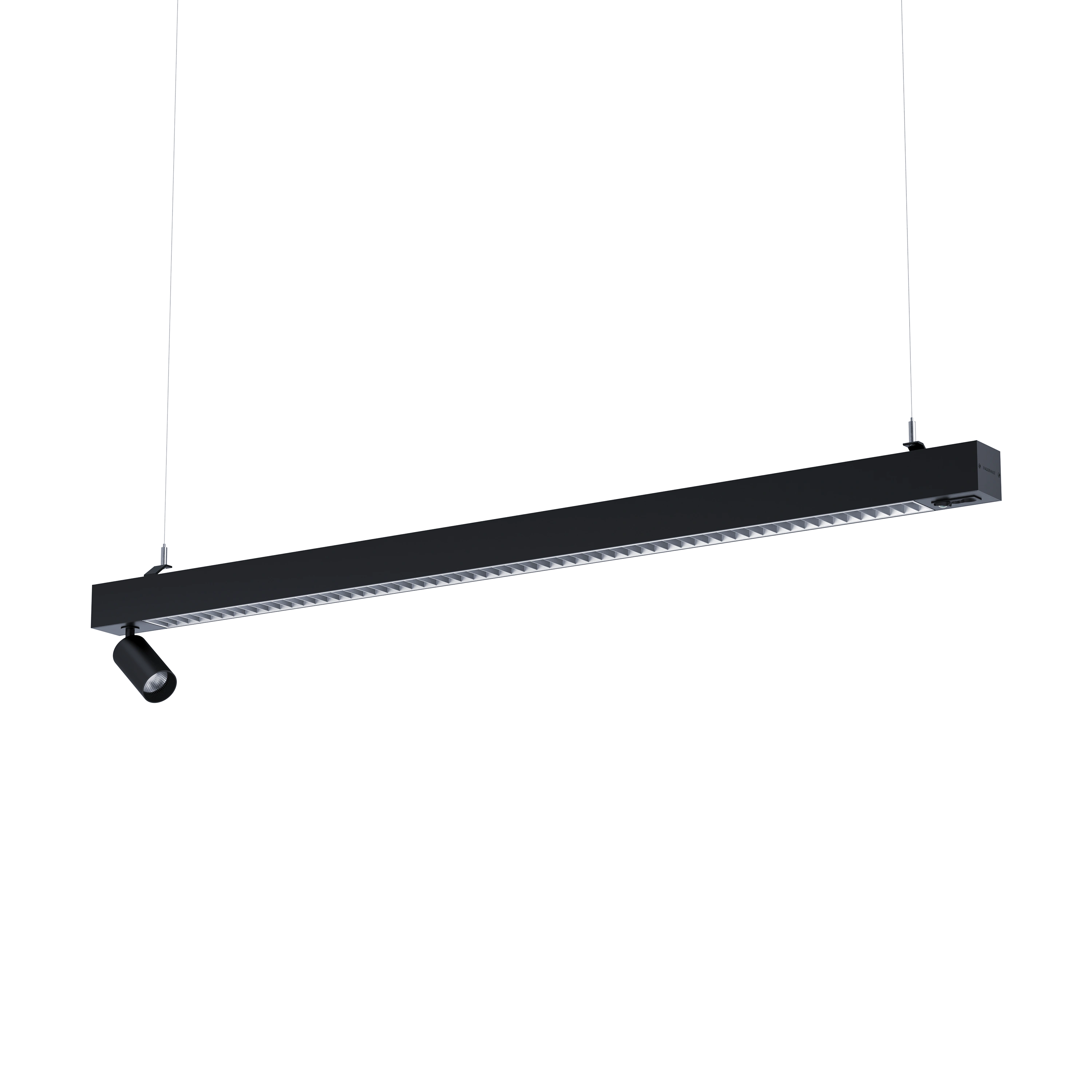

Notor 65 DynamicPendant
Notor 65 Dynamic is based on research into how natural light can have a positive effect on people. The luminaire mimics daylight with different colour temperatures and a combination of diffused, direct, and indirect light, as well as spotlight-directed light.
Installation
Luminaire for pendant installation, single. Wire suspension and wire bracket are ordered separately. The wire suspension provides a flexible c/c. For detailed information, see the installation instructions.
See installation video – Installation clipsConnection
For permanent connection; integrated driver in the luminaire. The luminaire is supplied with a cable entry on the top. CLO (Constant Light Output).
Design
Extruded aluminium luminaire body, made from 75% post-consumer recycled material. Lacquered in white (RAL 9016 G40) or black (RAL 9005 G30). End caps are included in the luminaire. Indirect light is covered by an opal film that generates a wide/extra wide beam and also serves as a dust cover.

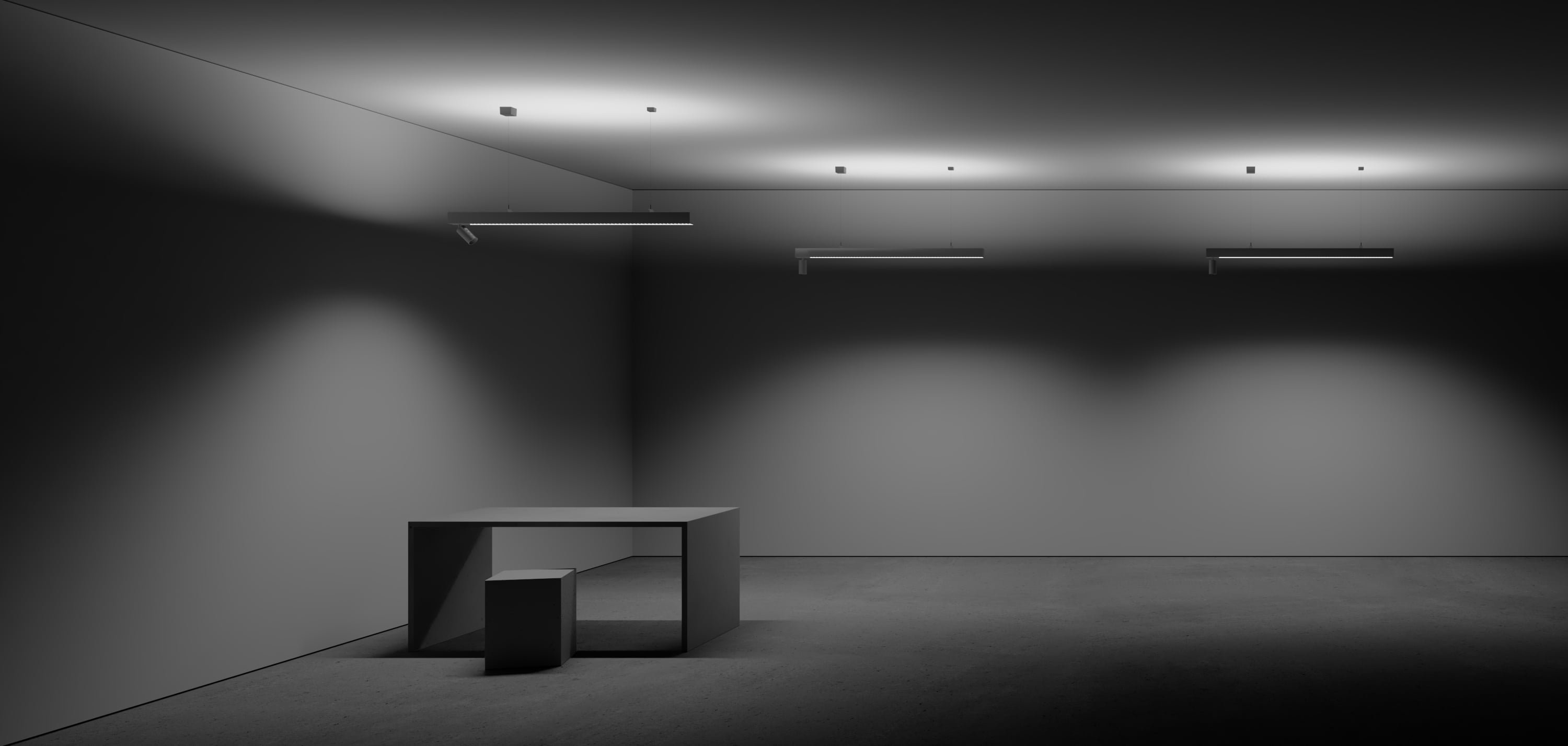

Light Distribution
Direct/indirect 30/70, narrow beam spotlight.
Light data
Optics

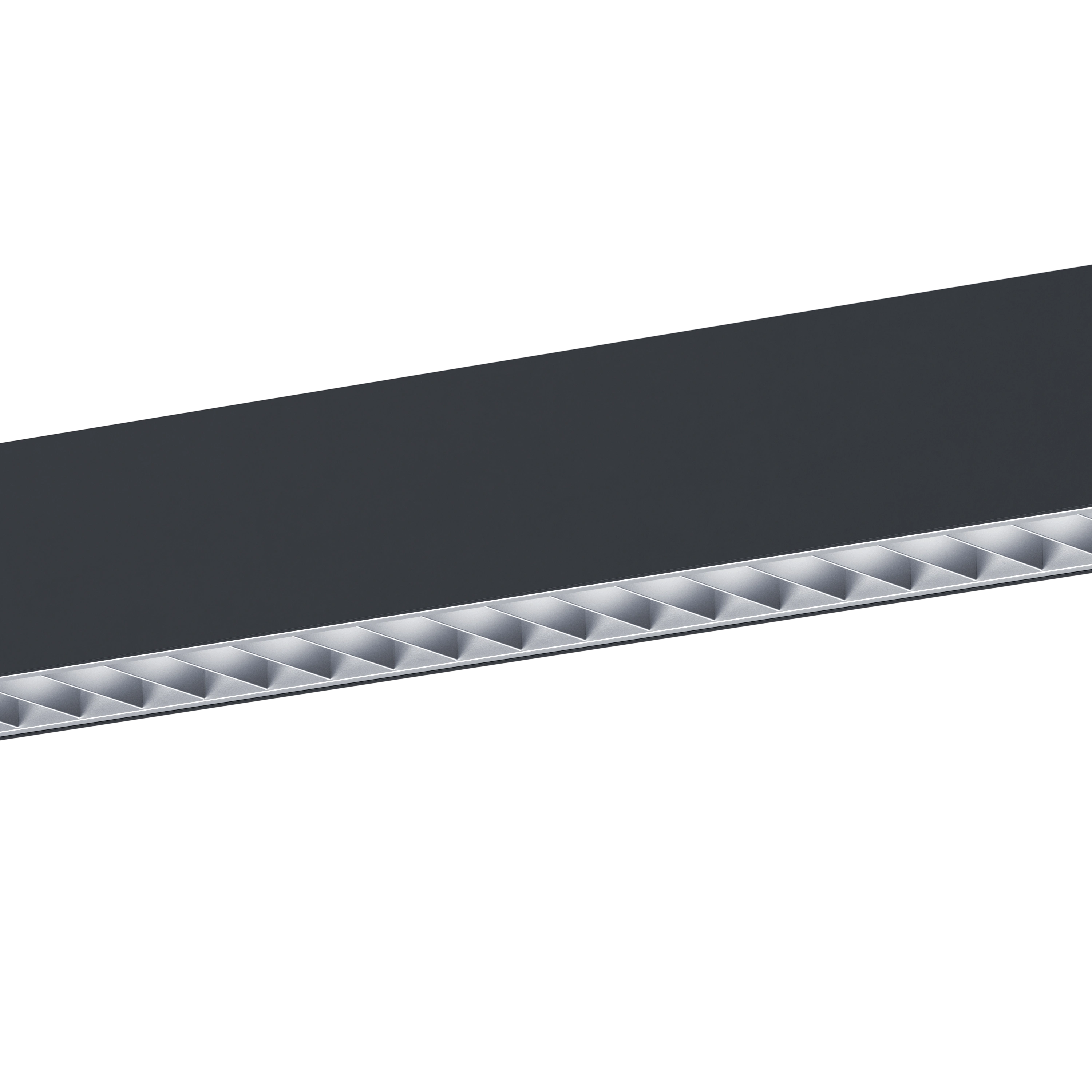

Beta Opti – side and crosswise semi-gloss reflectors in metallised aluminium with an integrated opal film that minimises the risk of uncomfortable glare from the LEDs. Delta – micro-prism louvre in acrylic (PMMA).
Made of recycled aluminium
The luminaire body is made of recycled aluminium, which consists of 75% post-consumer material (end-of-life scrap) from Europe. This aluminium (excluding extrusion) has a 71% lower climate impact compared to average primary aluminium from Europe (Source: European Aluminium). These calculations are based on the climate impact reported in the EPD compared to the average values.
Timeless design & long-term use
A timeless design results in a classic product that is less sensitive to trends. This increases the likelihood of reuse, making the luminaire a sensible choice for construction projects with a long-term sustainability perspective.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
DALI
Enables flexible and precise control of luminaires – easy installation with two-wire system for both power and control.
Read moreDALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
Push dim
Manual dimming via a momentary pushbutton. A short press turns the luminaire on/off, while a long press adjusts the light level.
Organic ResponsePIR sensor
Wireless, sensor-based system that works without the need for programming. Cloud connectivity for advanced analytics and remote control.
Read more
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | Colour | Dimensions, mm | Louvre | Light distribution | Light control | CLO time, h | Miscellaneous | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13670-533 | 40 | 4431 | White | 1435x65x190 | Delta | Direct/indirect | Organic Response | 50000 | Tunable White / Tunable White, DDL ready |
|
||
| 13671-533 | 40 | 4169 | Black | 1435x65x190 | Delta | Direct/indirect | Organic Response | 50000 | Tunable White / Tunable White, DDL ready |
|
||
| 13672-533 | 45 | 4227 | White | 1447x65x190 | Beta Opti | Direct/indirect | Organic Response | 50000 | Tunable White / Tunable White, DDL ready |
|
||
| 13673-533 | 45 | 4200 | Black | 1447x65x190 | Beta Opti | Direct/indirect | Organic Response | 50000 | Tunable White / Tunable White, DDL ready |
|
||
| 13675-402 | 49 | 4431 | White | 1346x65x190 | Delta | Direct/indirect | DALI | 50000 | Tunable White / Tunable White |
|
||
| 13676-402 | 49 | 4169 | Black | 1346x65x190 | Delta | Direct/indirect | DALI | 50000 | Tunable White / Tunable White |
|
||
| 13677-402 | 45 | 4227 | White | 1357x65x190 | Beta Opti | Direct/indirect | DALI | 50000 | Tunable White / Tunable White |
|
||
| 13678-402 | 45 | 4200 | Black | 1357x65x190 | Beta Opti | Direct/indirect | DALI | 50000 | Tunable White / Tunable White |
|
||
| 13679-402 | 38 | 4781 | 4000 | White | 1346x65x190 | Delta | Direct/indirect | DALI | 50000 | 840 / 930 |
|
|
| 13679-533 | 38 | 4781 | 4000 | White | 1435x65x190 | Delta | Direct/indirect | Organic Response | 50000 | 840 / 930 |
|
|
| 13679-555 | 39 | 4781 | 4000 | White | 1380x65x190 | Delta | Direct/indirect | DALI/Phase-pulse | 50000 | 840 / 930, Double Push Dim |
|
|
| 13680-402 | 38 | 4506 | 4000 | Black | 1346x65x190 | Delta | Direct/indirect | DALI | 50000 | 840 / 930 |
|
|
| 13680-533 | 38 | 4506 | 4000 | Black | 1435x65x190 | Delta | Direct/indirect | Organic Response | 50000 | 840 / 930 |
|
|
| 13680-555 | 39 | 4506 | 4000 | Black | 1380x65x190 | Delta | Direct/indirect | DALI/Phase-pulse | 50000 | 840 / 930, Double Push Dim |
|
|
| 13681-402 | 35 | 4580 | 4000 | White | 1357x65x190 | Beta Opti | Direct/indirect | DALI | 50000 | 840 / 930 |
|
|
| 13681-533 | 35 | 4580 | 4000 | White | 1447x65x190 | Beta Opti | Direct/indirect | Organic Response | 50000 | 840 / 930 |
|
|
| 13681-555 | 36 | 4580 | 4000 | White | 1392x65x190 | Beta Opti | Direct/indirect | DALI/Phase-pulse | 50000 | 840 / 930, Double Push Dim |
|
|
| 13682-402 | 35 | 4523 | 4000 | Black | 1357x65x190 | Beta Opti | Direct/indirect | DALI | 50000 | 840 / 930 |
|
|
| 13682-533 | 35 | 4523 | 4000 | Black | 1447x65x190 | Beta Opti | Direct/indirect | Organic Response | 50000 | 840 / 930 |
|
|
| 13682-555 | 36 | 4523 | 4000 | Black | 1392x65x190 | Beta Opti | Direct/indirect | DALI/Phase-pulse | 50000 | 840 / 930, Double Push Dim |
|
|
| 13683-533 | 49 | 4589 | 3000 | White | 1435x65x190 | Delta | Direct/indirect | Organic Response | 50000 | Tunable White / 930 |
|
|
| 13684-533 | 49 | 4327 | 3000 | Black | 1435x65x190 | Delta | Direct/indirect | Organic Response | 50000 | Tunable White / 930 |
|
|
| 13685-533 | 45 | 4385 | 3000 | White | 1447x65x190 | Beta Opti | Direct/indirect | Organic Response | 50000 | Tunable White / 930 |
|
|
| 13686-533 | 45 | 4358 | 3000 | Black | 1447x65x190 | Beta Opti | Direct/indirect | Organic Response | 50000 | Tunable White / 930 |
|
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96381) | 95381 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96377) | 95380 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large, transparent mains cable (96370+96380) | 95379 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large, white mains cable (96370+96375) | 95378 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96377) | 95376 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96389) | 95372 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, white mains cable (96382+96387) | 95370 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96389) | 95368 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96376) | 95364 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96381) | 95377 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large, white mains cable (96370+96374) | 95362 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96376) | 95360 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, transparent mains cable (96371+96378) | 95359 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, transparent mains cable (96383+96392) | 95367 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, white mains cable (96383+96387) | 95366 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96391) | 95357 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, transparent mains cable (96371+96380) | 95375 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, transparent mains cable (96382+96392) | 95371 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large, transparent mains cable (96370+96378) | 95363 | |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, white mains cable (96371+96374) | 95358 | |
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96393) | 95369 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96379) | 95365 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96379) | 95361 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, white mains cable (96371+96375) | 95374 | |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96393) | 95373 | |
|
Support rail (cat. no./pair) | L=600/625, section: 25, max. load: 75N/pair | 94067 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, labeled, white | 86437 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, labeled, white | 86436 | |
|
Organic Response I/O box | I/O box with potential-free 16A relay for controlling external units. | 86413 | |
|
Organic Response IoT Gateway | Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors. | 86296 | |
|
Wire suspension for support rails L: 1,5m | Wire suspension for support rails 90015, 90016, 90017, 94052, 94067, 94068 | 91426 | |
|
|
Support rail (cat. no./pair) | L=1200/1250, section: 25, max. load: 120/30N/pair | 94068 | |
|
|
Support rail (cat. no./pair) | L=600/650, section: 15, max. load: 75N/pair | 90015 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, white | 86417 | |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, white | 86416 | |
|
Wire bracket incl. friction locks | Wire bracket/pair | 92683 | |
|
Wire bracket incl. friction locks | Wire bracket/pair | 92682 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, white mains cable (96382+96386) | 95354 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96388) | 95352 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, transparent mains cable (96382+96390) | 95355 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96391) | 95353 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96388) | 95356 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, white mains cable (96383+96386) | 95350 | |
|
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, transparent mains cable (96383+96390) | 95351 | |
|
IR dongle for Organic Response | IR dongle for Organic Response equipped luminaire. | 86279 | |
|
|
Support rail (cat. no./pair) | L=200/1250, section: 15, max. load: 120/30N/pair | 90016 | |
|
Cutters | Cutters, each | 94248 | |
|
Ceiling bracket in chrome with wire | Wire suspension with ceiling bracket in chrome, L=1.5 m/pair | 91696 | |
|
|
Organic Response I/O box | I/O box with potential-free 8A relay for controlling external units. | 86433 | |
|
Organic Response G3 Circadian Rhythm Box | External box and sensor that enables automatic colour temperature shifting during the day for Tunable White luminaires equipped with Organic Response. | 86489 | |
|
Organic Response Sky Light sensor | The Organic Response Sky Light sensor is used to add full Double Dynamic Lighting to DDL Ready luminaries through the Organic Response system. | 86503 |
