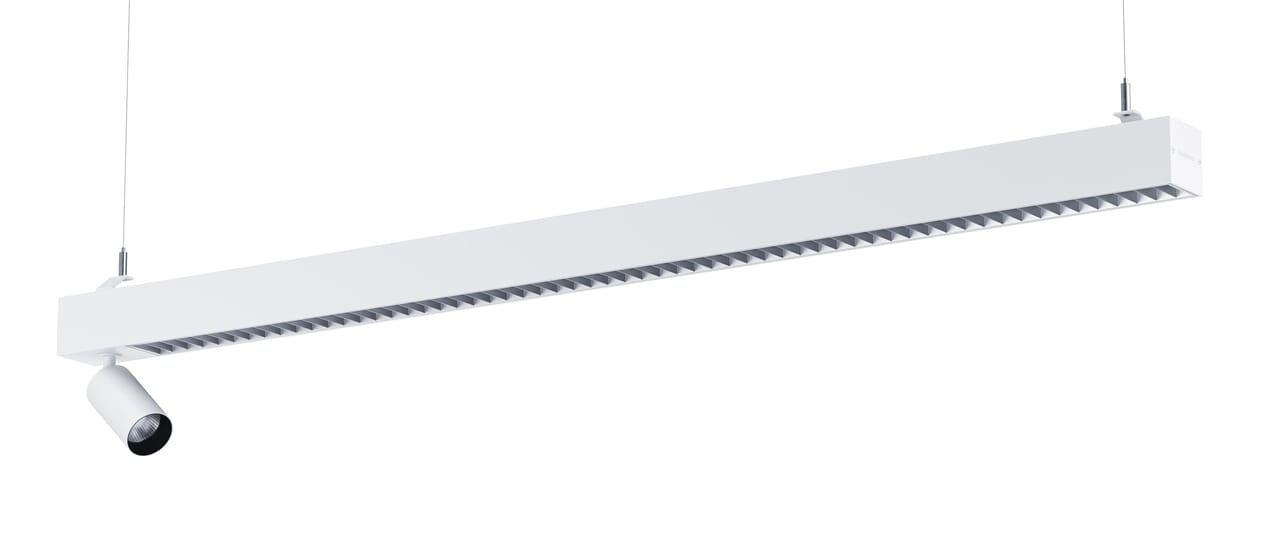

13677-402 Notor 65 Dynamic

Light distribution

Direct/indirect

Tilt, °

90

Turn, °

360

Louvre

Beta Opti

Colour

White

Lumen output

4227

CLO function active

Yes

CLO time, h

50000

lm/W

95

Tunable White

Yes

Tunable White range, K

2700-6500

CRI

90

SDCM

3

Melanopic DER, WW/CW

0.470/1.180

Lumen maintenance 50 000 h

L100

Lumen maintenance 75 000 h

L86

Lumen maintenance 100 000 h

L82

Lumen maintenance L100 B50, h

50000

LED driver, h/max failure %

100000/10

LED driver, 2 h/max failure %

100000/10

Energy class, LED module

D/E

PstLm

1.000

SVM

0.400

Light control

DALI

Driver brand

Osram/Tridonic

DALI generation/adress type

Dali-2/3xDT8

Power on last level

Yes

Corridor function

Yes

Switch control, max no.

10

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

20

Start W

45

End W

48

Average W

47

Stand by W

0.45

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

25

MCB B10A, pcs

7

MCB B16A

12

MCB C10A

12

MCB C16A

20

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Power factor, 100 %

0.86

Length, mm

1357

Width, mm

65

Height, mm

190

Weight, kg

4.000
