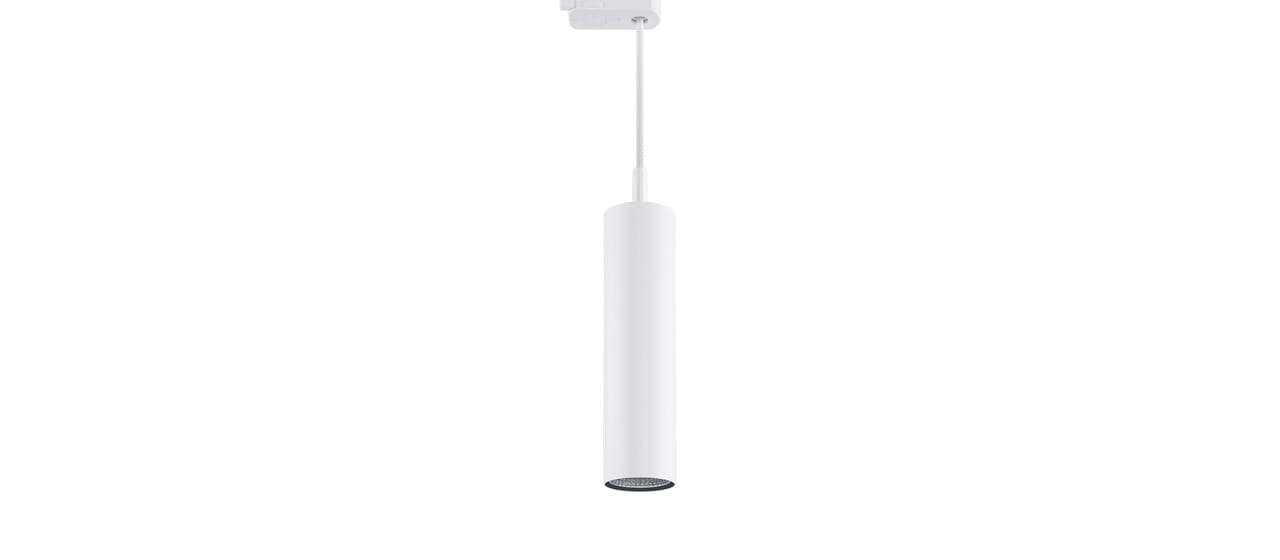

65206-527 Zkye 55 G2 Pendant

Installation

3-phase track

Light distribution

Medium Beam

Beam angle, °

24

Colour

White

Lumen output

1498

lm/W

109

CCT, K

2700

CRI

90

SDCM

2

Lumen maintenance 35 000 h

L96

Lumen maintenance 50 000 h

L95

Lumen maintenance 75 000 h

L94

Lumen maintenance 100 000 h

L92

LED driver, h/max failure %

100000/10

Energy class, LED module

E

Light control

Trailing Edge

Driver brand

Philips

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

50, 60

Protective class

2

IP rating

20

System Wattage

14

Stand by W

0

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

25

MCB B10A, pcs

97

MCB B16A

155

MCB C10A

161

MCB C16A

163

THD, %

9

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Power factor, 100 %

0.98

Length, mm

246

Diamater, mm

55

Weight, kg

0.8
