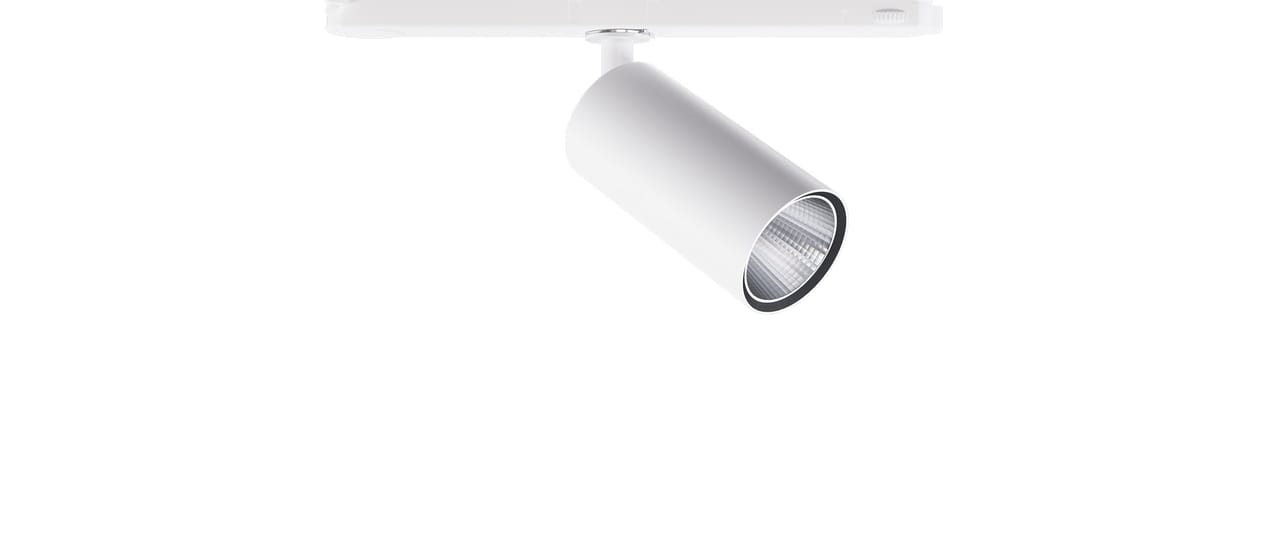

65114-544 Zkye 55 G2 Spotlight

Installation

3-phase track

Light distribution

Narrow Beam

Beam angle, °

15

Tilt, °

90

Turn, °

360

Colour

White

Lumen output

1576

lm/W

106

CCT, K

4000

CRI

90

SDCM

3

Lumen maintenance 35 000 h

L96

Lumen maintenance 50 000 h

L95

Lumen maintenance 75 000 h

L94

Lumen maintenance 100 000 h

L92

LED driver, h/max failure %

100000/10

Energy class, LED module

D

PstLm

1.000

SVM

0.400

Light control

e-Sense Stage in-track driver

Driver brand

Tridonic

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

50, 60

Protective class

2

IP rating

20

System Wattage

15

Stand by W

0.5

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

25

MCB B10A, pcs

40

MCB B16A

64

MCB C10A

40

MCB C16A

64

THD, %

7

Surge protection DM, kV/kA

1

Leakage current PE

0.700

Power factor, 100 %

0.95

Length, mm

231

Width, mm

55

Height, mm

171

Weight, kg

0.3
