Wall 1 LED

Installation

2 securing holes.

Connection

Snap-in terminal block 5x2.5 mm². 1-phase through-wiring possible with recessed cable.

Design

Luminaire body in structured white (RAL 9016) or structured alu grey (RAL 9006) sheet metal. The light opening is covered by a clear plastic sheet.

Reflector

Asymmetrical reflector made of metallised aluminium with excellent reflection characteristics (> 92 %).

Dimming

CLO (Constant Light Output) and DALI/phase pulse control as standard.

Designed by

Claesson Koivisto Rune.

Miscellaneous

Central, surface mounted mains cable possible from above, no onward connector.

CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.

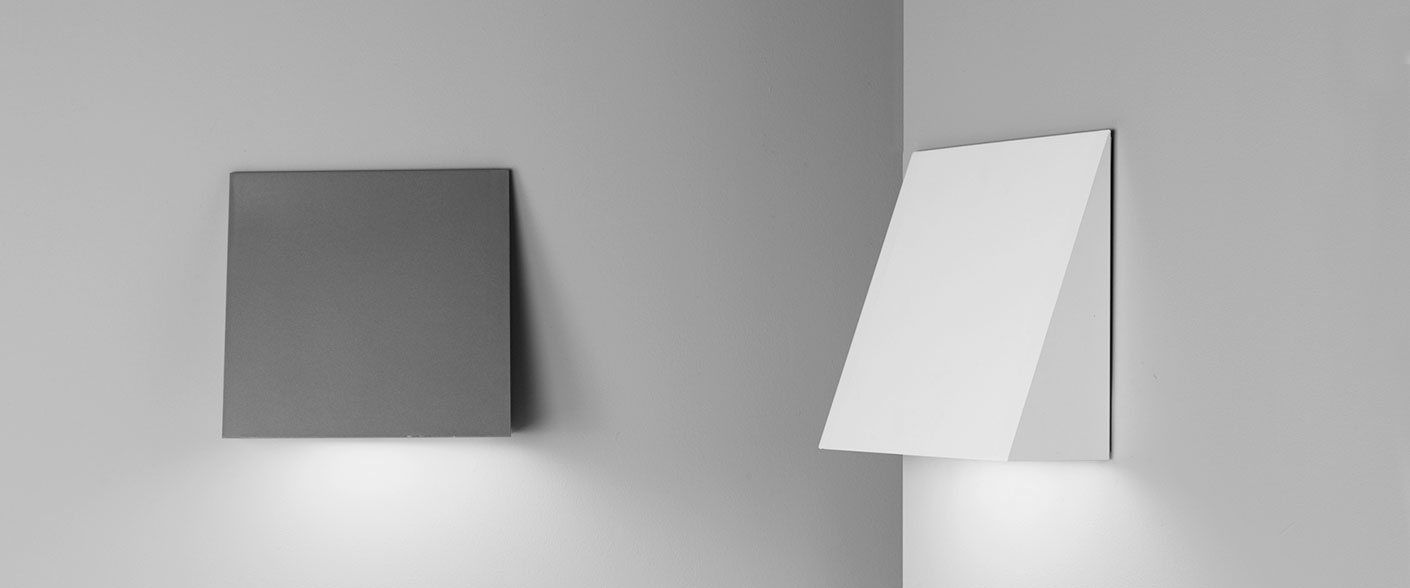

Wall

Wall is a complete series of wall luminaires. The design is grounded on precision and meticulous accuracy in every detail; the angles seamlessly interlock without signs of manufacturing producing a luminaire of classic...

More about the family Wall

Document

Specification

Filter

Art.no. Effect, W Lumen output CCT, K Colour Length, mm Width, mm Height, mm Light control CLO function on
Art.no. Effect, W Lumen output CCT, K Colour Length, mm Width, mm Height, mm Light control CLO function on
64927-402 27 3212 2700 White 300 287 104 DALI/Phase-pulse Yes
64928-402 27 3212 2700 Grey 300 287 104 DALI/Phase-pulse Yes
64931-402 27 3530 3000 White 300 287 104 DALI/Phase-pulse Yes
64932-402 27 3530 3000 Grey 300 287 104 DALI/Phase-pulse Yes
64933-402 27 3989 4000 White 300 287 104 DALI/Phase-pulse Yes
64934-402 27 3989 4000 Grey 300 287 104 DALI/Phase-pulse Yes
