Vialume 75
21756 Vialume 21756
A small post top luminaire with AGC lenses for excellent lighting properties and visual comfort, ideal for smaller streets, footpaths and cycle paths. CLO for output consistency as standard.
Installation
Post top luminaire which in its standard design is mounted on a Ø 60 mm post top. Ø 60 mm post top bracket supplied with luminaire. For other mounting types and other options, see Accessories which are ordered separately. Variable tilting function +10º, -15º for perfect installation. Post height 3–5 m.
Connection
Connection cable 3x1.5 mm² type H05RN-F. Delivered with 5 m cable. DALI version available on request, delivered with a 5-pin cable. Other cable versions on request.
Design
Body and post bracket in cast aluminium. Aluminium-zinc coated stainless screws. Driver is integrated in the luminaire. Hardened flat glass.
Optics

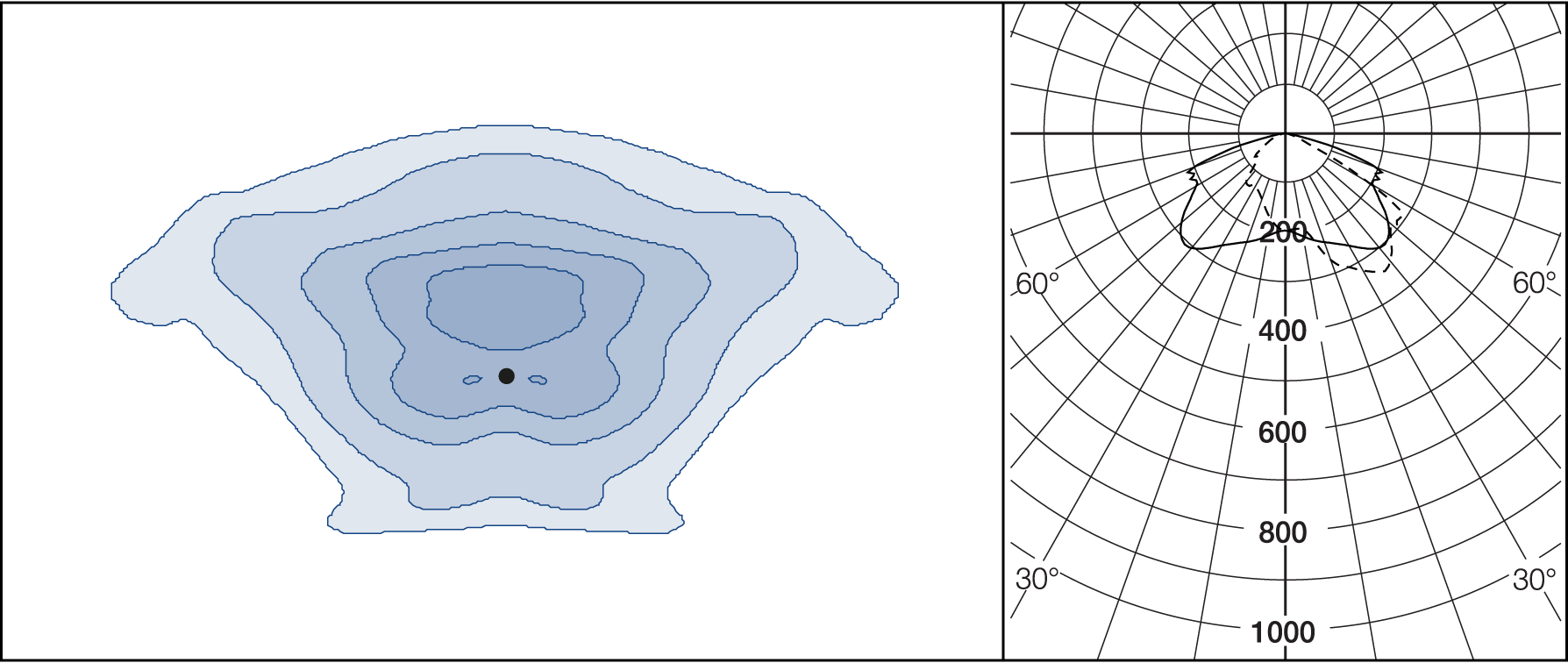

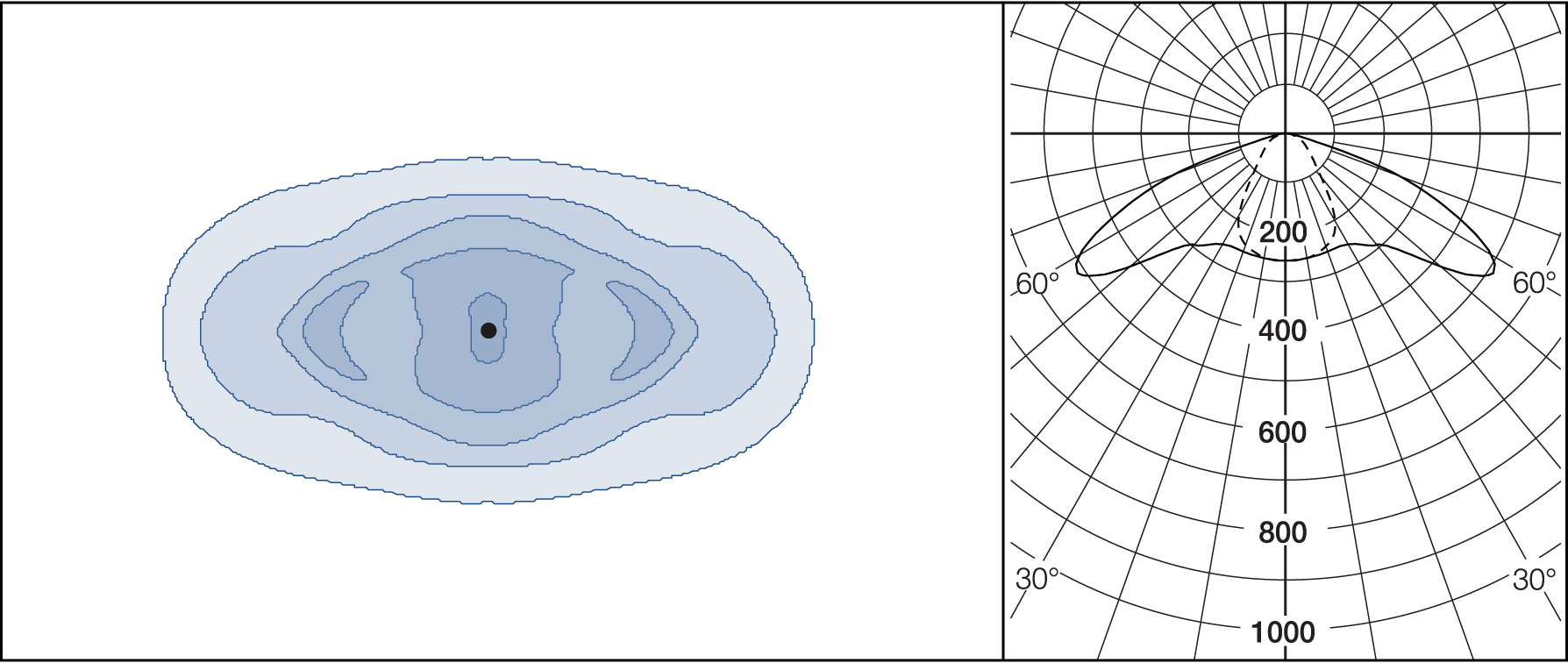

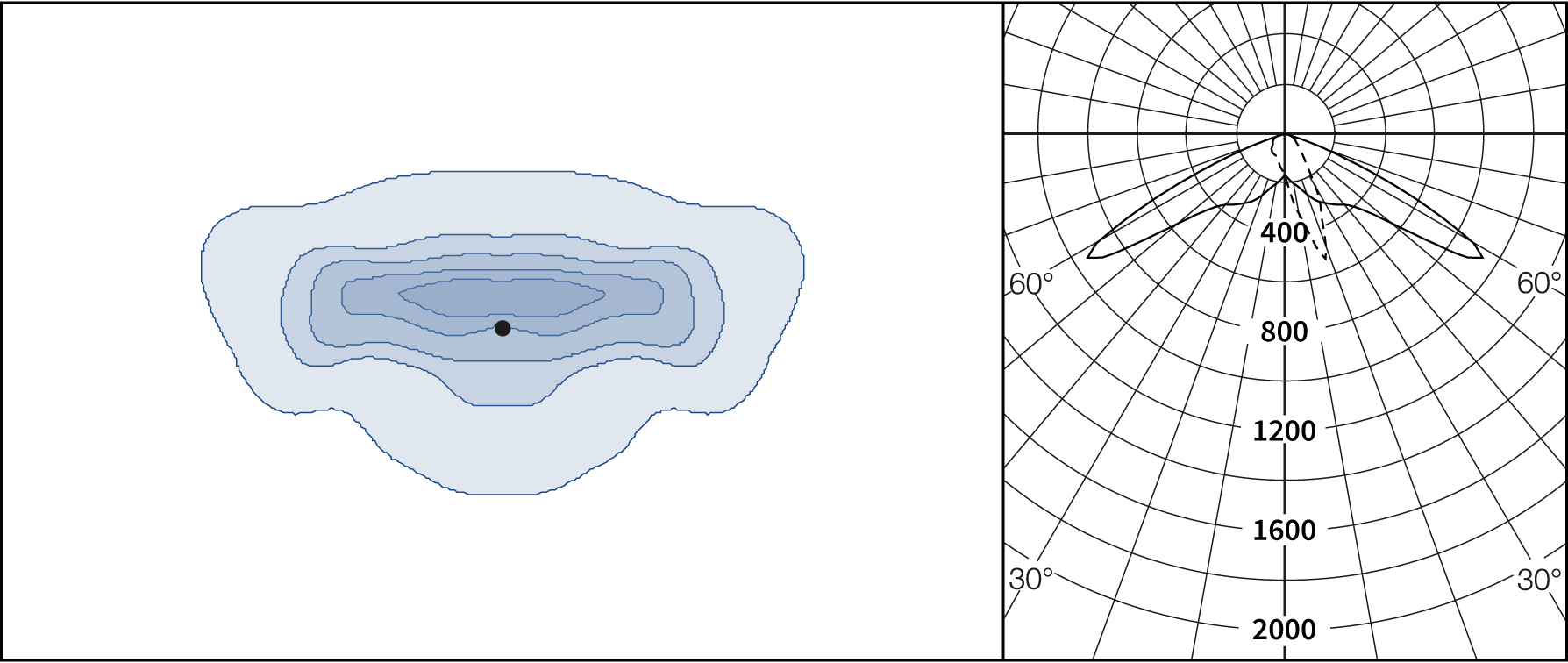

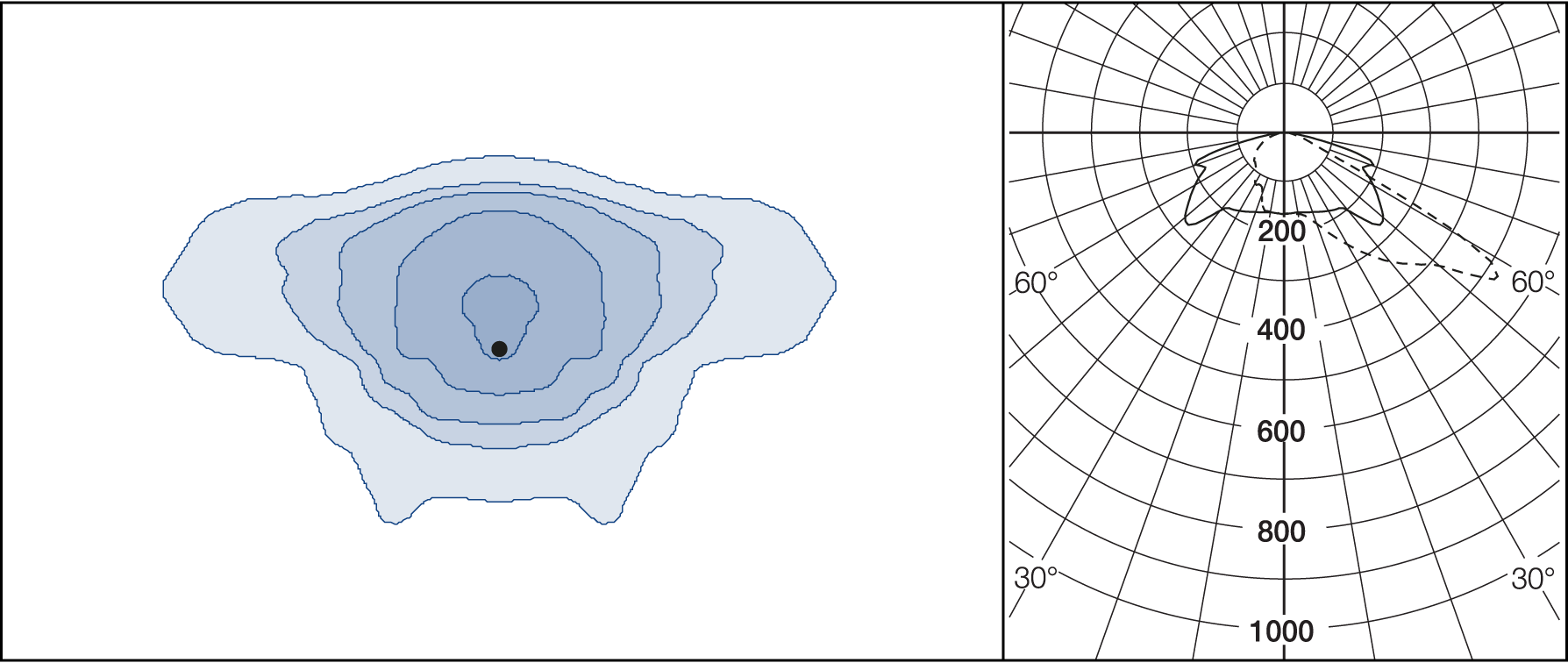

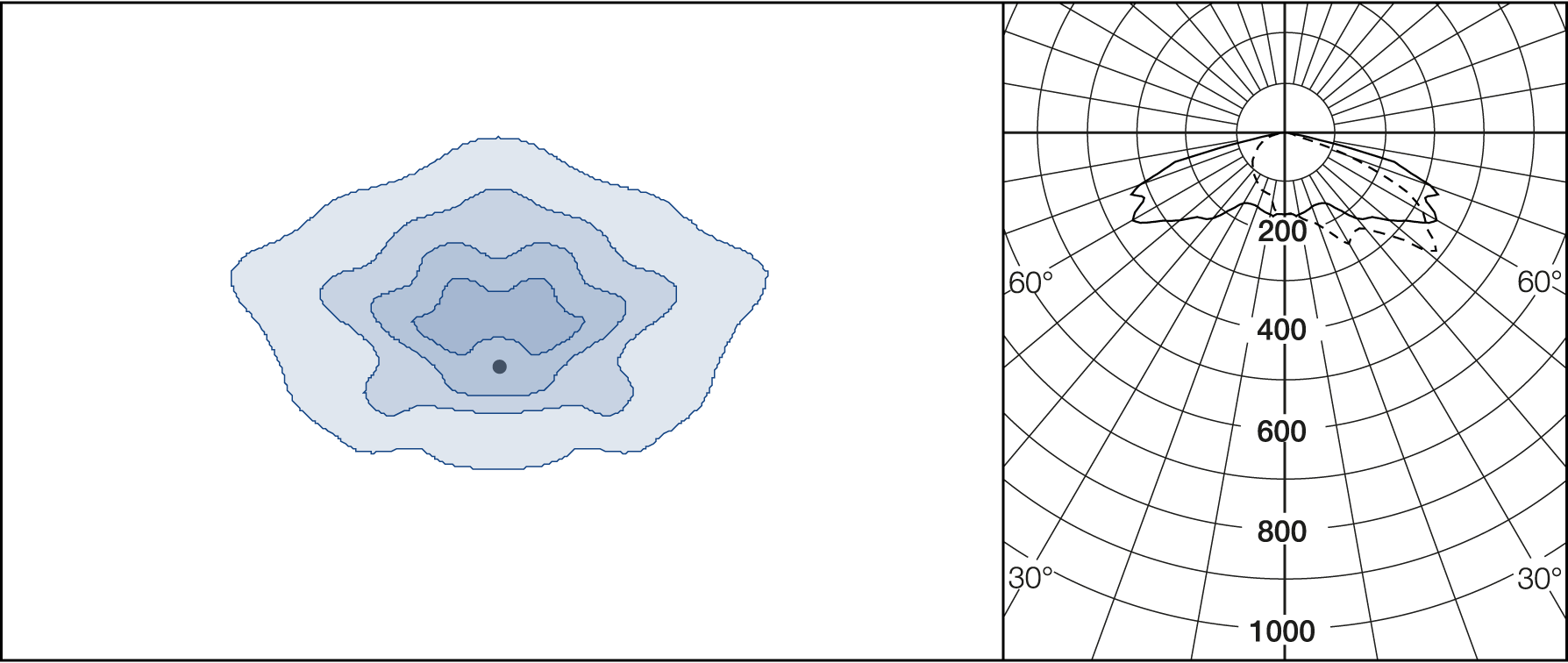

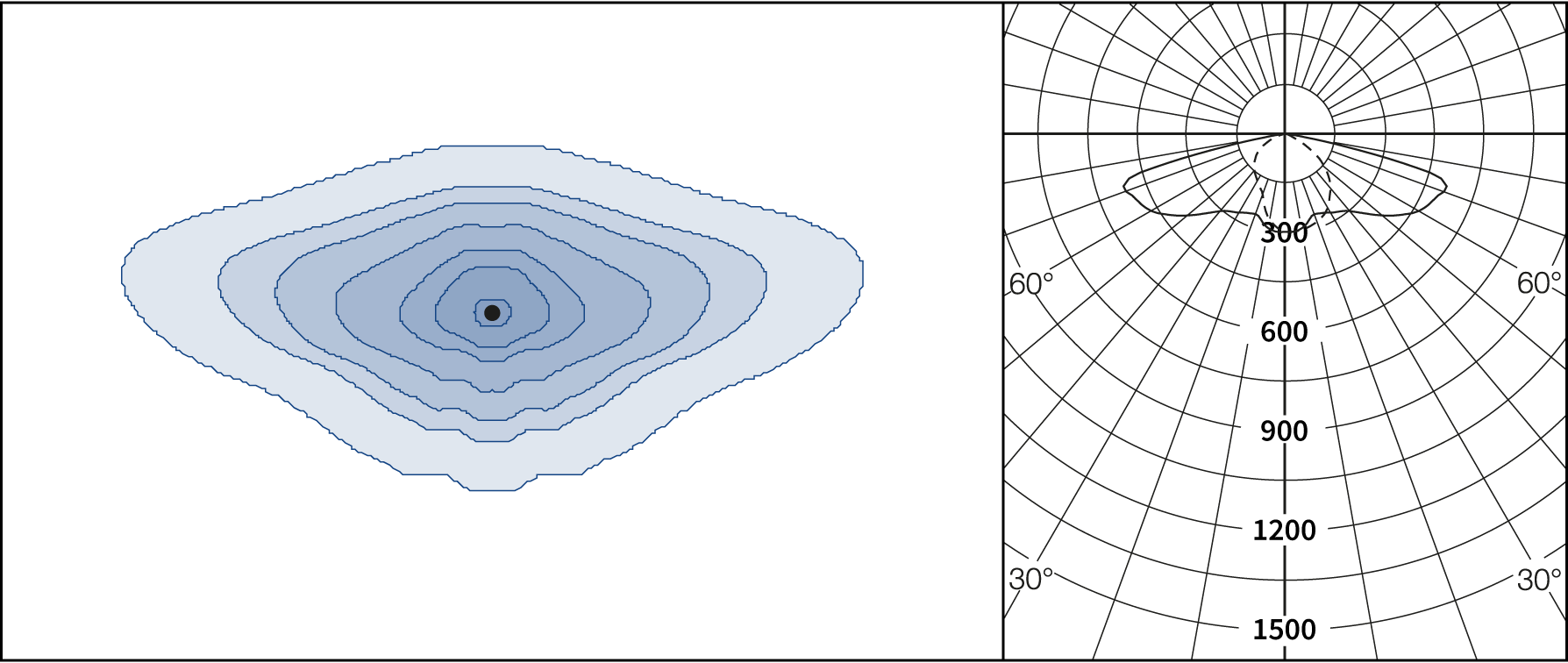

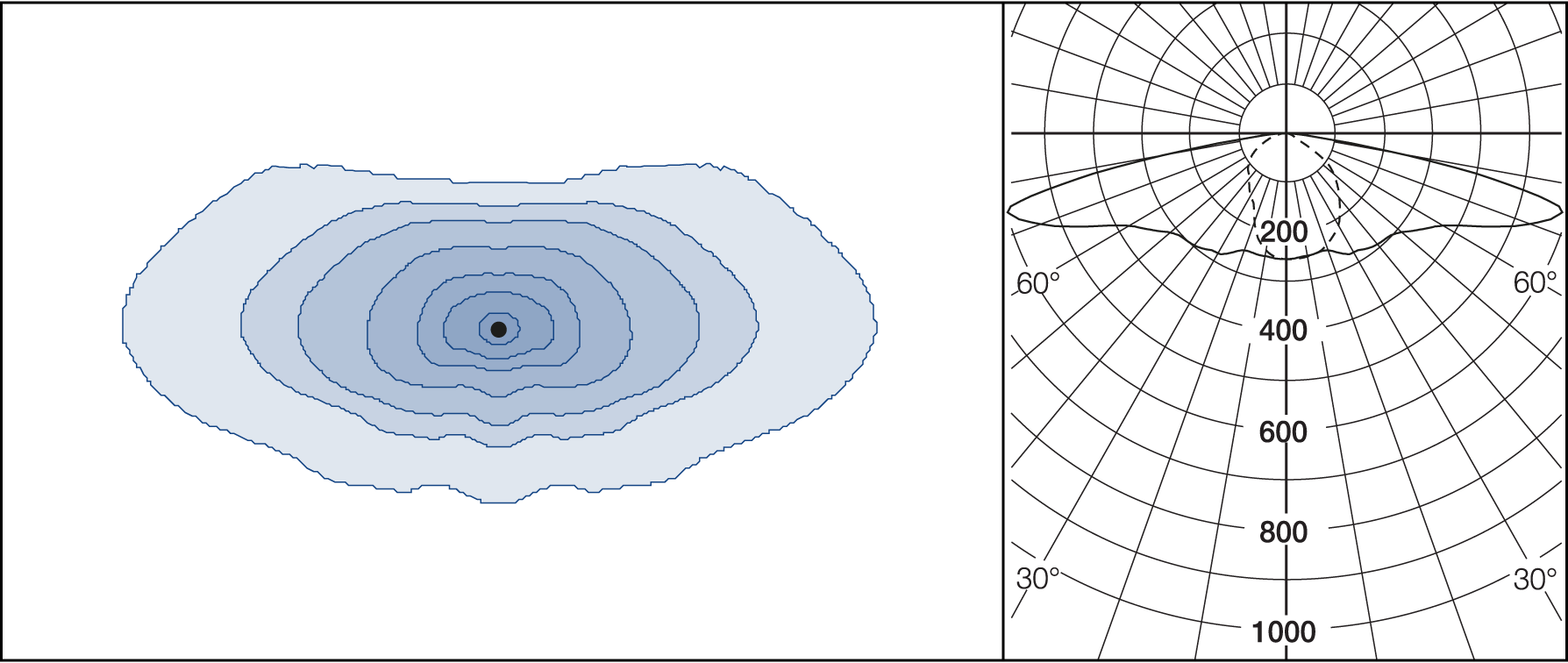

AGC-lenses (Advanced Glare Control). The E-lens are designed to focus on illuminance. L lenses are ideal if the luminance from the ground is the main priority.
Dimming
Citygrid – PIR sensors with presence detection. Wireless communication via radio protocol.
Citygrid Linked – a wireless system for one or more luminaires. Can be up-graded to Citygrid Connected.
Citygrid Connected – a web-based solution with the ability to remotely control and review the lighting via a cloud hosted gateway which interacts with the installation. An additional subscription is required.
Citygrid-products, see accessories.
Night-time dimming 2 – dims down for eight hours.
Other options for night-time dimming and DALI version are available on request.
Designed by
ÅF Lighting and Tuxen Design.
Standard colour
Alu-grey (RAL 9006, semi-gloss).
Anthracite grey (Gris 900 Sablé), black (RAL 9005) or white (RAL 9010, semi-gloss) on request.
LED-information
Driver with integrated surge protection (DM: 6 kV. CM: 8 kV).
Extra surge protection (DM and CM: 10 kV) available on request.
Miscellaneous
Available in Classes 1 and 2.
Luminaire with Zhaga D4i-certified driver on request. NEMA socket on request.
CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.
Media
Vialume 1
Vialume 1
Vialume 1
Vialume
A Nordic expression – several areas of applicationTaking inspiration from the beautiful Nordic light, we created Vialume 1 – Fagerhult’s first self-manufactured post top luminaire for city streets, smaller roads and car parks....
More about the family VialumeOther products
Document
Customise with Fagerhult Configure
Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.
- Adapt and optimise the luminaire
- Download unique data sheet and light data files
- To order, contact your sales representative
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
 | Spigot for post arm Ø 48 mm | Alu-grey (RAL 9006, gloss 50) | 309906 |
 | Double post-top bracket for Vialume 75 | Double post-top bracket for Ø 60 mm post top. Alu-grey. | 309907 |
 | Spigot for post arm Ø 60 mm | Spigot for post arm Ø 60 mm, fits Vialume 75. | 309911 |
 | Glare Shield | Glare Shield 4 LED | 303541 |
 | Wall bracket for Vialume and Opalume | Wall bracket arm Ø 48 (standard). | 303677-235 |
 | Citygrid dongle | Citygrid Dongle is the commissioning tool that in combination with the Citygrid Configuration app, enables the configuration of a Citygrid installation. | 86490 |
 | Citygrid Gateway | Citygrid Gateway is the bridge between the luminaire's Citygrid controllers and the cloud, which enables data to be displayed on the Citygrid Dashboard. Comes with the Citygrid Gateway Cabinet Kit with 2-wire 1.5 m cable for mounting in electrical cabinets. | 86495 |
|
| Citygrid On Pole mounting kit for gateway | Citygrid Gateway Pole Kit with 2-wire 8 m cable. Enables mounting on poles. | 86496 |
