Vialume 2

A bigger, more powerful post luminaire with a soft, organic shape. AGC lenses for excellent lighting properties and advanced optics designed to be used as road lighting on highways, wider main roads and in large parking lots. CLO for output consistency

Installation

Post top luminaire which in its standard design can be mounted on a Ø 60 mm post arm bracket. Accessories for other mounting options are ordered separately, see Accessories. Variable tilting function ± 10º for perfect installation. Post height 8-15 m.

Connection

Halogen free connection cable 3x1.5 mm² type FQQ. Delivered with 15,5 m cable. DALI version available on request, delivered with a 5-pin cable. Other cable versions on request.

Design

Body and post bracket in cast aluminium. Aluminium-zinc coated stainless screws. Driver is integrated in the luminaire. Hardened flat glass.

Optics

AGC-lenses (Advanced Glare Control). The E-lens are designed to focus on illuminance. L lenses are ideal if the luminance from the ground is the main priority.

Dimming

Citygrid – PIR sensors with presence detection. Wireless communication via radio protocol.
Citygrid Linked – a wireless system for one or more luminaires. Can be up-graded to Citygrid Connected.
Citygrid Connected – a web-based solution with the ability to remotely control and review the lighting via a cloud hosted gateway which interacts with the installation. An additional subscription is required.
Citygrid-products, see accessories.
Night dimming or DALI version available on request.

Designed by

ÅF Lighting och Tuxen Design.

Standard colour

Alu-grey (RAL 9006, semi-gloss).
Anthracite grey (Gris 900 Sablé), black (RAL 9005) or white (RAL 9010, semi-gloss) on request.

LED-information

DALI version is equipped with NTC, over-heat protection.
Driver with integrated surge protection (DM: 6 kV. CM: 8 kV).
Extra surge protection (DM and CM: 10 kV) available on request.

Miscellaneous

Available in Classes 1 and 2.
Luminaire with Zhaga D4i-certified driver on request. NEMA socket on request.

CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.

Media

Vialume 2 back

Vialume 2 back

Vialume 2 under

Vialume 2 under

Vialume 2 long

Vialume 2 long

Vialume 2 – Installation

Vialume

A Nordic expression – several areas of application

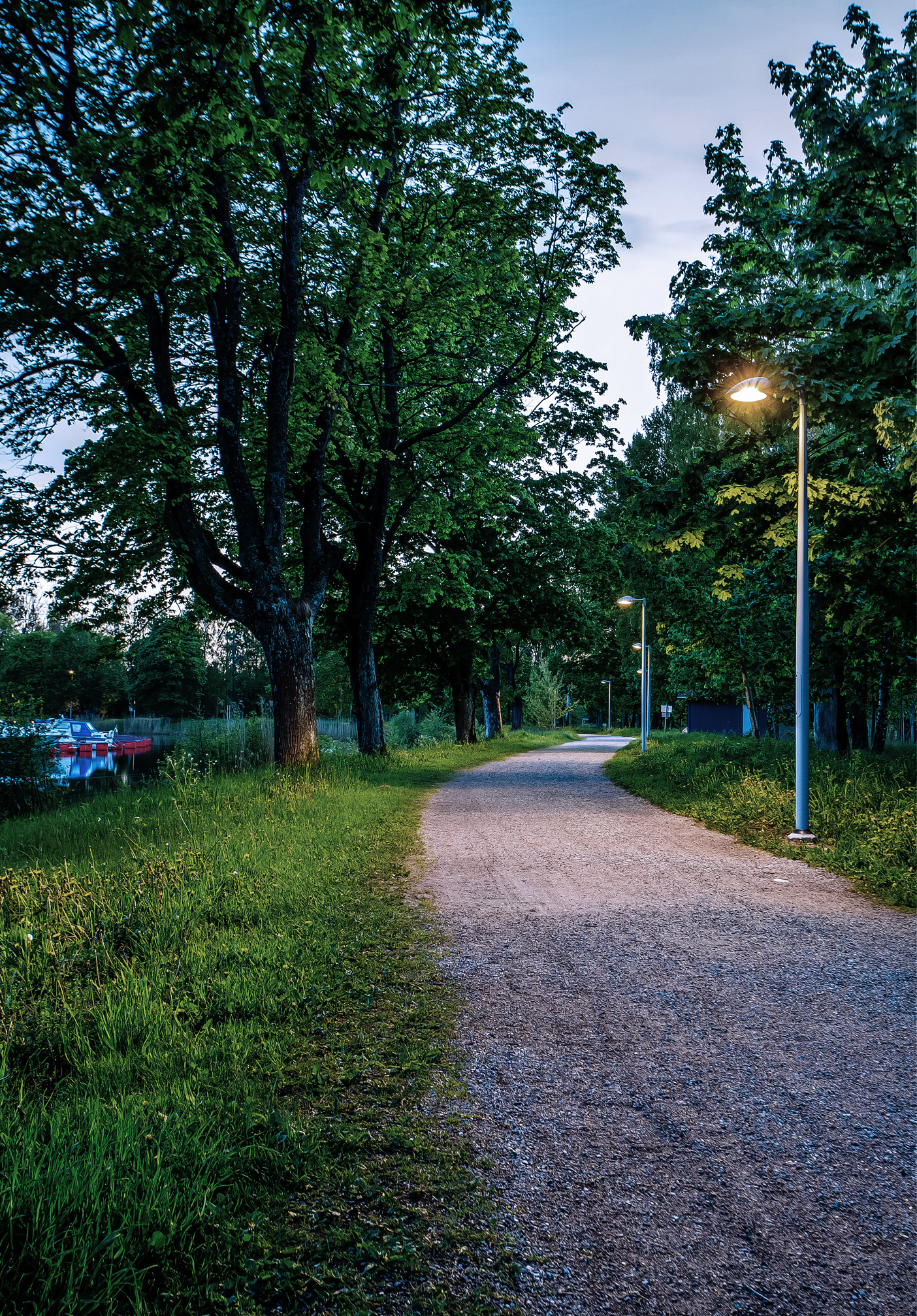

Taking inspiration from the beautiful Nordic light, we created Vialume 1 – Fagerhult’s first self-manufactured post top luminaire for city streets, smaller roads and car parks....

More about the family Vialume

Document

Customise with Fagerhult Configure

Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.

  • Adapt and optimise the luminaire
  • Download unique data sheet and light data files
  • To order, contact your sales representative
Start configuration

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
Bracket for Vialume 2 Bracket for Ø 60 mm post top. Alu-grey. 303858
Bracket for Vialume 2 Bracket for Ø 76 mm post top. Alu-grey. 303859
Citygrid dongle Citygrid Dongle is the commissioning tool that in combination with the Citygrid Configuration app, enables the configuration of a Citygrid installation. 86490
Citygrid On Pole The Citygrid On Pole unit enables all luminaires to be integrated into a Citygrid network. The unit is mounted on a pole and connects to the luminaire via cabling behind the pole cover plate. 86492
Citygrid Gateway Citygrid Gateway is the bridge between the luminaire's Citygrid controllers and the cloud, which enables data to be displayed on the Citygrid Dashboard. Comes with the Citygrid Gateway Cabinet Kit with 2-wire 1.5 m cable for mounting in electrical cabinets. 86495
Citygrid On Pole mounting kit for gateway Citygrid Gateway Pole Kit with 2-wire 8 m cable. Enables mounting on poles. 86496
