Vialume 1 Crossing
21811 Vialume 21811

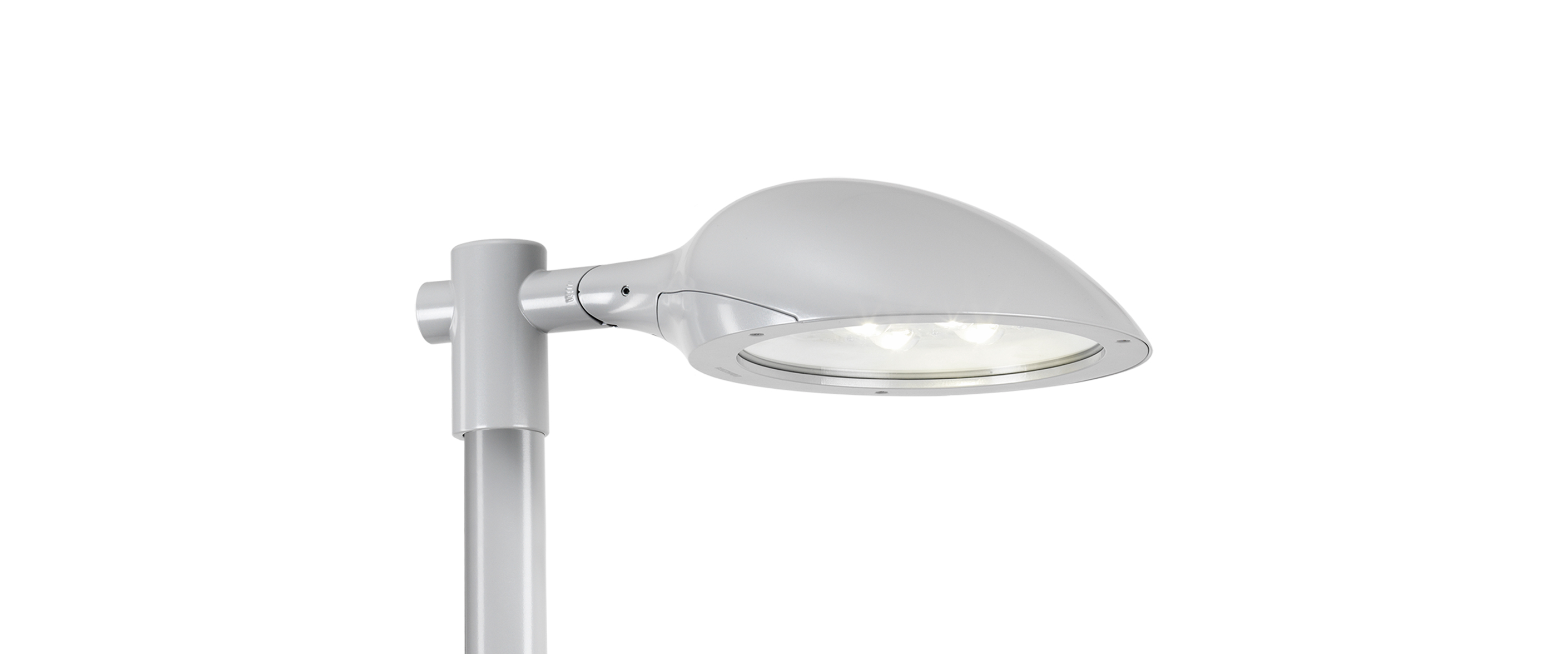

A post top luminaire with lenses specially developed for crossings (right-hand traffic). CLO for output consistency as standard.
Installation
Post top luminaire which in its standard design is mounted on a Ø 48 mm post arm bracket. 60 mm post top bracket supplied with luminaire. For other mounting types and other options, see Accessories which are ordered separately. Variable tilting function ± 15º for perfect installation. Post height 5–8 m.
Connection
Connection cable 10 m 3x1,5 mm² type H07RN-F. DALI version available on request, delivered with a 5-pin cable. Other cable versions on request.
Design
Body and post bracket in cast aluminium. Aluminium-zinc coated stainless screws. Driver is integrated in the luminaire. Hardened flat glass IK09. PMMA diffuser with IK10 on request.
Optics
The lenses are specially developed for crossings (right-hand traffic).
Dimming
DALI version is available on request.
Designed by
ÅF Lighting and Tuxen Design.
Standard colour
Alu-grey (RAL 9006, semi-gloss).
Anthracite grey (Gris 900 Sablé), black (RAL 9005) or white (RAL 9010, semi-gloss) on request.
LED-information
DALI version is equipped with NTC, over-heat protection.
Driver with integrated surge protection (6 kV).
Extra surge protection (10 kV) available on request.
Miscellaneous
Luminaire with Zhaga D4i-certified driver on request. NEMA socket on request.
CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.
Vialume
A Nordic expression – several areas of applicationTaking inspiration from the beautiful Nordic light, we created Vialume 1 – Fagerhult’s first self-manufactured post top luminaire for city streets, smaller roads and car parks....
More about the family VialumeOther products
Document
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |

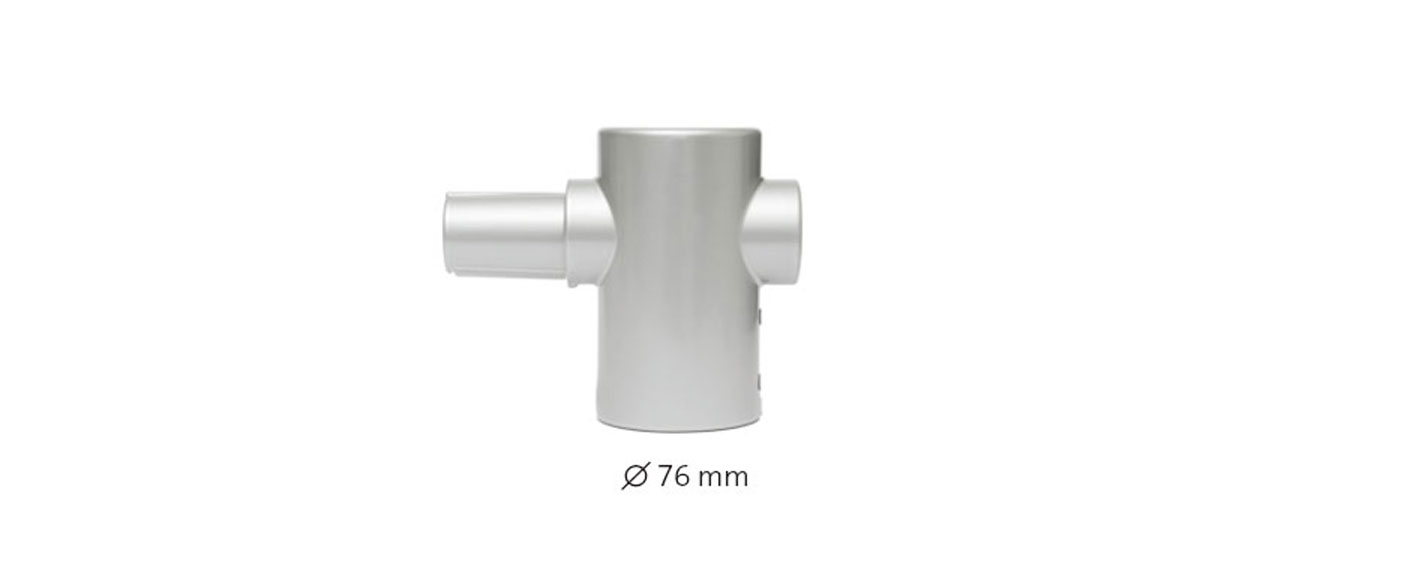

 | Bracket for Vialume 1 | Bracket for Ø 76 mm post top. Alu-grey. | 309902 |

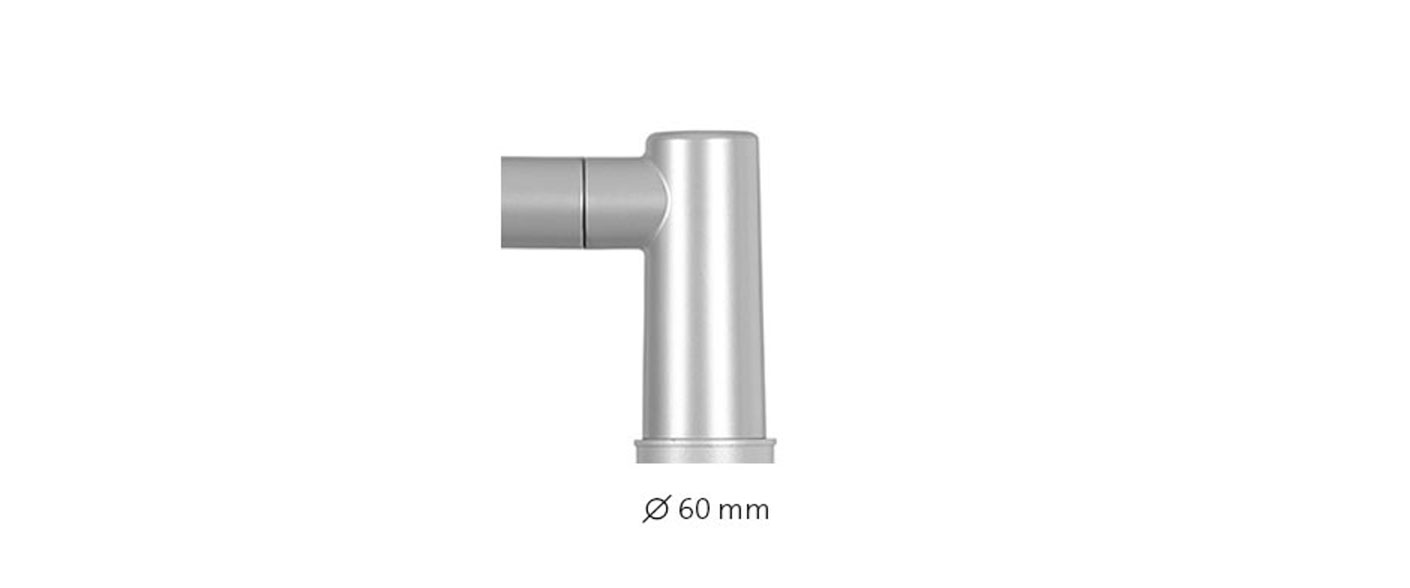

 | Bracket for Vialume 1 | Bracket for Ø 60 mm post top. Alu-grey. | 309901 |

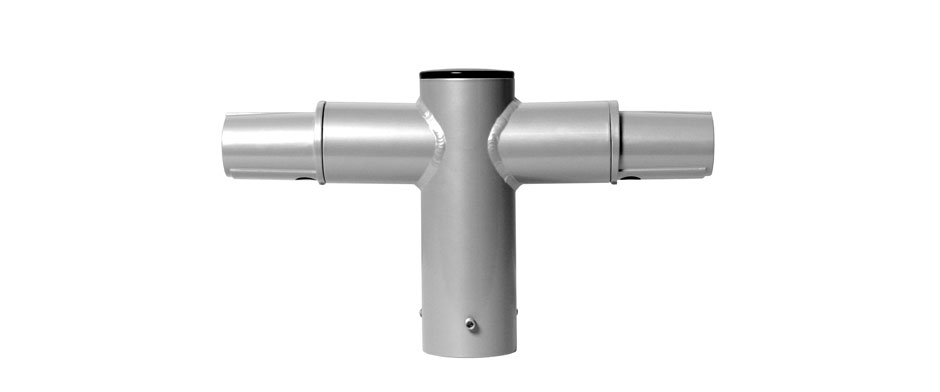

 | Double post-top bracket for Vialume 1 | Double post-top bracket for Ø 76 mm post top. Alu-grey. | 309904 |
|
| Double post-top bracket for Vialume 1 | Double post-top bracket for Ø 60 mm post top. Alu-grey. | 309903 |

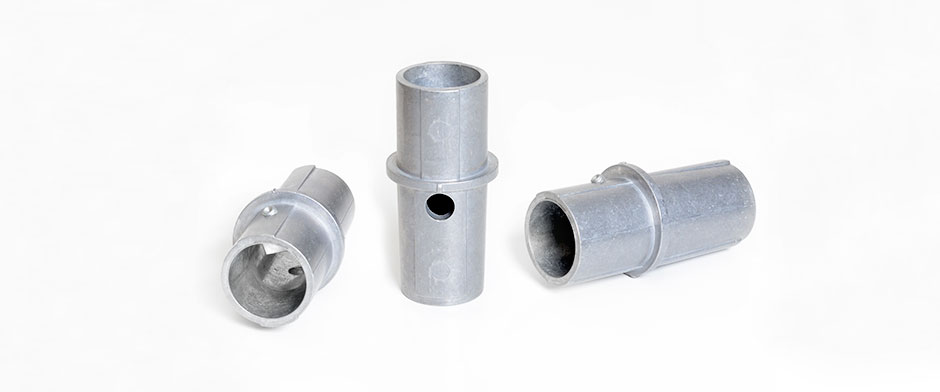

| Spigot for post arm Ø 60 mm | Anthracite grey (Gris 900 Sablé). | 301050-329 |
|
| Spigot for post arm Ø 60 mm | Alu-grey (RAL 9006, gloss 70). | 301050-235 |
|
| Spigot for post arm Ø 60 mm | Black (RAL 9005) | 301050-230 |
|
| Spigot for post arm Ø 60 mm | White (RAL 9010, gloss 50) | 301050-311 |
 | Spigot for post arm Ø 60 mm | Untreated | 301050 |
 | Wall bracket for Vialume and Opalume | Wall bracket arm Ø 48 (standard). | 303677-235 |
Light distribution Vialume 1 Crossing
