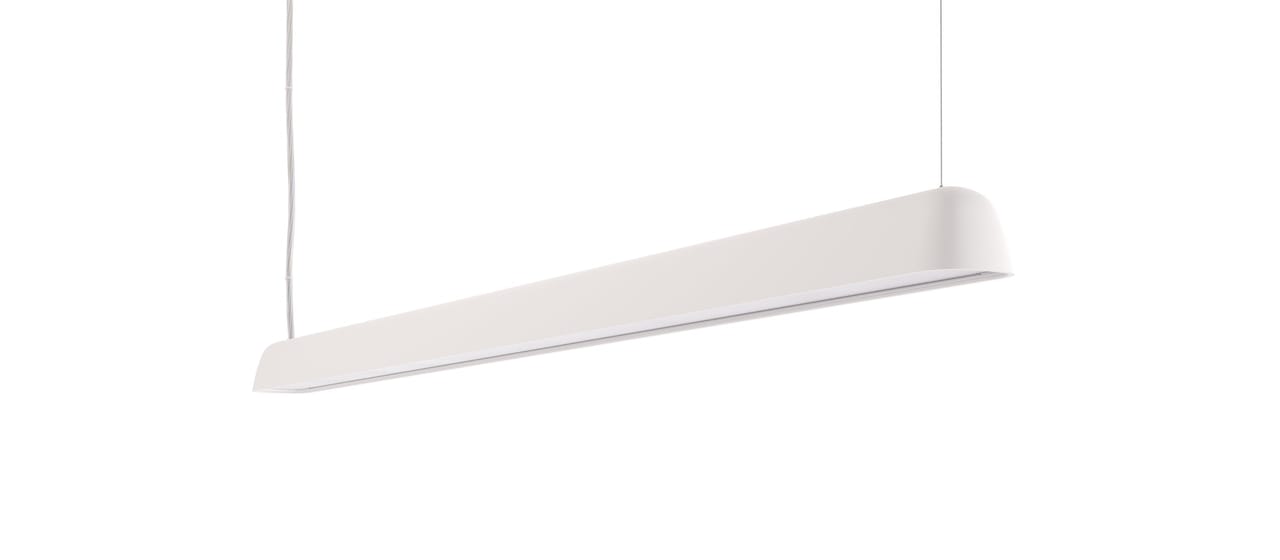

16055-20008 Scoot linear

Light distribution

Direct/indirect

Colour

White

Lumen output

4721

CLO function active

Yes

CLO time, h

50000

lm/W

129

CCT, K

3000

CRI

80

SDCM

3

Melanopic DER

0.450

Lumen maintenance 50 000 h

L100

Lumen maintenance 75 000 h

L85

Lumen maintenance 100 000 h

L81

Lumen maintenance L100 B50, h

50000

LED driver, h/max failure %

100000/10

LED driver, 2 h/max failure %

100000/10

Energy class, LED module

C

Light control

DALI

Driver brand

Osram

Power on last level

Yes

Corridor function

Yes

Switch control, max no.

10

AM

Yes

PWM

Yes

PWM, min Hz

450

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

20

Start W

37

End W

40

Average W

38.5

Stand by W

0.3

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

25

MCB B10A, pcs

7

MCB B16A

11

MCB C10A

11

MCB C16A

19

THD, %

17

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Power factor, 100 %

0.92

Length, mm

1294

Width, mm

73

Height, mm

59

Weight, kg

2.900
